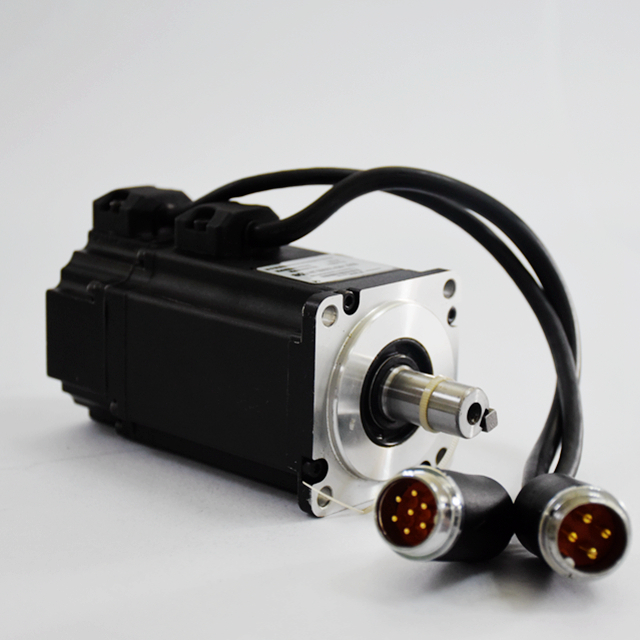

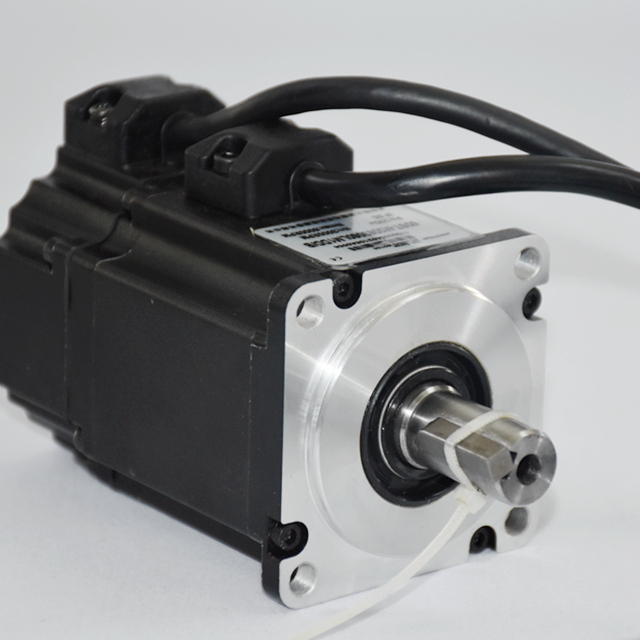

LEE/HEE 60/80 Flange servo motor 220V&380V 0.32-4Nm 0.1-1.3kw
Short Description:
Hxdwh is the first factory specializing in the production of AC servo motor in China, with more than 30 years of R & D and production history of servo motor; Frame size -mm :60 80 Rated torque -NM : 0.32-4 Rated power -Kw : 0.1-1.3 Rated speed -RPM : 3000 Maximum speed -RPM : 6000
Introduction of Hxdwh AC servo motor:
1. Hxdwh is the first factory specializing in the production of AC servo motor in China, with more than 30 years of R & D and production history of servo motor;
2. Complete product specifications, motor power from 0.1KW to 11.7kw (220v-380v);
3. Stable quality, excellent performance and high cost performance. The products are widely used in various occasions of motion control.

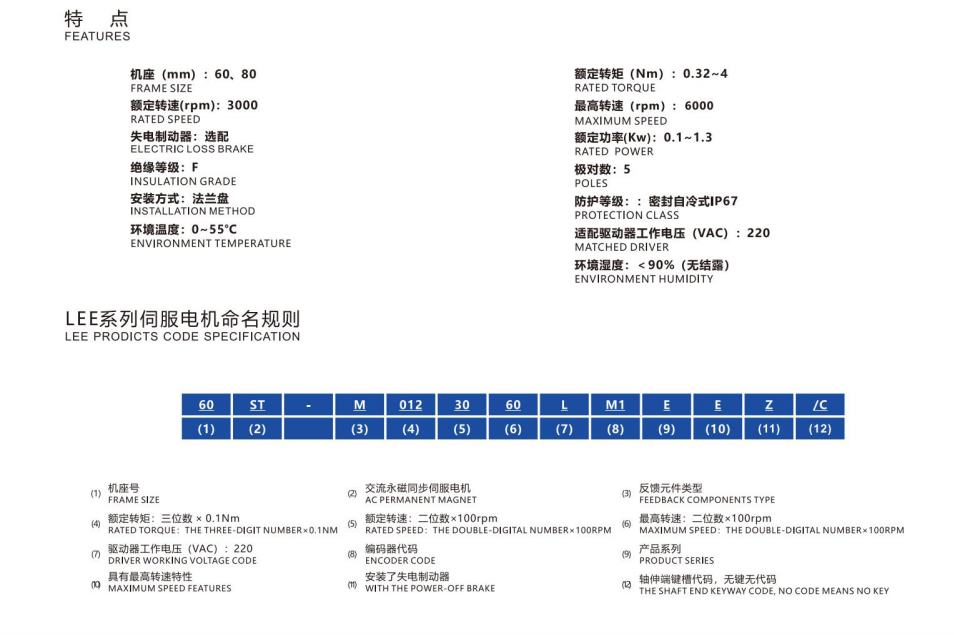

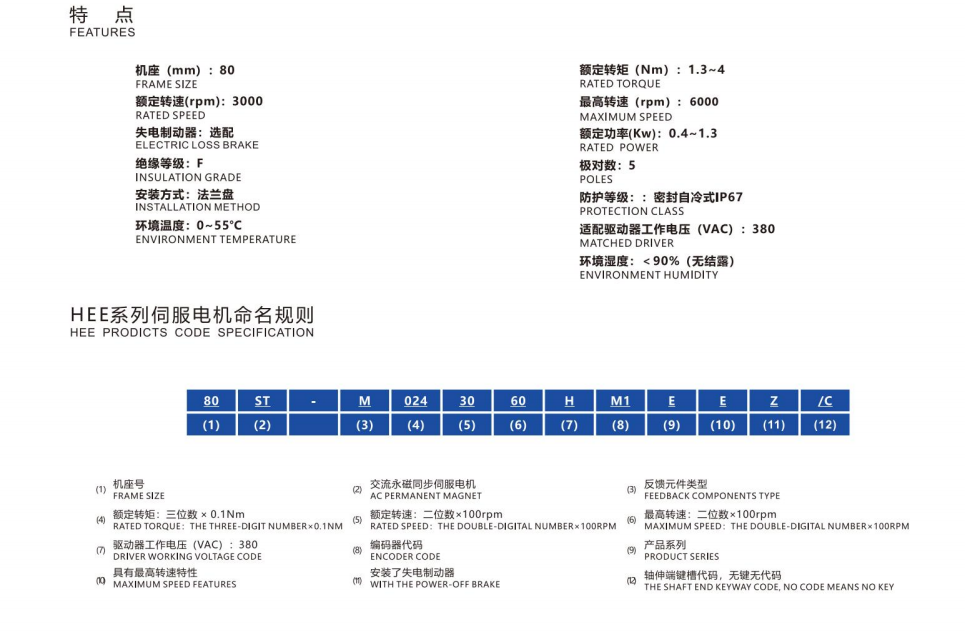

Product series:

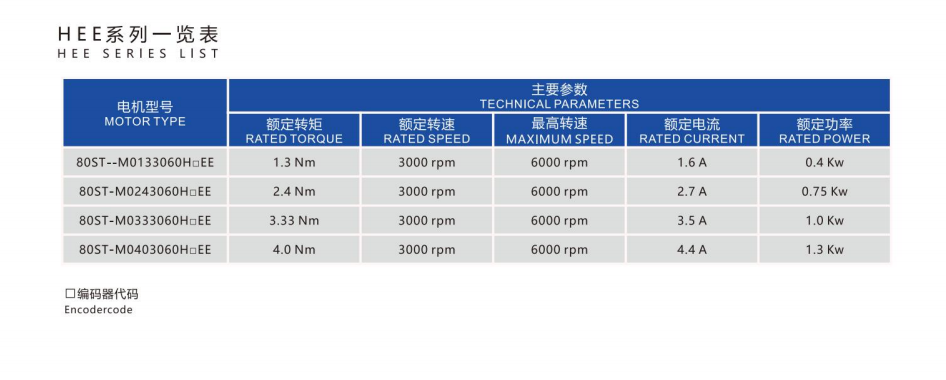

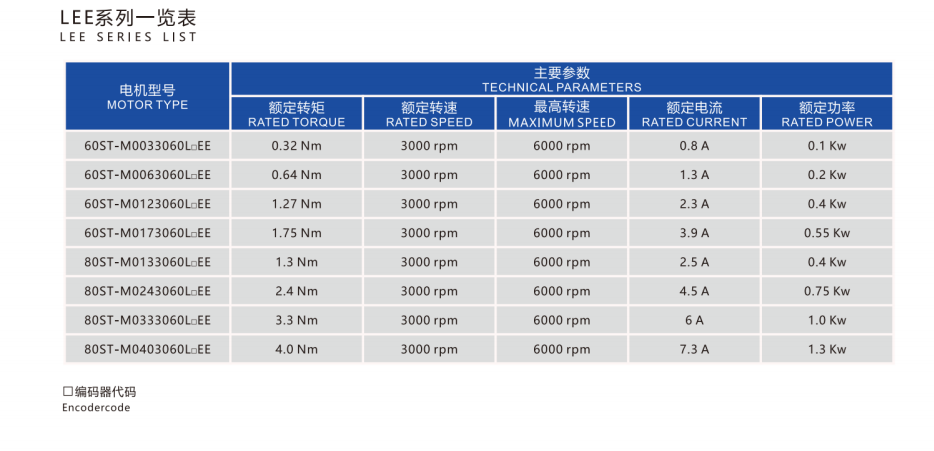

LEE/HEE Series ac servo motor

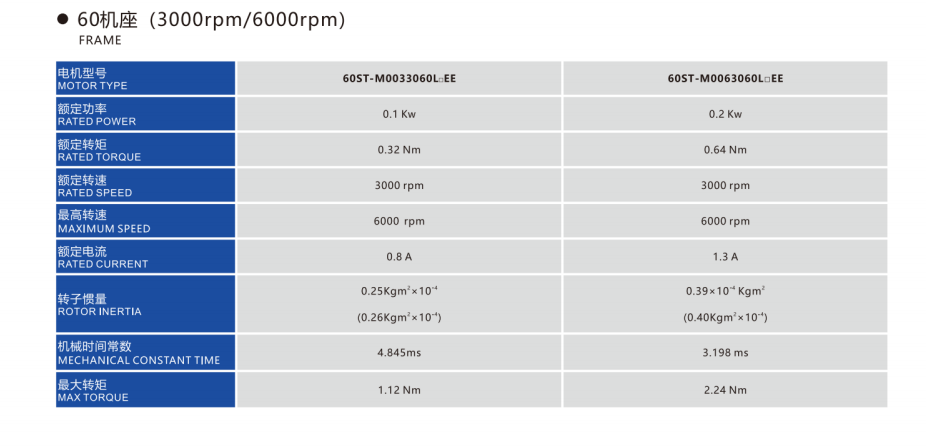

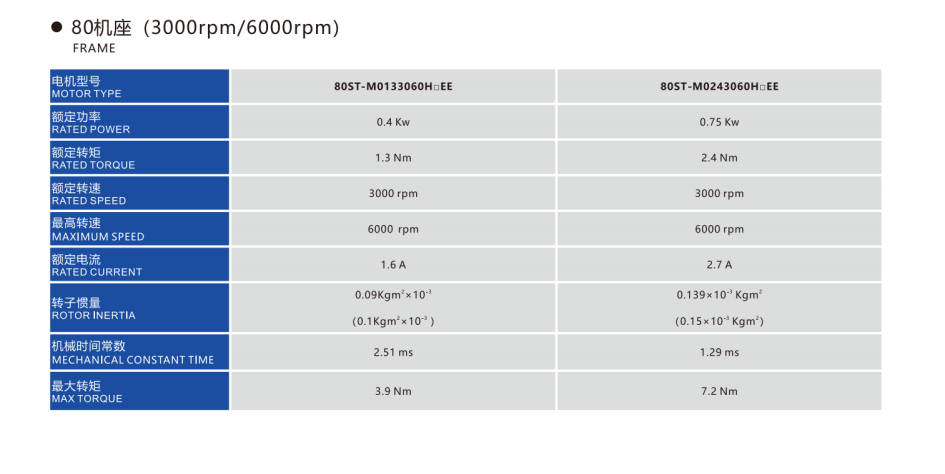

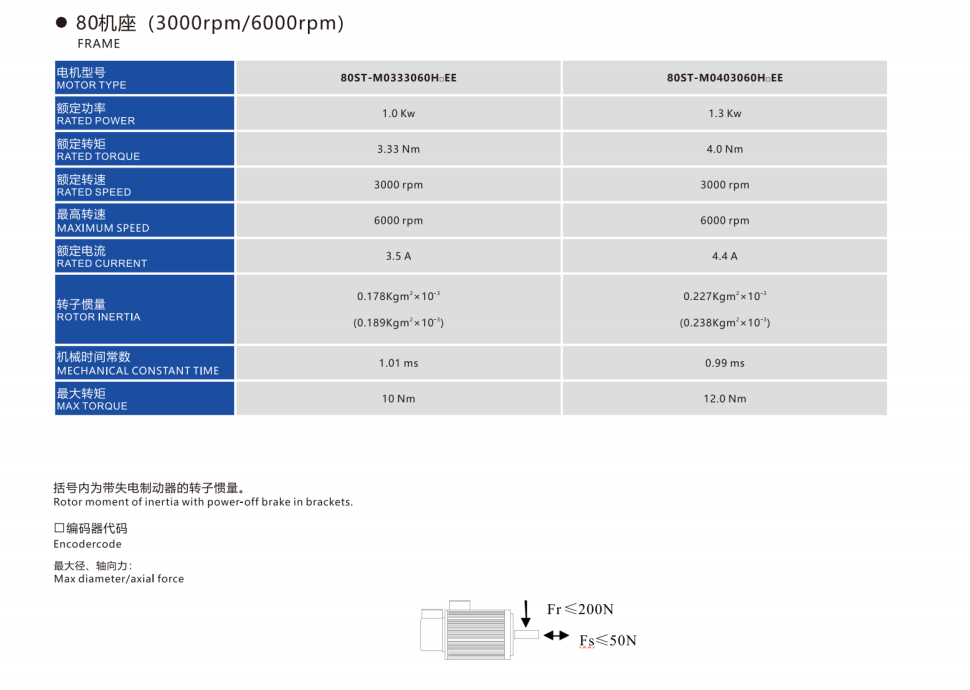

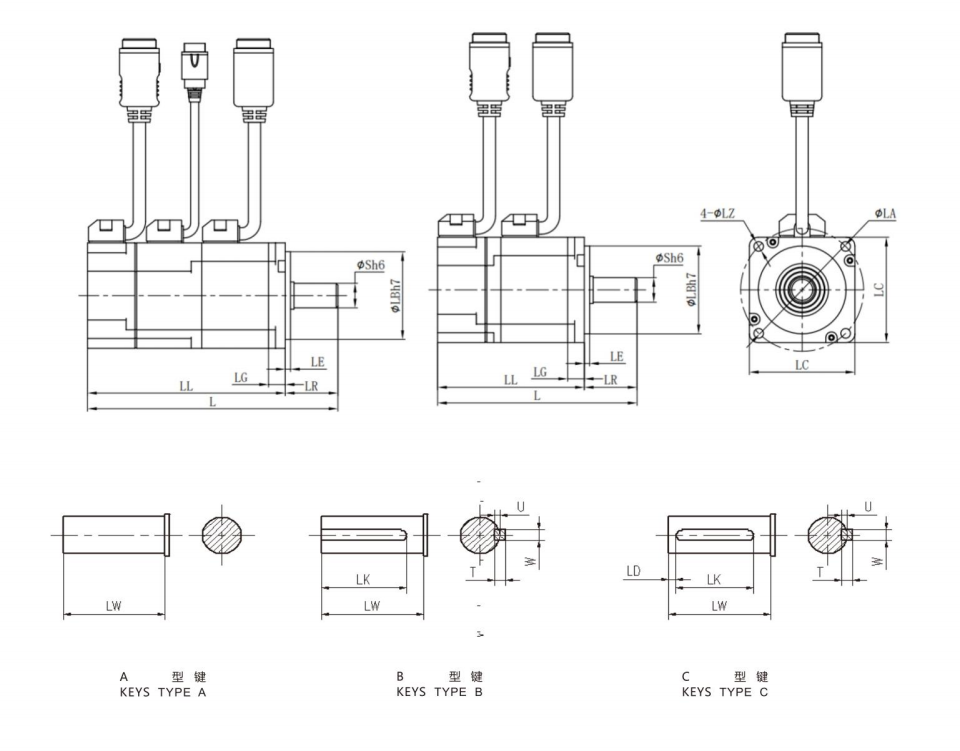

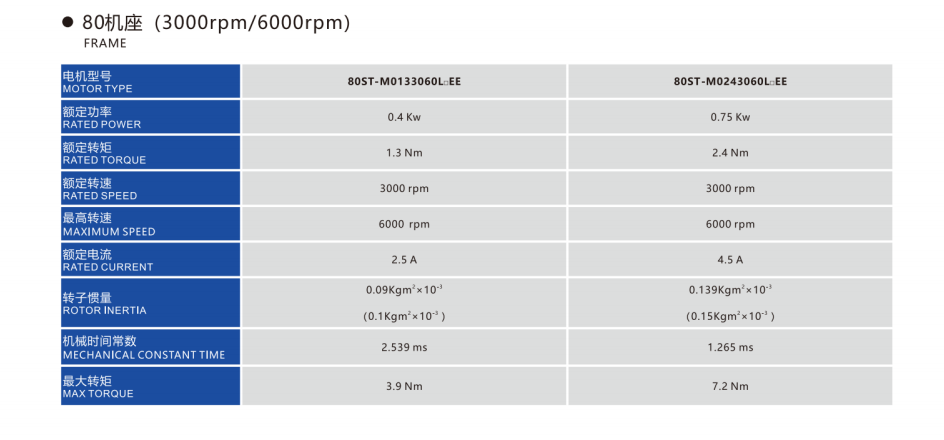

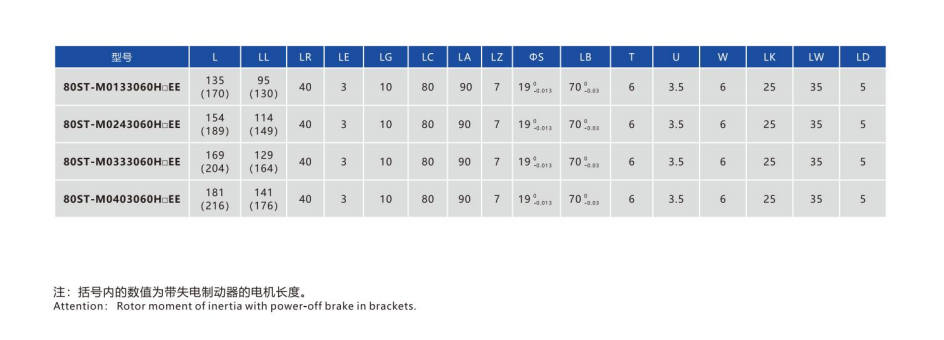

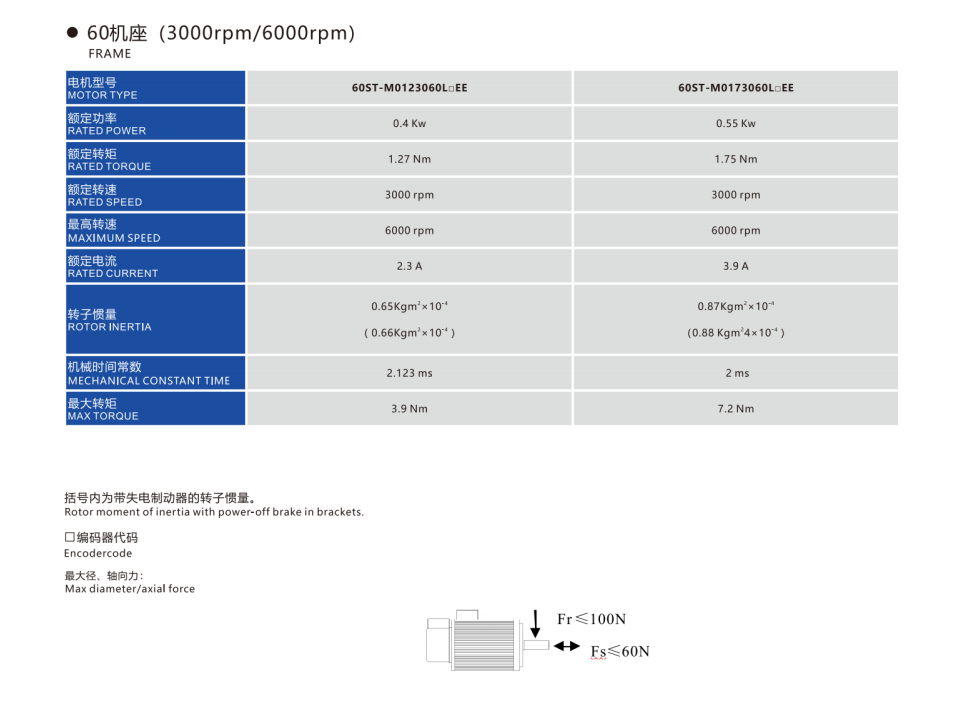

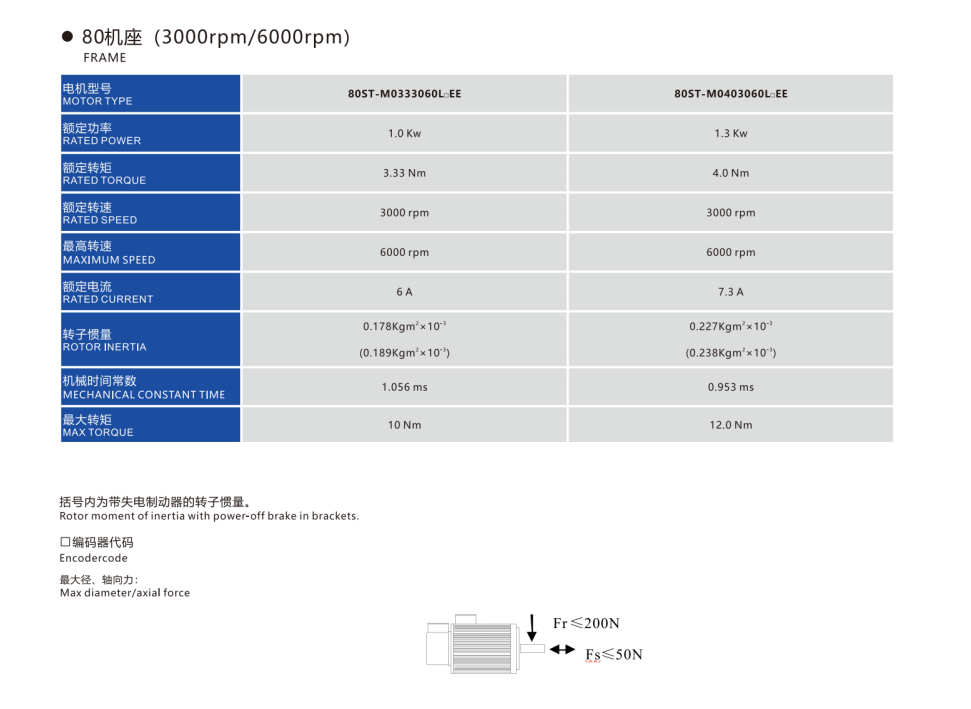

Frame size -mm :60 80
Rated torque -NM : 0.32-4
Rated power -Kw : 0.1-1.3
Rated speed -RPM : 3000
Maximum speed -RPM : 6000
number of pole-pairs:5
The feedback element: Absolute photoelectric encoder (17bit or 23bit)
Electric brake: can match
Fit drive working voltage -VAC : 220V&380V
