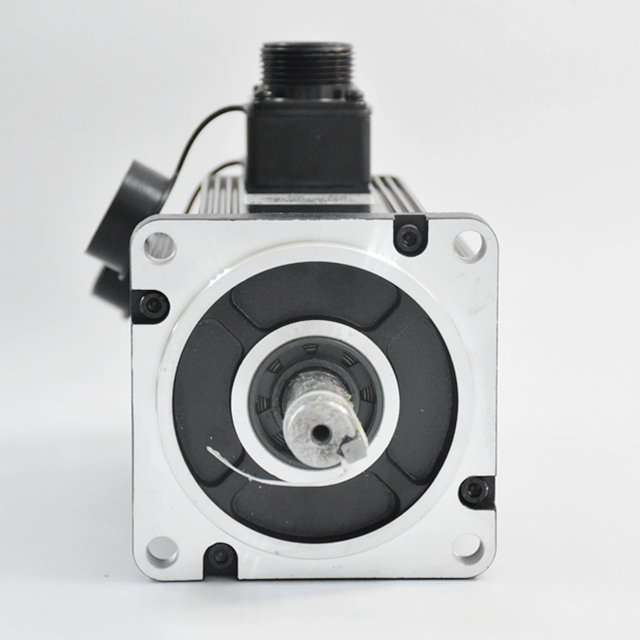

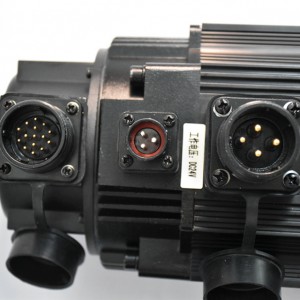

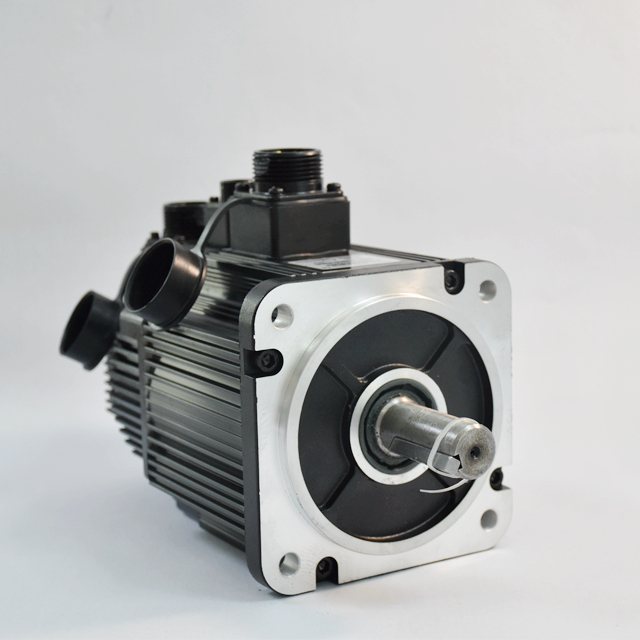

110ST Flange servo motor 0.6-1.6kw 2-6Nm 220V&380V

1. Hxdwh is the first factory specializing in the production of AC servo motor in China, with more than 30 years of R & D and production history of servo motor;

2. Complete product specifications, motor power from 0.2KW to 11.7kw (220v-380v);

3. Stable quality, excellent performance and high cost performance. The products are widely used in various occasions of motion control.

Product series:

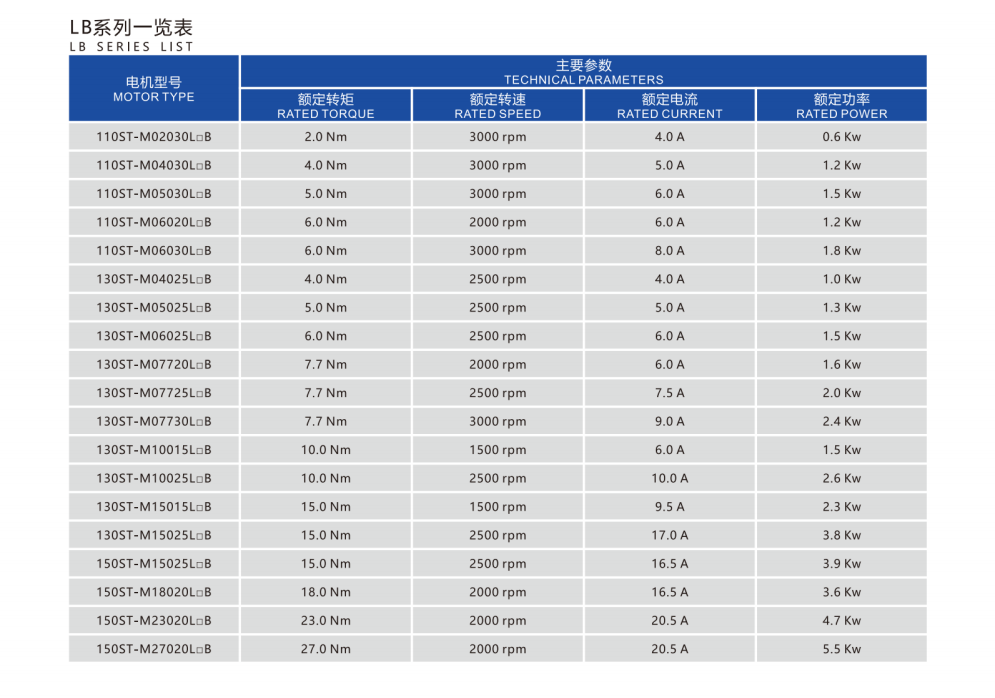

LB&HB Series ac servo motors:

Frame size -mm : 110.130.150.180

Rated torque -NM: 2-55

Rated power -Kw:0.6-8.6

Rated speed -RPM:1500.2000.2500.3000

Maximum speed -RPM:/

number of pole-pairs: 4

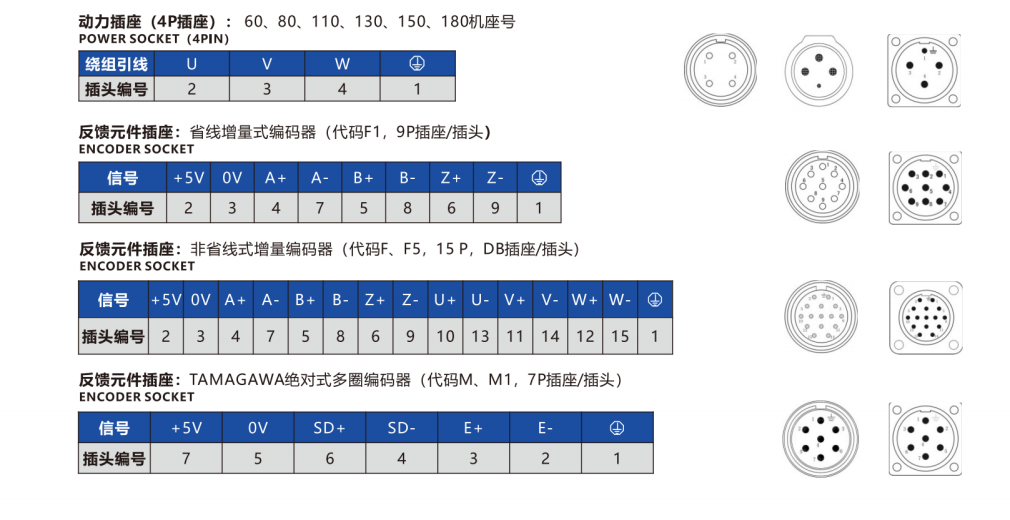

The feedback element: Incremental Encoder 2500C/T

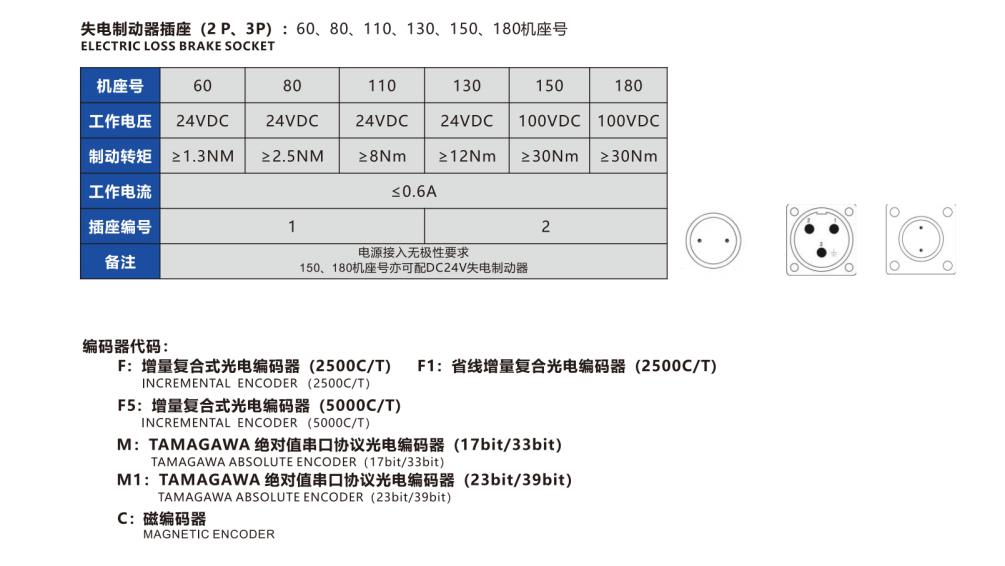

Electric brake: can match

Fit drive working voltage -VA : 220V&380V

HMB Series ac servo motors:

Frame size-mm : 110.130.150.180

Rated torque -NM :4.8-55

Rated power -Kw :0.85-8.6

Rated speed -RPM :1500,2000

number of pole-pairs: 4

The eedback element: Absolute photoelectric encoder (17bit)

Electric brake: can match

Fit drive working voltage -VAC :380&220

Servo Motor  model:

380V-400V HB Series ac servo motor- 2500C/T incremental encoder

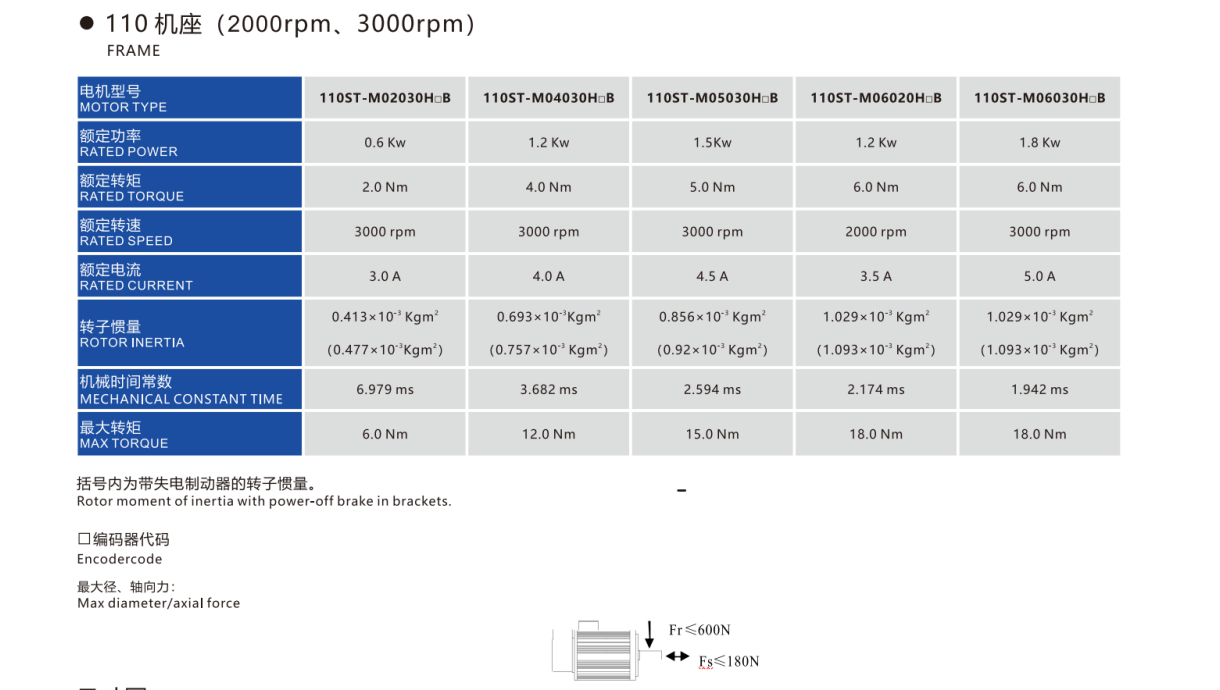

110ST-M02030HFB 380V 0.6KW 3A 2.0NM 3000RPM

110ST-M04030HFB 380V 1.2KW 4A 4.0NM 3000RPM

110ST-M05030HFB 380V 1.5KW 4.5A 5.0NM 3000RPM

110ST-M06020HFB 380V 1.2KW 3.5A 6.0NM 2000RPM

110ST-M06030HFB 380V 1.8KW 5A 6.0NM 3000RPM

380V-400V HMB Series ac servo motor- 17bit absolute encoder motor

110ST-M02030HMB 380V 0.6KW 3A 2.0NM 3000RPM

110ST-M04030HMB 380V 1.2KW 4A 4.0NM 3000RPM

110ST-M05030HMB 380V 1.5KW 4.5A 5.0NM 3000RPM

110ST-M06020HMB 380V 1.2KW 3.5A 6.0NM 2000RPM

110ST-M06030HMB 380V 1.8KW 5A 6.0NM 3000RPM

Application of servo motor:

Servo motor for food machinery

Servo motor for cleaning equipment

Servo motor for plastic machinery

Servo motor for rubber machinery

Servo motor for garment machinery
