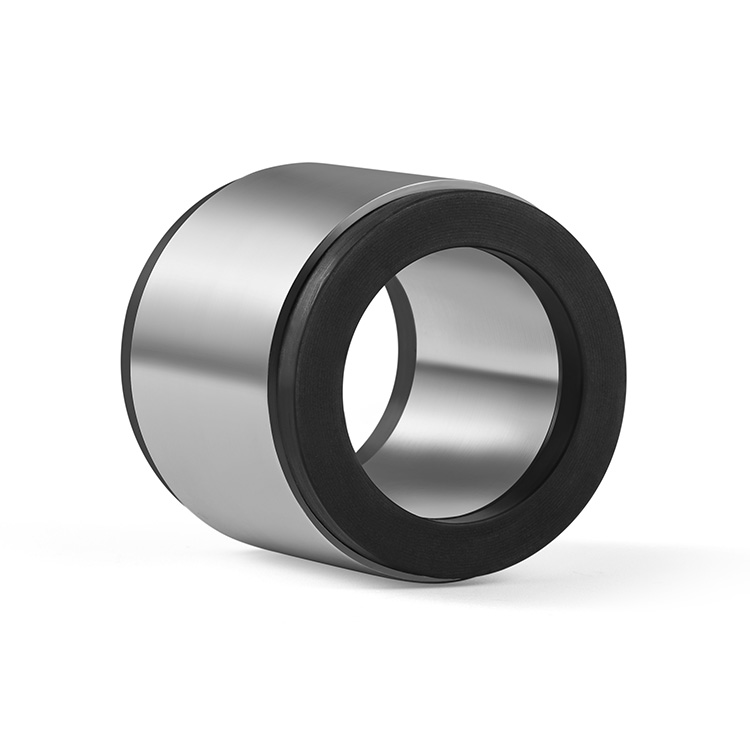

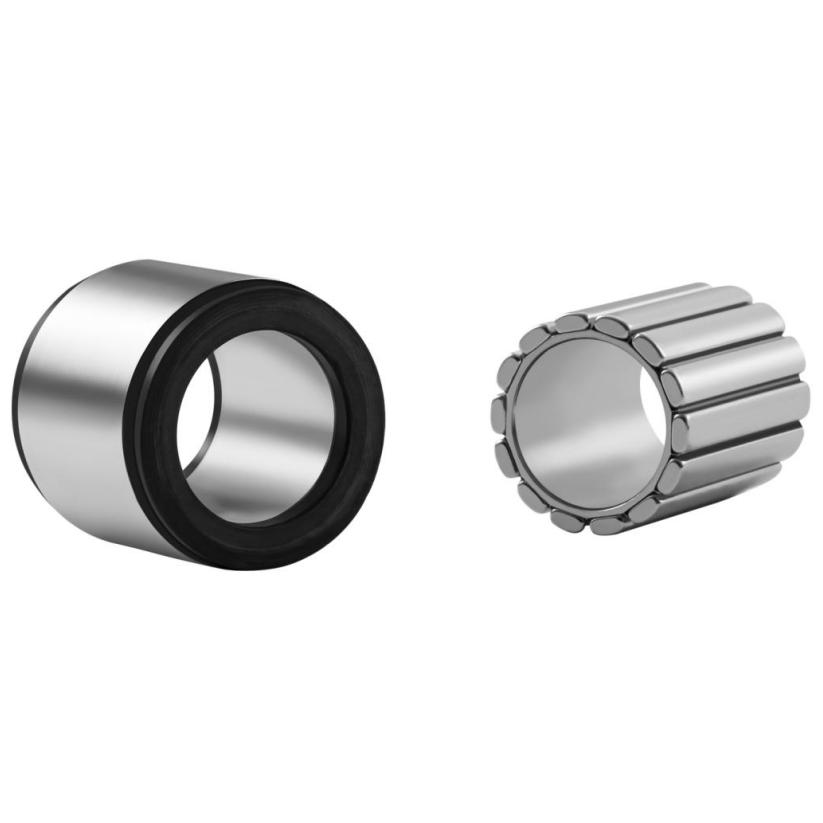

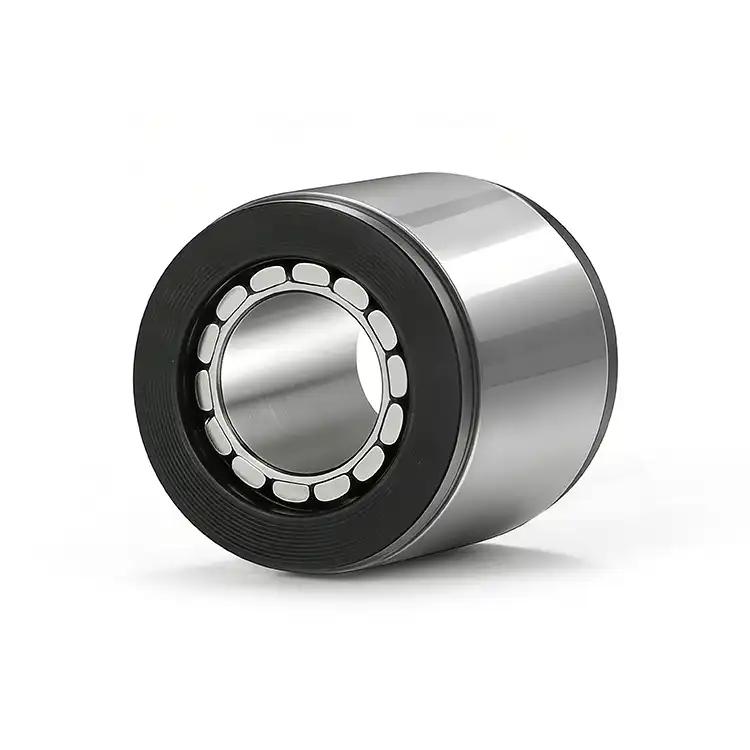

U16, U19 ,U25 series miniature frameless torque motors, Outer diameter:16mm/19mm/25mm, Inner diameter:4mm/7mm/11.6mm, Rated torque : 0.01–0.075Nm, Motor height:10.8–34.9mm.
Short Description:
U16, U19 ,U25 series miniature frameless torque motors, Outer diameter:16mm/19mm/25mm, Inner diameter:4mm/7mm/11.6mm, Rated torque : 0.01–0.075Nm, Motor height:10.8–34.9mm.

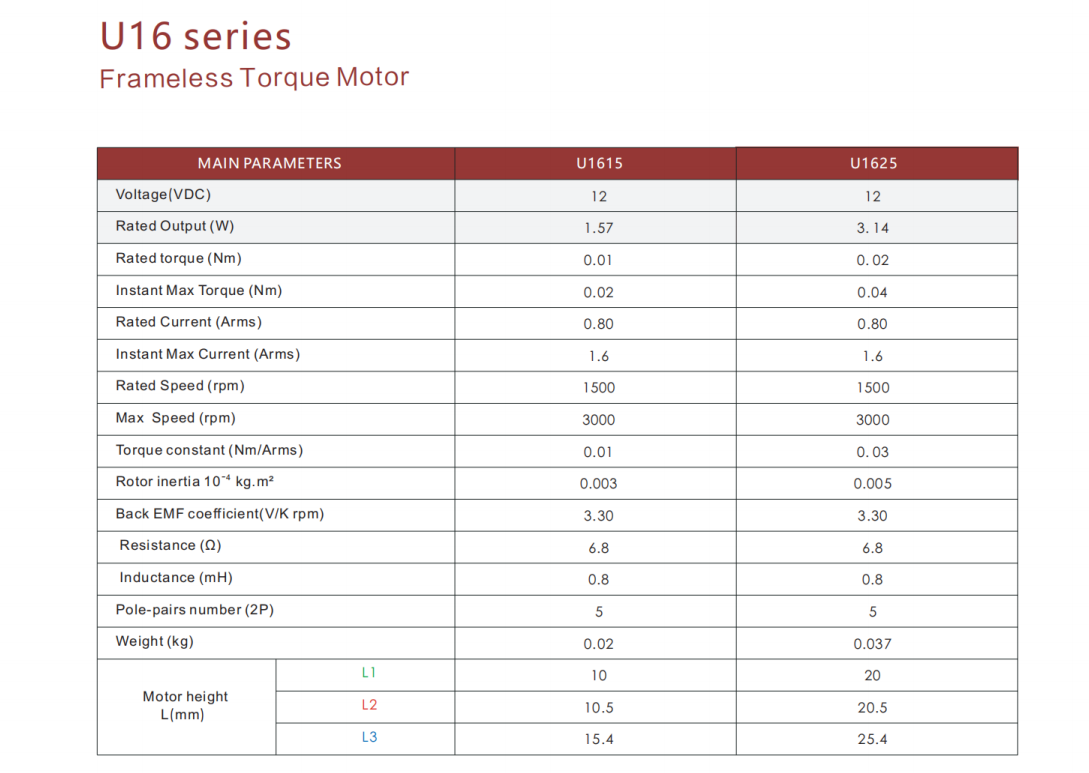

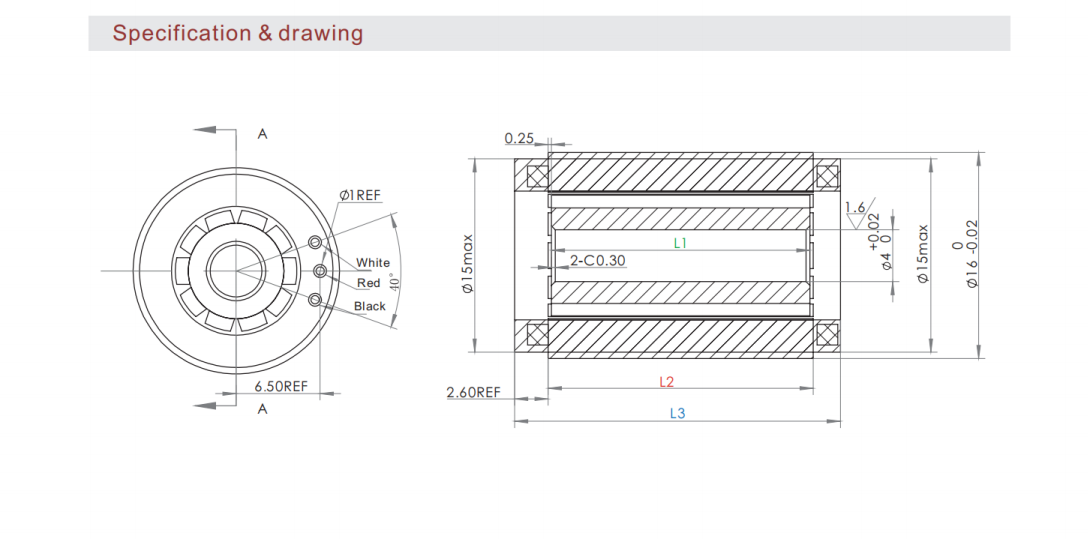

# U16 Series Miniature Frameless Direct-Drive Torque Motor
Optional rated torque: 0.01Nm and 0.02Nm
Optional motor height: 15.4mm and 25.4mm
Outer Diameter (mm): 16
Inner Diameter (mm): 4
Rated Voltage (Vdc): 12
Rated Torque (Nm): 0.01~0.02
Rated Speed (rpm): 1500

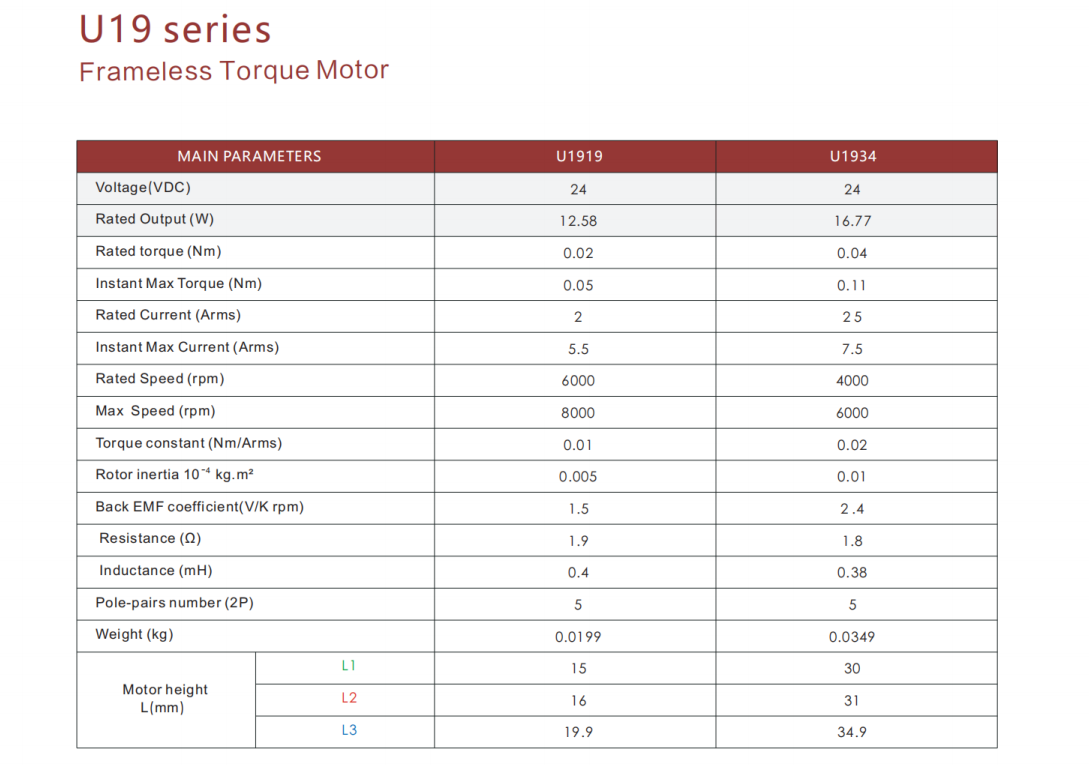

# U19 Series Miniature Frameless Direct-Drive Torque Motor
Optional rated torque: 0.02Nm and 0.04Nm
Optional motor height: 19.9mm and 34.9mm
Outer Diameter (mm): 19
Inner Diameter (mm): 7
Rated Voltage (Vdc): 24
Rated Torque (Nm): 0.02~0.04
Rated Speed (rpm): 4000~6000

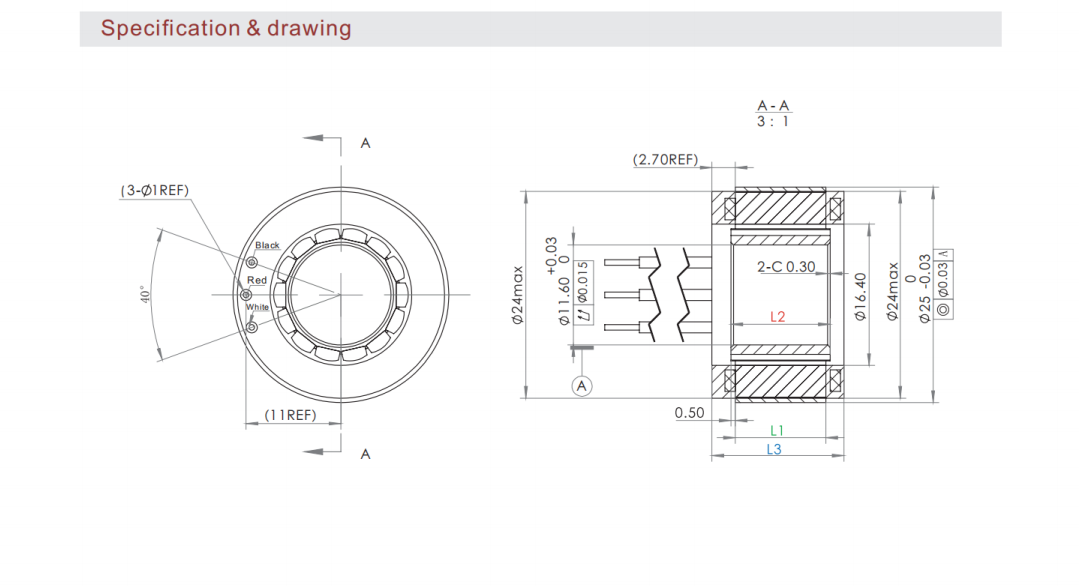

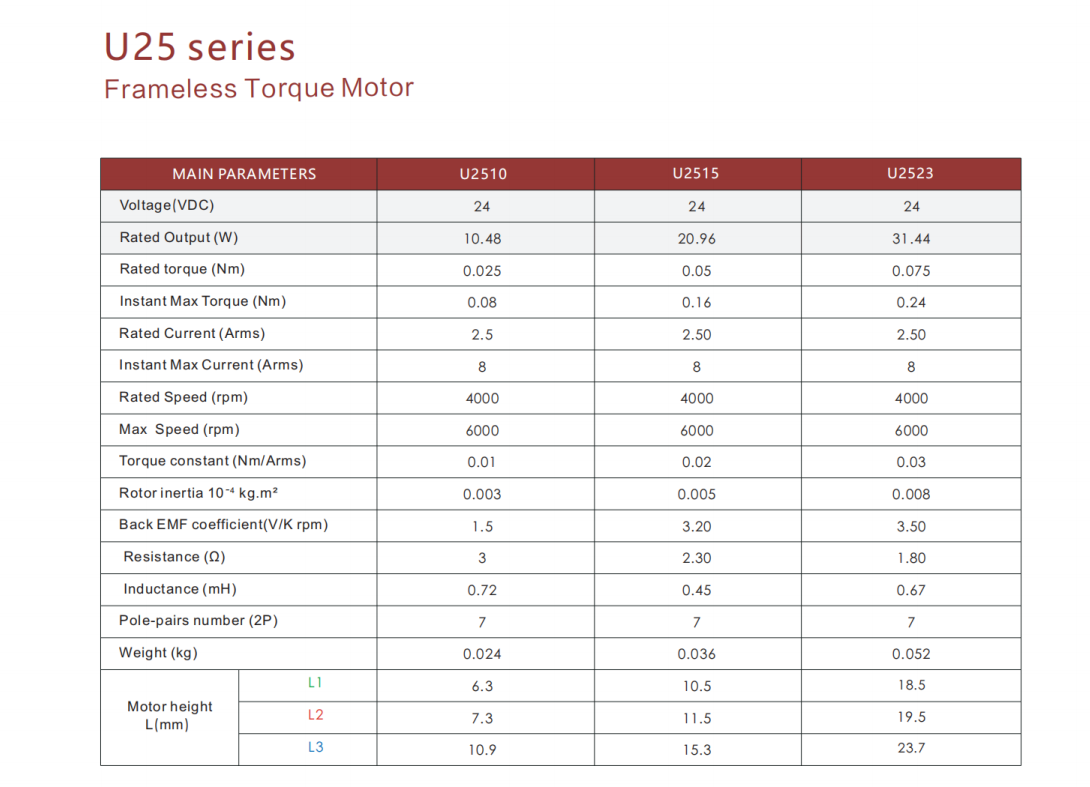

# U25 Series Miniature Frameless Direct-Drive Torque Motor
Optional rated torque: 0.025Nm, 0.05Nm and 0.075Nm
Optional motor height: 10.8mm, 15.2mm and 23.4mm
Inner Diameter (mm): 11.6
Rated Voltage (Vdc): 24
Rated Torque (Nm): 0.025~0.075
Rated Speed (rpm): 4000~6000
Miniature frameless motor designed for direct drive in small robot joints.
