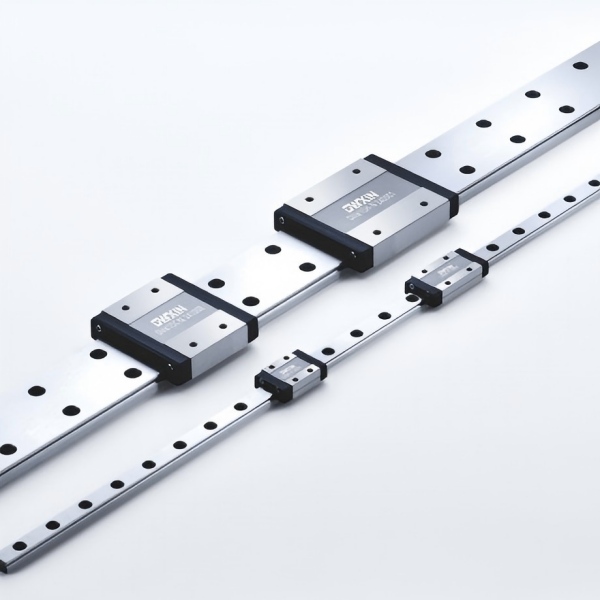

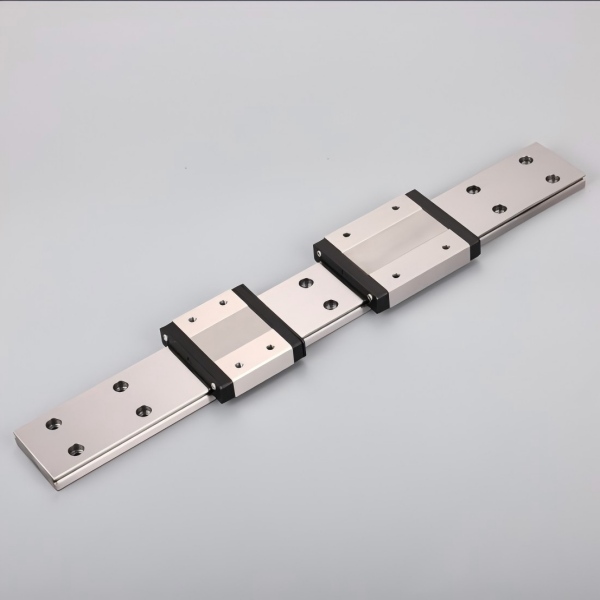

Micro Guide Rail DVW Series | All-steel Ball Micro Type | Micro Linear Guide Rail DVW2, DVW3, DVW5, DVW7, DVW9, DVW12, DVW15, with slide rail widths ranging from 4mm to 42mm
Short Description:
MINIATUREGUIDEWAY DV SERIES ALL STEEL BALL MICROMINAATURE DV SERIES Main Features: .Ultra-compact design .Good walkingsmoothness .Low noise .Steel ball wireretainer design .Interchangeable
DVW Series Linear guide rail Features:

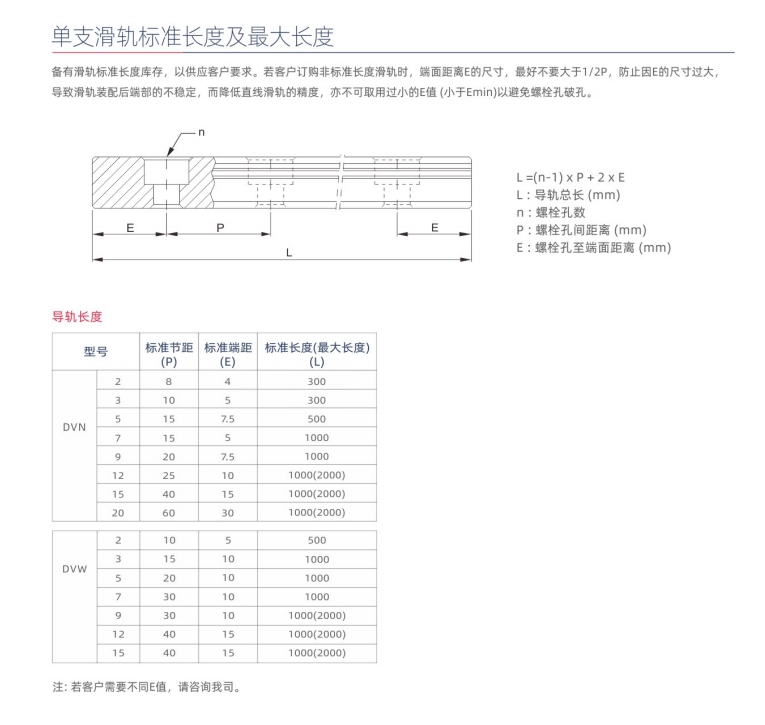

(W=12mm-60mm,H=4.5mm-16mm,Standard Length L=300-1000mm,Acceptable length customization)
1. The design of the widened guide rail greatly improves the torque load capacity, and can be used in a single axis.
2. Gothic four-point contact design, which can withstand loads in various directions and has the characteristics of high rigidity.
3. The slider is eguipped with a miniature holding wire, and the steel ball will not fall off when the slider is removed.
4. The slider and all metal fittings are made of stainless steel, which is corrosion-resistant.
DVN/DVW SERIES Main uses
-IC/LSI
-manufacturing equipment.
-Hard drives
-Slides for OA machines.
-Wafer handling device
-Inspection device.
-Medical machines
-Semiconductor manufacturing equipment,
-printed circuit board lC assembly equipment,
-robotic arms,
-precision measuring instruments,
-office automation equipment,
and other small linear sliding devices.
