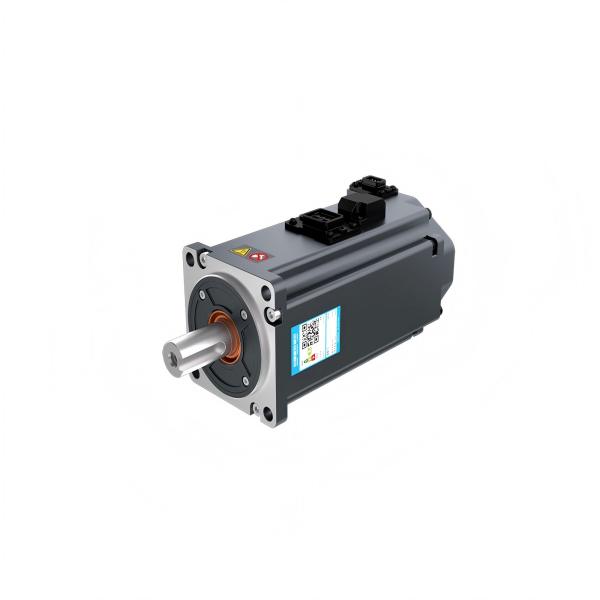

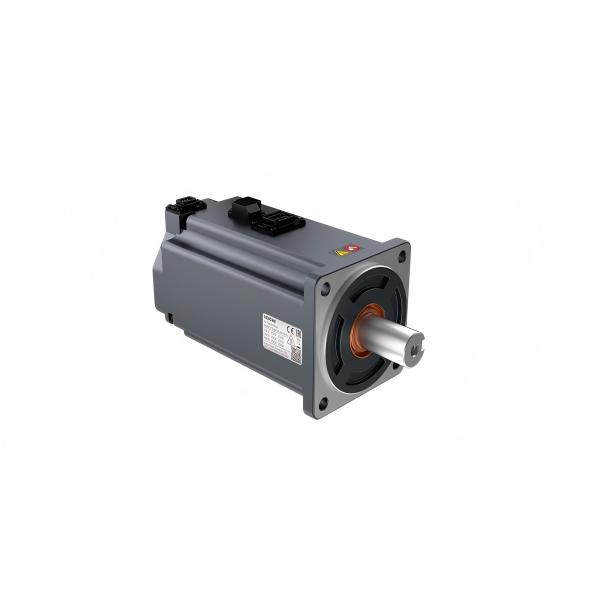

V9E SERVO MOTOR High-speed ultra-low inertia 0.64-3.2Nm 3000-7000rpm
Short Description:
High-speed and ultra-low inertia ：60-80Flange 0.2-1.0kw 0.64~3.2N.m 3000~7000rpm High-speedlow inertia: 40-130Flange 0.1-5kw 0.32~15.9N.m Rated speed: 3000rpm Max.speed:5000/6000/7000rpm Medium-speedmedium-inertia:110-180Flange 1.2-7.5kw 4.8~35.8N.m Rated speed:2000/3000rpm Max.speed:4000/5000rpm
series general servo motor is one of VEICHI new generation general servo motor series, widely used in semiconductors, industrial robots, auto production lines, precise machine tools.
Product Features
1. More models

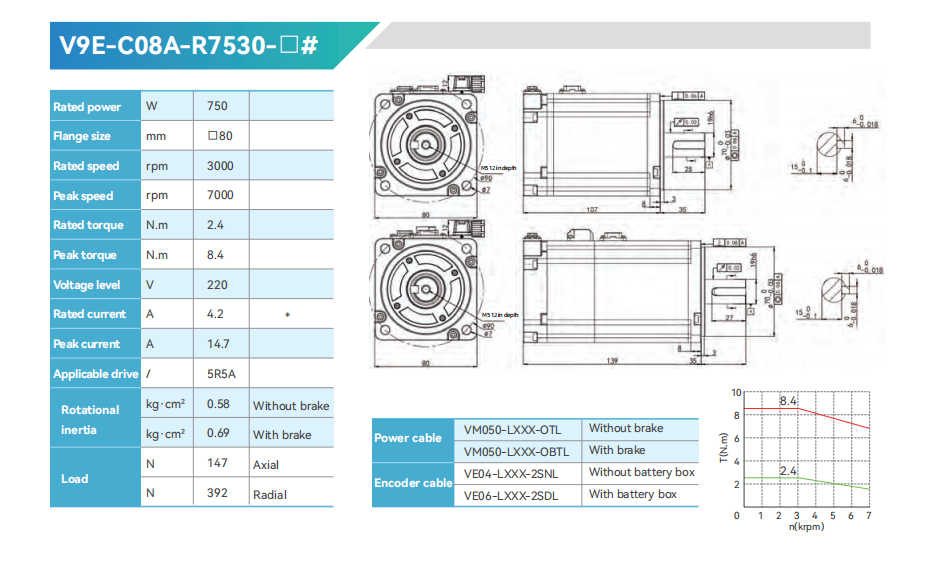

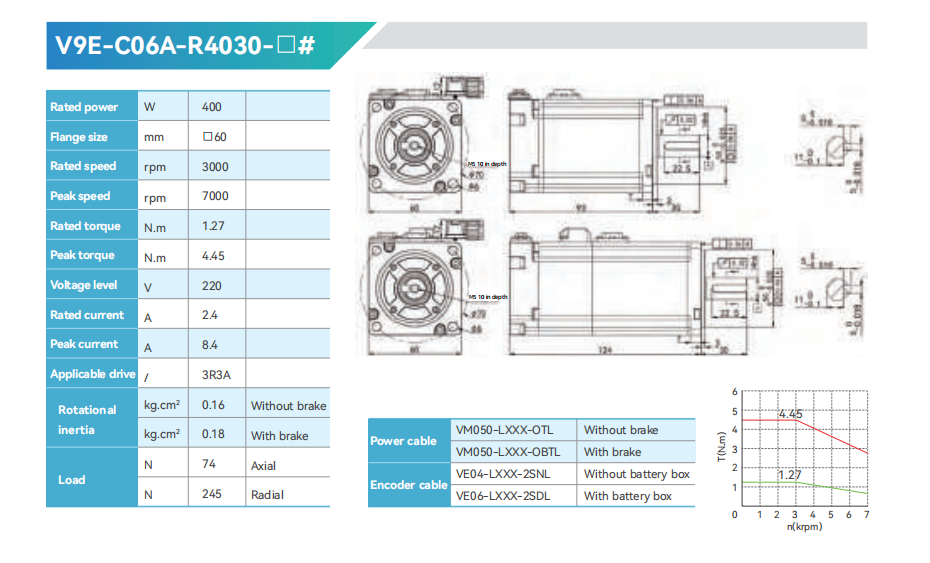

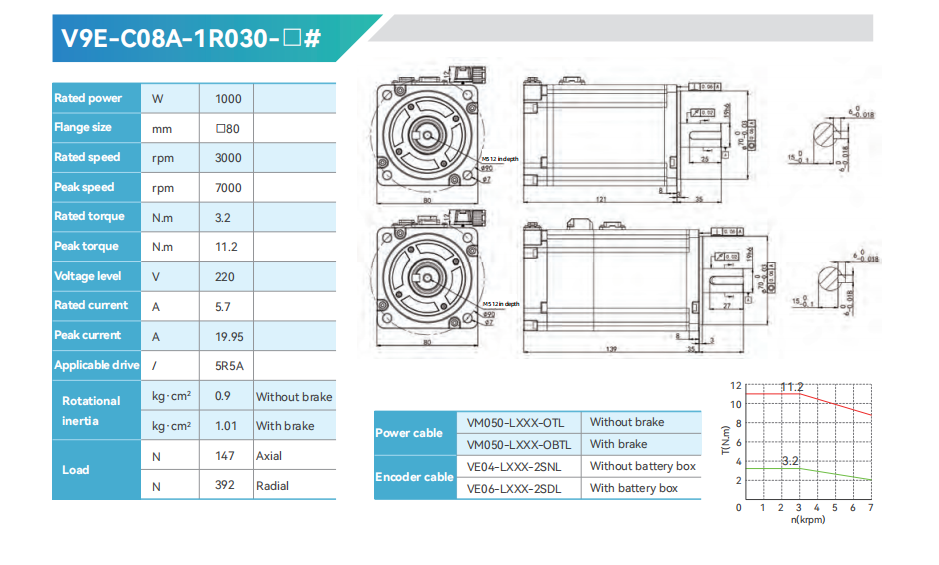

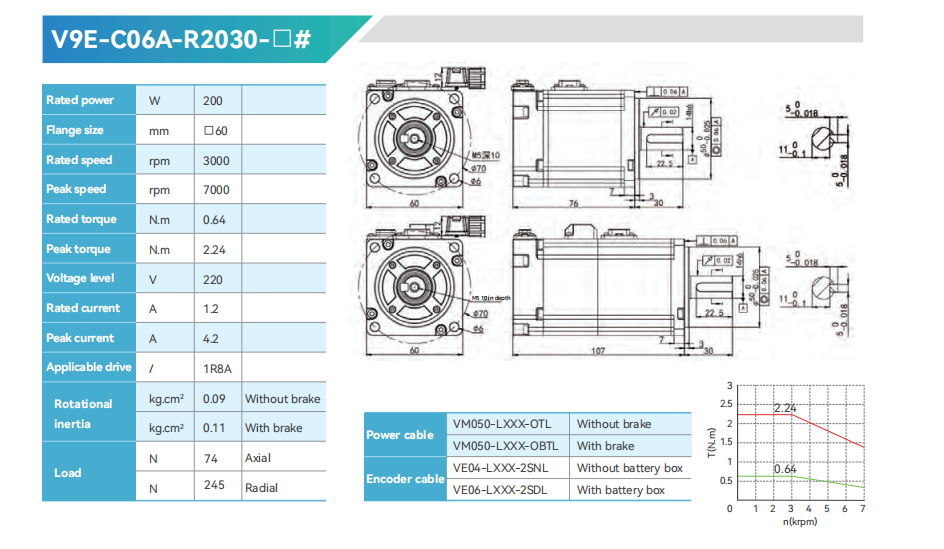

High-speed and ultra-low inertia ：60-80Flange 0.2-1.0kw 0.64~3.2N.m 3000~7000rpm
High-speedlow inertia: 40-130Flange 0.1-5kw 0.32~15.9N.m Rated speed: 3000rpm Max.speed:5000/6000/7000rpm
Medium-speedmedium-inertia:110-180Flange 1.2-7.5kw 4.8~35.8N.m Rated speed:2000/3000rpm Max.speed:4000/5000rpm
Medium-speedlarge Large inertia:130-180Flange 5.4~47.8N.m Rated speed: 1500rpm Max.speed: 3000/4000rpm
2. Smaller sizes
Length shorted by 3-5%, shortened structure reduces weight and size.
3. Superior position accuracy
24bit or above encoders optional for stable operation and orientation.
4. Better performance
New magnetic circuits with smaller cogging torque and temperature rise, smoother shaft rotation and more accurate position control at low speeds compared to typical model from V7E series under similar conditions.
5. Low energy
V9E series meets Class 1 requirements of GB30253-1.
6. Higher protection
IP67 (except for shaft extension) for the whole body saves the danger from water spray, dust and iron filings in various environments.
7.Battery-free Multi-turn Encoder
Maintenance-free for green use
Say goodbye to depleted batteries and unscheduled maintenance.
Procedure-free for batter export
Say goodbye to the battery control due to flammability and explosiveness.
8.Application scenarios
Application of high-speed and ultra-low inertia products: semiconductor equipment, 3C industry, SMT industry, PCB testing equipment, etc
Application of high-speed low inertia products: automated production line packaging locomotive milling composite winding machine, etc
Application of medium speed inertia products: woodworking machinery, laser cutting, textile equipment, glass machinery, etc
Application of low-speed high torque products: bending machine, spring machine, machine tool industry, shearing machine, etc
