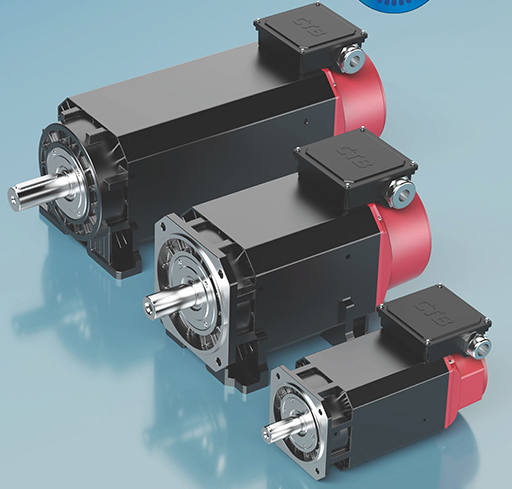

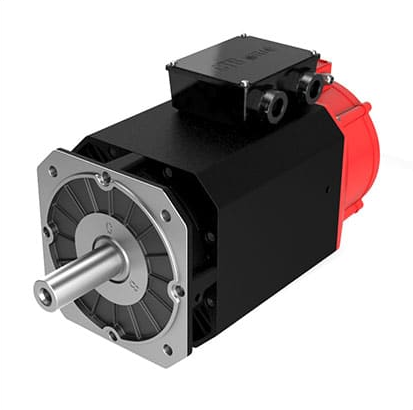

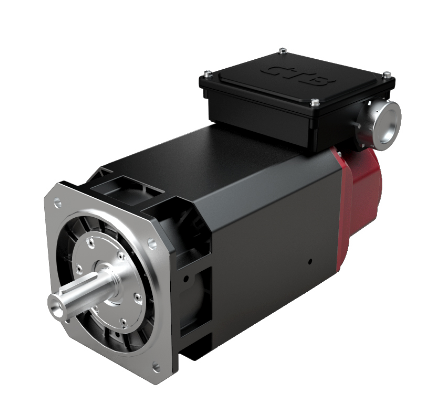

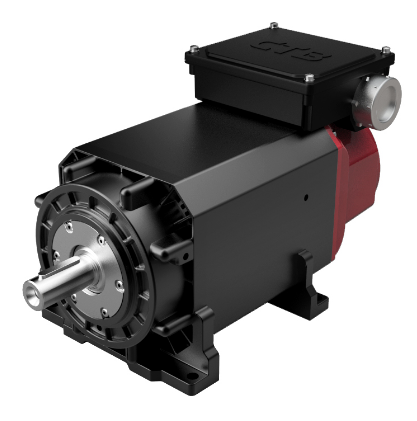

High power servo motor

Short Description:

Product name: high-power permanent magnet synchronous servo motor Power range: 9.5kW-22kW

Product Detail

Product Tags

Permanent magnet synchronous servo motor 9.5-22 KW/160-140N.m /1500-2000rpm

Power range:9.5kW-22kW

Torque range:160-140N.m

Voltage :  380V      Poles: 8p    Cooling Method: Fan Cooling

Feedback unit:23bit absolute value encoder

Fan Parameters:3Ph AC380V-440V 50/60Hz 0.18A 75W

Motor type: Ansynchronous Motor

Encoder: Built-in (magnetic, incremental, resolver, sine and cosine, absolute value optional)

Motor model:CTB-49P5BC1520G、CTB-4011BC1520G、CTB-4015BC1520G、CTB-418P5BC1520G、CTB-4022BC1520G

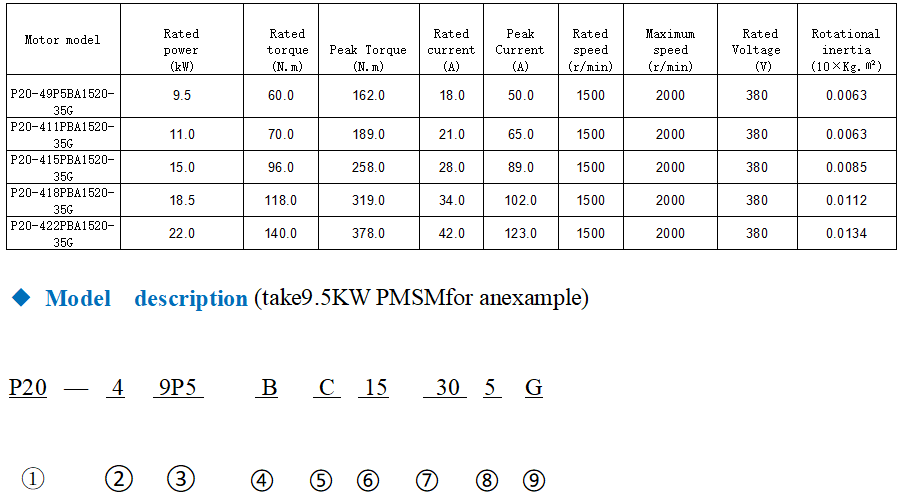

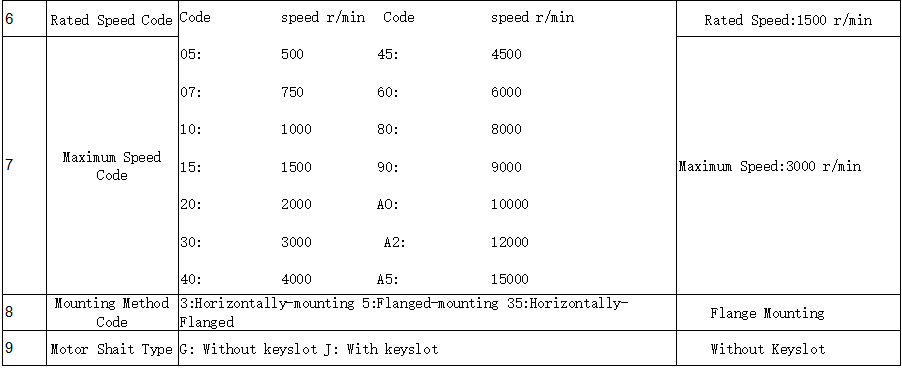

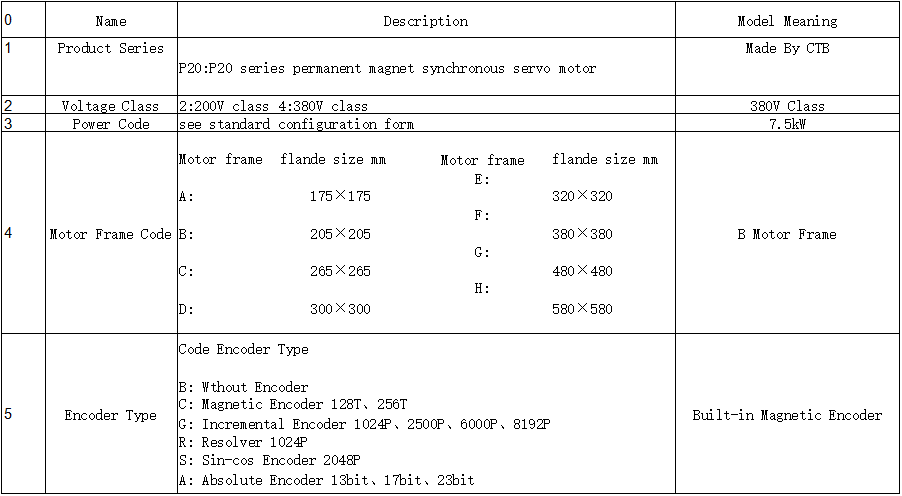

Model description



◆ Characteristic Curve

◆ Shape And Installation Size(Vertical and horizontal)

◆ Shape And Installation Size(horizontal)

  Applying Area

CNC Machine Tool Hydraulic Equipment Forging And Pressing Equipment Plastic Equipment Shearing Equipment Hoisting Equipment Oil Extraction Equipment Amusement Equipment Textile Equipment Papermaking Equipment Wire Cable Equipment Wood-Working Machine Printing Machine Automatic Production line Steel Production line Wiredrawing Machine Elevator Auto-Door Electrombile
