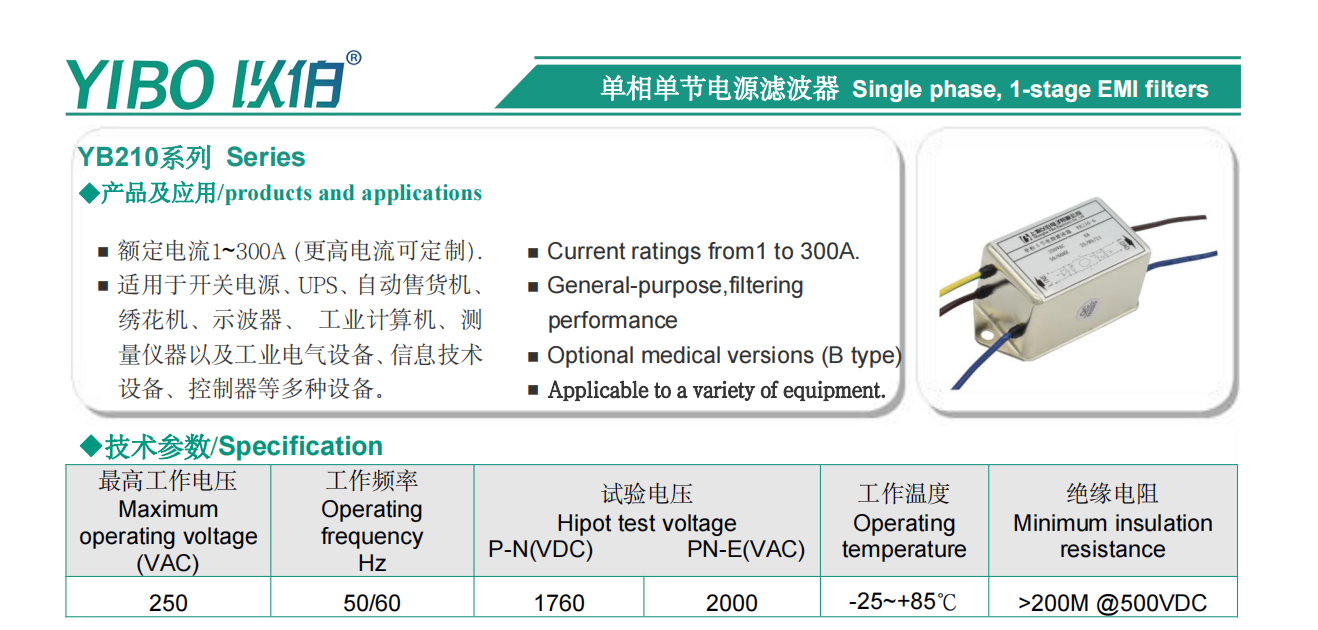

YB210 series AC single-phase power filter

YB210 series AC single-phase single stage universal filter

(This series of products can all provide terminal block wiring methods)

Rated voltage: 250VAC

Rated current: 1~300A optional

Multiple connection methods such as leads, solder pads, bolts, and terminal blocks are available for selection

Customizable products available

Products and Applications:

Low price and strong versatility

Low leakage current, widely used

It can effectively suppress electromagnetic interference between line to line and line to ground, and is applied to power electronic equipment such as switching power supplies and UPS, commercial terminals for general electronic equipment, electronic monitoring, computers, computing equipment, and the medical industry
