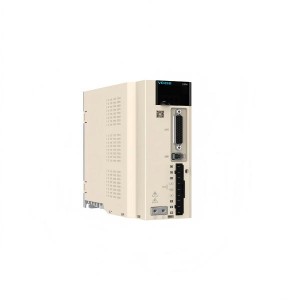

SD710 Series General Servo Drive 220v&380v 1.8A-9.5A Pulse|Canopen bus|Ethercat Bus
Short Description:
SD710 Series General Servo Drive PC software upgrade; Compatible with 17bit/23bit absolute encoder; Realize automatic parameter adjustment; Upgraded hardware and structure, smaller size;
SD710 Series General Servo Drive
PC software upgrade;
Compatible with 17bit/23bit absolute encoder;
Realize automatic parameter adjustment;

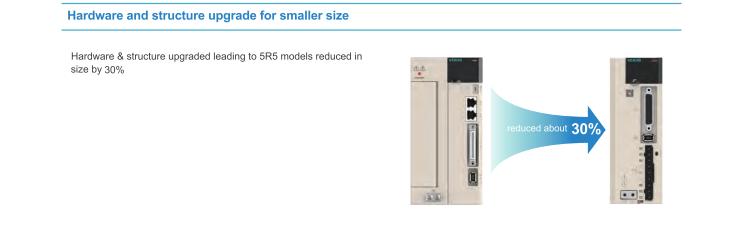

Upgraded hardware and structure, smaller size;

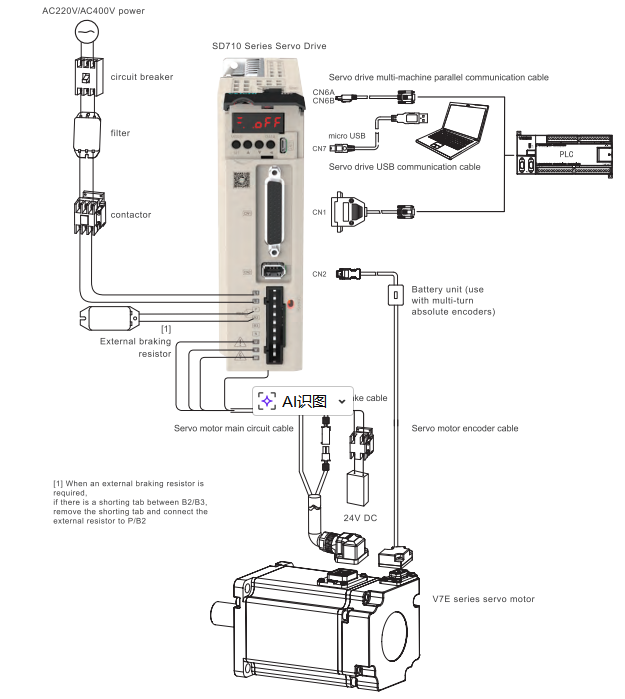

SD710 Series General Servo System Overview
VEICHI SD710 series servo drives are high performance, high reliability, high quality, and cost-effective products to meet a variety of industrial environments and critical system applications and achieve the perfect combination of servo and program.
SD710 Series General Servo System Servo Drive
1. PC software upgrade.

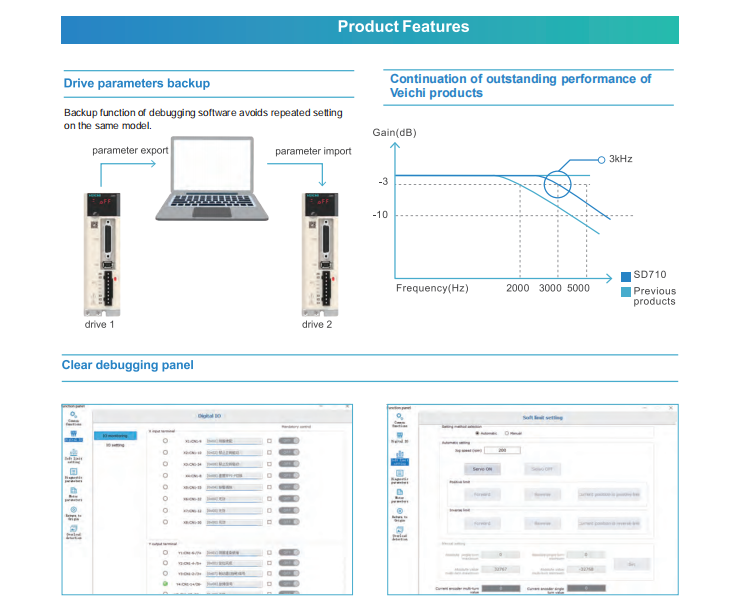

2. Drive parameter copy.

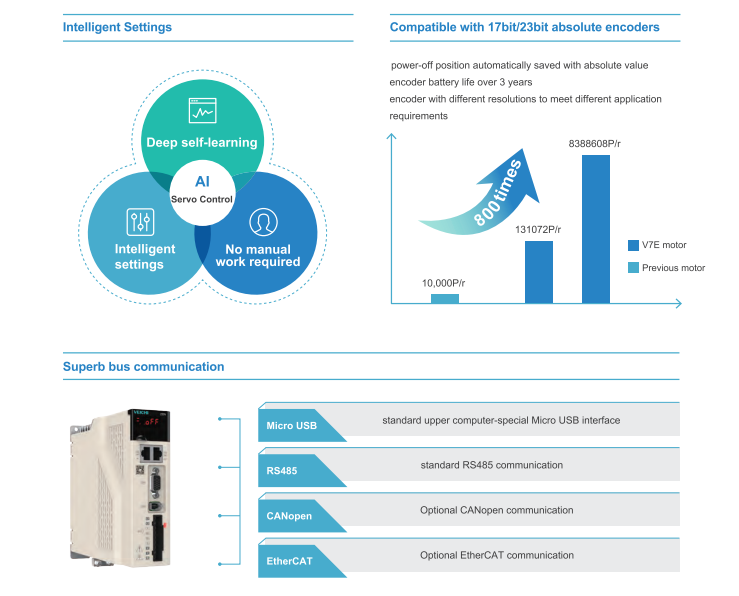

3. Compatible with 17bit/23bit absolute encoder.
4. Continuing the superior performance of VEICHI products.
5. Realize automatic parameter adjustment.
6. Powerful bus communication function.
7. Smart setting.
8. Upgraded hardware and structure, smaller size.
