Linear guide DWR series, four-row ball wide type | Small linear guide DWR12, DWR14, DWR17, DWR21, DWR27, DWR35, slide width 18mm-69mm
Short Description:
DWR Series Linear Guide Features With a 45° contact angle design, this guide offers equal load capacity in all four directions and self-aligning capability, effectively compensating for mounting surface inaccuracies to achieve high precision requirements. Furthermore, the increased rail width and re

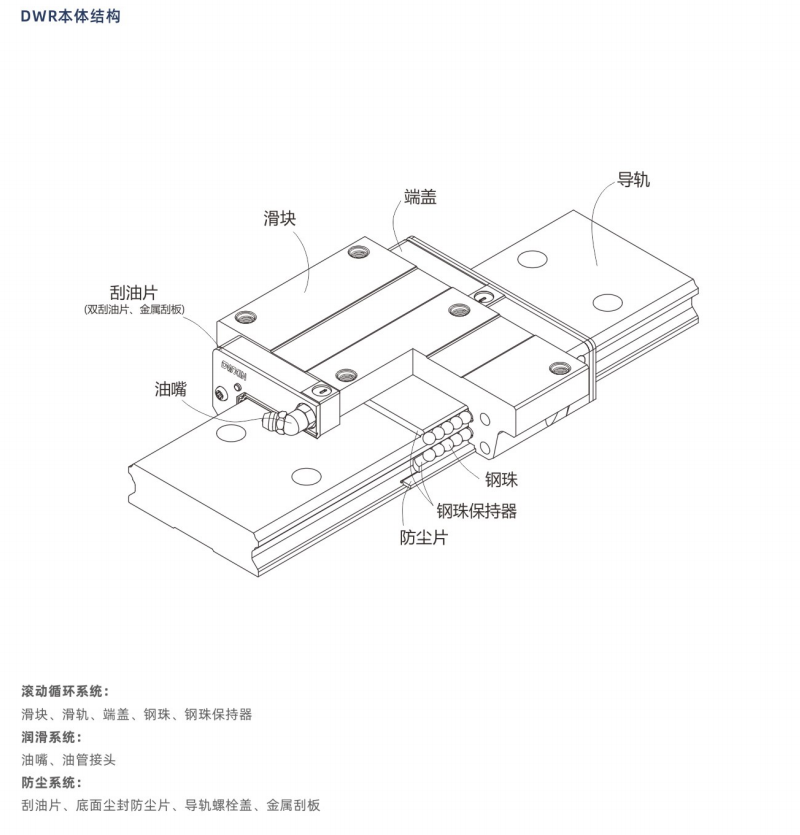

DWR Series Linear Guide Features
With a 45° contact angle design, this guide offers equal load capacity in all four directions and self-aligning capability, effectively compensating for mounting surface inaccuracies to achieve high precision requirements. Furthermore, the increased rail width and reduced assembly height deliver exceptionally high torsional resistance. In applications with space constraints or where high torque loads are present, the guide can be used in a single-rail configuration.
Brand Xulong
Series DWR

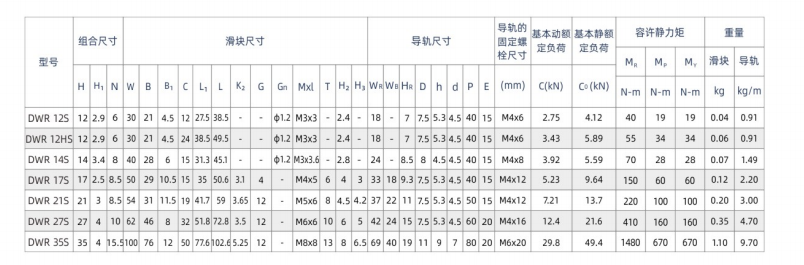

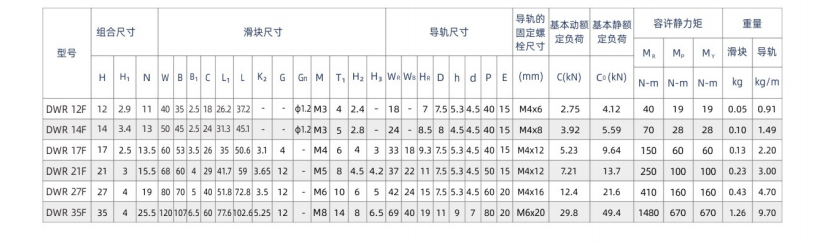

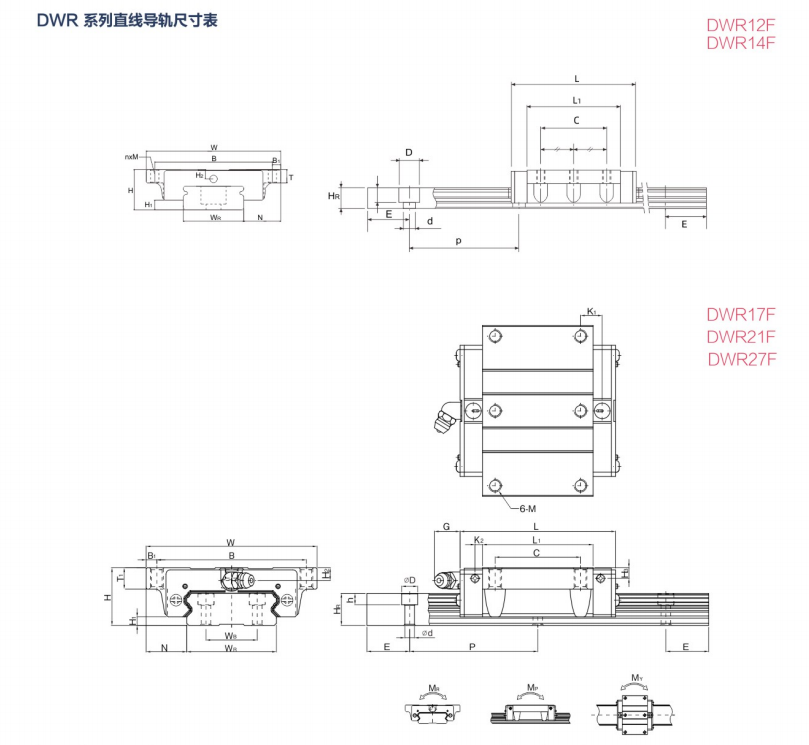

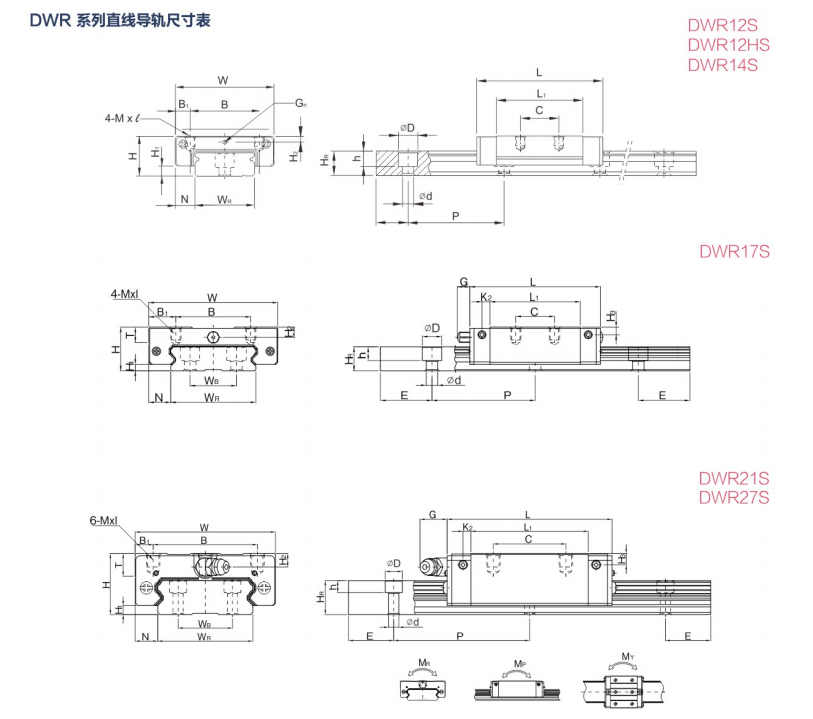

Model DWR12 DWR14 DWR17 DWR21 DWR27 DWR3
Slide rail wide 18mm,24mm,33mm,37mm,42mm,69mm
Slide wide 30mm,40mm,50mm,54mm,62mm,100mm
Combined high 12mm,14mm,17mm,21mm,27mm,35mm
DWR SERIES Main uses
-IC/LSI
-manufacturing equipment.
-Hard drives
-Slides for OA machines.
-Wafer handling device
-Inspection device.
-Medical machines
-Semiconductor manufacturing equipment,
-printed circuit board lC assembly equipment,
-robotic arms,
-precision measuring instruments,
-office automation equipment,
and other small linear sliding devices.
