Miniature guide rail DVN series | All-steel ball miniature type | Miniature linear guide rail | DVN2, DVN3, DVN5, DVN7, DVN9, DVN12, DVN15, DVN20. Slide rail width ranging from 2mm to 20mm

DV (DVN & DVW) product advantages and features:

Ultra-compact design | Excellent walking smoothness | Low noise · Steel ball and wire retainer design | Interchangeable characteristics

DVN series Linear guide rail features:

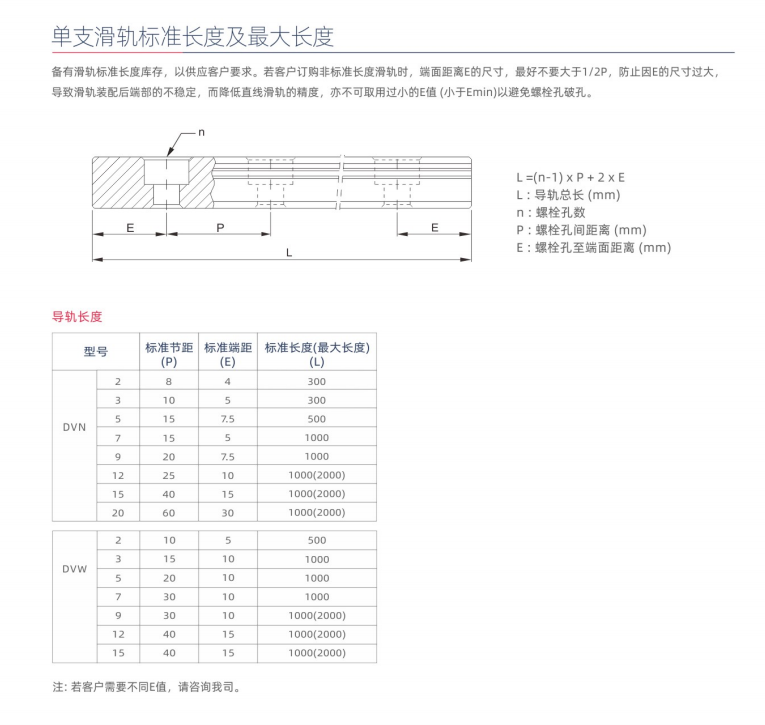

(W=8mm-40mm,H=4mm-20mm,Standard Length L=300-1000mm,Acceptable length customization)
1. Small size, light weight, especially suitable for miniaturized equipment.

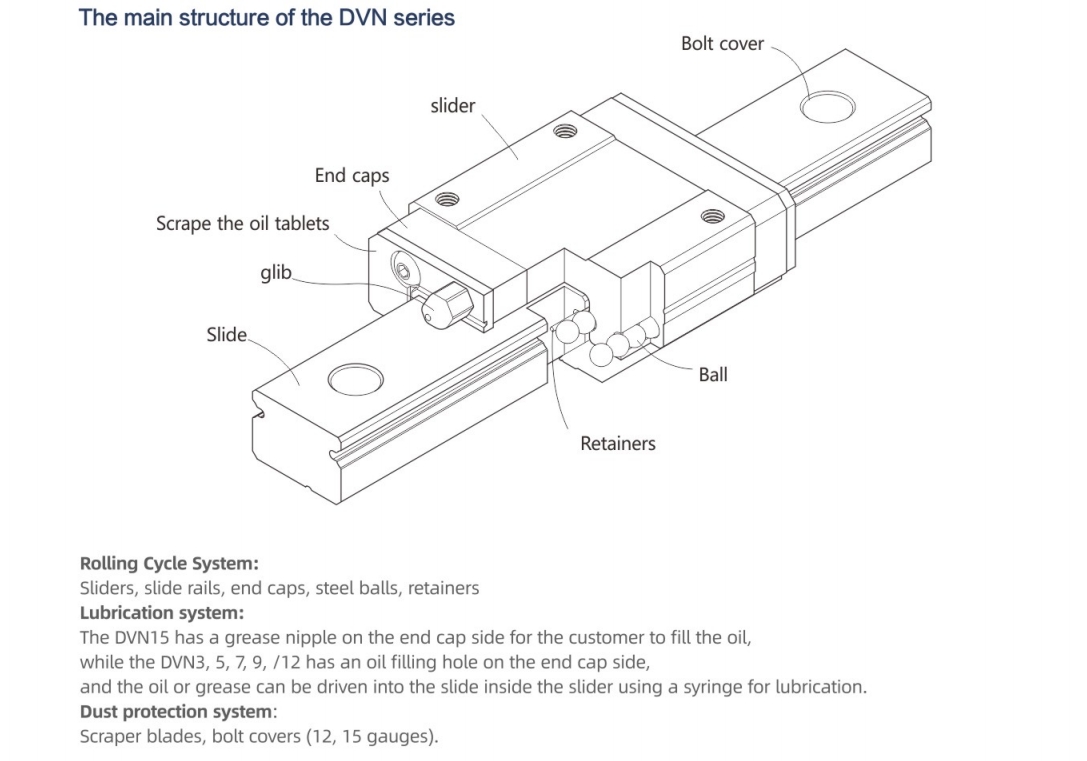

2. The slide rail and slider materials are available in stainless steel and alloy steel., Stainless steel linear slidesincluding sliders, and other metal accessories such as steel balls, retainers, etc.All of them are made of stainless steel, which has the characteristics of rust resistance.
3. Adopt Gothic four-point contact design, which can withstand loads in all directions, and hasthe characteristics of strong rigidity and high precision.
4. There is a steel ball retainer design, which is interchangeable if the accuracy allows.

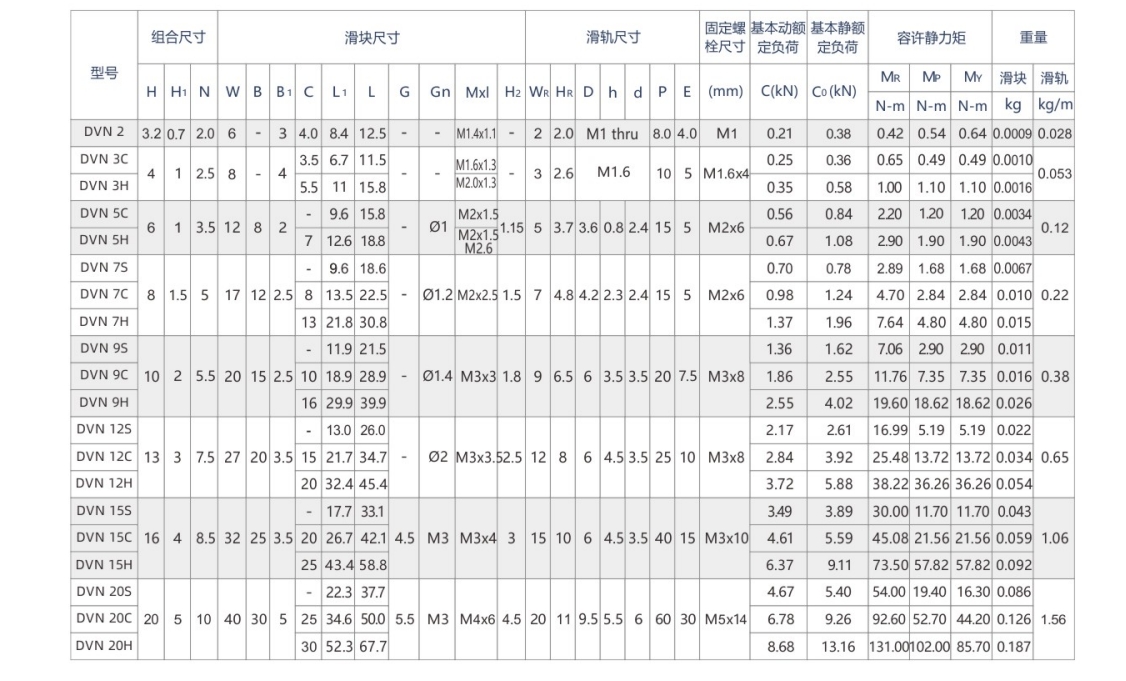

Brand        Xulong
Series        DVN

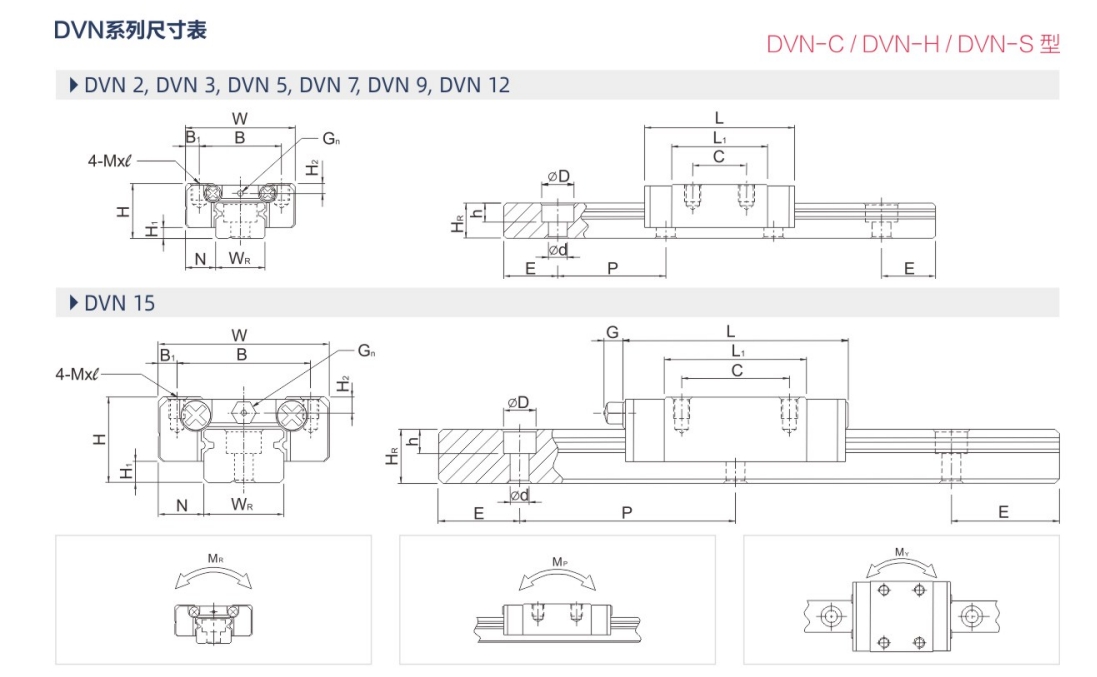

Model        DVN2,DVN3,DVN5,DVN7,DVN9,DVN12,DVN15,DVN20

Slide rail wide      2mm,3mm,  5mm,  7mm,  9mm,12mm,15mm,20mm
Slide wide            6mm,8mm,12mm,17mm,20mm,27mm,32mm,40mm
Combined high   3.2mm,4mm, 6mm, 8mm,10mm,13mm,16mm,20mm

Acceptable customization：Customizable according to length

DVN/DVW SERIES Main uses
-IC/LSI
-manufacturing equipment.
-Hard drives
-Slides for OA machines.
-Wafer handling device
-Inspection device.
-Medical machines
-Semiconductor manufacturing equipment,
-printed circuit board lC assembly equipment,
-robotic arms,
-precision measuring instruments,
-office automation equipment,
and other small linear sliding devices.
