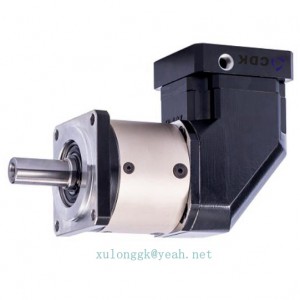

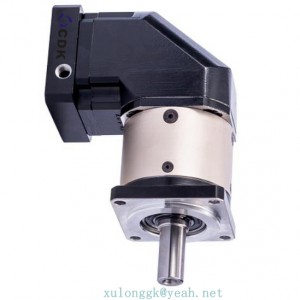

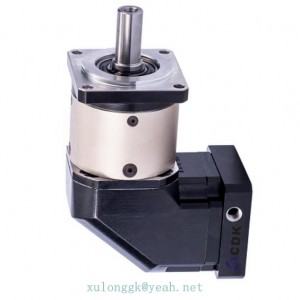

D-1-4 PLFR series Planetary reducer

Short Description:

Planetary boom and output shaft are intergrated structure designed to ensure maximum torsional rigidity


Product Detail

Product Tags

1. Product featuress:

PLR/PFR/AER/ABR/ADR/VRBR Series:

1.Planetary boom and output shaft are intergrated structure designed to ensure maximum torsional rigidity;

2.Planetary wheel with full needle design,increase the contact area to improve the rigidity and output torque;

3.The gears are carburized and quenched to the HRC62 with low carbon steel surface for optimum wear and impact toughness;

4.Gears refer to forengn imported software-assisted design to obtain the best tooth shape to reduce noise;

5.The input terminal is connected to the motor shaft in a double-tight manner to obtain the maximum clamping force and sero backlash power transmission.

6.Adopt spiral bevel gear design,allow high output torque,more than 30% higher than straight bevel gear;

7.High tolerance input speed,more than 8 times higher than straight bevel gear input;

8.The meshing tooth imprint of spiral bevel gear has been optimized;

9.Cochlear bevel gears are meshed by optimum by optimum motion error analysis and strict process control to ensure high precsion running back clearance.

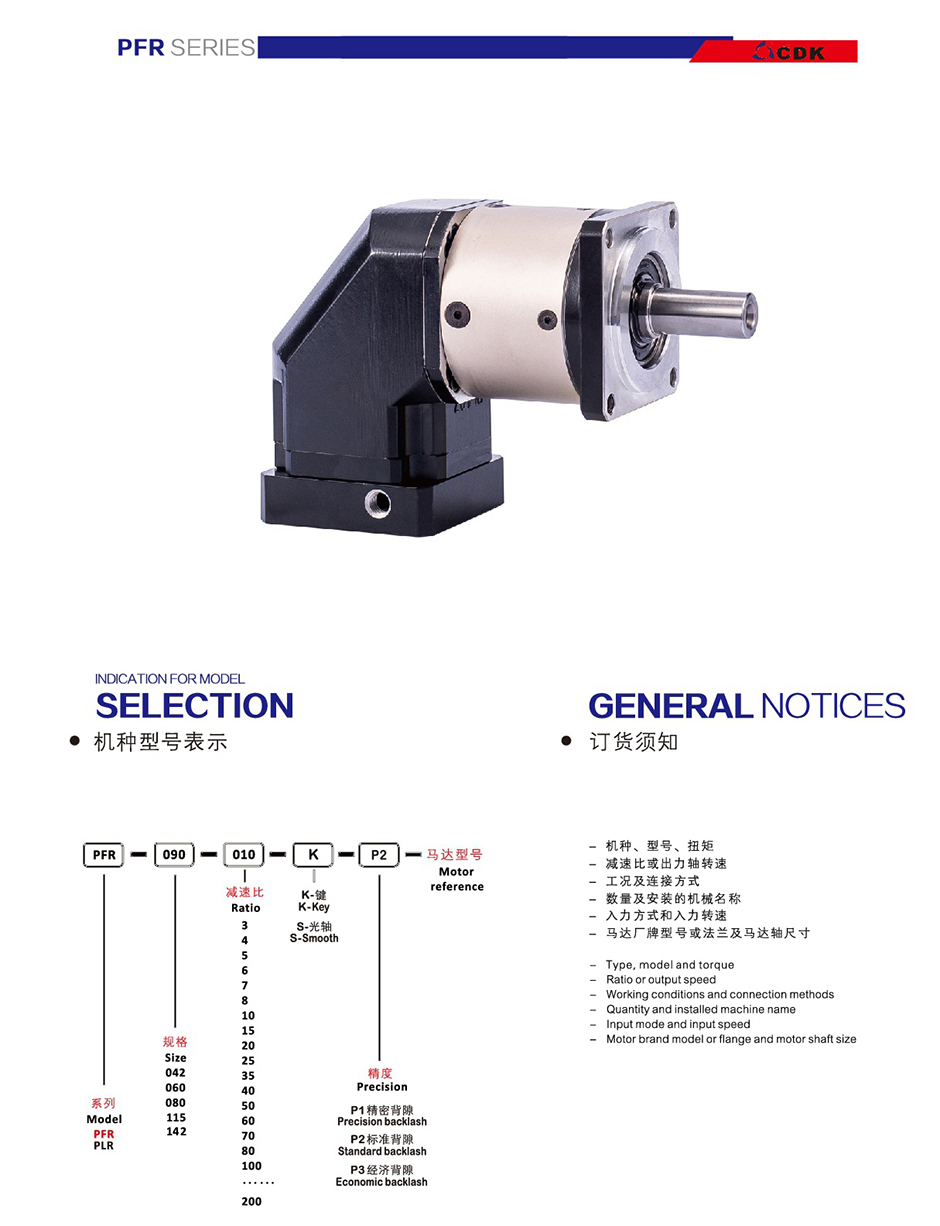

2. Technical indexes :

1.PFR  series:

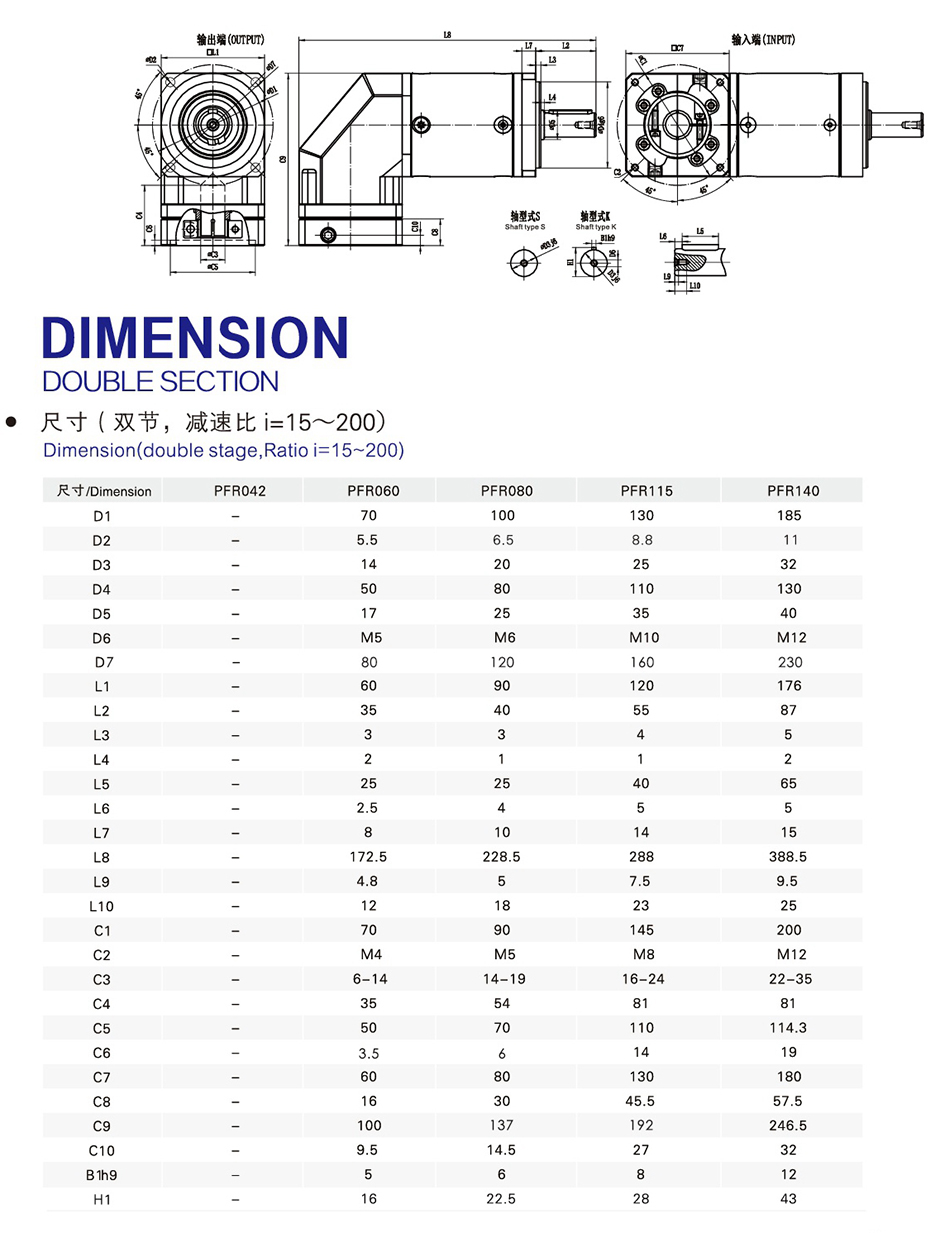

Flange dimensions :P LR060 & PLR080 & PLR090 & PLR120 & PLR160

Product description :

Straight tooth Planetary gearbox

Factory Direct

Square flange output

Right angle planetary reducer

High-precision

High torque

Good transmission stability

Low noise

Long life

Match any brand of motor

3. Product characteristics :

Ratio: Single tage, i=3-10  & Double stage, i=15-100

Efficiency:  Single tage,  ≧96,&  Double stage,≧93

Standard Backlash: Single tage,P2≦10  & Double stage, P2≦12

Installation form:Horizontal installation

Maximum output torque: Double rated output torque

Lifespan: 10000hr

Working temperature: -10℃-80℃

IP Grade: IP65

PFR-2-1 PFR-2-2 PFR-2-3 PFR-2-4
