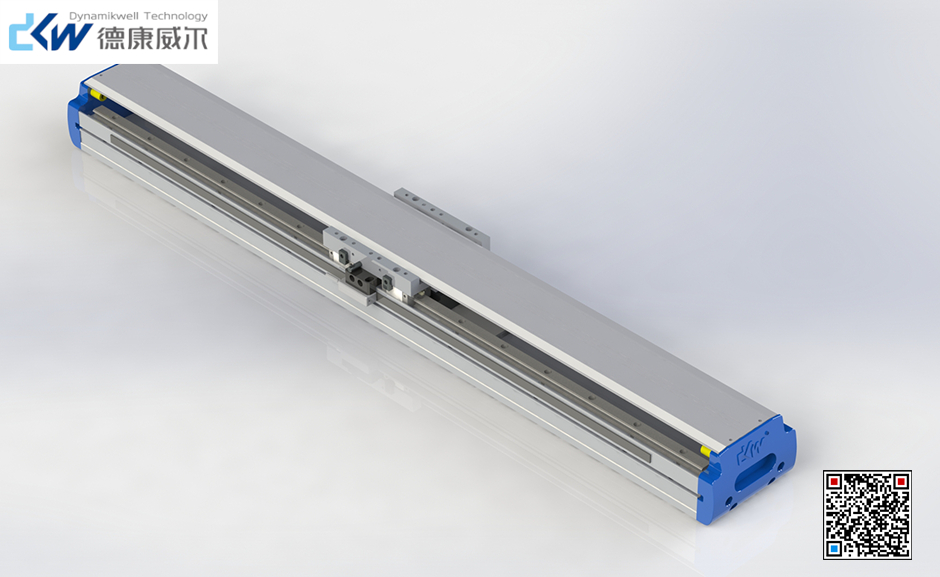

DKW119-C15-W060 Linear Motor Module

Short Description:


Product Detail

Product Tags

Product features: independent research and development design, manufacturing linear motor stator;

Product advantages: high thrust, high speed, high acceleration, high precision, long stroke, multi-Mover application;

Application: It has been widely used in laser, semiconductor, panel industry, 3C mobile phone equipment industry, lithium battery industry, clothing industry, photovoltaic industry and so on.

DKM series: linear motor with iron core

DKW88 series:DKW88-B15-W040,DKW88-B2-W040

DKW119 series:DKW119-C15-W060,DKW119-C2-W060,DKW119-C3-W060

DKW120 series:DKW120-B15-W060,DKW120-B2-W060,DKW120-B3-W060

DKW168  series:DKW168-C2-W090,DKW168-C3-W090

DKW188  series:DKW188-C2-W090,DKW188-C3-W090

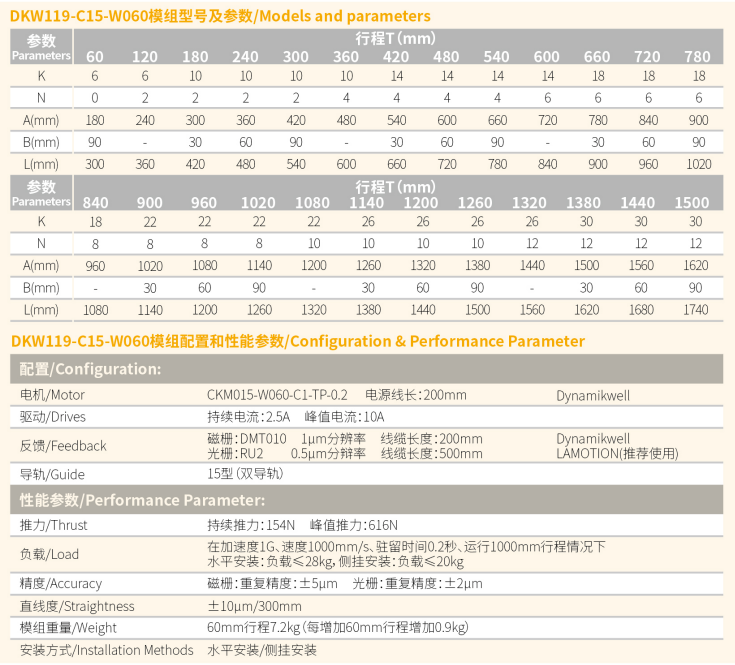

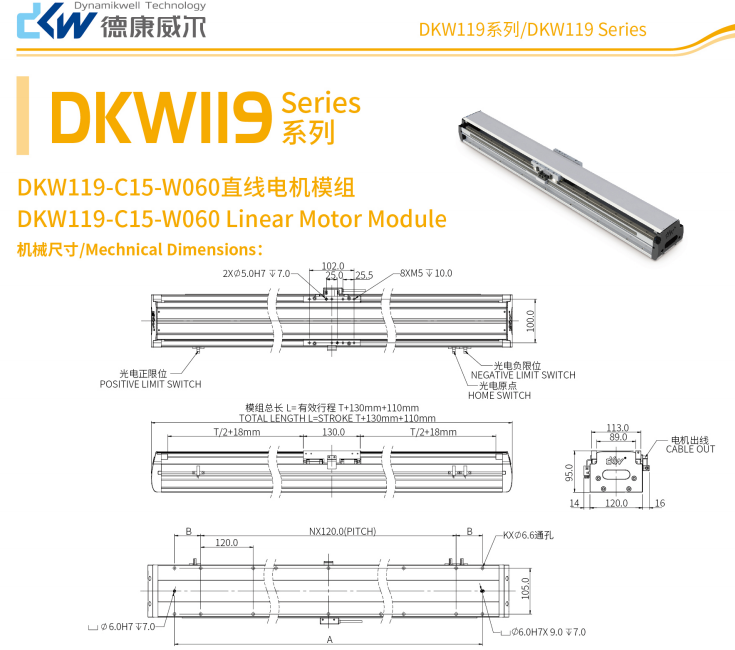

DKW119-C15-W060 Application characteristics:

※ Base Width:119mm
※ Effective Trave:60-1500mm
※Sustained Thrust:154N
※ Peak Thrust:616N
※ Load:Horizontal installation:≤28kg
                   Side hanging installation:≤20kg
※ Accuracy:Magnetic column:±5μm
                                              raster:±2μm
※ Straightness:±10μm/300mm

It can be customized according to the application scenario
