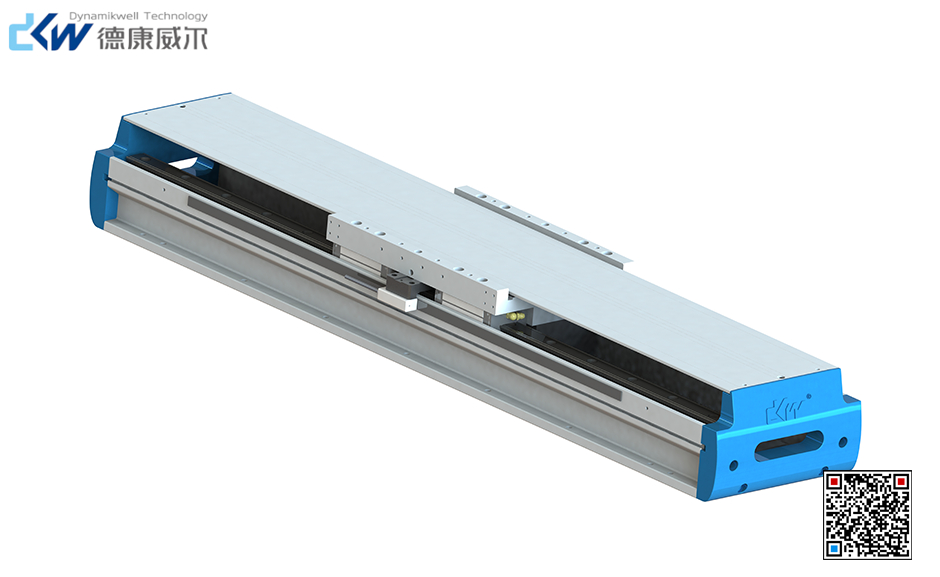

DKW188-C3-W090 Linear Motor Module

Short Description:

Self-developed and designed, it has the advantages of high thrust, high speed, high acceleration, high precision, long stroke, multi-Mover application, etc. The full range of products of linear motor and standard module can be equipped with drivers from Panasonic, Mitsubishi and other brands.


Product Detail

Product Tags

Product features: independent research and development design, manufacturing linear motor stator;

Product advantages: high thrust, high speed, high acceleration, high precision, long stroke, multi-Mover application;

Application: It has been widely used in laser, semiconductor, panel industry, 3C mobile phone equipment industry, lithium battery industry, clothing industry, photovoltaic industry and so on.

DKM series: linear motor with iron core

DKW88 series:DKW88-B15-W040,DKW88-B2-W040

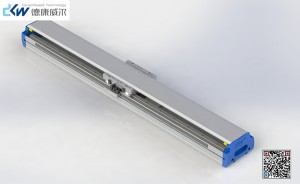

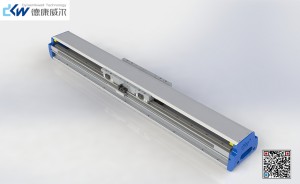

DKW119 series:DKW119-C15-W060,DKW119-C2-W060,DKW119-C3-W060

DKW120 series:DKW120-B15-W060,DKW120-B2-W060,DKW120-B3-W060

DKW168  series:DKW168-C2-W090,DKW168-C3-W090

DKW188  series:DKW188-C2-W090,DKW188-C3-W090

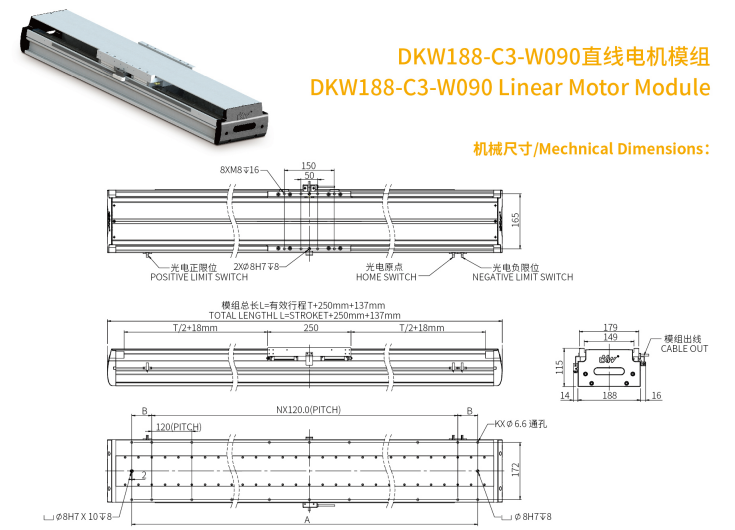

DKW188-C3-W090 Application characteristics:

※ Base Width:188mm
※ Effective Trave:60-1680mm
※Sustained Thrust:561N
※ Peak Thrust:2244N
※ Load:Horizontal installation:≤100kg
                   Side hanging installation:≤80kg
※ Accuracy:Magnetic column:±5μm
                                              raster:±2μm
※ Straightness:±10μm/300mm

1. Non-standard linear motor modules, various single-drive gantry, double-drive gantry, marble gantry, etc. can be customized according to customer requirements;

2. Non-standard customized application platform and multi-Mover application design can be developed and designed according to customer application scenarios.
