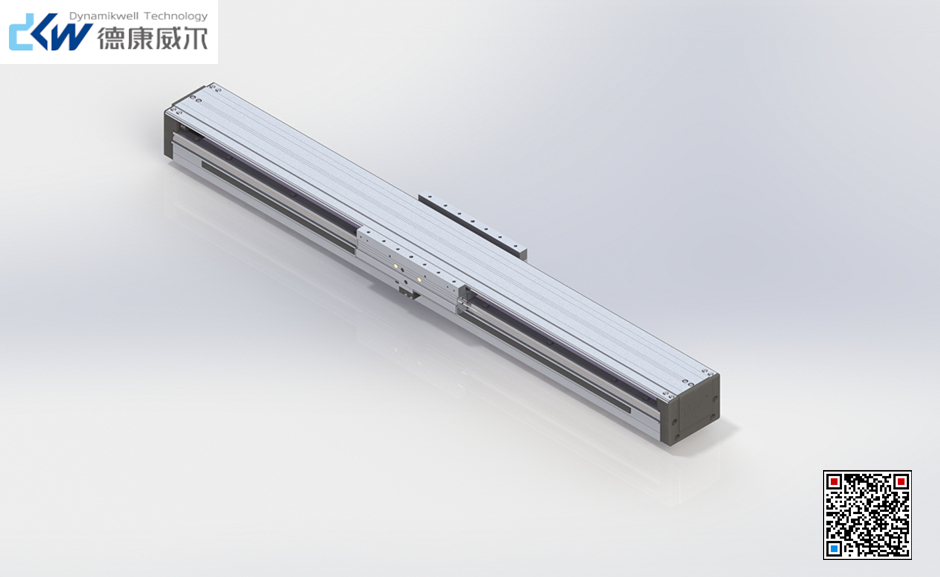

DA95-B15 Linear Motor Module

Short Description:

Dynamikwll de Conwill Company mainly develops and produces high-tech precision mechanical and electrical products such as direct driver, precision direct-drive motion platform and high-end automation equipment.


Product Detail

Product Tags

Product features: independent research and development design, lightweight and miniaturized linear motor standard products;

Product advantages: Fully replace screw module+servo motor, with better cost performance;

Application: It has been widely used in tabletop dispensing machine, screw locking machine, soldering machine, loading and unloading and handling, etc.

DA60 series:DA60-B1,DA60-S-B1

DA82  series:DA82-B15,DA82-B2

DA95  series:DA95-B15,DA95-B2

DA115 series:DA115-B15,DA115-B2

DA145 series:DA145-C2,DA145-C3

DA195 series:DA195-C2,DA195-C3

DA210 series:DA210-L2

DA230 series:DA230-L2

DA95-B15  Application characteristics:

※ Effective Trave:60-1260mm
※Sustained Thrust:110.5N
※ Peak Thrust:442N
※ Load:Horizontal installation:≤18kg
                   Side hanging installation:≤15kg
                   Maximum speed limit:2000mm/s
※ Accuracy:Magnetic column:±5μm
                        raster:±3μm
※ Straightness:±10μm/300mm

It can be customized according to the application scenario

1

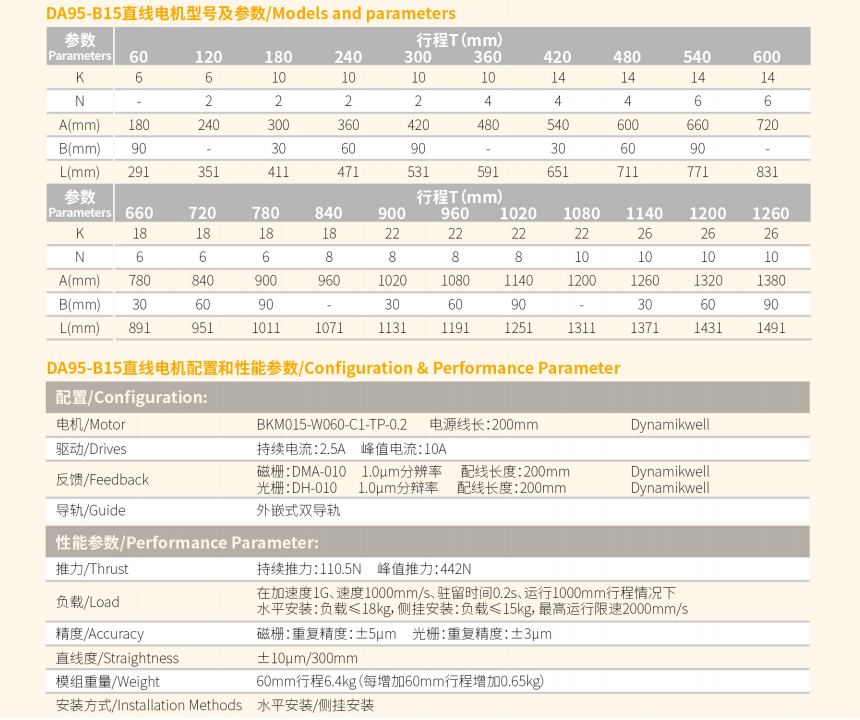

2 1665734396851
