E-3-1 DMPA-C Series Disc coupling

1. Product Name:

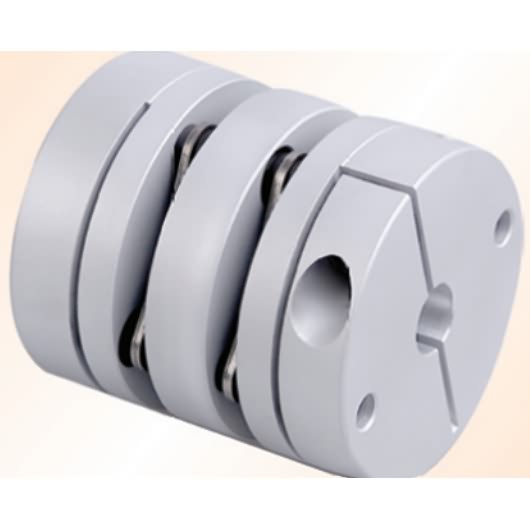

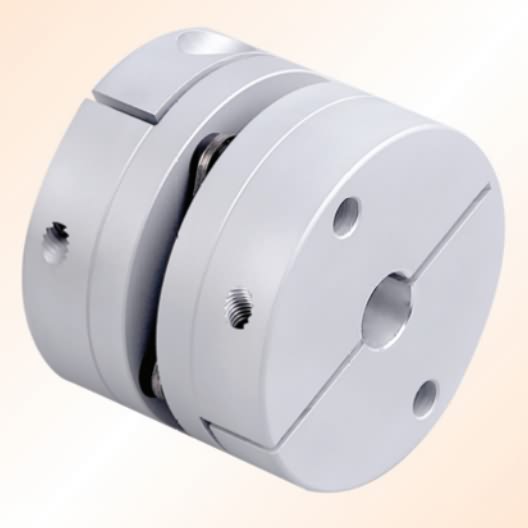

Disc coupling

Stainless steel spring coupling

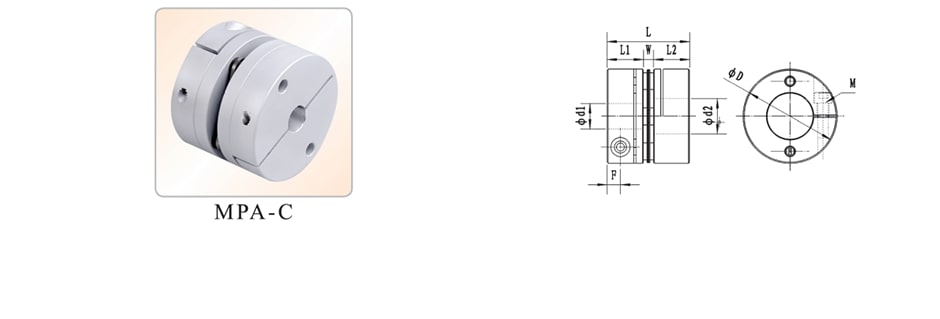

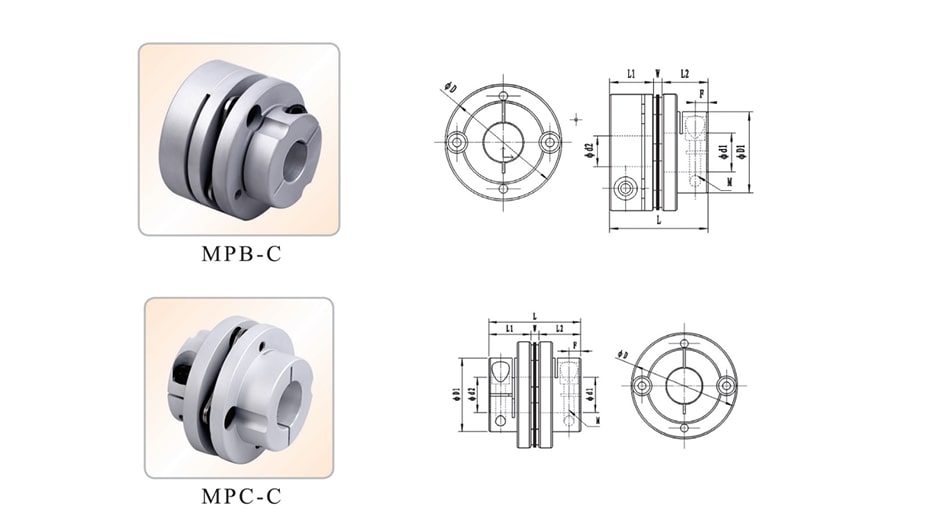

2. Bellows Coupling type:

BMPA-C Series

BMPB-C Series

BMPC-C Series

BMPD-C Series

3. Production Presentation:

Torsional rigidity

Low ineria

High temperature working state

Zero rotary clearance

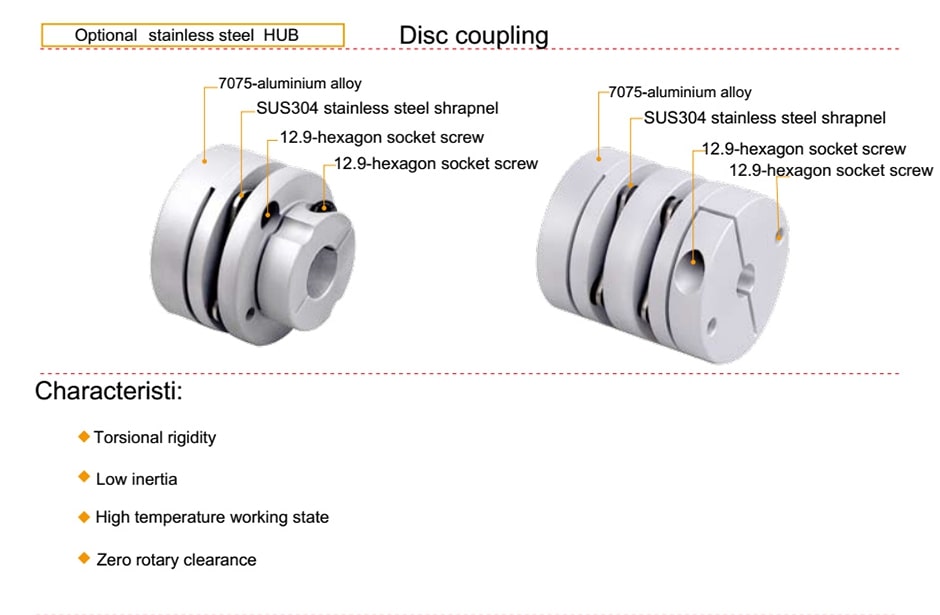

7075-aluminium alloy

SUS304 stainless steel shrapnless steel shrapnel

12.9 hexagon socket screw

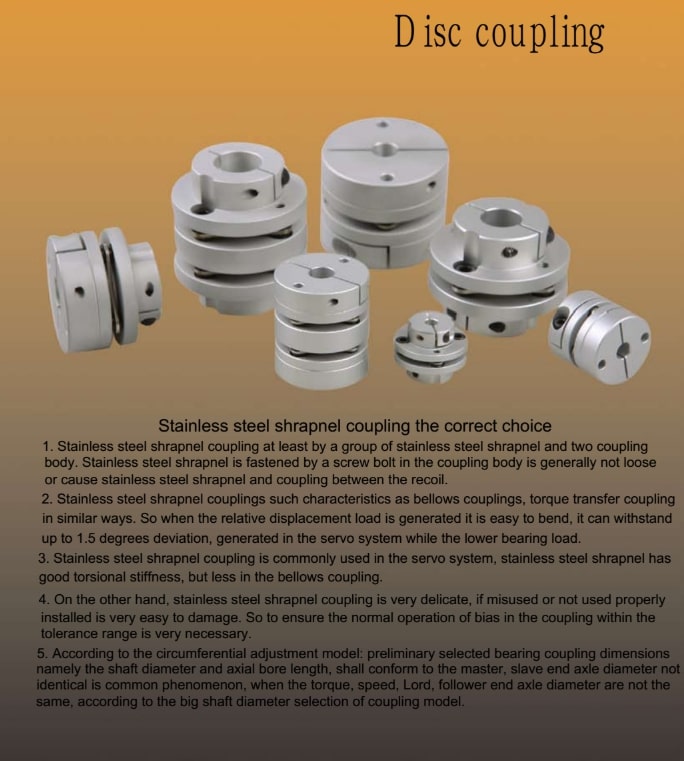

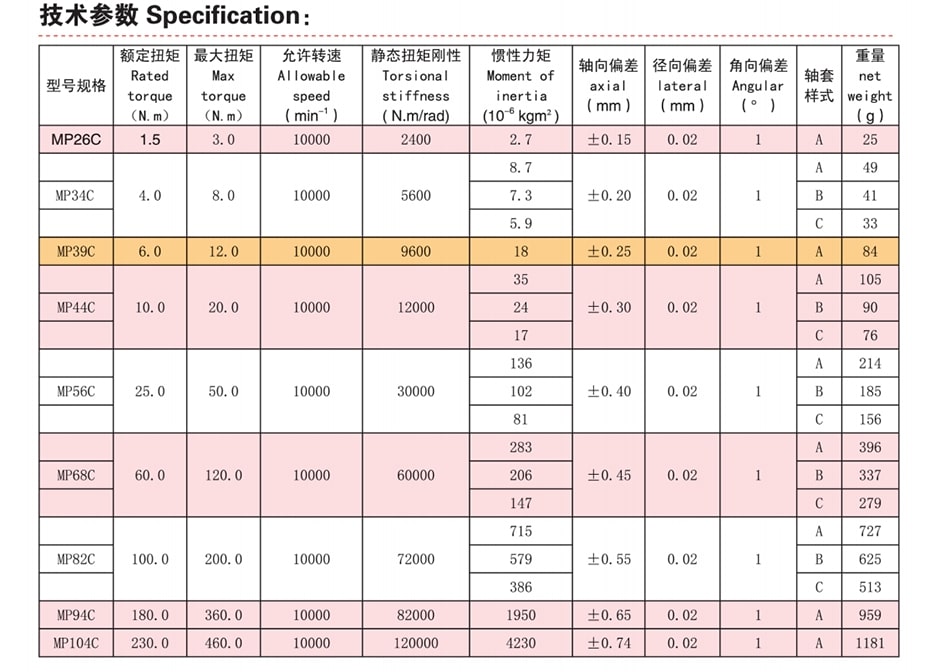

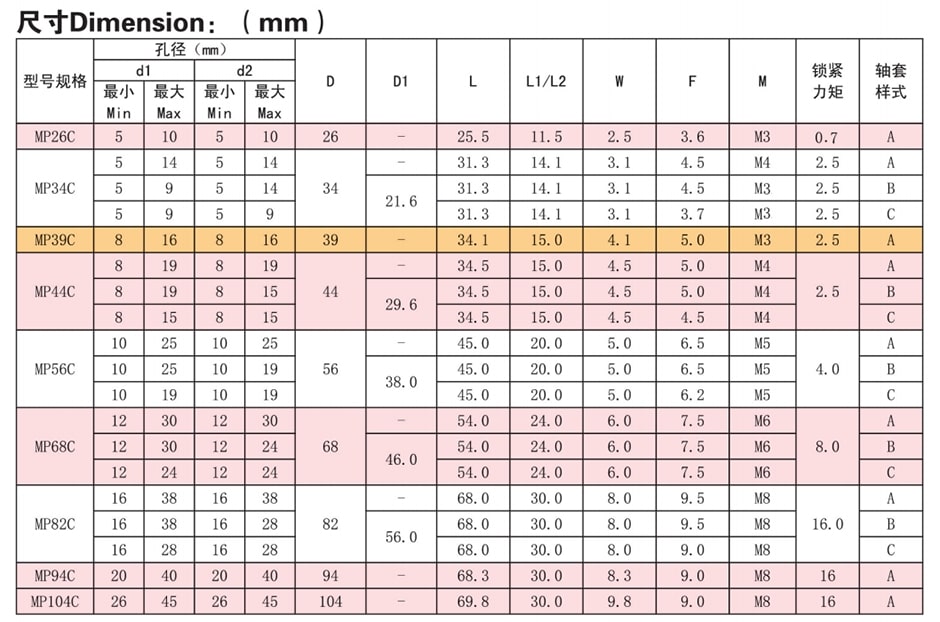

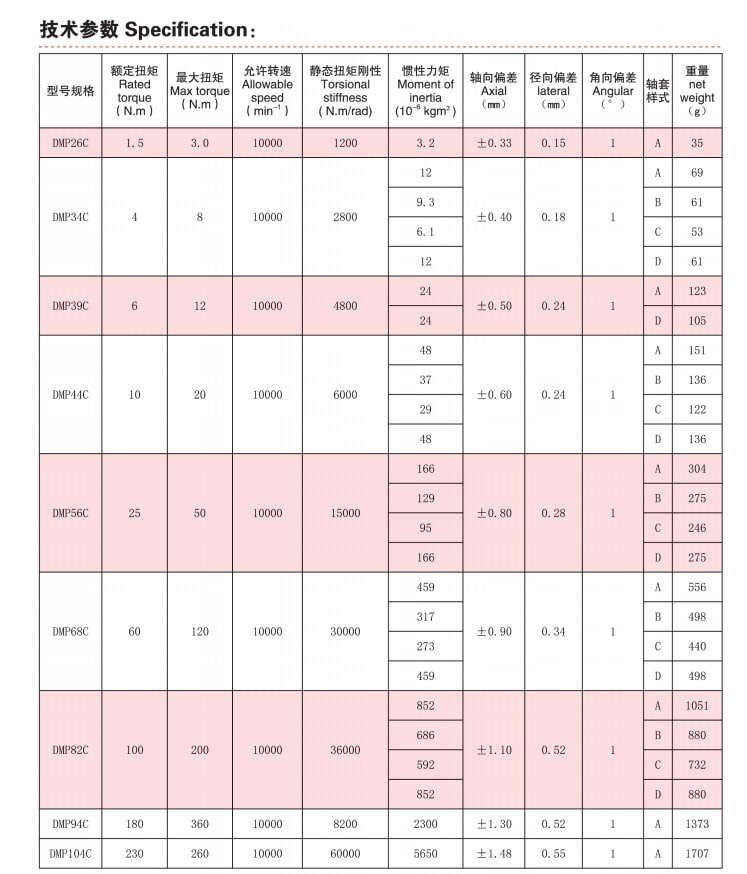

4. Stainless steel shrapnel coupling the correct choice:

1 . Stainless steel shrapnel coupling at least by a group of stainless steel shrapnel and two coupling body. Stainless steel shrapnel is fastened by a screw bolt in the coupling body is generally not loose or cause stainless steel shrapnel and coupling between the recoil.

2. Stainless steel shrapnel couplings such characteristics as bellows couplings, torque transfer coupling in similar ways. So when the relative displacement load is generated it is easy to bend, it can withstand up to 1.5 degrees deviation, generated in the servo system while the lower bearing load.

3. Stainless steel shrapnel coupling is commonly used in the servo system, stainless steel shrapnel has good torsional stiffness , but less in the bellows coupling .

4 . On the other hand , stainless steel shrapnel coupling is very delicate , if misused or not used properly installed is very easy to damage. So to ensure the normal operation of bias in the coupling within the tolerance range is very necessary.

5. According to the circumferential adjustment model: preliminary selected bearing coupling dimensions namely the shaft diameter and axial bore length , shall conform to the master , slave end axle diameter not identical is common phenomenon, when the torque, speed, Lord, follower end axle diameter are not the same, according to the big shaft diameter selection of coupling model.
