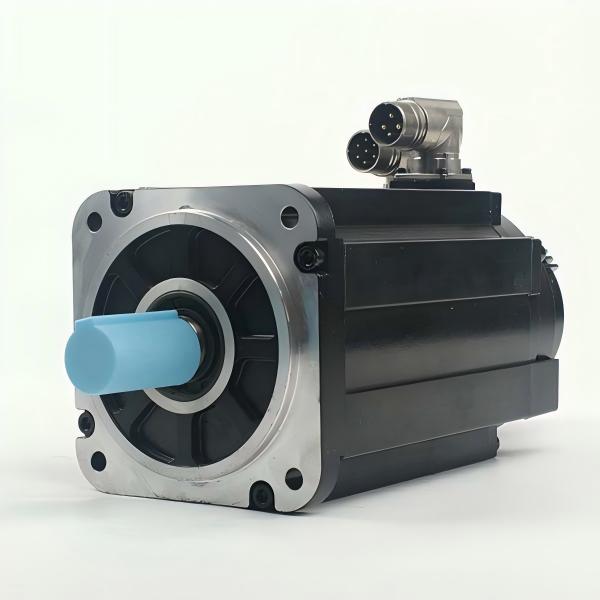

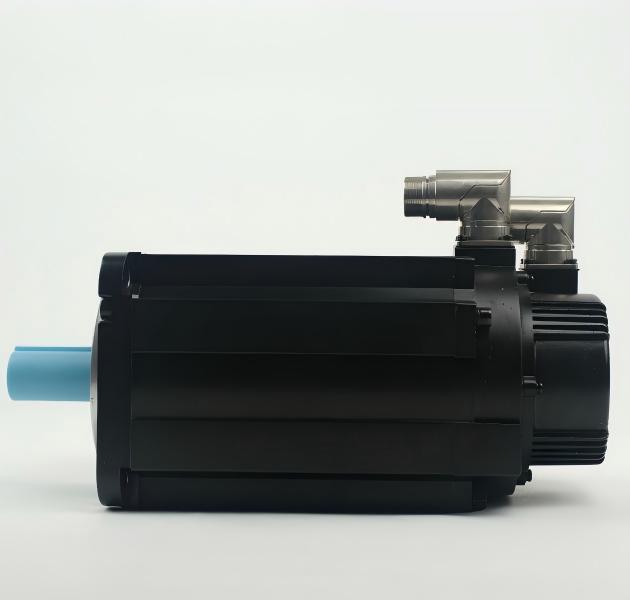

STL Series 130ST Flange servo motor 3.0-5.0kw 9.8-15.8Nm 380V
Short Description:
Hxdwh is the first factory specializing in the production of AC servo motor in China, with more than 30 years of R & D and production history of servo motor; Frame size -mm :130 Rated torque -NM :9.8-15.8 Rated power -Kw : 3.0-5.0 Rated speed -RPM : 3000 Maximum speed -RPM : 6000 number of pole-pai
Introduction of Hxdwh AC servo motor:
1. Hxdwh is the first factory specializing in the production of AC servo motor in China, with more than 30 years of R & D and production history of servo motor;
2. Complete product specifications, motor power from 0.2KW to 11.7kw (220v-380v);
3. Stable quality, excellent performance and high cost performance. The products are widely used in various occasions of motion control.
Product series:
LB Series ac servo motor

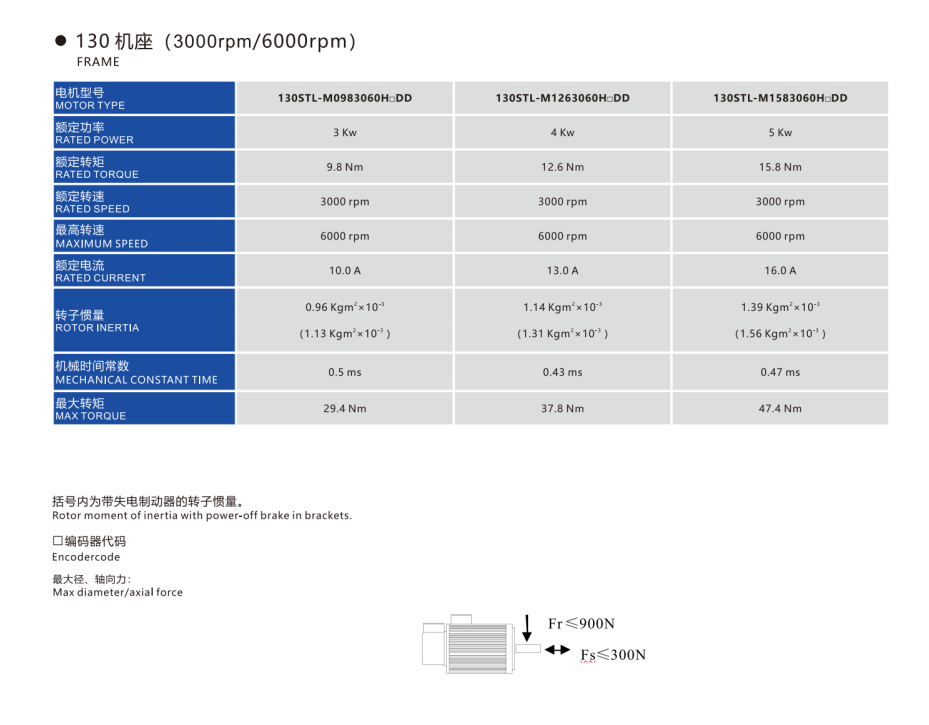

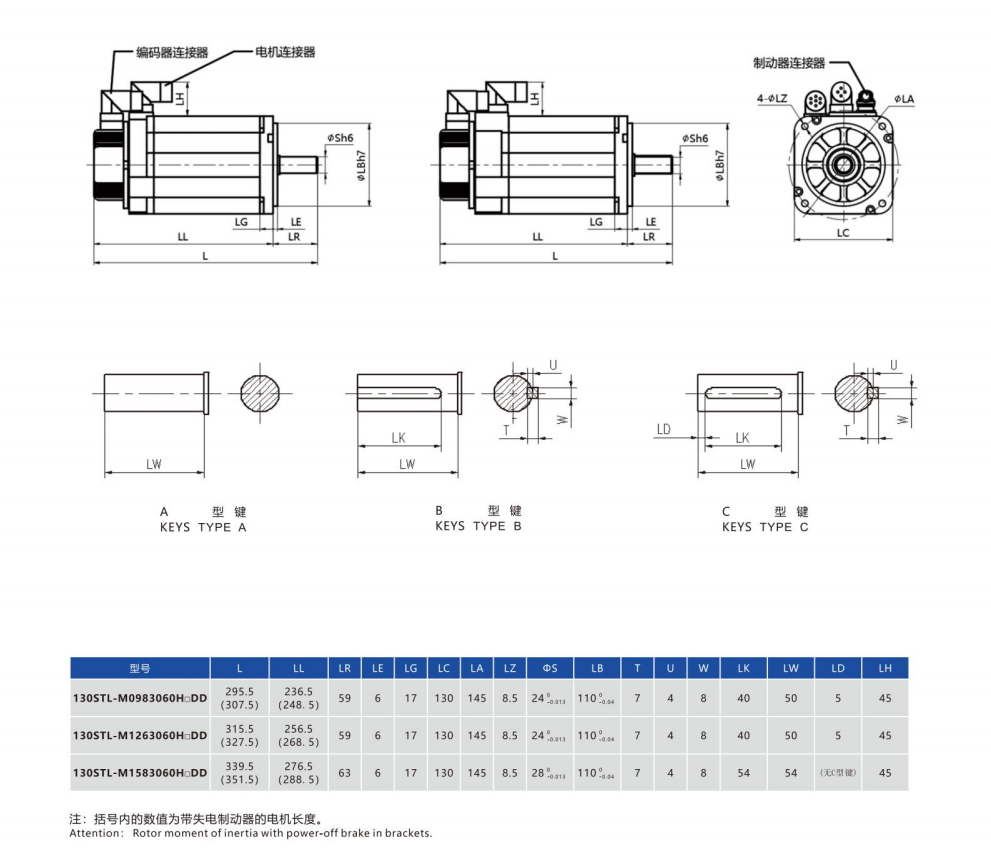

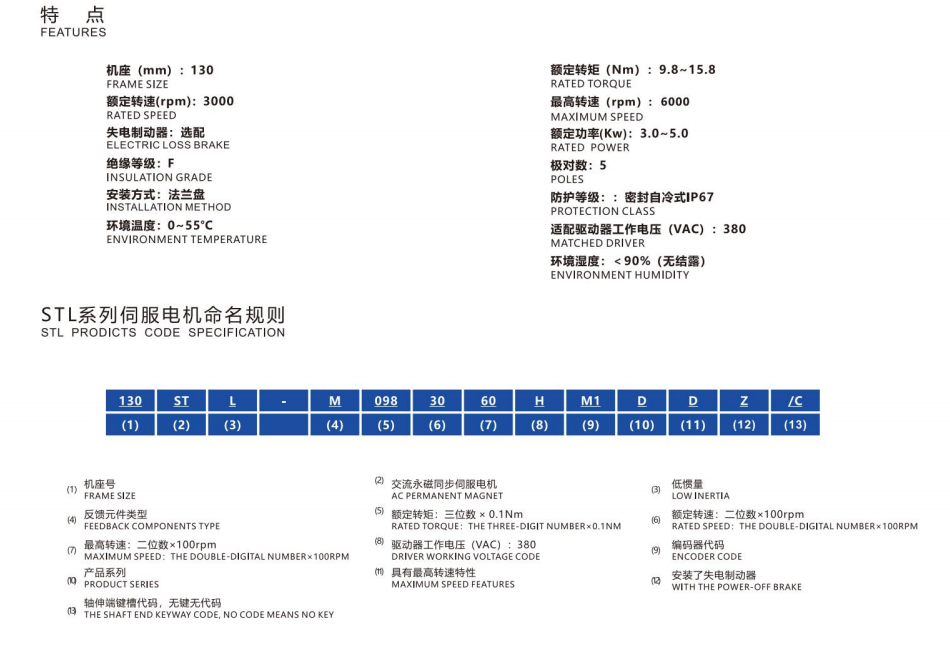

Frame size -mm :130

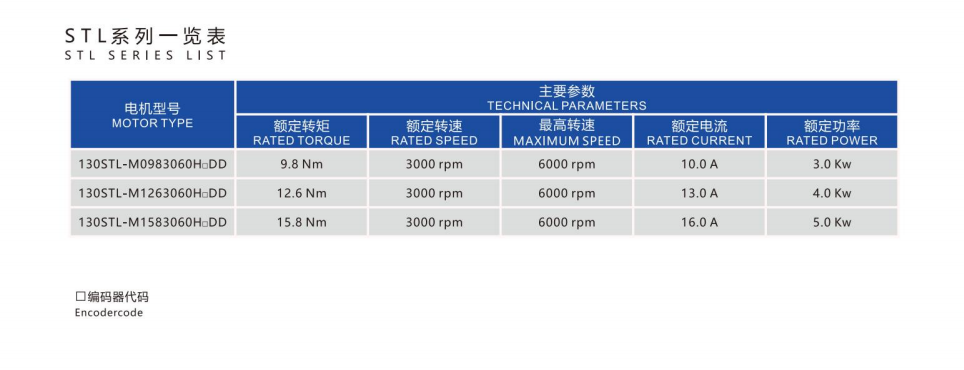

Rated torque -NM :9.8-15.8
Rated power -Kw : 3.0-5.0
Rated speed -RPM : 3000
Maximum speed -RPM : 6000
number of pole-pairs:5
The feedback element: Absolute photoelectric encoder (17bit or 23bit)
Electric brake: can match
Fit drive working voltage -VAC : 380V
