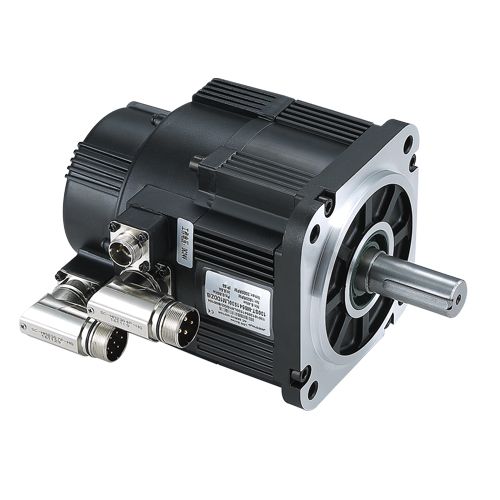

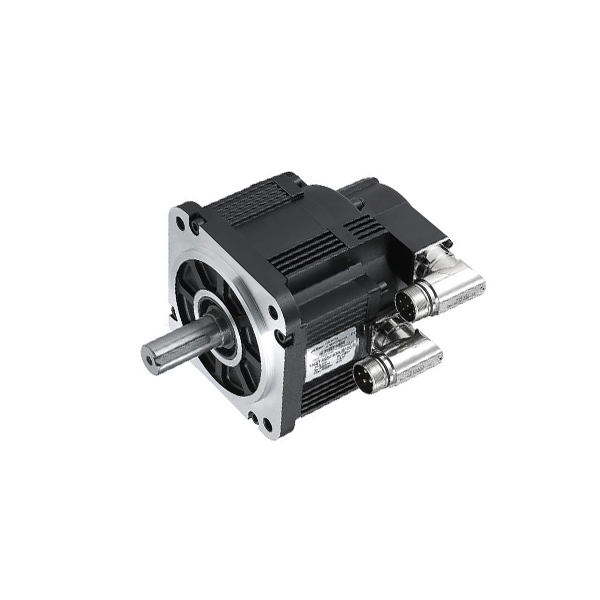

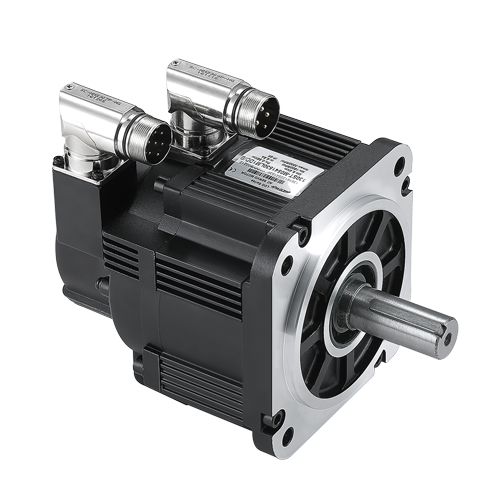

110ST Flange servo motor 0.88-1.6kw

Short Description:

Hxdwh is the first factory specializing in the production of AC servo motor in China, with more than 30 years of R & D and production history of servo motor; Complete product specifications, motor power from 0.2KW to 11.7kw (220v-380v);


Product Detail

Product Tags

Introduction of Hxdwh AC servo motor:

1. Hxdwh is the first factory specializing in the production of AC servo motor in China, with more than 30 years of R & D and production history of servo motor;

2. Complete product specifications, motor power from 0.2KW to 11.7kw (220v-380v);

3. Stable quality, excellent performance and high cost performance. The products are widely used in various occasions of motion control.

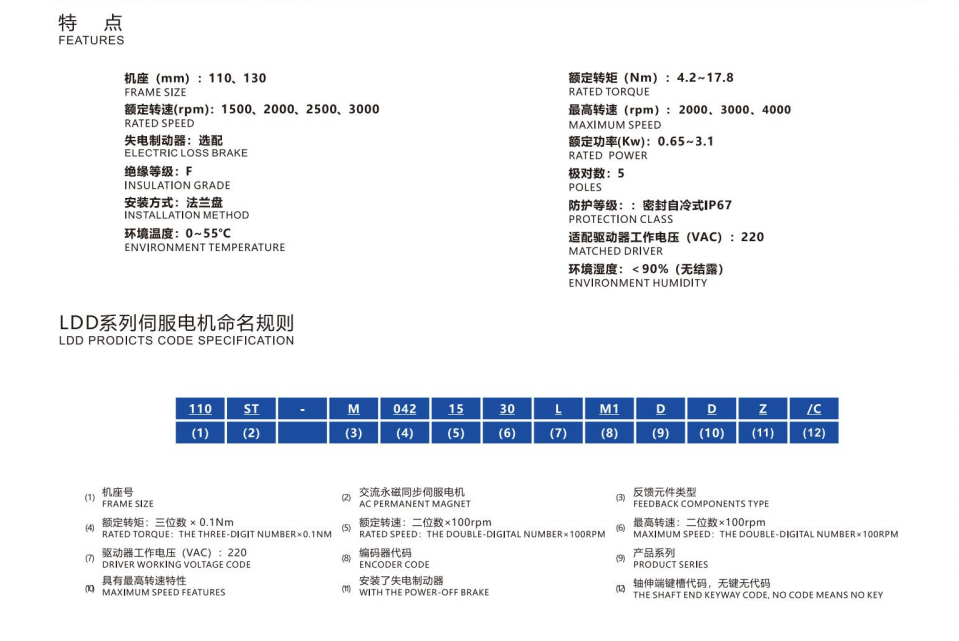

Product series:

LDD Series ac servo motor

Frame size -mm:60.80.110.130

Rated torque-NM:0.32-17.8

Rated power -Kw:0.1-2.8

Rated speed -RPM: 1500.2000.2500.3000

Maximum speed -RPM : 2000.3000.4000.6000

number of pole-pairs:5

The feedback element: Absolute photoelectric encoder (17bit or 23bit)

Electric brake: can match

Fit drive working voltage -VAC :220

Servo Motor  model:

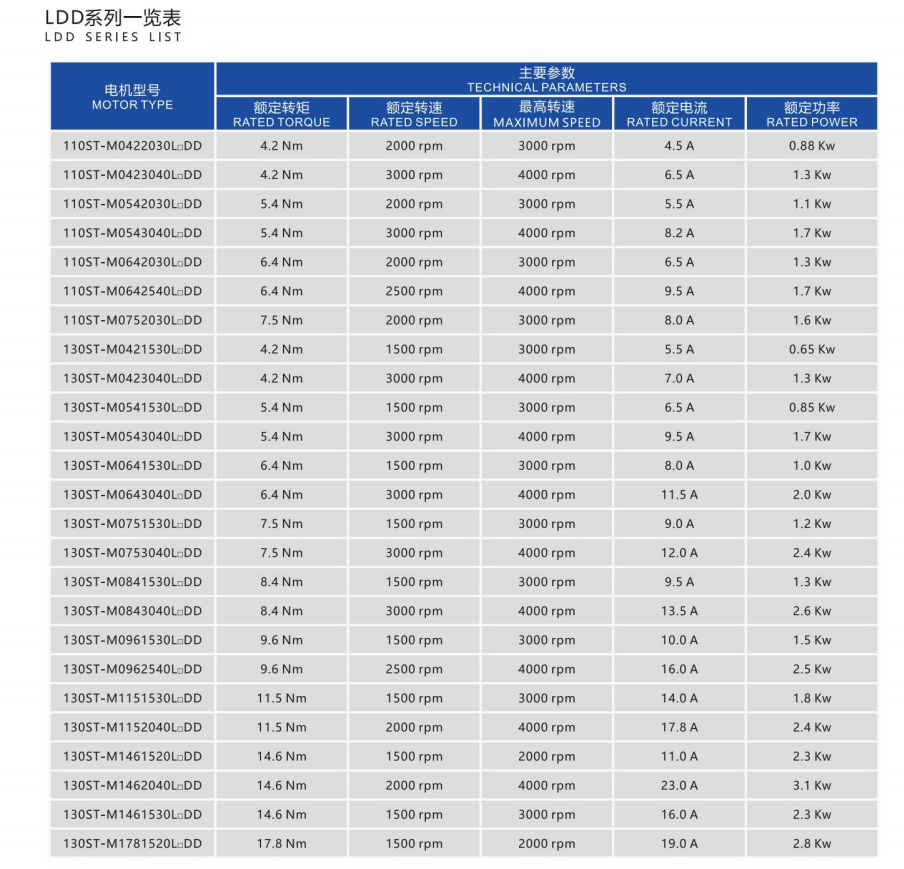

220V LDD Series ac servo motor- 23bit or 17bit absolute encoder

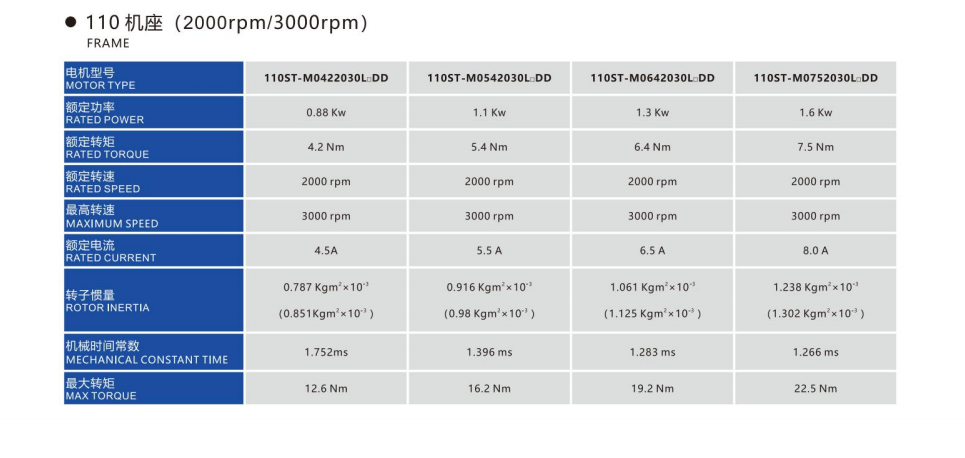

110ST-M0422030LM1DD 220v 0.88kw 4.5A 4.2Nm 3000-3000rpm

110ST-M0423040LM1DD 220v 1.3kw 6.5A 4.2Nm 3000-4000rpm

110ST-M0542030LM1DD 220v 1.1kw 5.5A 5.4Nm 2000-3000rpm

110ST-M0543040LM1DD 220v 1.7kw 8.2A 5.4Nm 3000-4000rpm

110ST-M0642030LM1DD 220v 1.3kw 6.5A 6.4Nm 2000-3000rpm

110ST-M0642540LM1DD 220v 1.7kw 9.5A 6.4Nm 2500-4000rpm

110ST-M0752030LM1DD 220v 1.6kw 8A 7.5Nm 2000-3000rpm

110ST-M0422030LMDD 220v 0.88kw 4.5A 4.2Nm 3000-3000rpm

110ST-M0423040LMDD 220v 1.3kw 6.5A 4.2Nm 3000-4000rpm

110ST-M0542030LMDD 220v 1.1kw 5.5A 5.4Nm 2000-3000rpm

110ST-M0543040LMDD 220v 1.7kw 8.2A 5.4Nm 3000-4000rpm

110ST-M0642030LMDD 220v 1.3kw 6.5A 6.4Nm 2000-3000rpm

110ST-M0642540LMDD 220v 1.7kw 9.5A 6.4Nm 2500-4000rpm

110ST-M0752030LMDD 220v 1.6kw 8A 7.5Nm 2000-3000rpm

Application of servo motor:

Servo motor for chemical machinery

Servo motor for petroleum machinery

Servo motor for pharmaceutical equipment

Servo motors for medical devices

Servo motor for environmental protection machinery

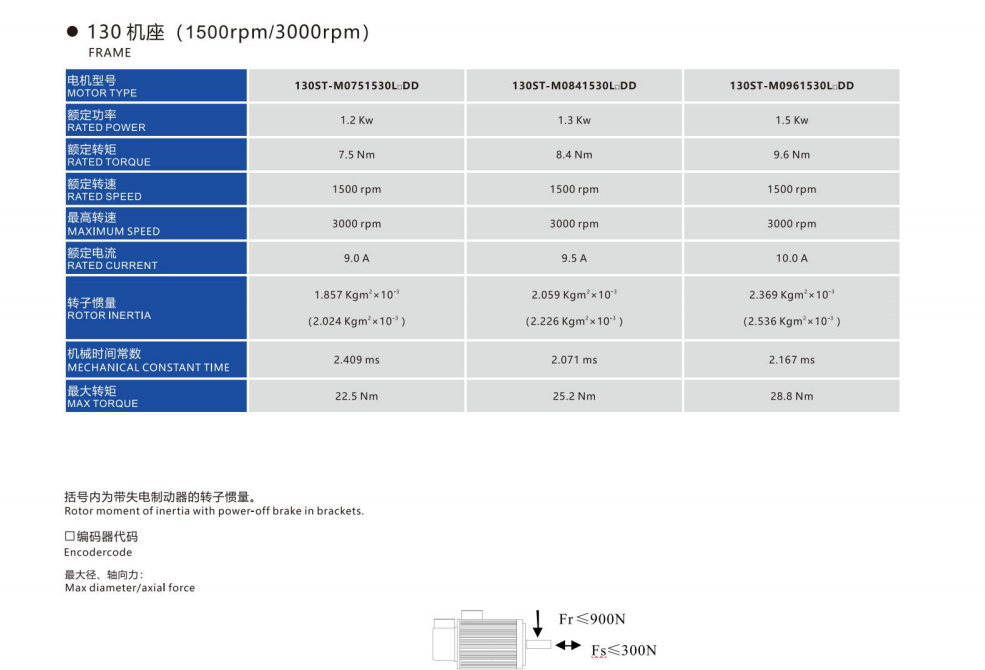

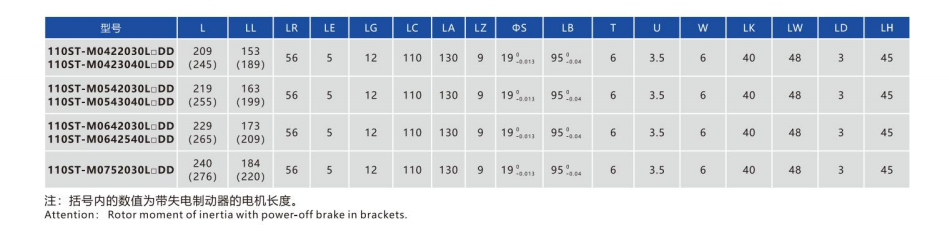

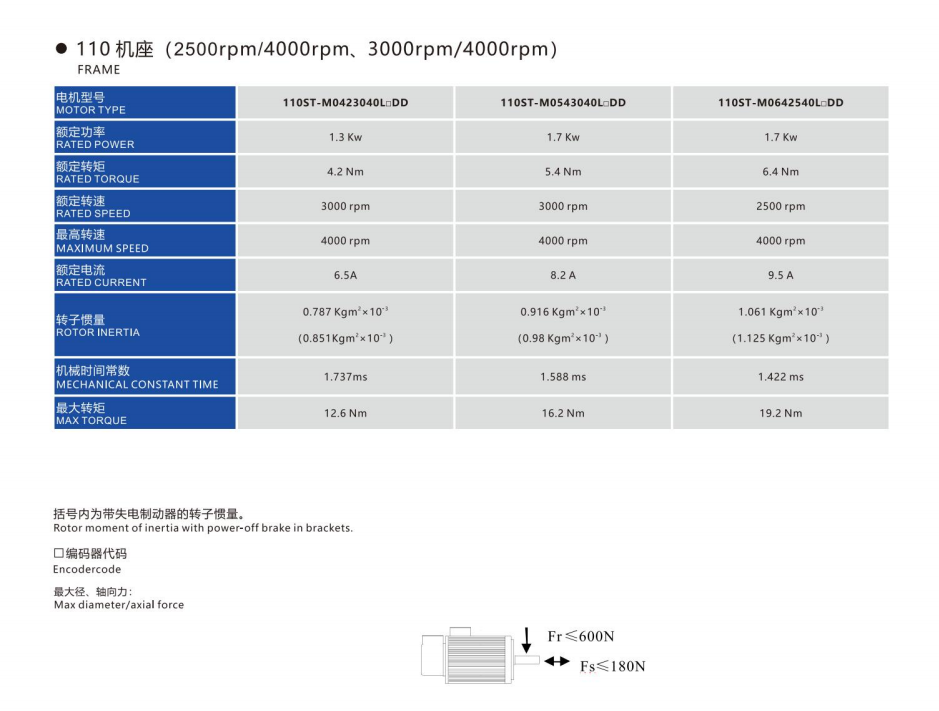

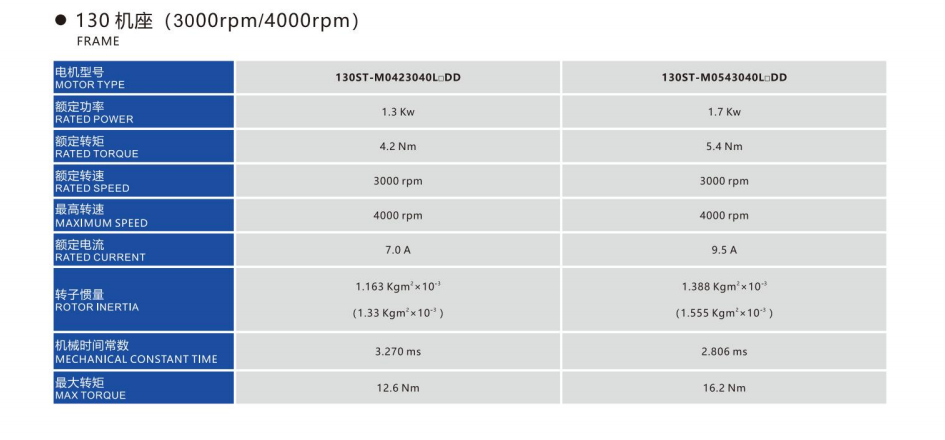

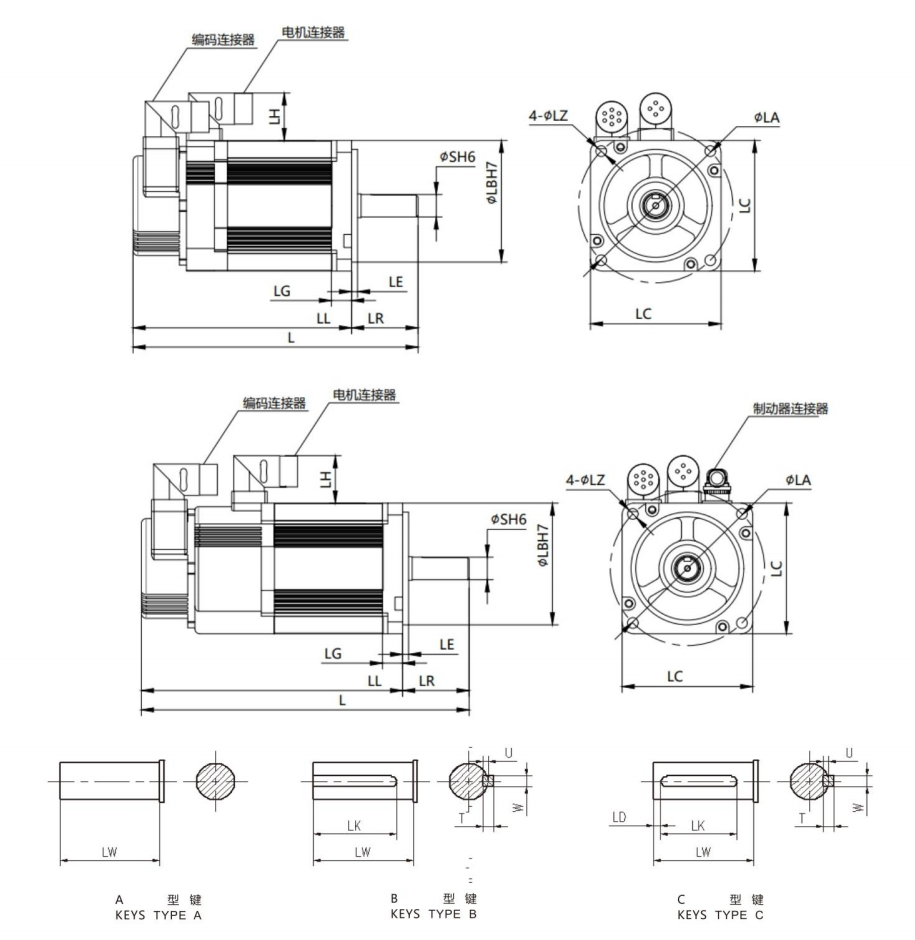

1-HXDWH-1-installed connect 2-HXDWH-2-installed connect 10-LDD series servo motors 11-LDD series servo motors2 16-LDD series 110ST servo motor 17-LDD series 110ST servo motor
