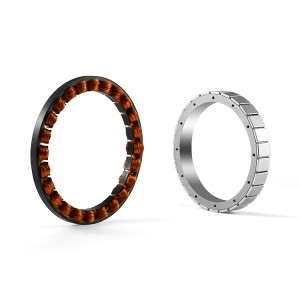

U200 series Large Hollow Shaft Frameless Direct‑Drive Motor, Outer diameter:200mm, Inner diameter:140mm Rated torque :13-50Nm, Motor height:25.9-60.9mm
Short Description:
U200 series Large Hollow Shaft Frameless Direct‑Drive Motor, Outer diameter:200mm, Inner diameter:140mm Rated torque :13-50Nm, Motor height:25.9-60.9mm

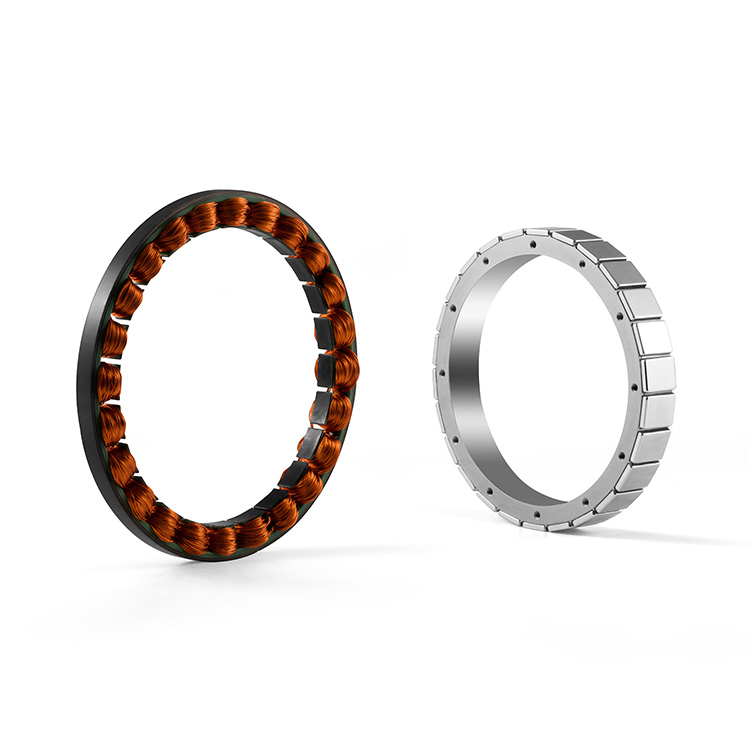

# U200 Series Large Hollow Shaft Frameless Direct‑Drive Motor

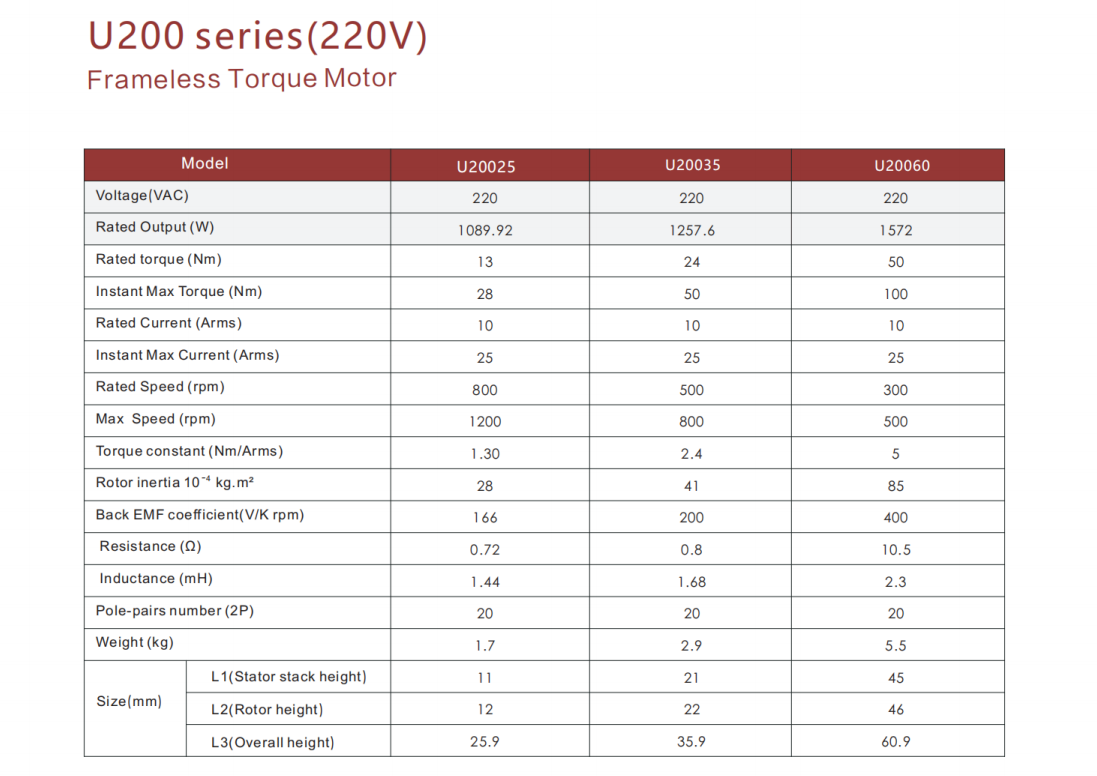

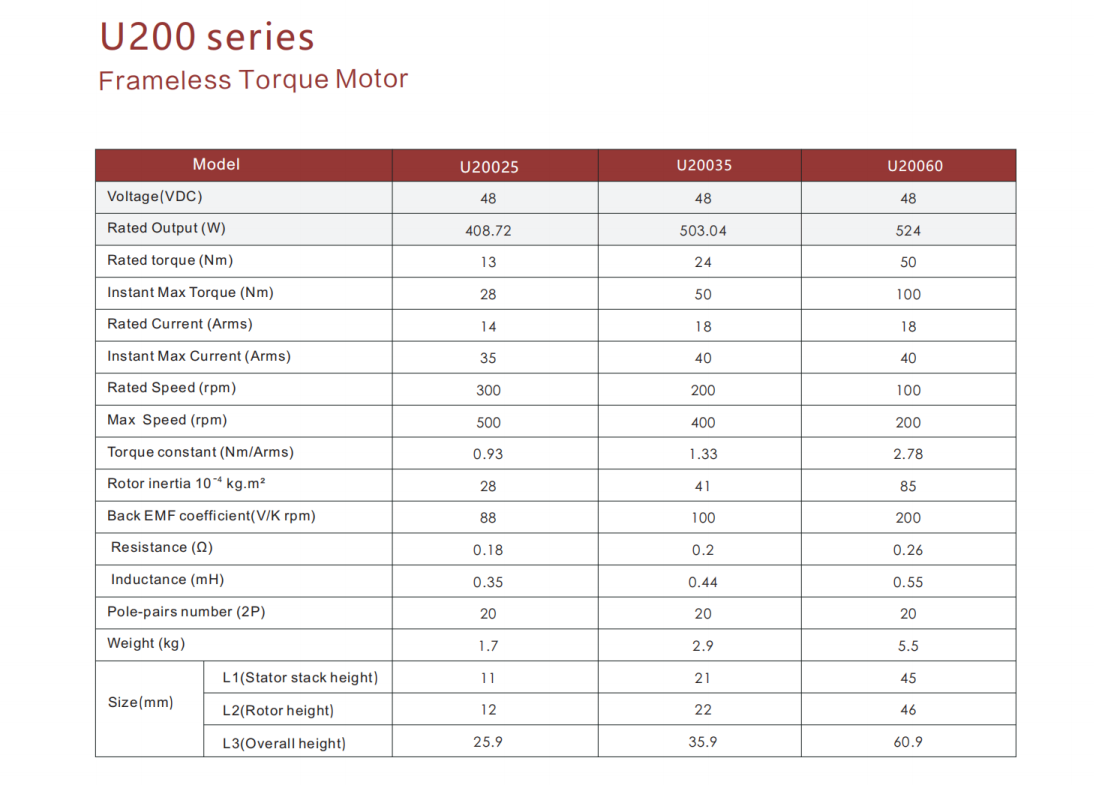

Optional rated torques: 13Nm, 24Nm, 50Nm; optional motor heights: 25.9mm, 35.9mm, 60.9mm

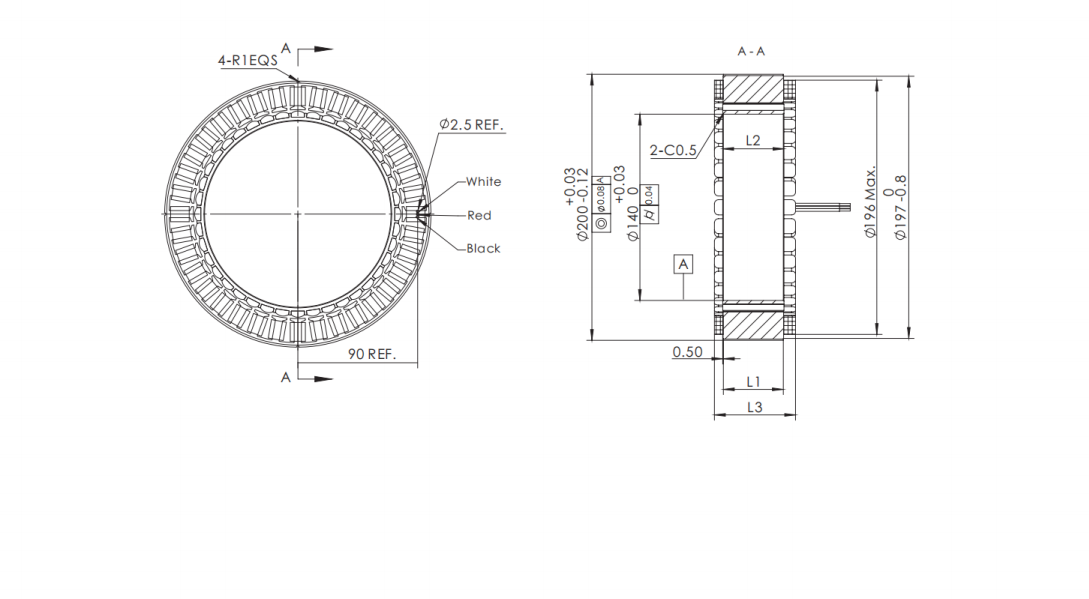

Outer Diameter (mm): 200
Inner Diameter (mm): 140
Rated Voltage (Vdc/Vac): 48/220
Rated Torque (Nm): 13~50
Rated Speed (rpm): 100~800
