U60 U68 U76 series miniature frameless motors, Outer diameter:60mm/68mm/76mm, Inner diameter:33mm/40mm/45mm Rated torque :0.45-2.69Nm, Motor height:17.7-37.4mm

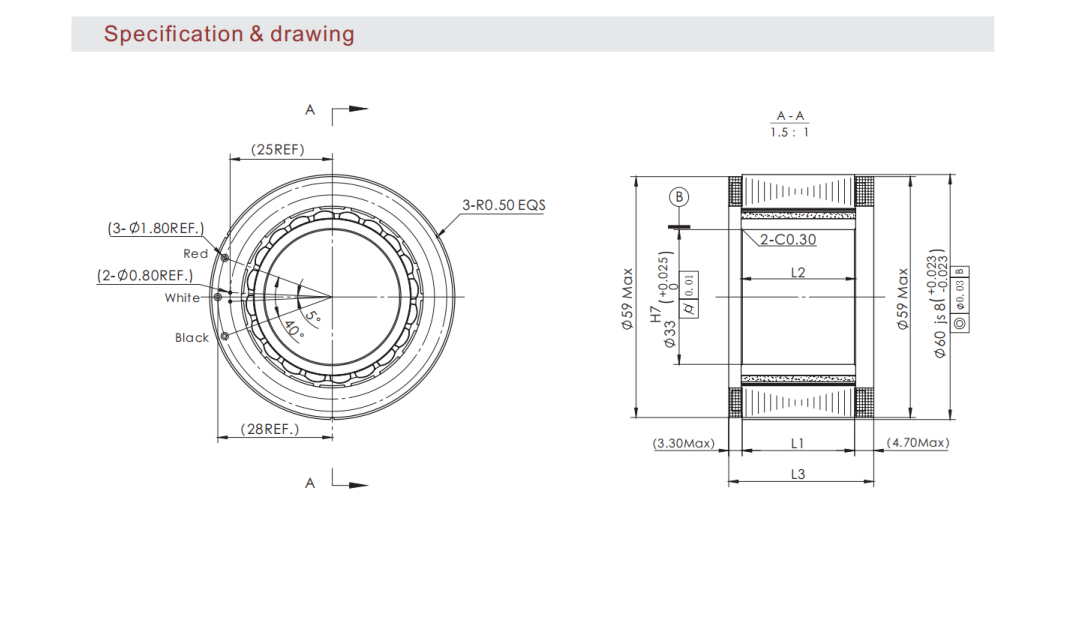

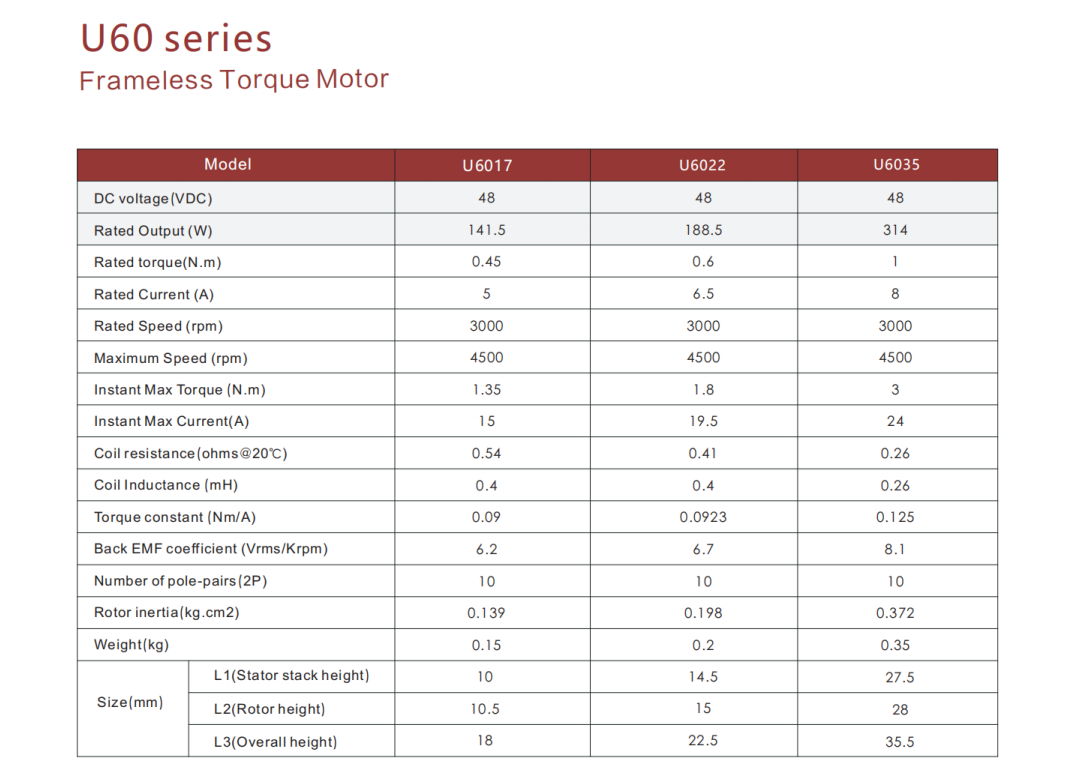

# U60 Series Miniature Frameless Motor
Optional rated torques: 0.45Nm, 0.6Nm, 0.96Nm; optional heights: 17.7mm, 22.2mm, 35.8mm.

Outer Diameter (mm): 60
Inner Diameter (mm): 33
Rated Voltage (Vdc): 48
Rated Torque (Nm): 0.45~1
Rated Speed (rpm): 3000

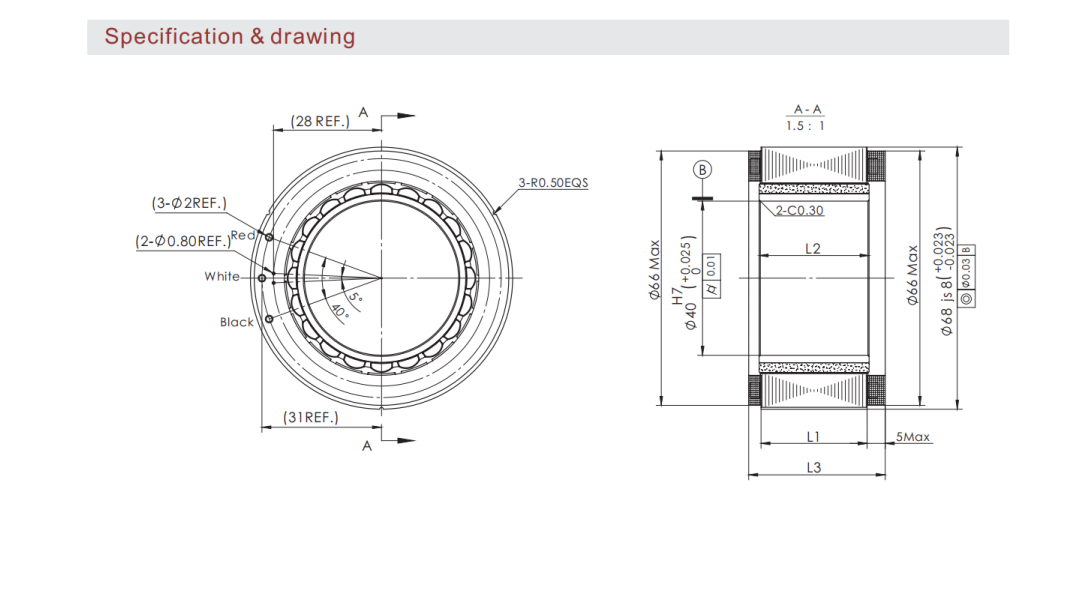

# U68 Series Miniature Frameless Motor
Optional rated torques: 0.63Nm, 0.86Nm, 1.54Nm; optional heights: 18.3mm, 22.8mm, 36.4mm; optional rated power: 198W, 270W, 484W..

Outer Diameter (mm): 68
Inner Diameter (mm): 40
Rated Voltage (Vdc): 48
Rated Torque (Nm): 0.65~1.55
Rated Speed (rpm): 3000

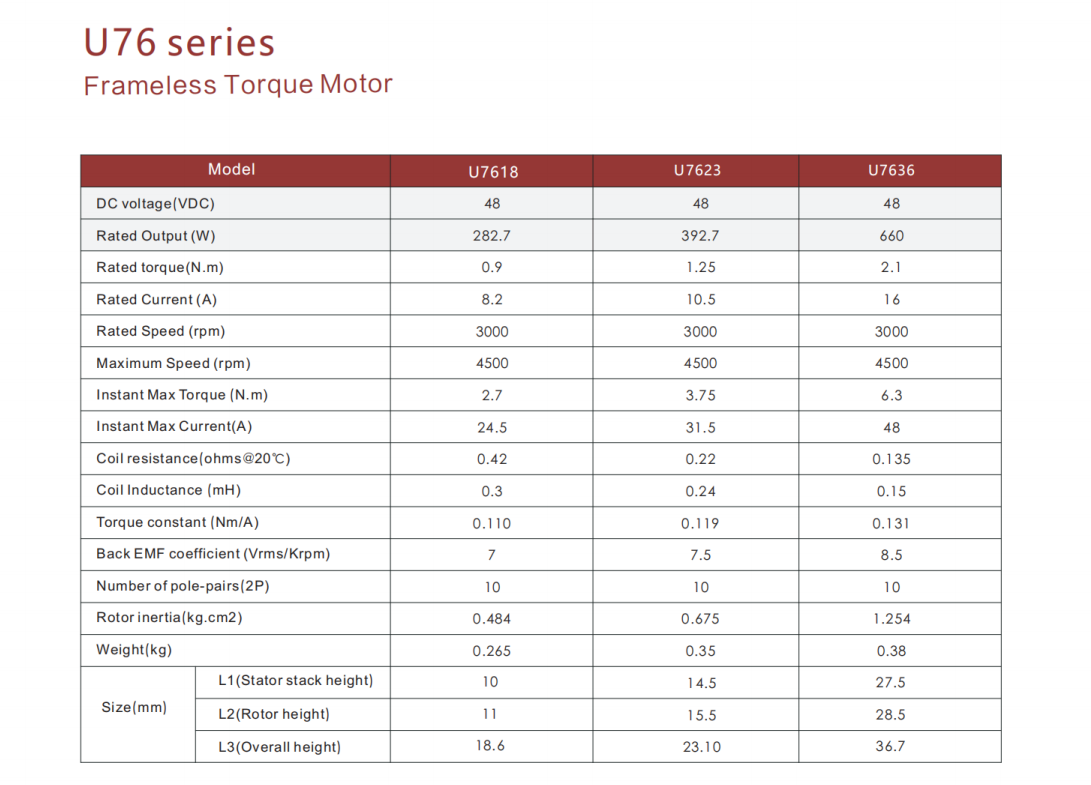

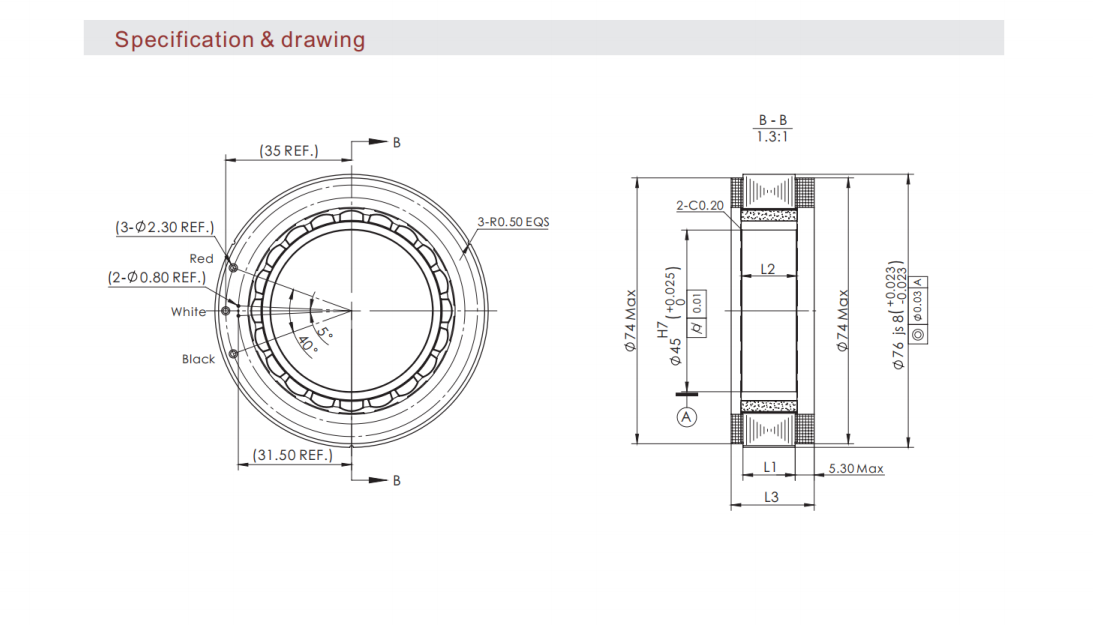

# U76 Series Miniature Frameless Direct-Drive Torque Motor

Outer Diameter (mm): 76
Inner Diameter (mm): 45
Rated Voltage (Vdc): 48
Rated Torque (Nm): 0.9~2.1
Rated Speed (rpm): 3000
