U160 series Large Hollow Shaft Frameless Direct‑Drive Motor, Outer diameter:160mm, Inner diameter:106mm Rated torque :9-32Nm, Motor height:25.9-60.9mm
Short Description:
U160 series Large Hollow Shaft Frameless Direct‑Drive Motor, Outer diameter:160mm, Inner diameter:106mm Rated torque :9-32Nm, Motor height:25.9-60.9mm

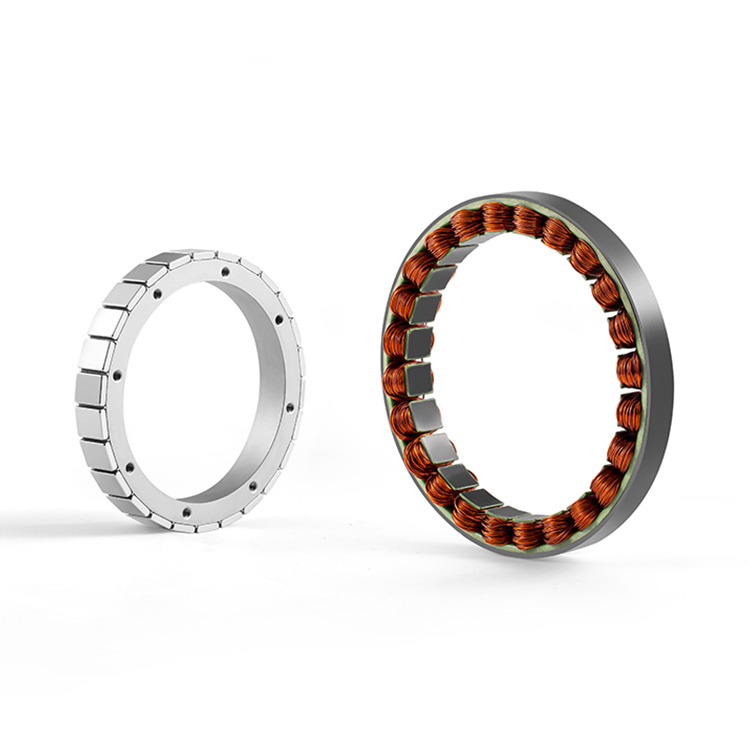

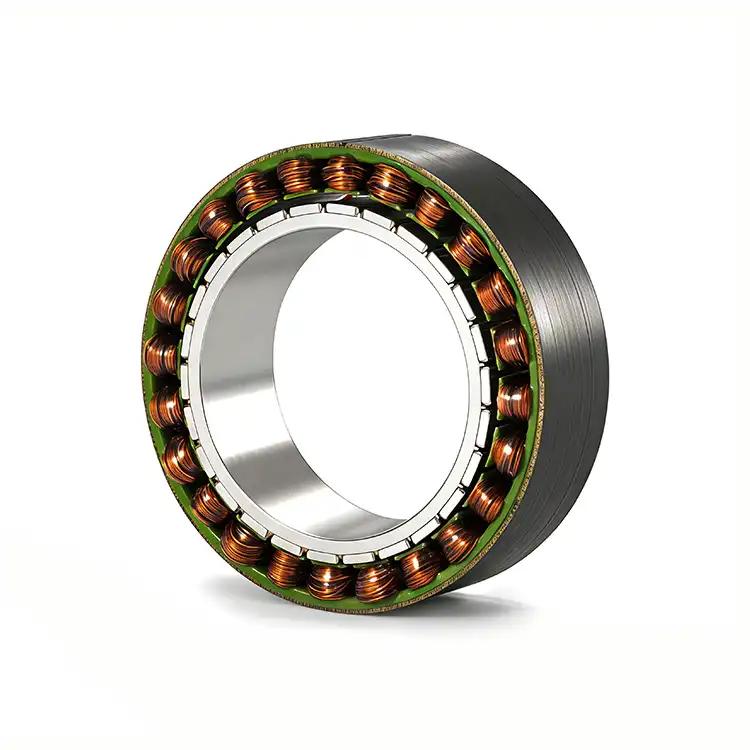

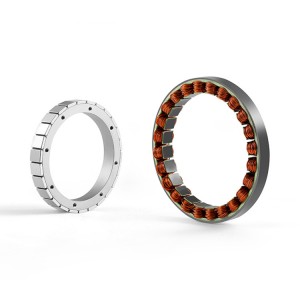

# U160 Series Large Hollow Shaft Frameless Direct‑Drive Motor

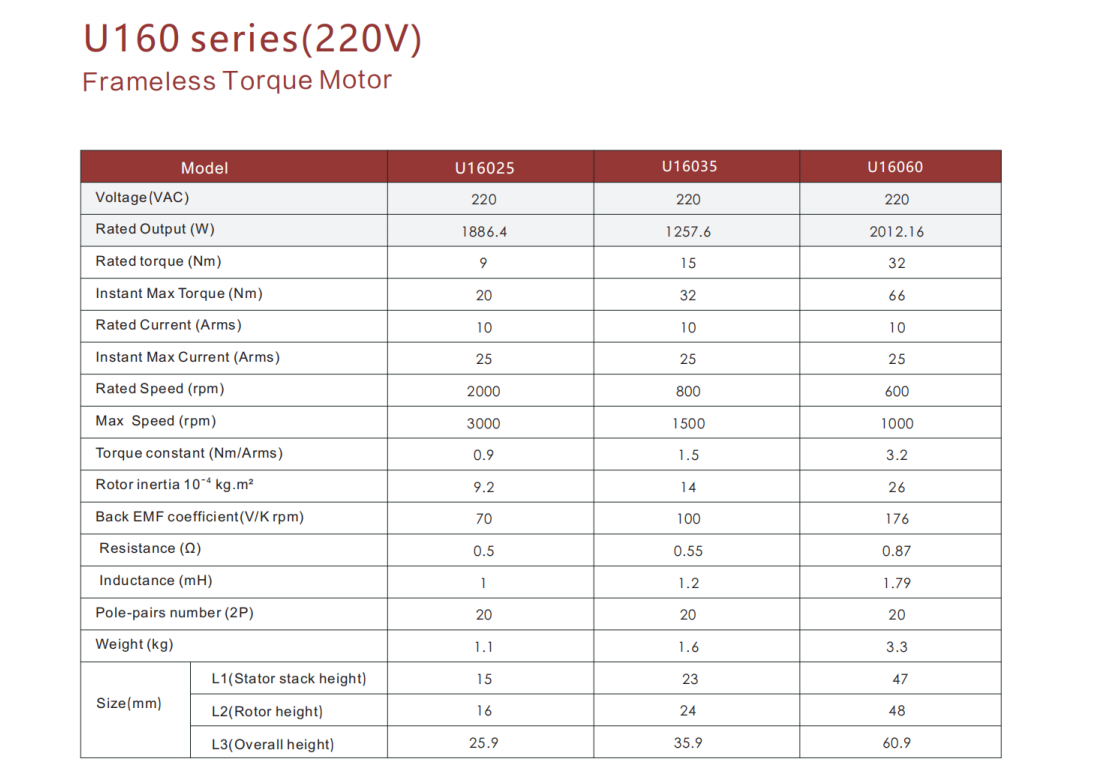

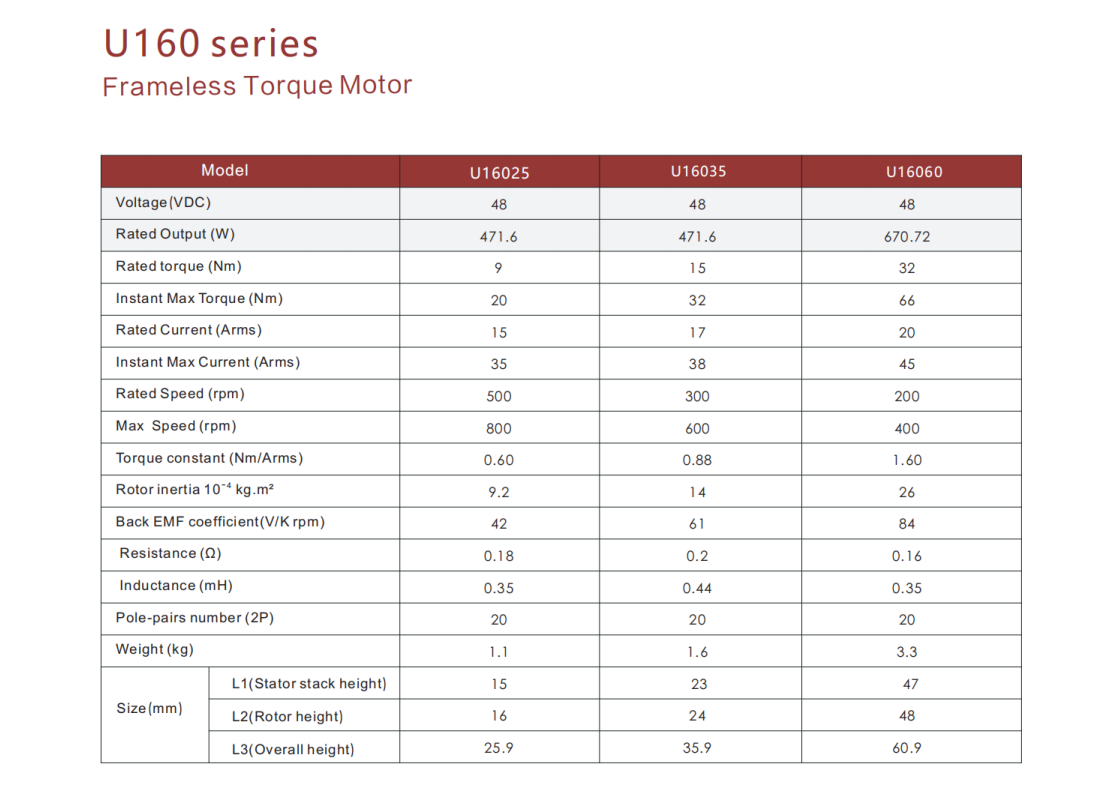

Optional rated torques: 9Nm, 15Nm, 32Nm; optional motor heights: 25.9mm, 35.9mm, 60.9mm
Outer Diameter (mm): 160
Inner Diameter (mm): 106
Rated Voltage (Vdc/Vac): 48/220
Rated Torque (Nm): 9~32
Rated Speed (rpm): 200~2000
