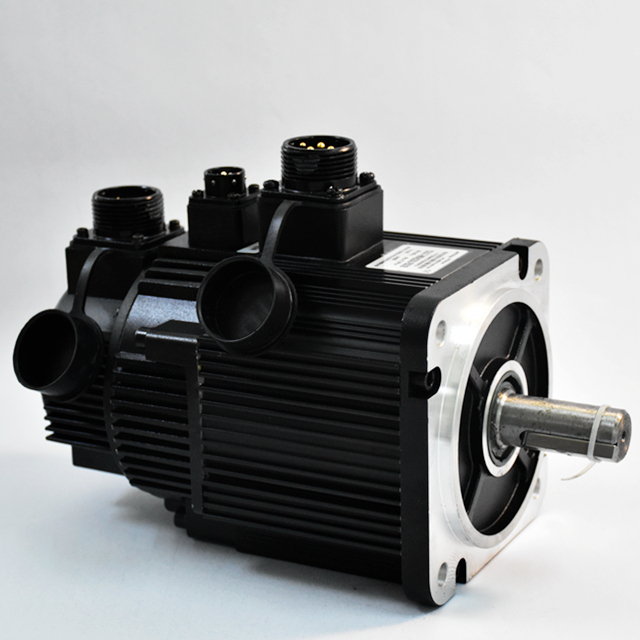

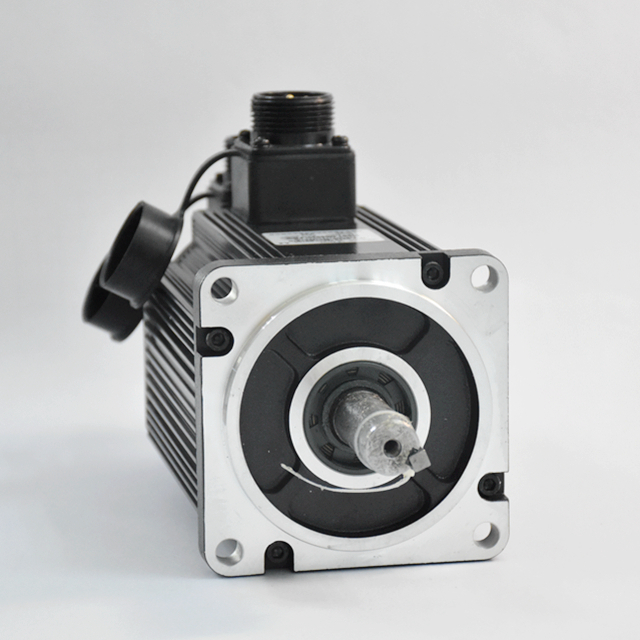

130ST Flange servo motor 1.0-3.8kw 4-15Nm 220V&380V
Short Description:
HXDWH LB Series Motor Configuration 220V&380V Frame Sizes: 110ST, 130ST, 150STA 2-27Nm 0.6-5.5kw Rated speed：1500/2000/2500/3000rpm F: INCREMENTAL ENCODER(2500C/T) M1:TAMAGAWA ABSOLUTE ENCODER(23bit/39bit)
Introduction of Hxdwh AC servo motor:
1. Hxdwh is the first factory specializing in the production of AC servo motor in China, with more than 30 years of R & D and production history of servo motor;
2. Complete product specifications, motor power from 0.2KW to 11.7kw (220v-380v);
3. Stable quality, excellent performance and high cost performance. The products are widely used in various occasions of motion control.
Product series:
HB Series ac servo motors:
Frame size -mm : 110.130.150.180
Rated torque -NM: 2-55
Rated power -Kw:0.6-8.6
Rated speed -RPM:1500.2000.2500.3000
Maximum speed -RPM:/
number of pole-pairs: 4
The feedback element: Incremental Encoder 2500C/T
Electric brake: can match
Fit drive working voltage -VA : 380
HMB Series ac servo motors:
Frame size-mm : 110.130.150.180
Rated torque -NM :4.8-55
Rated power -Kw :0.85-8.6
Rated speed -RPM :1500,2000
number of pole-pairs: 4
The eedback element: Absolute photoelectric encoder (17bit)
Electric brake: can match
Fit drive working voltage -VAC :380
Servo Motor model:

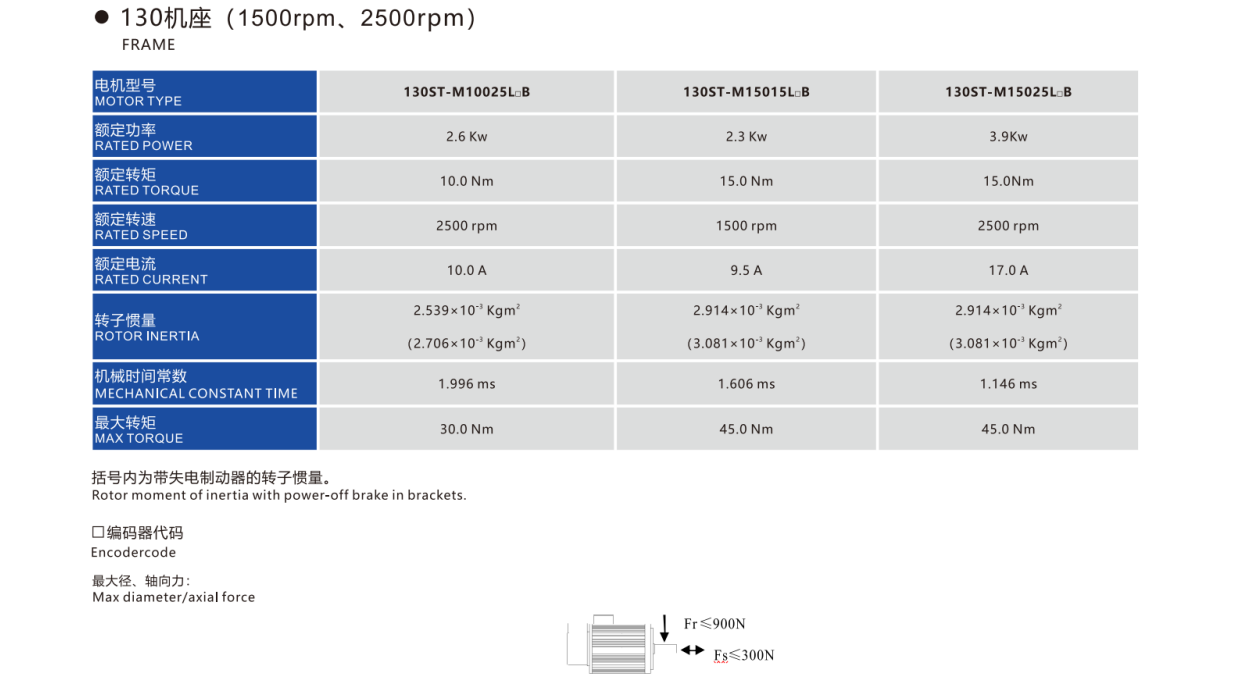

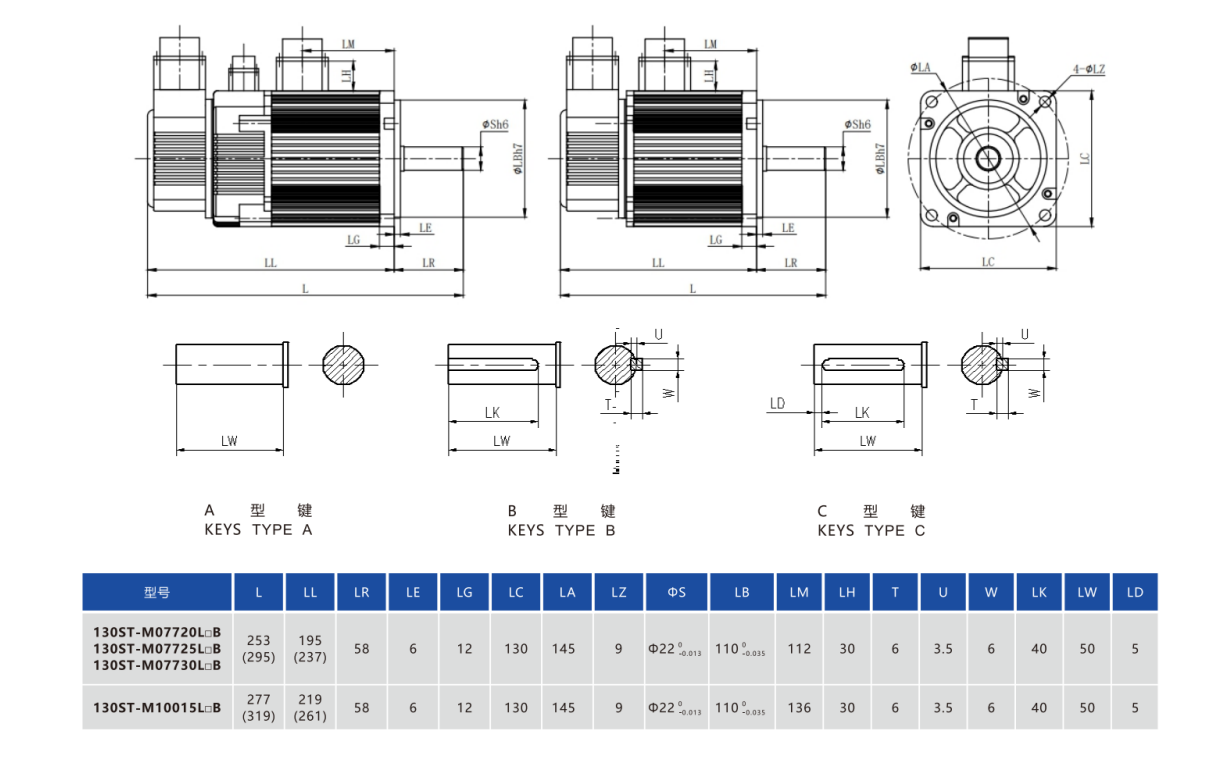

220V LB Series ac servo motor- 2500C/T incremental encoder

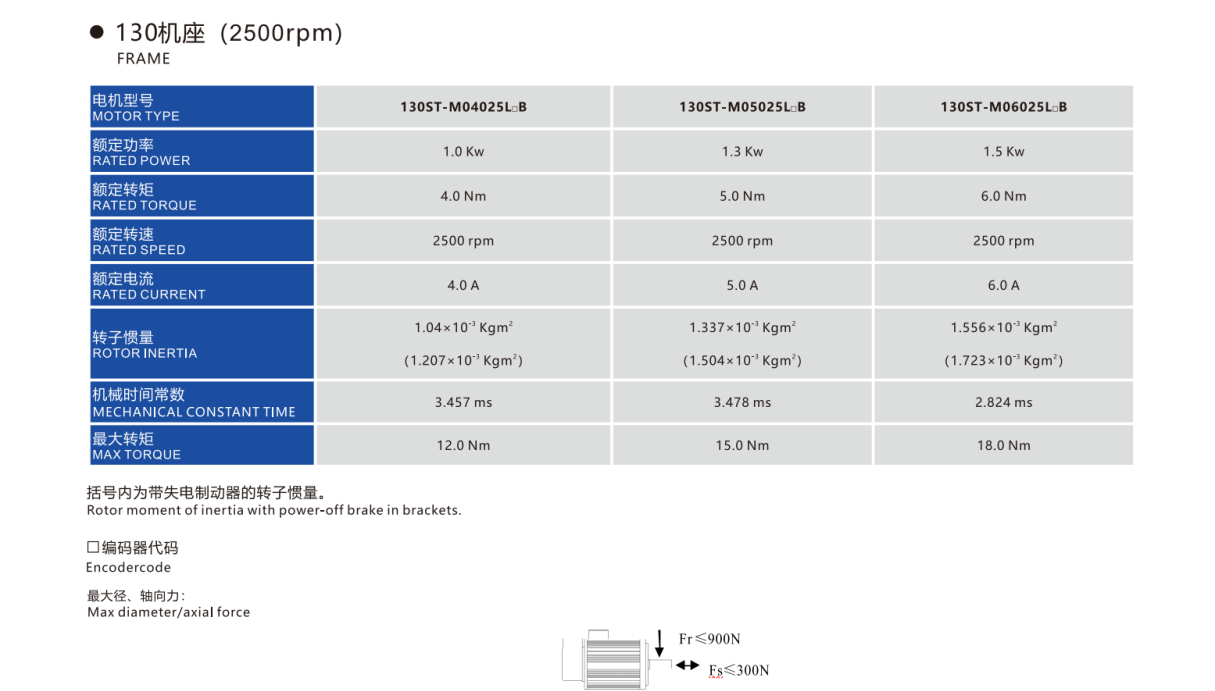

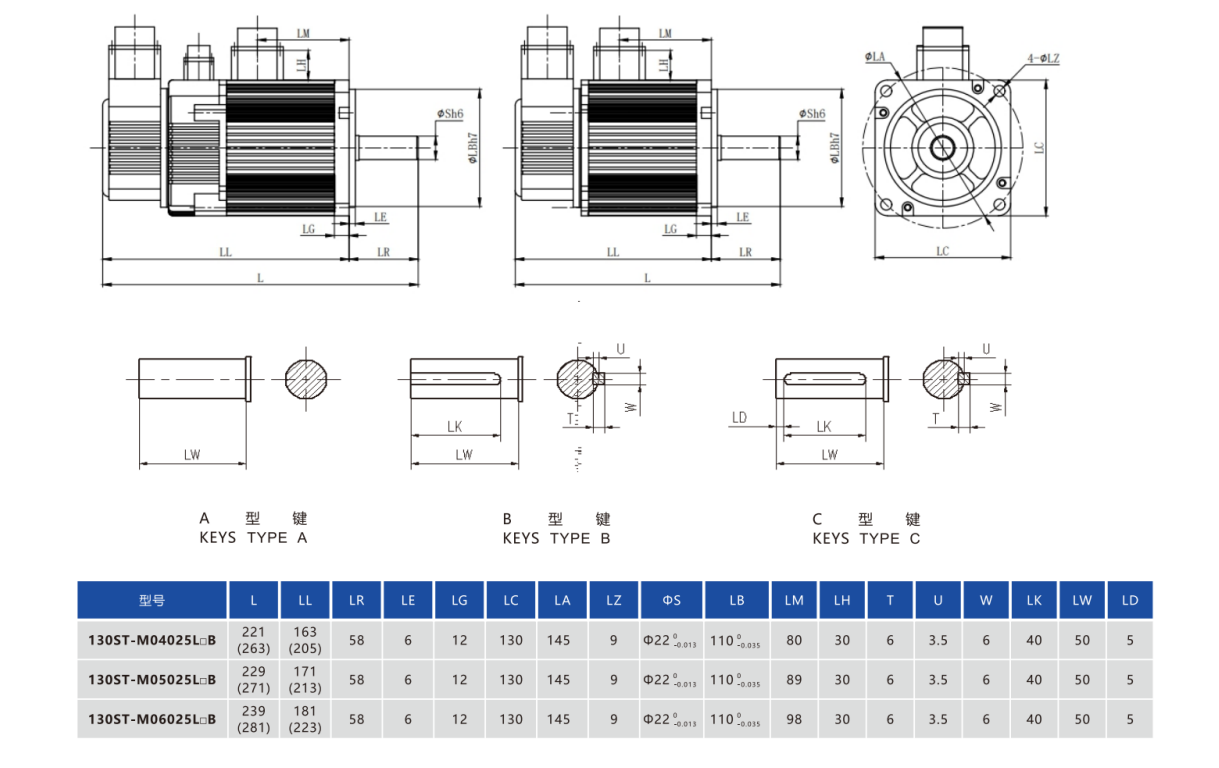

130ST-M04025LFB 220V 1.0KW 3A 4.0NM 2500RPM
130ST-M05025LFB 220V 1.0KW 3.5A 5.0NM 2000RPM
130ST-M06025LFB 220V 1.5KW 4.5A 6Nm 2500RPM

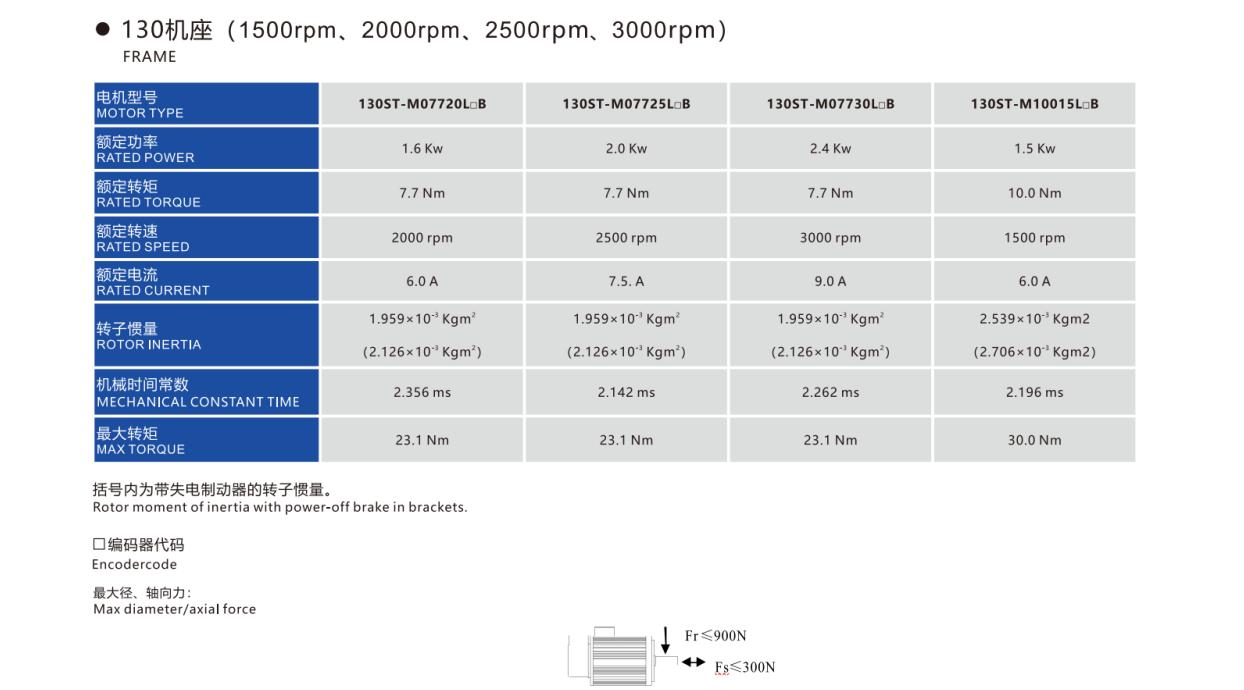

130ST-M07720LFB 220V 1.6KW 4A 7.7NM 2000RPM
130ST-M07725LFB 220V 2.0KW 5.5A 7.7NM 2500RPM
130ST-M07730LFB 220V 2.4KW 6.5A 7.7NM 3000RPM
130ST-M10015LFB 220V 1.5KW 4.5A 10NM 1500RPM

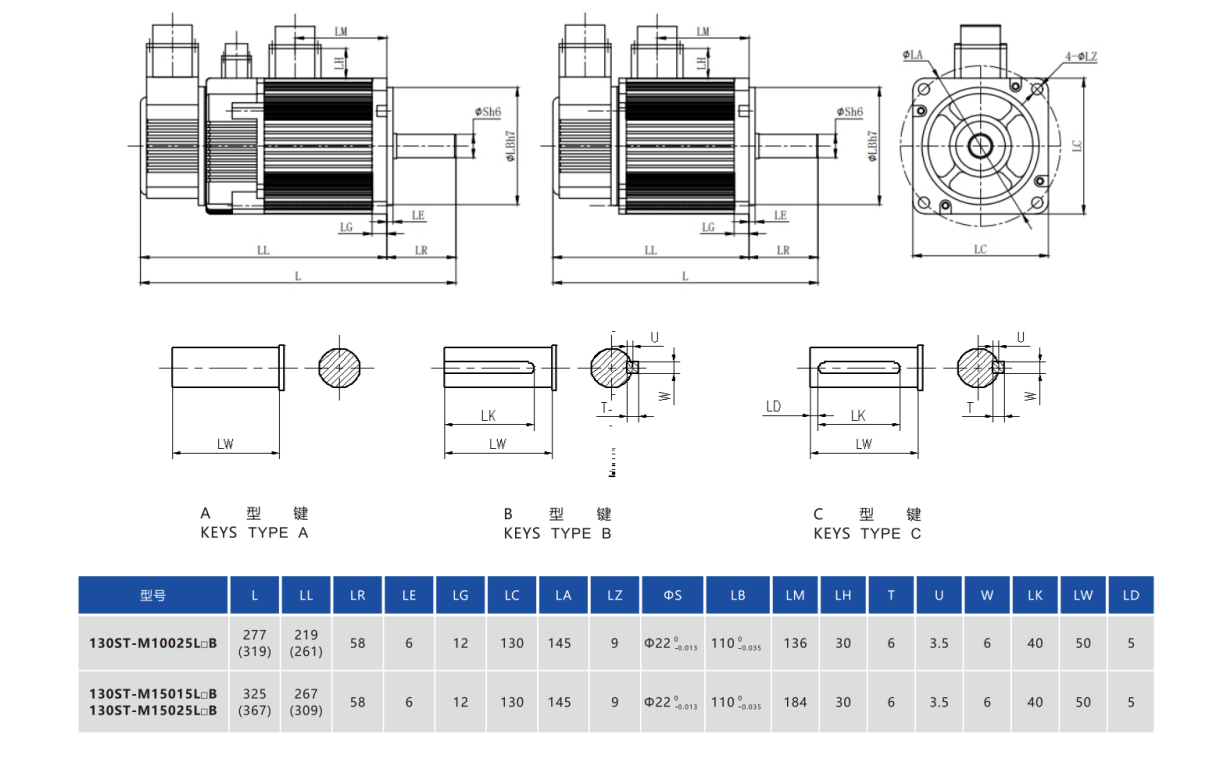

130ST-M10025LFB 220V 2.6KW 7A 10NM 2500RPM
130ST-M15015LFB 220V 2.3KW 7A 15NM 1500RPM
130ST-M15025LFB 220V 3.8KW 11.5A 15NM 2500RPM

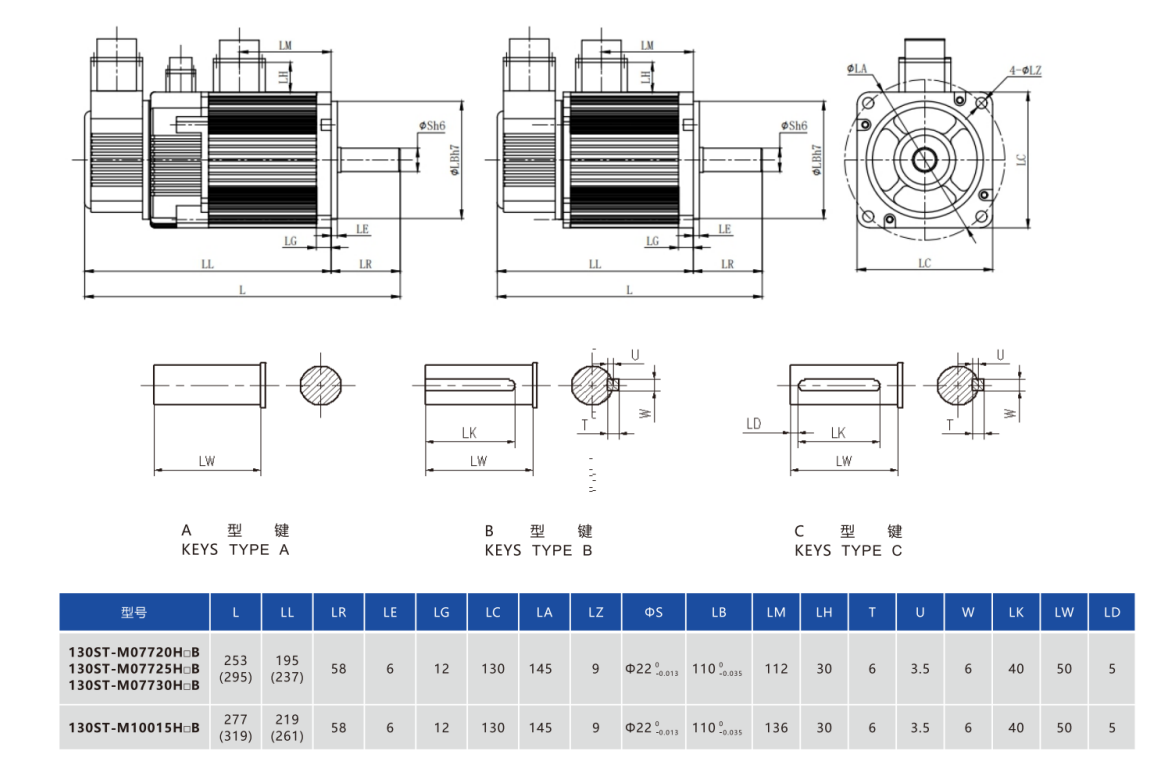

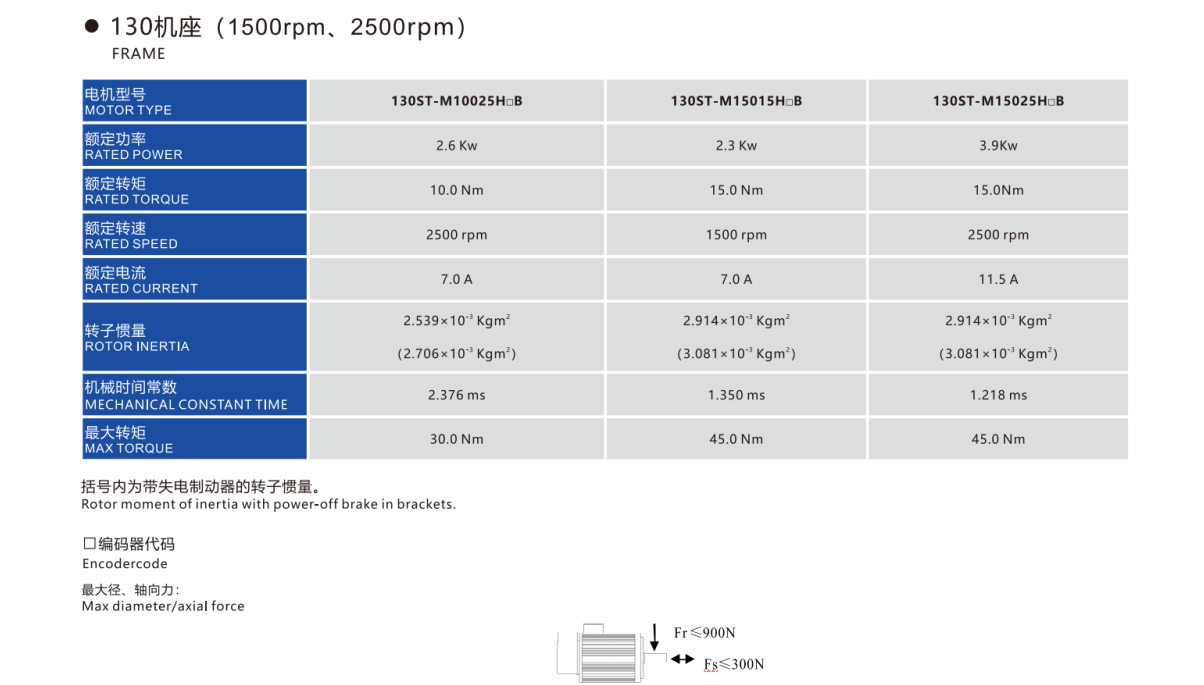

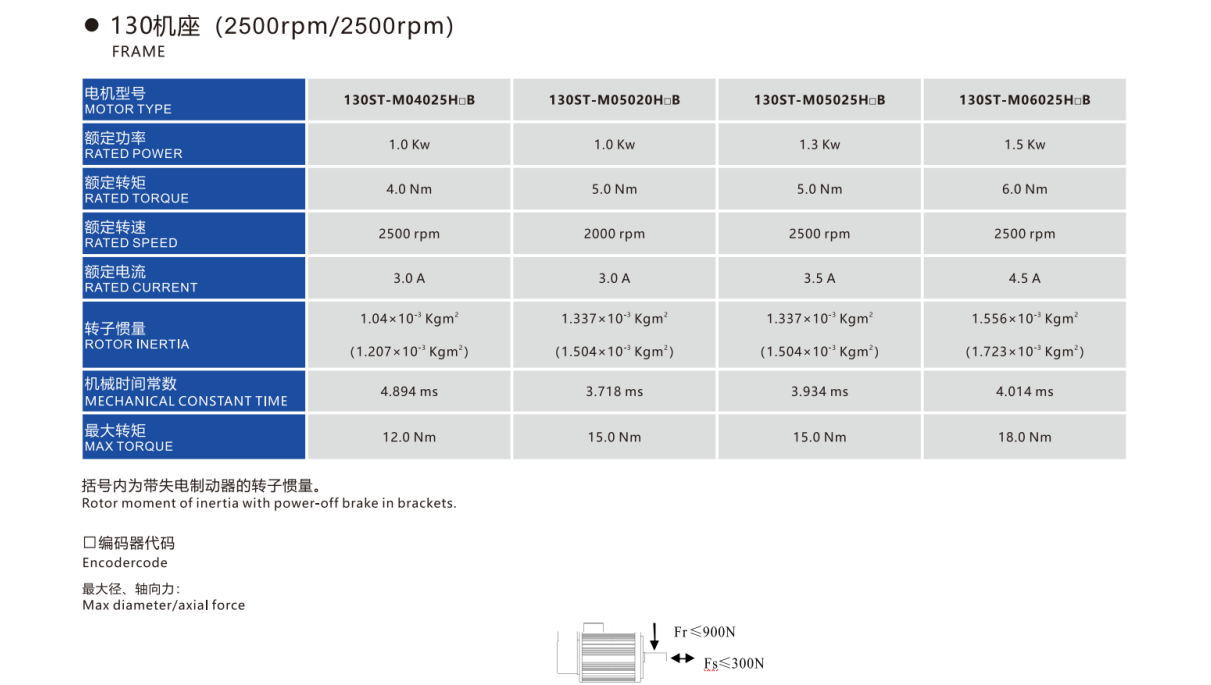

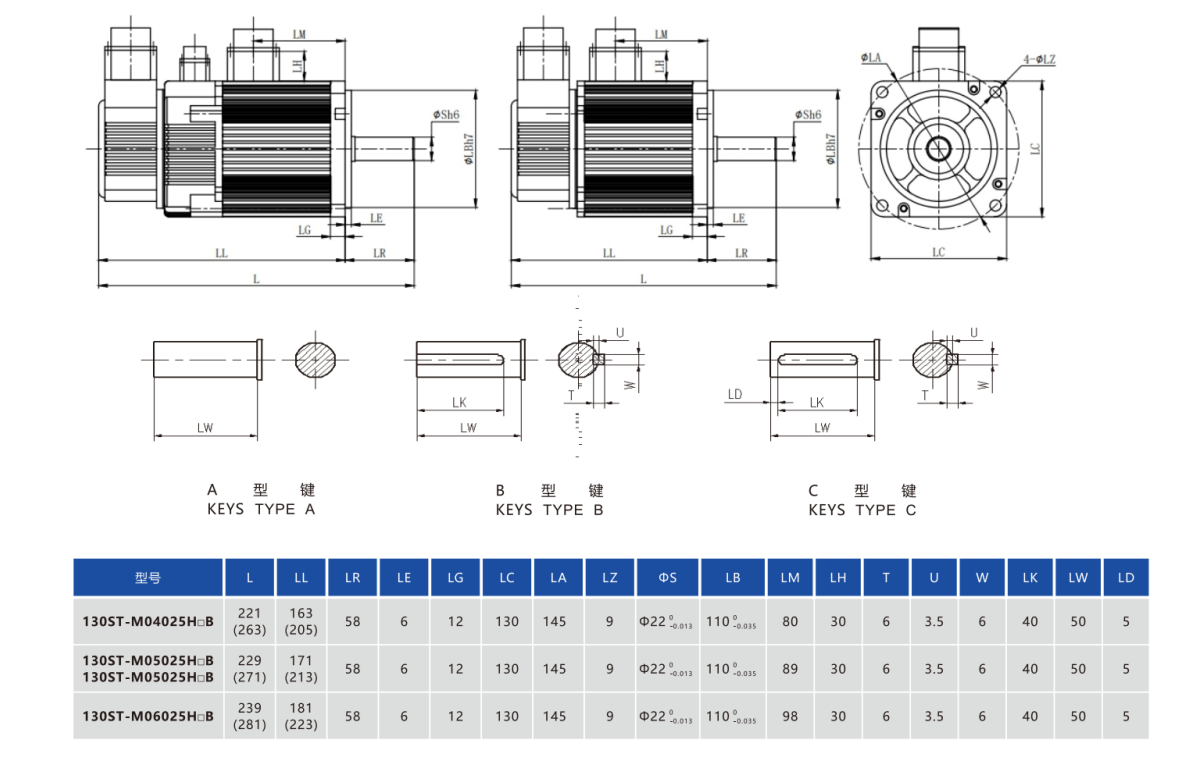

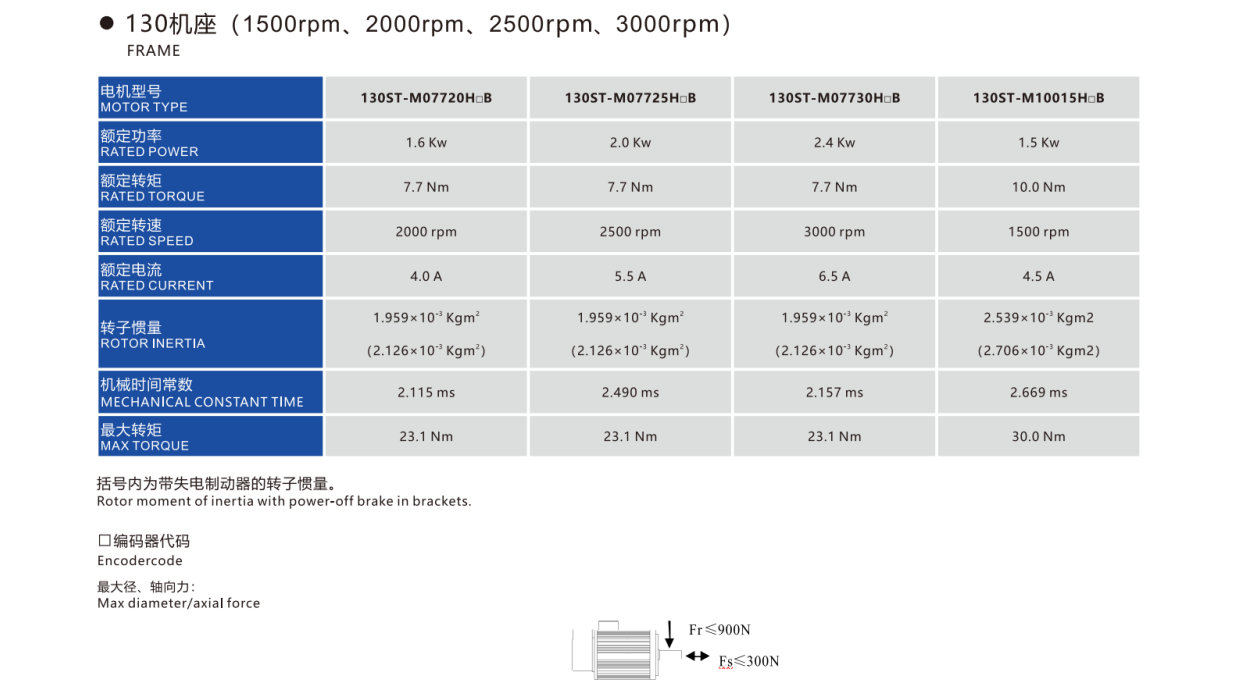

380V-400V HB Series ac servo motor- 2500C/T incremental encoder
130ST-M04025HFB 380V 1.0KW 3A 4.0NM 2500RPM
130ST-M05025HFB 380V 1.0KW 3.5A 5.0NM 2000RPM
130ST-M06025HFB 380V 1.5KW 4.5A 6Nm 2500RPM
130ST-M07720HFB 380V 1.6KW 4A 7.7NM 2000RPM
130ST-M07725HFB 380V 2.0KW 5.5A 7.7NM 2500RPM
130ST-M07730HFB 380V 2.4KW 6.5A 7.7NM 3000RPM
130ST-M10015HFB 380V 1.5KW 4.5A 10NM 1500RPM

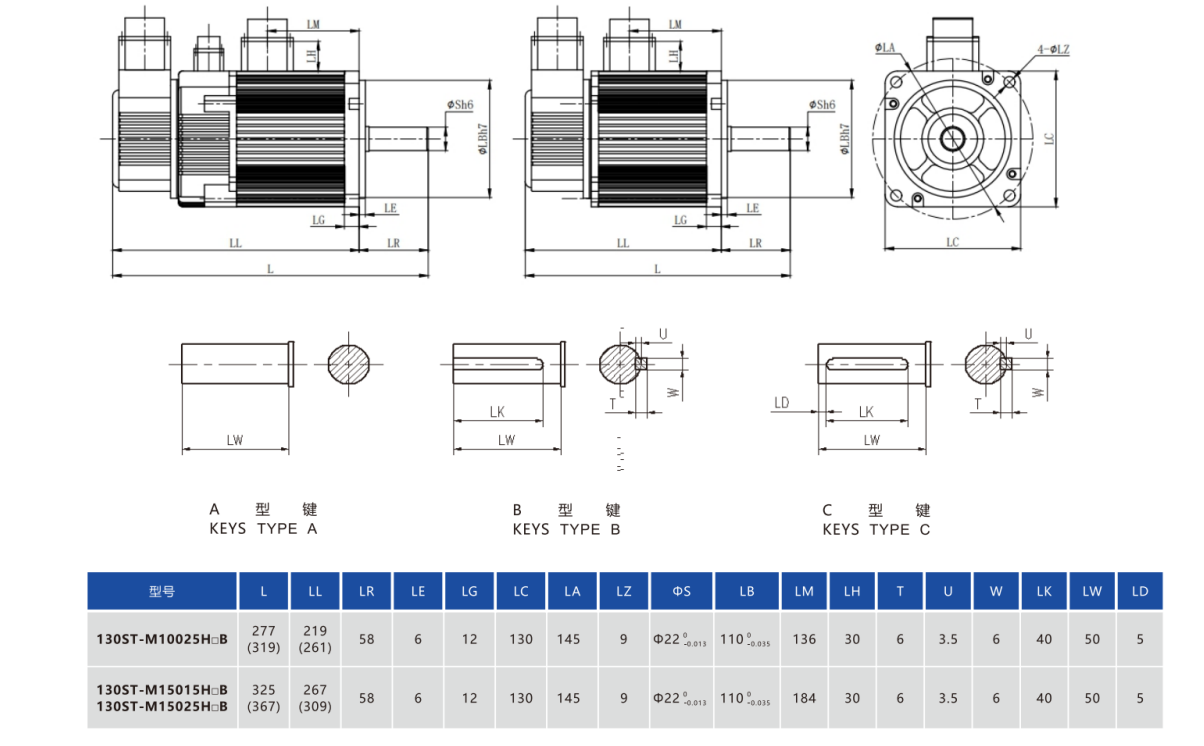

130ST-M10025HFB 380V 2.6KW 7A 10NM 2500RPM
130ST-M15015HFB 380V 2.3KW 7A 15NM 1500RPM
130ST-M15025HFB 380V 3.8KW 11.5A 15NM 2500RPM
Application of servo motor:
Applied to CNC machine tools
Applied to industrial Robot
Apply to machining center
Applied to carving and milling equipment
Applied to deep hole drilling equipment
