Safety Door SS/E-01B Switches
Short Description:
According to the national standard design, the safety door switch is mainly used for mechanical equipment to close the door, that is to say, if the machine is to be started, the equipment protection door must be closed
According to the national standard design, the safety door switch is mainly used for closing and starting mechanical equipment, that is to say, if you want to start the machine, you must close the equipment protection door; The switch signal is used to detect whether the protective door is closed or not, so as to judge whether the equipment can be turned on or not, thus playing a role in safety protection for operators.
Description of features:
All metal components, the head can be adjusted in 4 directions.

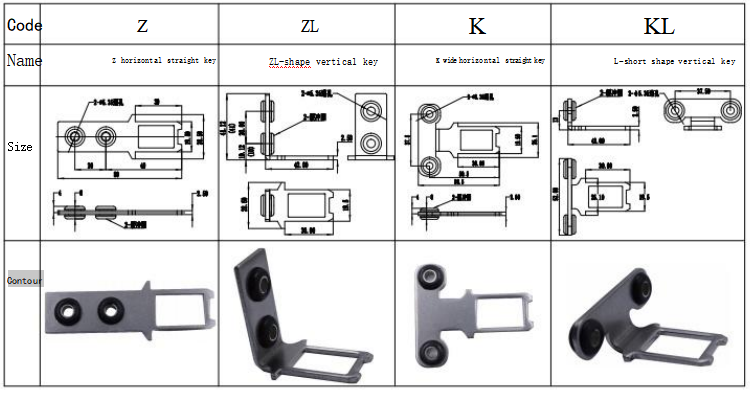

Four kinds of bolts can be selected with manual unlocking mechanism.

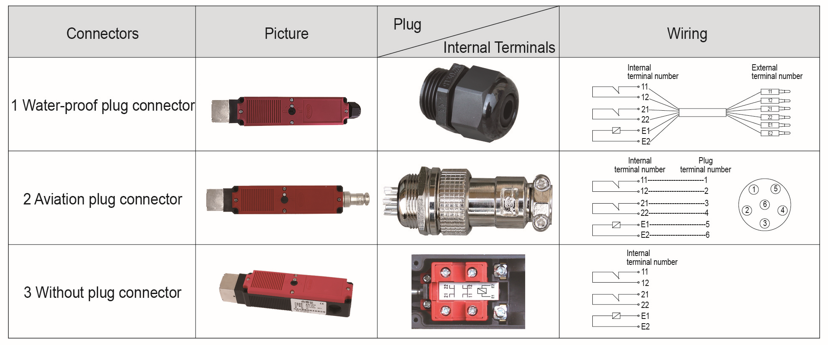

Increase the number of contact groups to 4 groups. Outlet mode is optional in 3 directions.

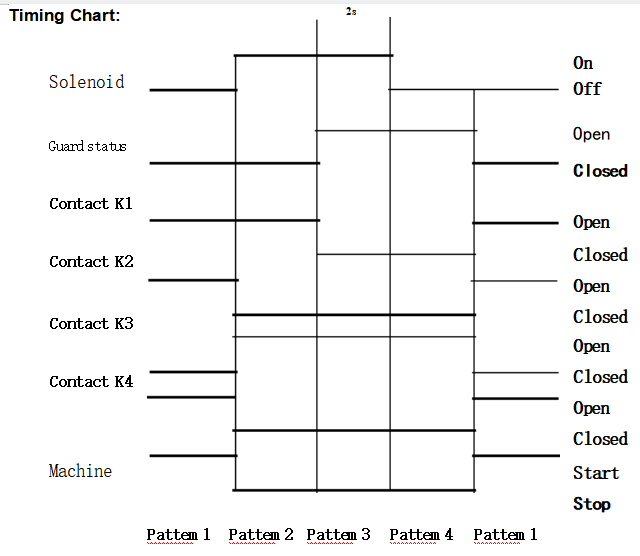

Locking mode:
Power-on: when the safety door switch is powered on, the switch is unlocked and the machinery or equipment stops running.

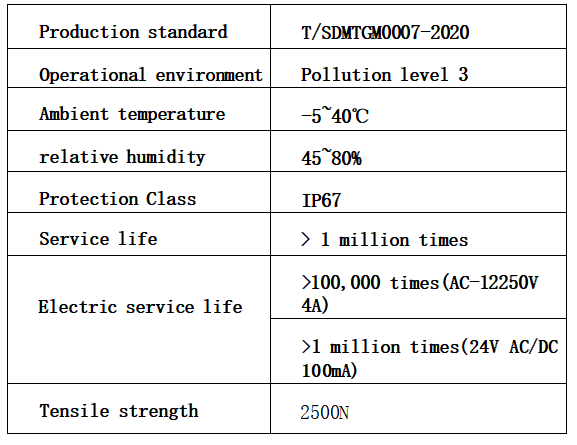

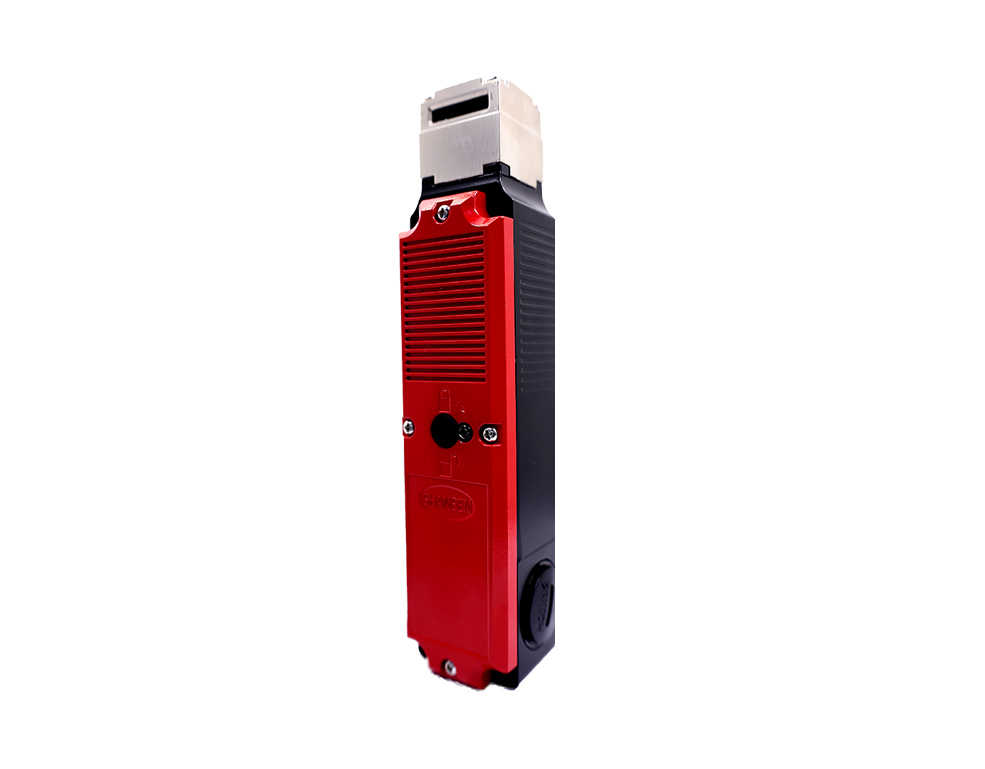

SS/E-01B series safety door switch
Type: SS/E-01B

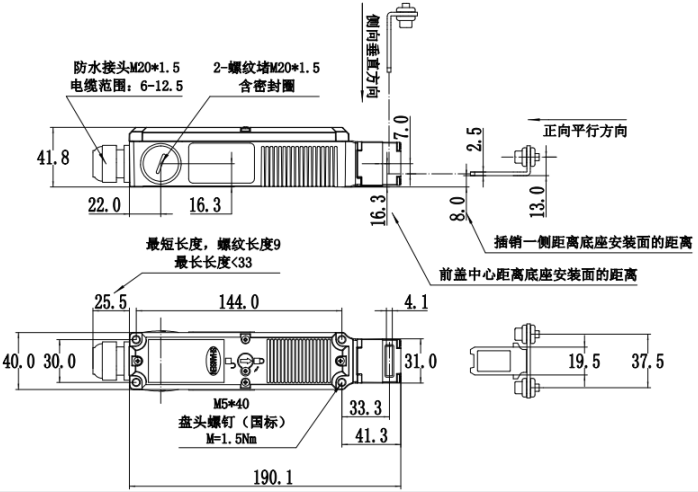

Product size: 190*40mm

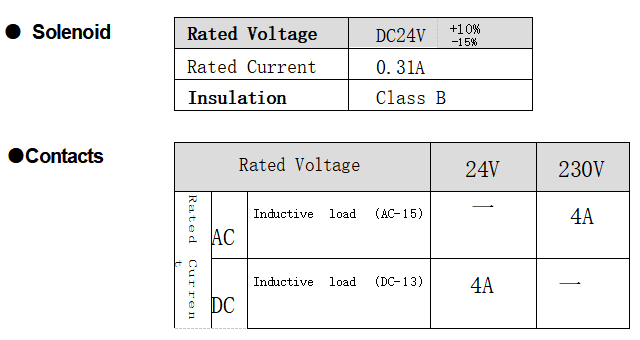

Rated Voltage：DC24V
Tensile Strength：2500N
Working Temperature：-5～40℃
Protection Class：IP67

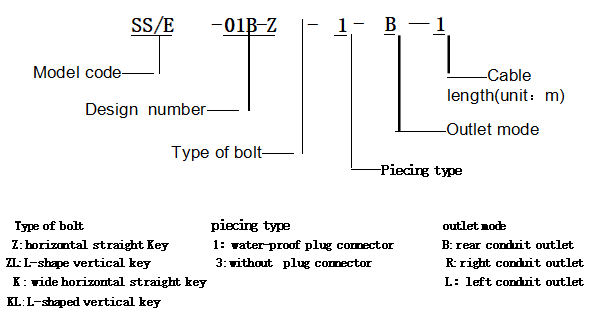

Model Number:
