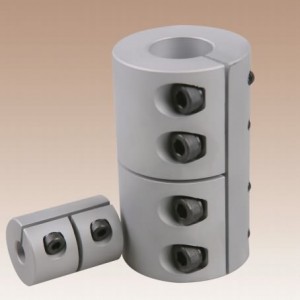

E-6-2 JRC Series-Rigid coupling

Short Description:

Rigid couplings could not allowed parallel , angular shaft misalignment , you must arrange the two axis in a straight line in order to protect the coupling and peripheral equipment.


Product Detail

Product Tags

1. Product Name:

Rigid coupling

2. Bellows Coupling type:

JR Series Rigid coupling

JRC Series Rigid coupling

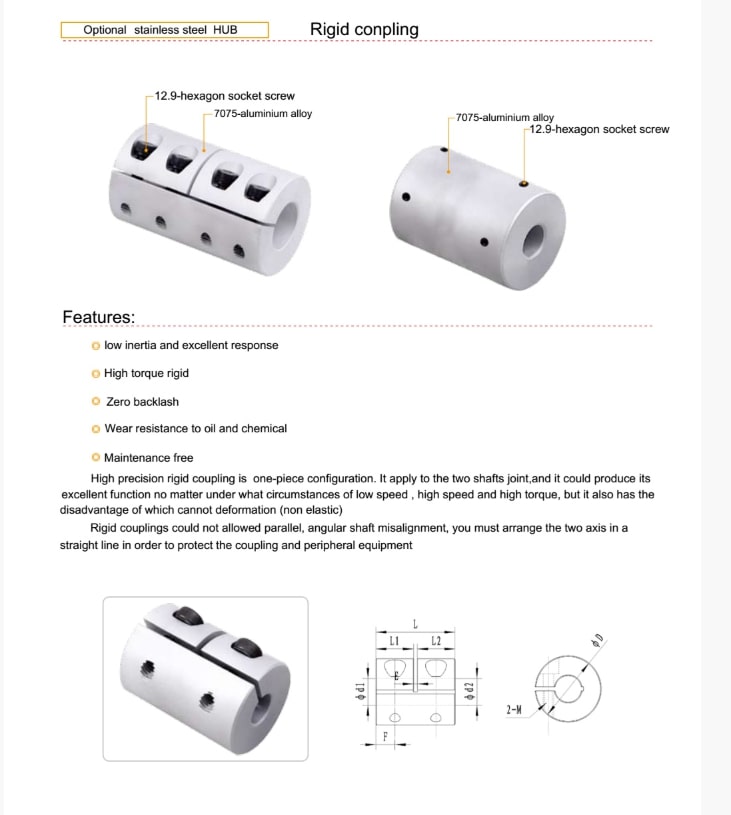

3. Production Presentation:

1.low inertia and excellent response

2.High torque rigid

3.Zero backlash

4.Wear resistance to oil and chemical

5.Maintenance free

6.High precision rigid coupling is one-piece configuration. It apply to the two shafts joint, and it could prcduce it excellent function no matter under what circumstances of low speed , high speed and high torque , but it also has the disadvantage of which cannot deformation (non elastic)

7.Rigid couplings could not allowed parallel , angular shaft misalignment , you must arrange the two axis in a straight line in order to protect the coupling and peripheral equipment.

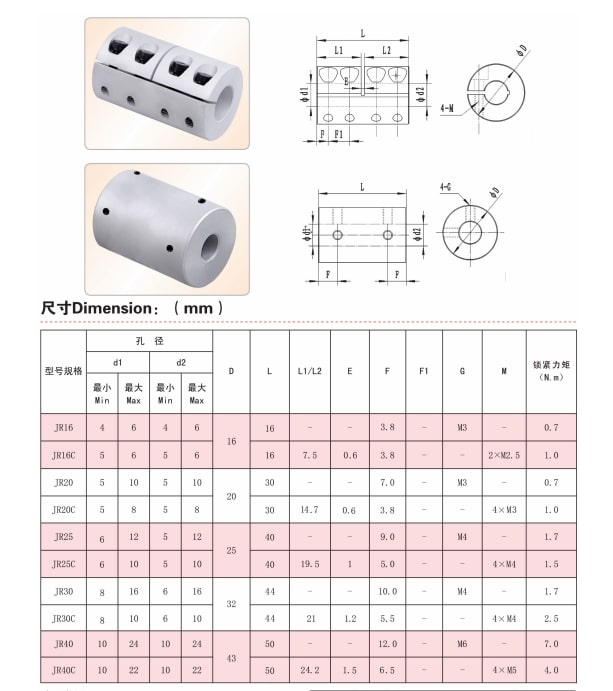

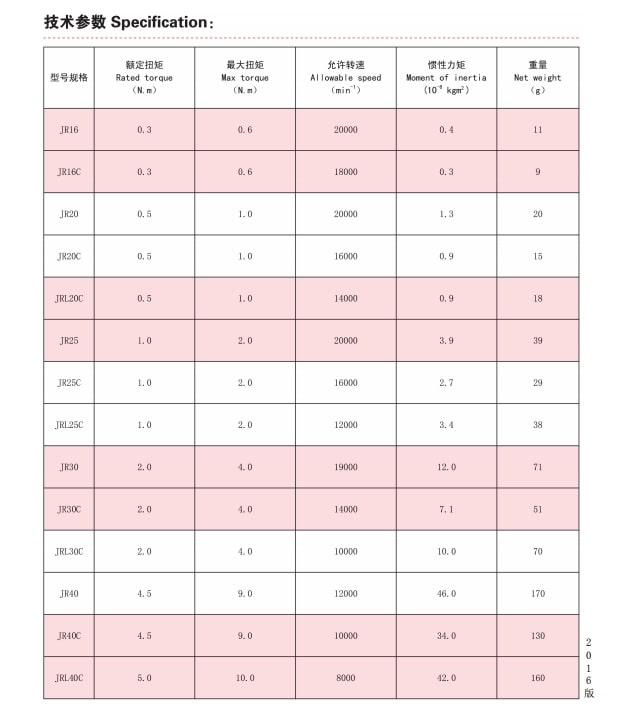

JR-Rigid conpling-2 JR-Rigid conpling-3 JR-Rigid conpling-1
