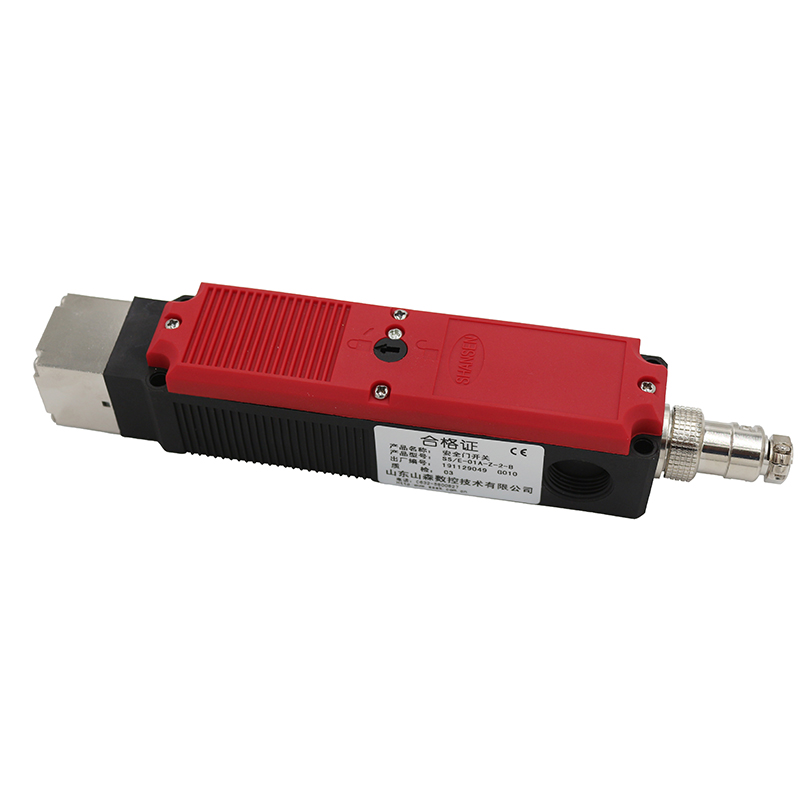

Safety Door SS/E-01A Switches
Short Description:

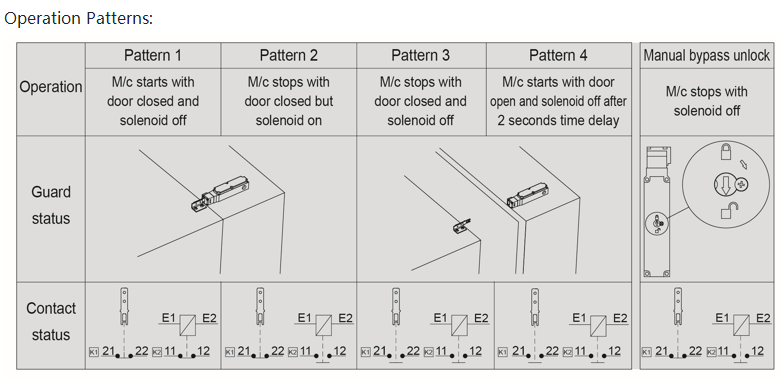

The switch signal is used to detect whether the protection door is closed, to judge whether the device can be turned on, thereby operating It plays a role in security protection.
According to the national standard design, the safety door switch is mainly used for mechanical equipment to close the door, that is to say, if the machine is to be started, the equipment protection door must be closed; the switch signal is used to detect whether the protection door is closed, to judge whether the device can be turned on, thereby operating It plays a role in security protection.
SS/E-01ASwitches

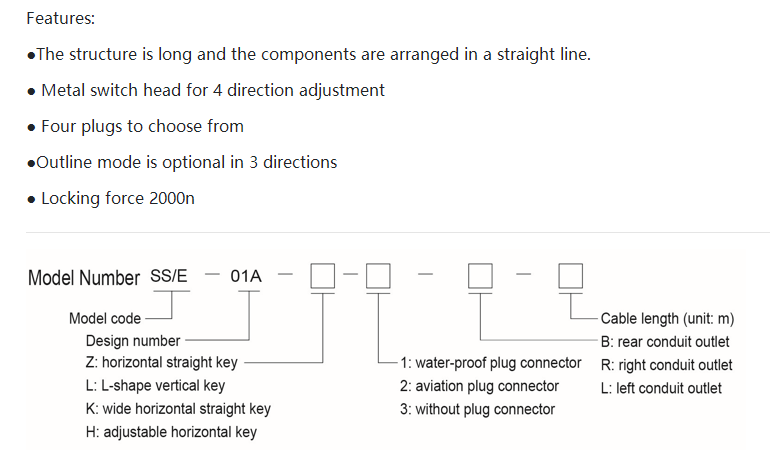

Product model：SS/E-01A

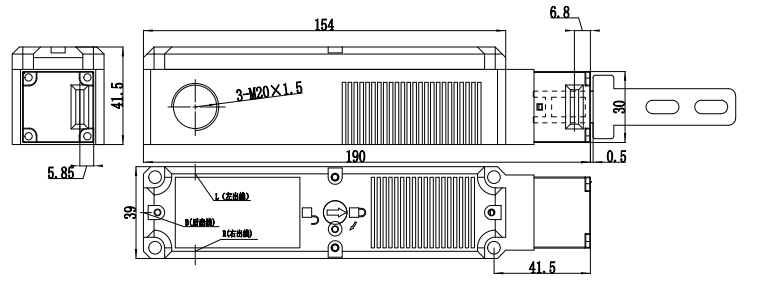

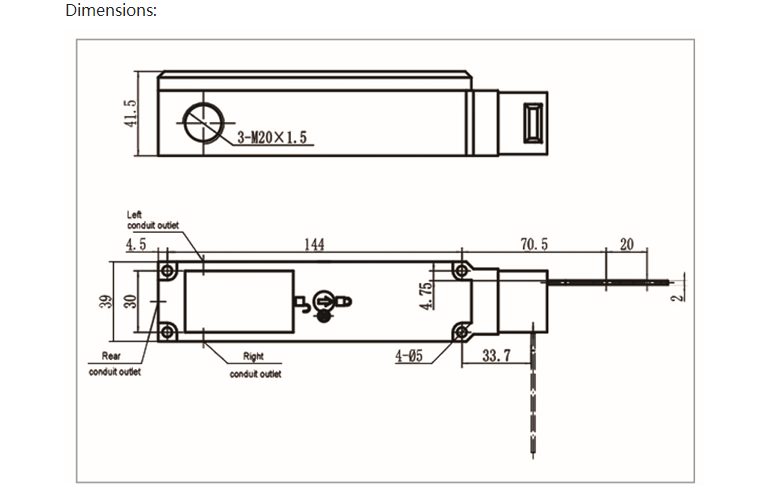

Product size：190*39mm

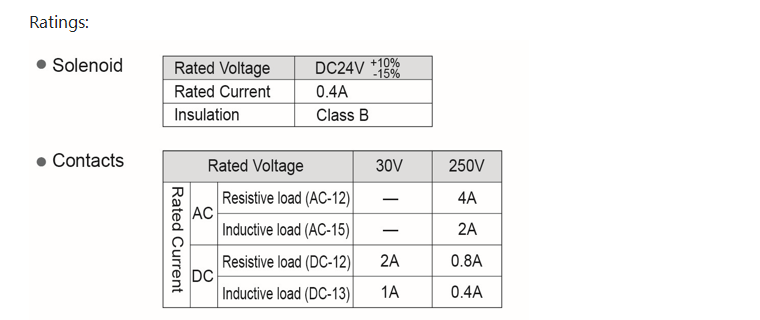

Rated Voltage：DC24V
Tensile Strength：2000N
Working Temperature：-5～40℃
Protection Class：IP67

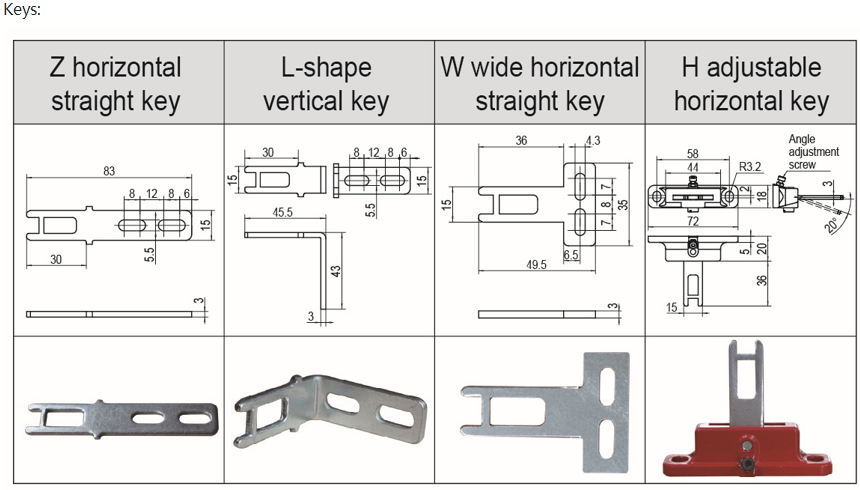

- Pin style: For different applications, such as sliding doors and revolving doors, there are linear pins and pins with movable angles to choose from. The bolt with movable angle has certain elasticity and space displacement, and when it is inserted into the actuating head inside the switch, the bolt will adjust its angle by itself. This bolt is suitable for revolving doors with a radius of more than 90 mm. For sliding doors and turnstiles with large enough radius of rotation, a linear bolt can be used.
