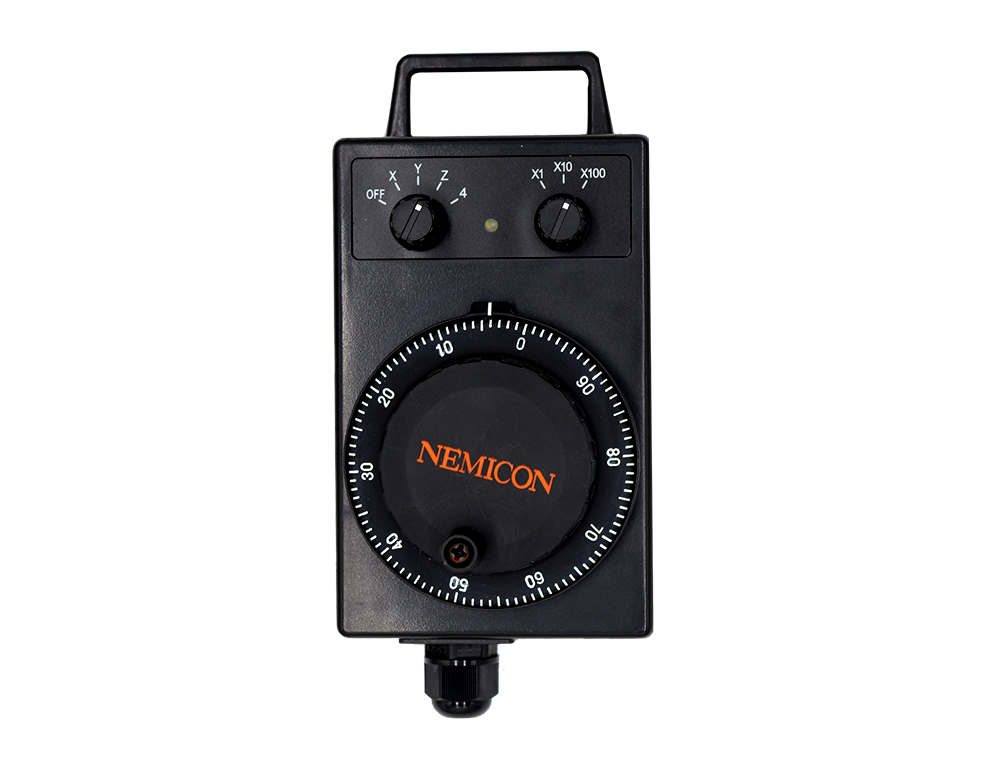

Hand-held MPG SF Series
Short Description:
Hand-held pulse generator is mainly used for setting the working origin of teaching CNC machine tools and various automation equipment, manual step-by-step fine-tuning, interrupt insertion and other actions in processing. Among them, the band switch is used to select the axis and magnification.
Hand-held pulse generator is mainly used for setting the working origin of teaching CNC machine tools and various automation equipment, manual step-by-step fine-tuning, interrupt insertion and other actions in processing. Among them, the band switch is used to select the axis and magnification, and the pulse generator is used to send out pulses, which is convenient for system acquisition.
Hand-held MPG SF Series
Product model：SF
Product size：90*164mm
Voltage：5V-12V
Output Pulse：25/100
Working Temperature： -10～+60°C
Protection Class：IP65
Product features:
High performance core encoder, zinc alloy rotary switch;
DC5V, 12V voltage input with power indicator;
Base hanging plate, which is more convenient and firm to place;
High-quality double-shielded helix ensures 200,000 times of stretching;
A variety of designs are available, and the enable button is optional;
Protection grade IP65, oil-proof design;

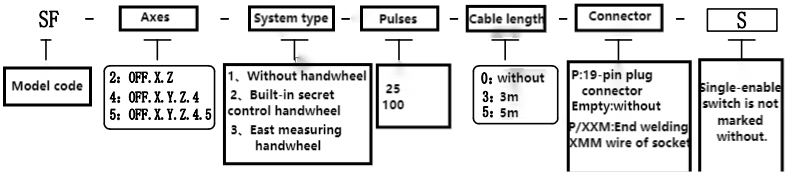

Model Number:

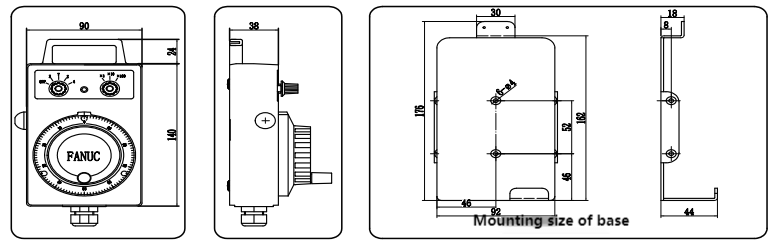

Dimensions:

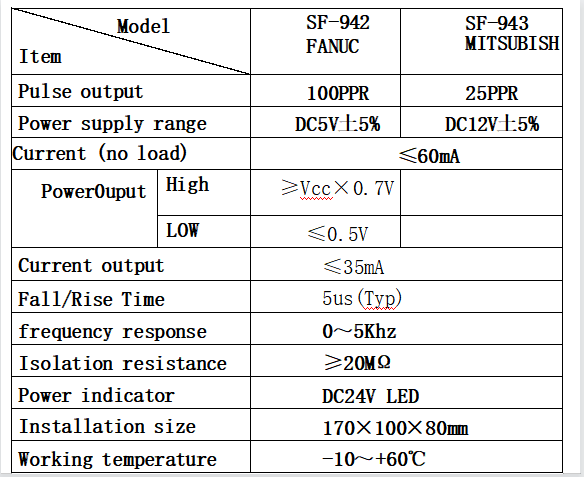

Examples of electrical characteristics:
Wiring Table:
