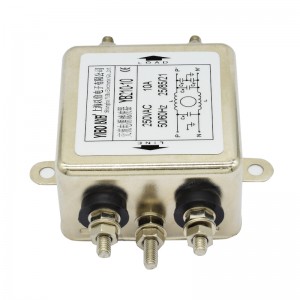

YB200 series AC single-section general-purpose power supply filter
Short Description:
YB200 series AC single-phase single stage universal filter (This series of products can all provide terminal block wiring methods) Rated voltage: 220-250VAC Rated current: 1-10A (optional) Multiple connection methods such as leads, solder p Rated current: 1~300A optional

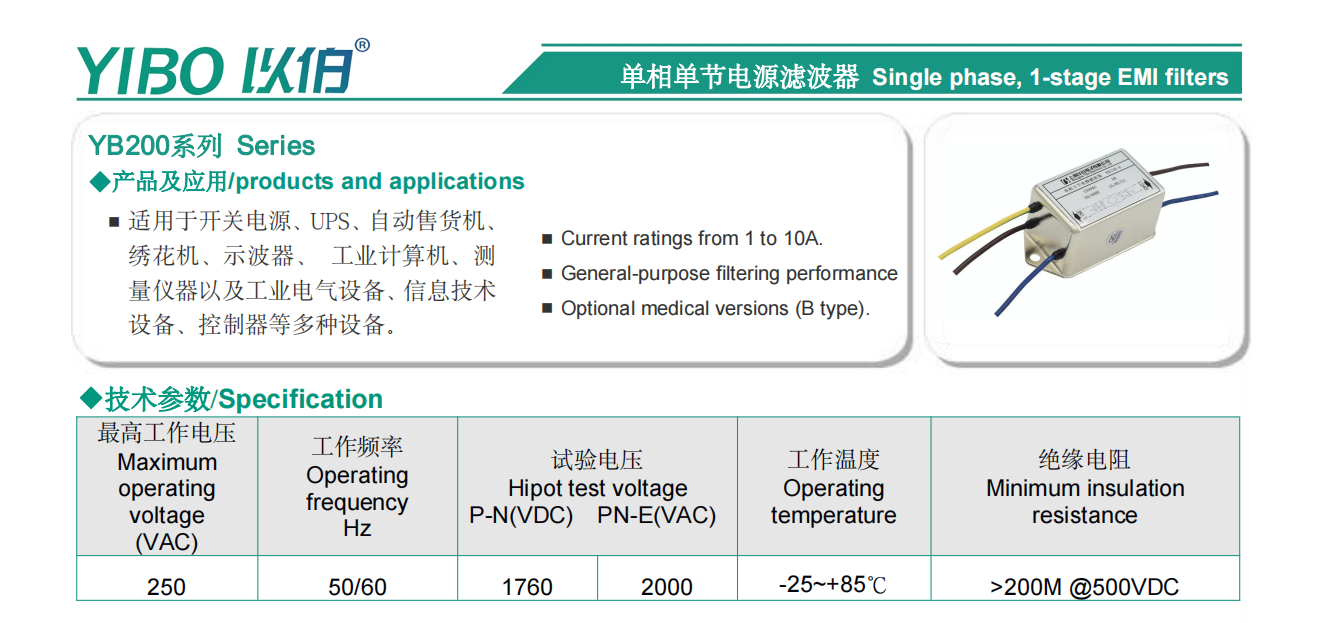

AC single-phase single stage universal filter
YB200 series
Rated voltage: 220-250VAC
Rated current: 1-10A optional
Product advantages:
Low price, strong universality, good common mode and differential mode suppression effects, and can effectively suppress electromagnetic interference between lines and ground.
Application equipment:
mainly used in power electronic equipment such as switching power supplies and UPS, general electronic equipment, commercial terminals, electronic monitoring, computers, computing equipment, and the medical industry.
