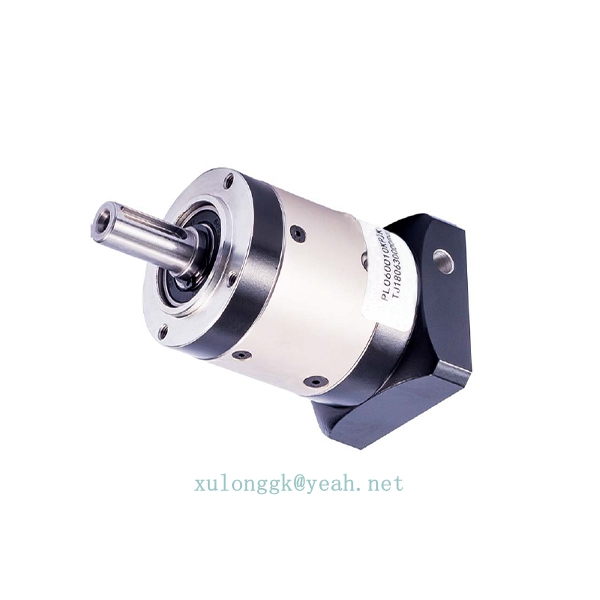

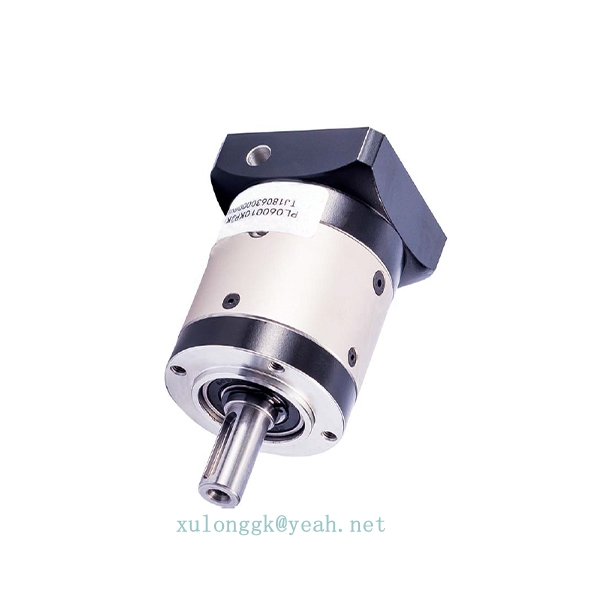

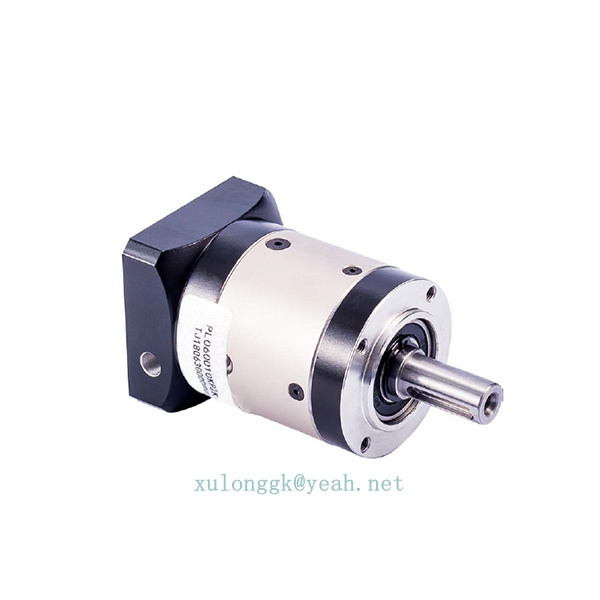

D-1-1 PL series Planetary reducer

Short Description:

Planetary boom and output shaft are intergrated structure designed to ensure maximum torsional rigidity


Product Detail

Product Tags

1. Product featuress:

PL/PF/AE/AB/AD/VRB Series:

1.Planetary boom and output shaft are intergrated structure designed to ensure maximum torsional rigidity;

2.Planetary wheel with full needle design,increase the contact area to improve the rigidity and output torque;

3.The gears are carburized and quenched to the HRC62 with low carbon steel surface for optimum wear and impact toughness;

4.Gears refer to forengn imported software-assisted design to obtain the best tooth shape to reduce noise;

5.The input terminal is connected to the motor shaft in a double-tight manner to obtain the maximum clamping force and sero backlash power transmission.

2. Technical indexes :

1.PL series:

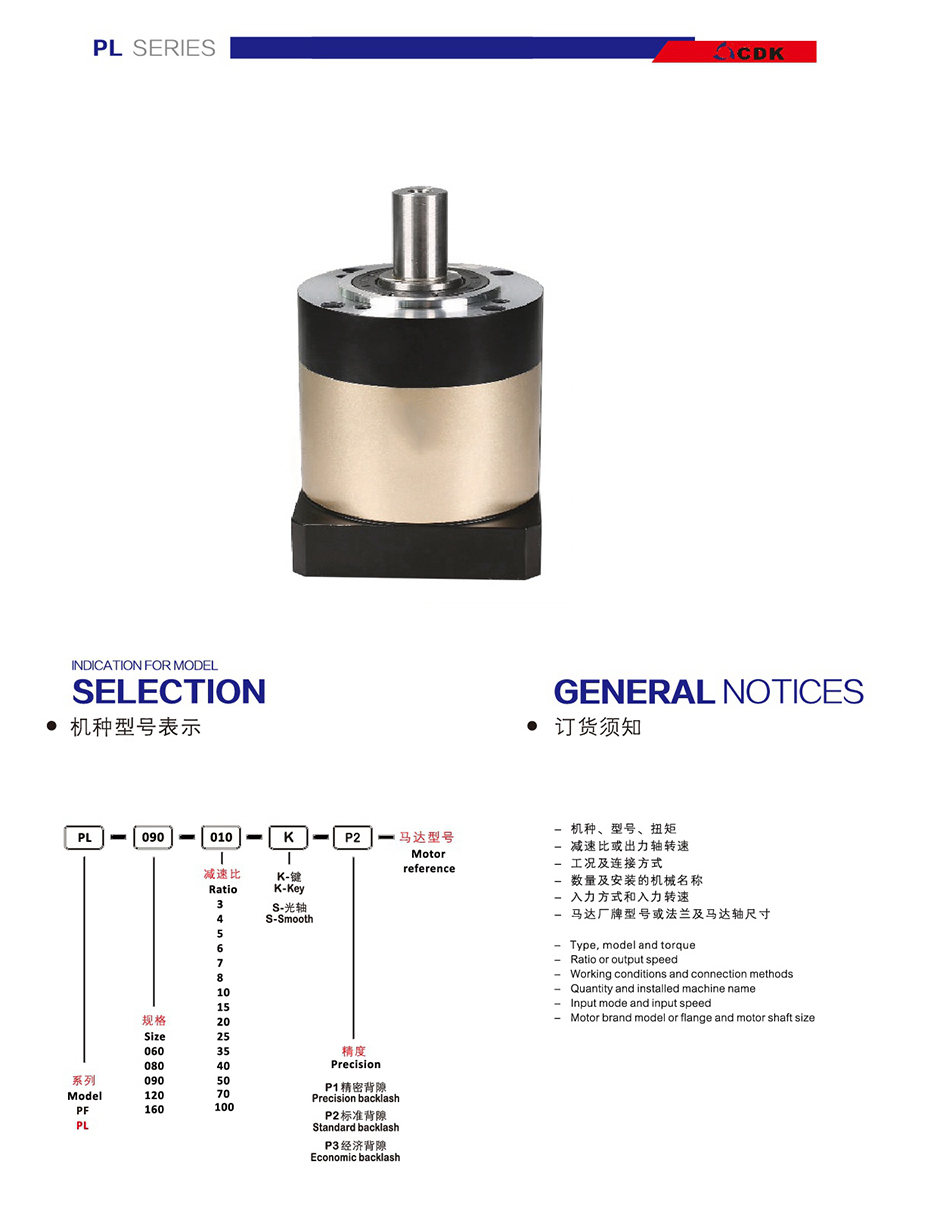

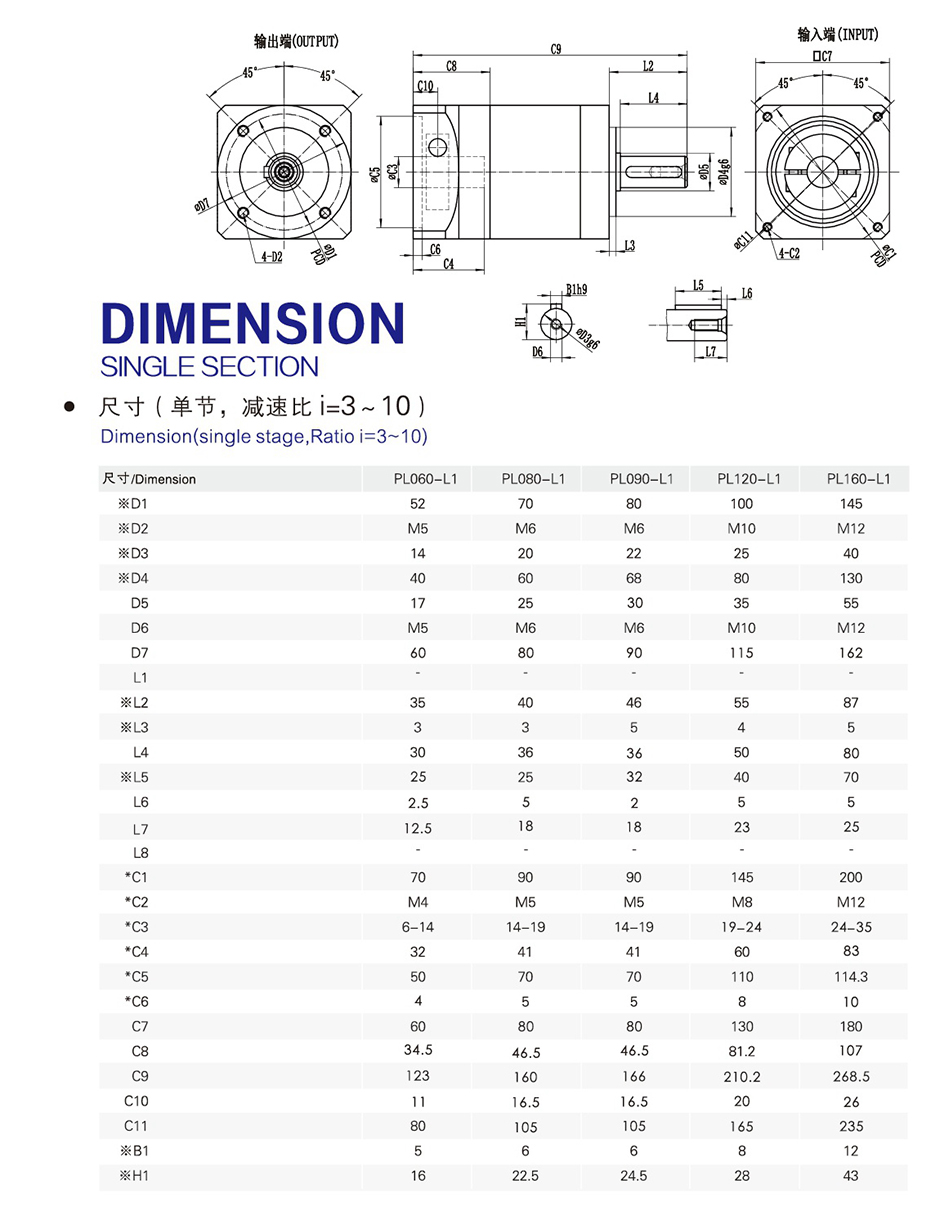

Flange dimensions :P L060 & PL080 & PL090 & PL120 & PL160

Product description :

Straight tooth Planetary gearbox

Factory Direct

Circular flange output

High-precision

High torque

Good transmission stability

Low noise

Long life

Match any brand of motor

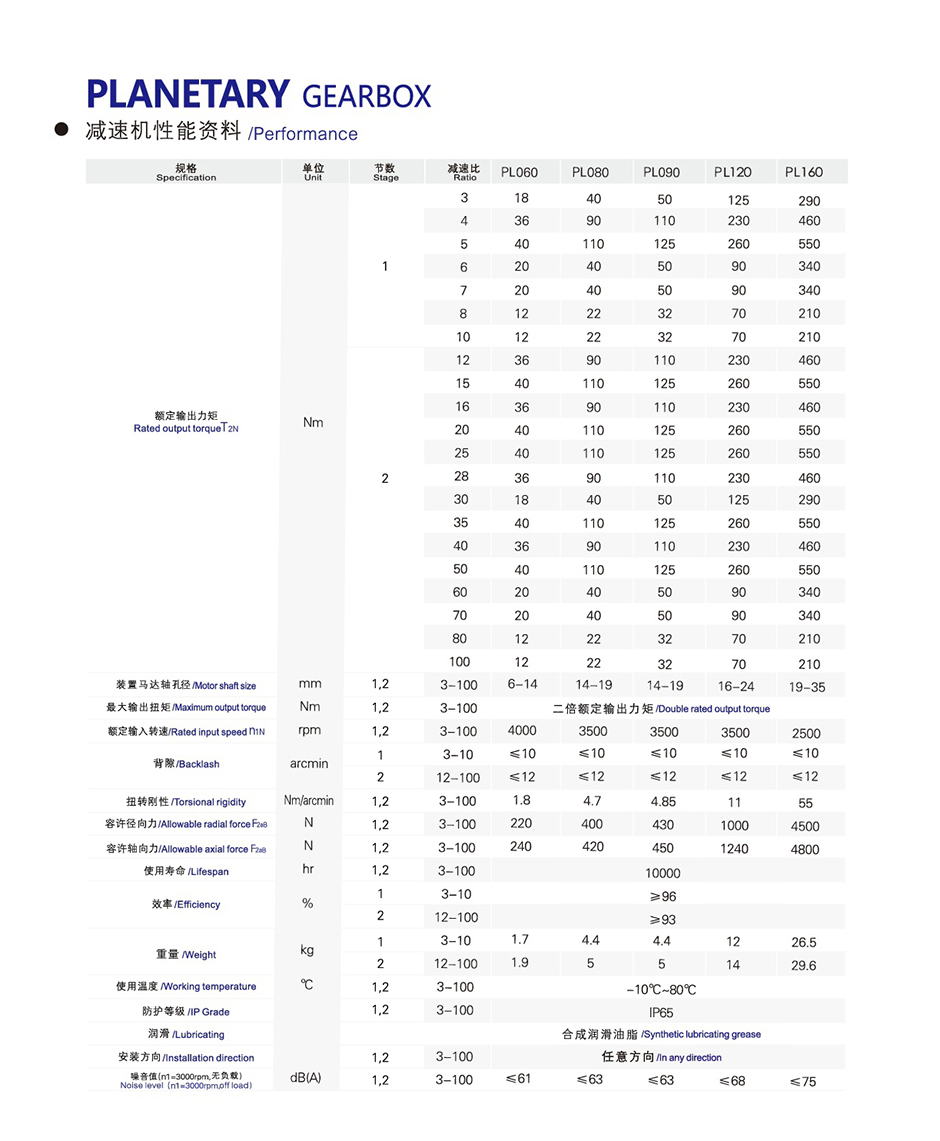

3. Product characteristics :

Ratio: Single tage, i=3-10  & Double stage, i=15-100

Efficiency:  Single tage,  ≧96,&  Double stage,≧93

Standard Backlash: Single tage,P2≦10  & Double stage, P2≦12

Installation form:Vertical installation

Maximum output torque: Double rated output torque

Lifespan: 10000hr

Working temperature: -10℃-80℃

IP Grade: IP65
