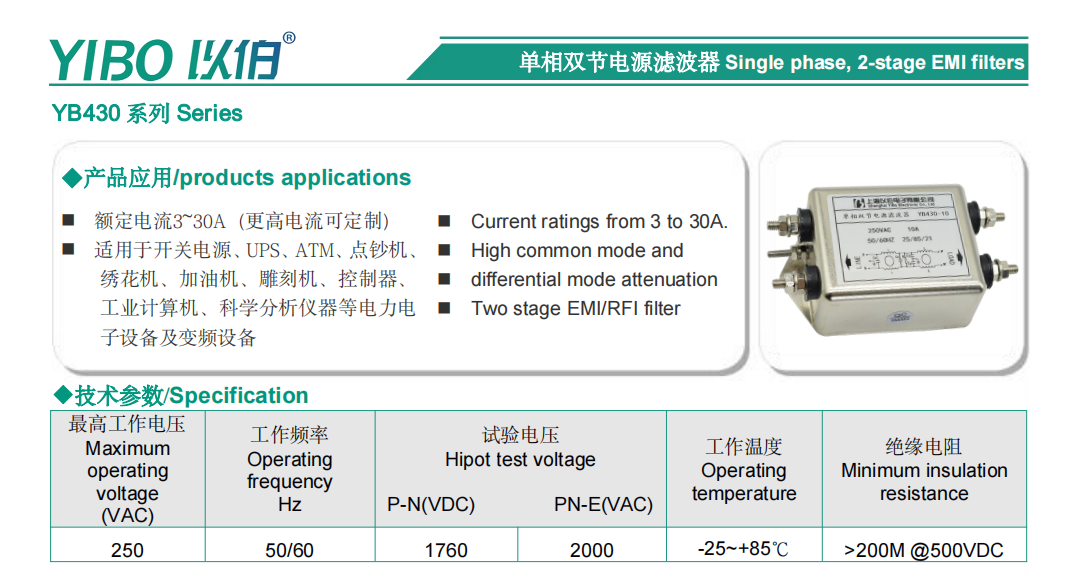

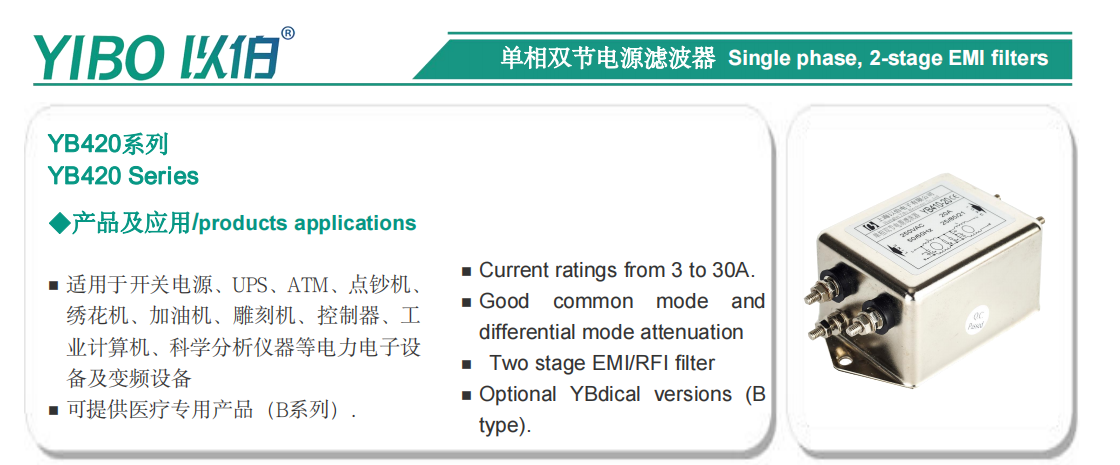

YB422-YB430 series AC single-phase two-stage universal filter

YB420, YB430 series

Product Introduction (This series of products can provide terminal block wiring methods)

Rated voltage: 250VAC

YB420 rated voltage: 3-30A optional

YB430 rated voltage: 3-30A optional

Multiple connection methods such as leads, solder pads, bolts, and terminal blocks are available for selection

Customizable products available

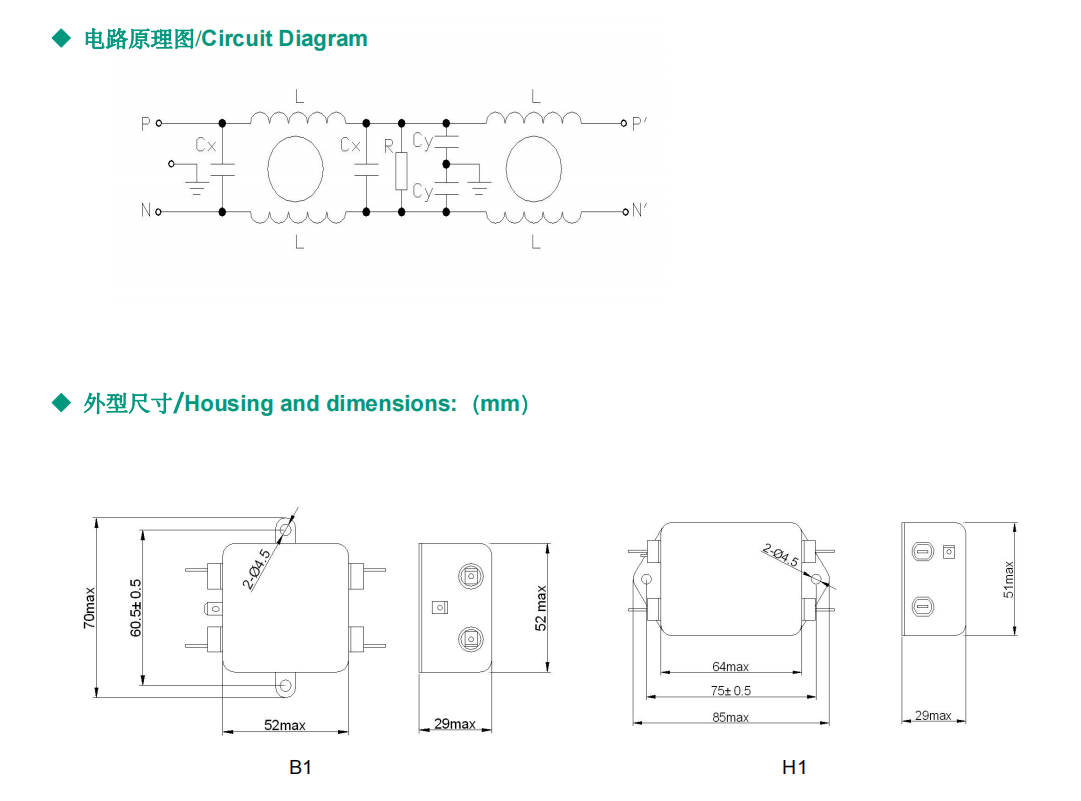

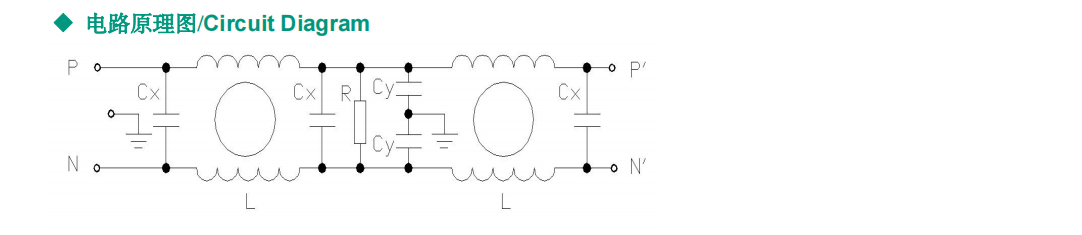

-The YB420 and YB430 series adopt a two-stage common mode filtering design, and the overall filtering effect is basically the same,

There are slight differences only based on different currents

–High working voltage products above 380VAC (including) are optional

Features and advantages

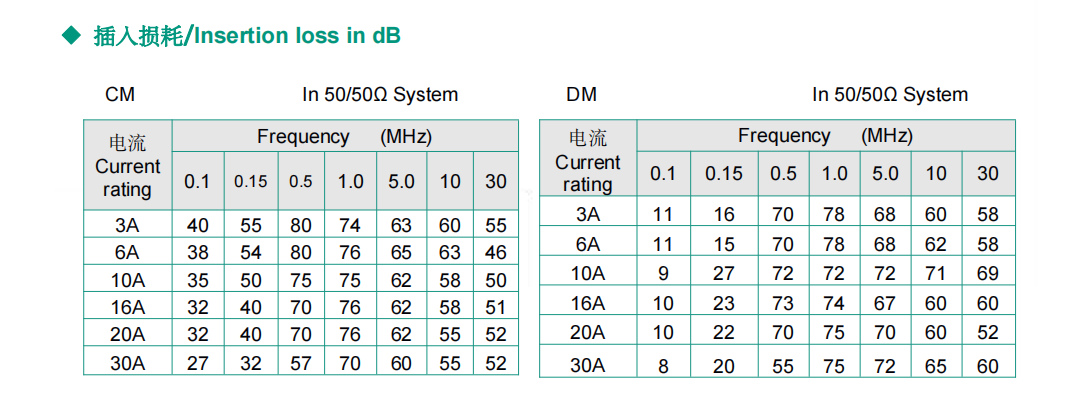

–High performance AC filter with excellent common mode and differential mode filtering effects, with an effective filtering range of

5KHz-30MHz

application area

Electronic and electrical equipment, consumer electronics, data communication equipment, office automation equipment, various power supplies

Electronic devices with higher requirements for filtering, such as products
