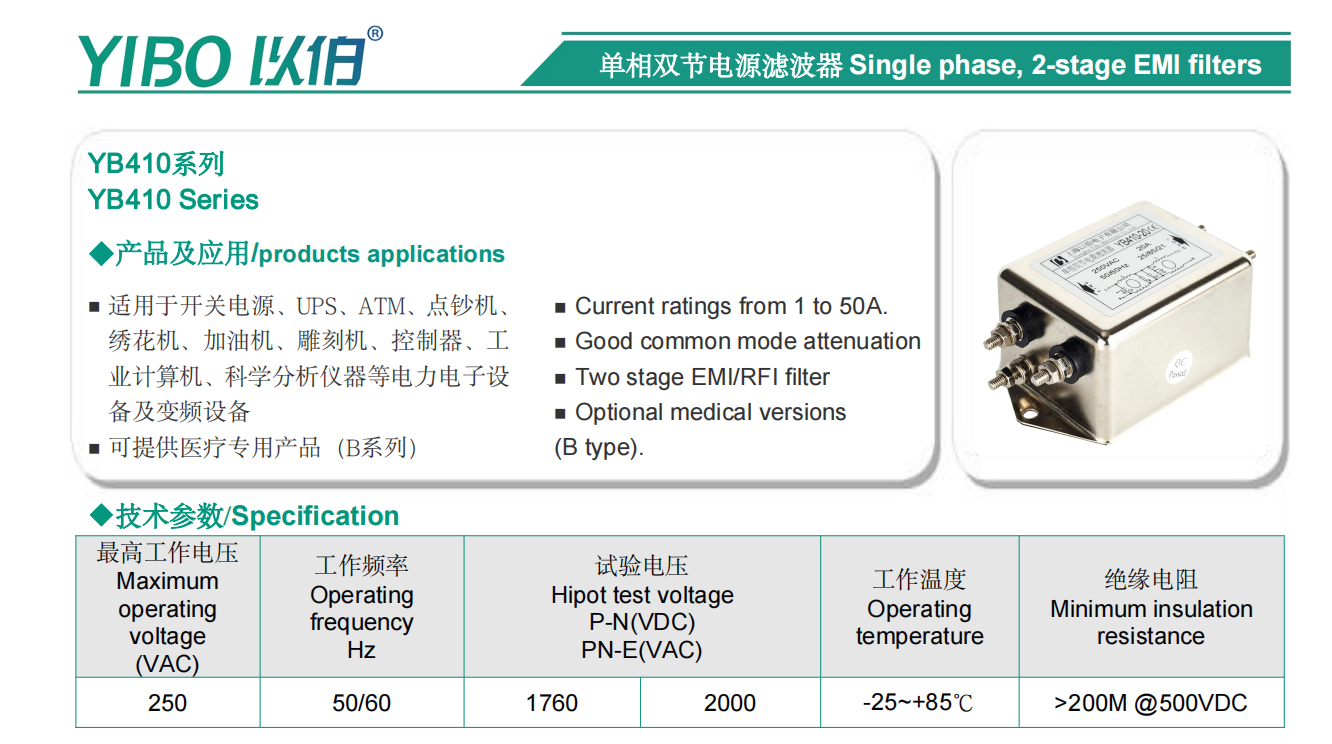

YB410 series AC single-phase two-stage universal filter
Short Description:
YB410 series AC single-phase two-stage general purpose filter Rated voltage: 250VAC Rated current: 1 ~ 200A Advantages: two-section filter, good common-mode filter effect, low leakage current,
Product introduction :YB410 series AC single-phase filter
(This series of products can provide terminal station wiring)

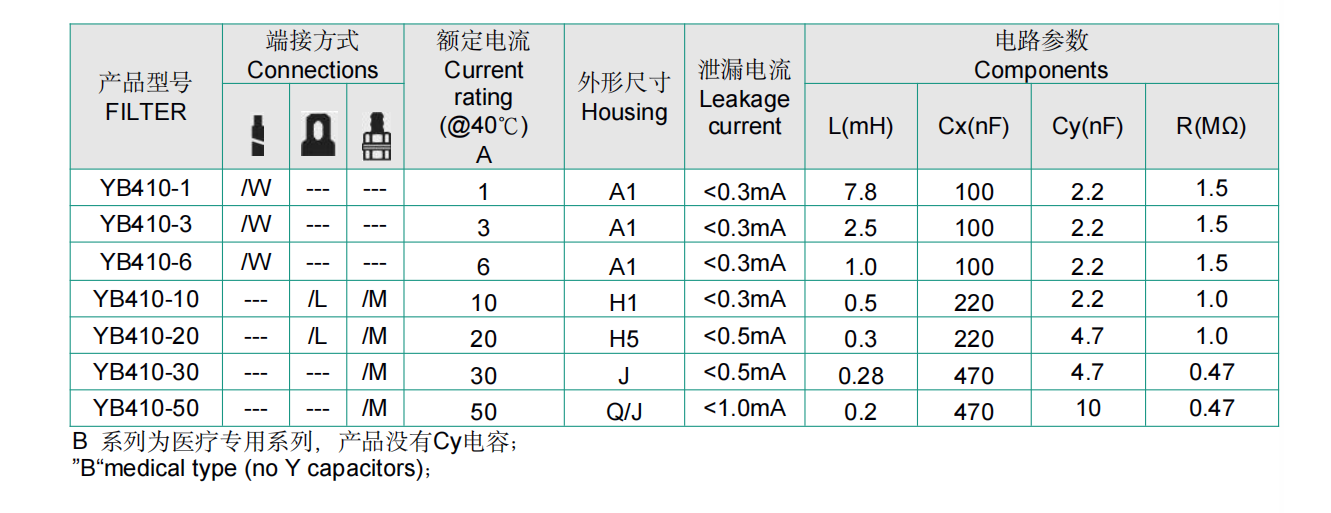

Rated current: 1-200A Optional
Optional Special Medical Equipment (B Series)
Lead, solder, bolt, terminal station and other connection methods are available
Customized products are available
Characteristics and advantages

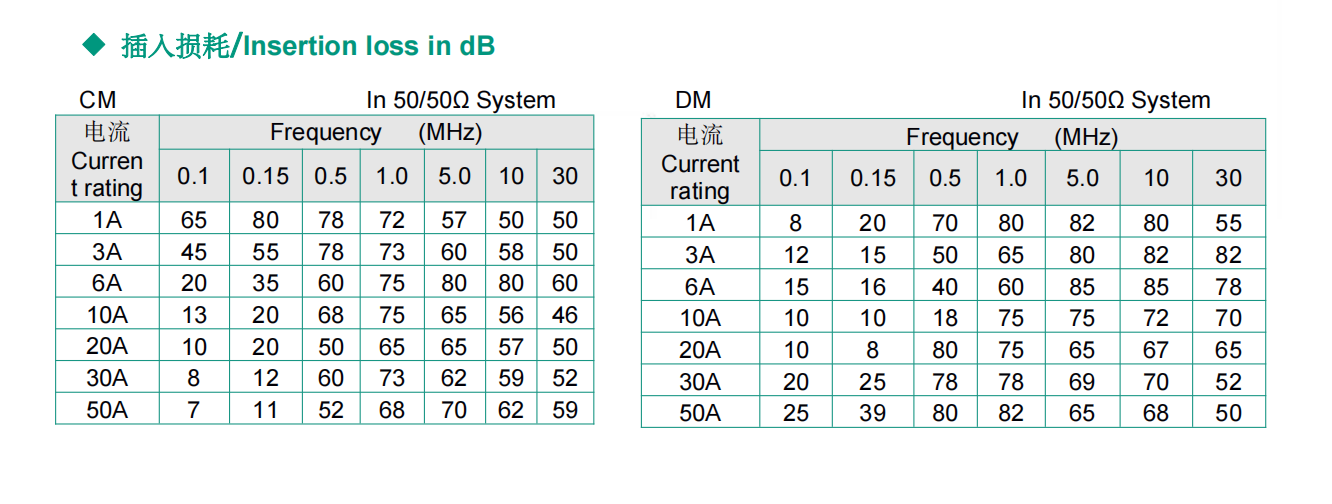

– High-performance AC filter, with excellent common-mode, differential mode filtering effect, effective filtering range is
5KHz-30MHz
– YB410 series adopts two-stage common-mode filtering design, the overall filtering effect is basically the same,
There is only a slight difference depending on the current
– 380VAC (inclusive) and above high working voltage products are optional
Application field
Electronic and electrical equipment, consumer electronics, data communication equipment, office automation equipment, various power supplies
Products and other electronic devices that have higher requirements for filtering
