60ST Standard Integrated DC servo motor

1、Standard integrated servo

The standard integrated servo has the servo driver built into the low-voltage DC servo motor, and solves the problems of electromagnetic interference and heating. It can save installation space, eliminate wiring, and work only by supplying power and connecting control signals, making installation and maintenance easier. The servo power range is 100~400w, which is compatible with the installation dimensions of Panasonic and other motors in Japan. The number of encoder lines is 1250 and 2500. 1rpm can still run smoothly, and the rated speed is 3000rpm. The servo technology is mature, simple to install and adjust, stable and reliable, and cost-effective. It is

especially suitable for occasions with small installation space and distributed motor control.

2、Application characteristics

※ Working voltage：24~48VDC

※ Power：100~400W

※ Rated speed：3000RPM

※ Control mode: External pulse (Single ended / Differential), Analog control , Can bus, RS232 communication control, I/O control, etc., supporting position, speed and torque modes

※ Parameter debugging: Adopt RS232 communication, PC debugging software or Handheld debugger for debugging, and Backup and Import parameters

※ Safety protection: It has alarm functions such as Undervoltage, Overvoltage, Overload,Overcurrent, Excessive position deviation, Encoder abnormality, etc

※ Support zero point torque reset, and can customize the packaging control function.28 29

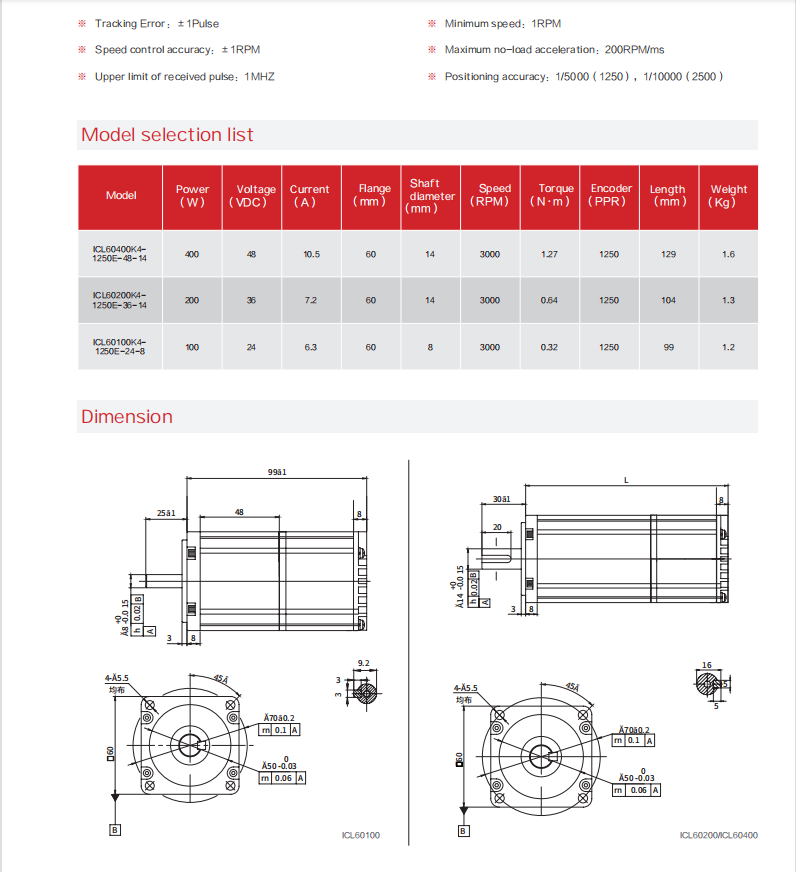

※ Tracking Error：±1Pulse

※ Speed control accuracy：±1RPM

※ Upper limit of received pulse：1MHZ

※ Minimum speed：1RPM

※ Maximum no-load acceleration：200RPM/ms

※ Positioning accuracy：1/5000（1250），1/10000（2500）
