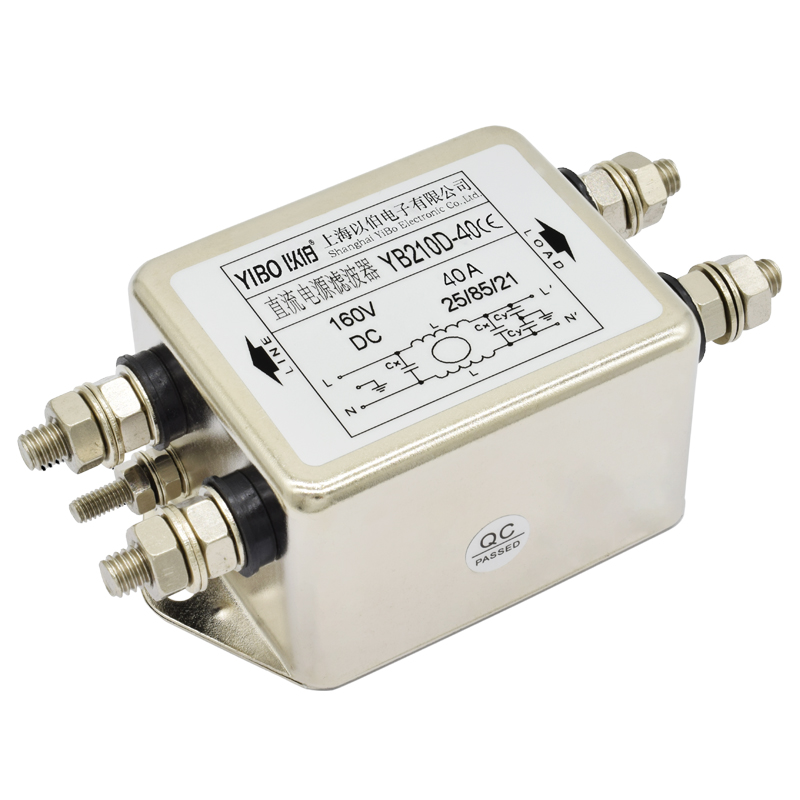

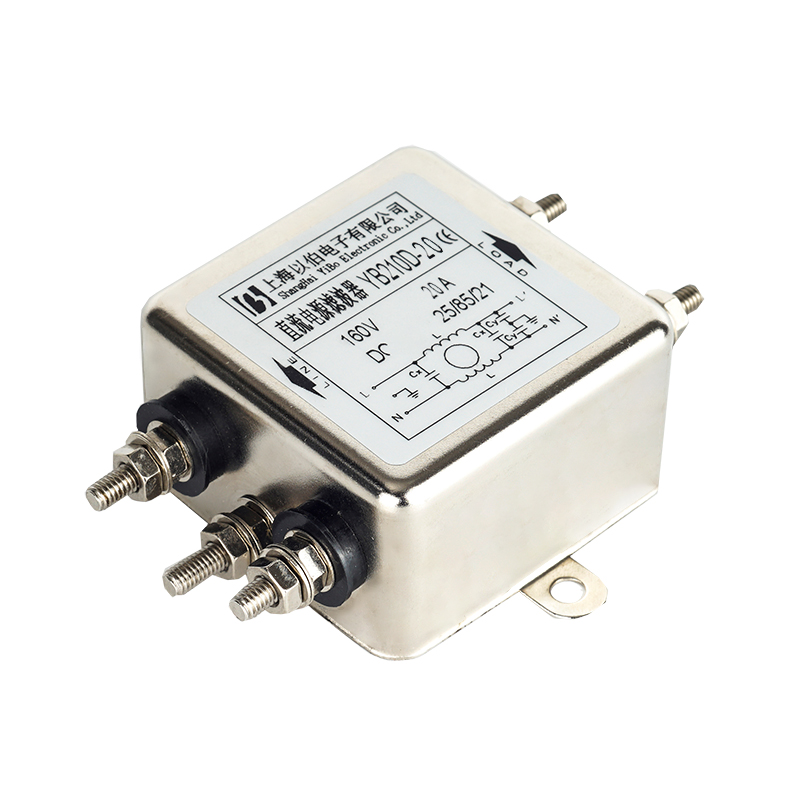

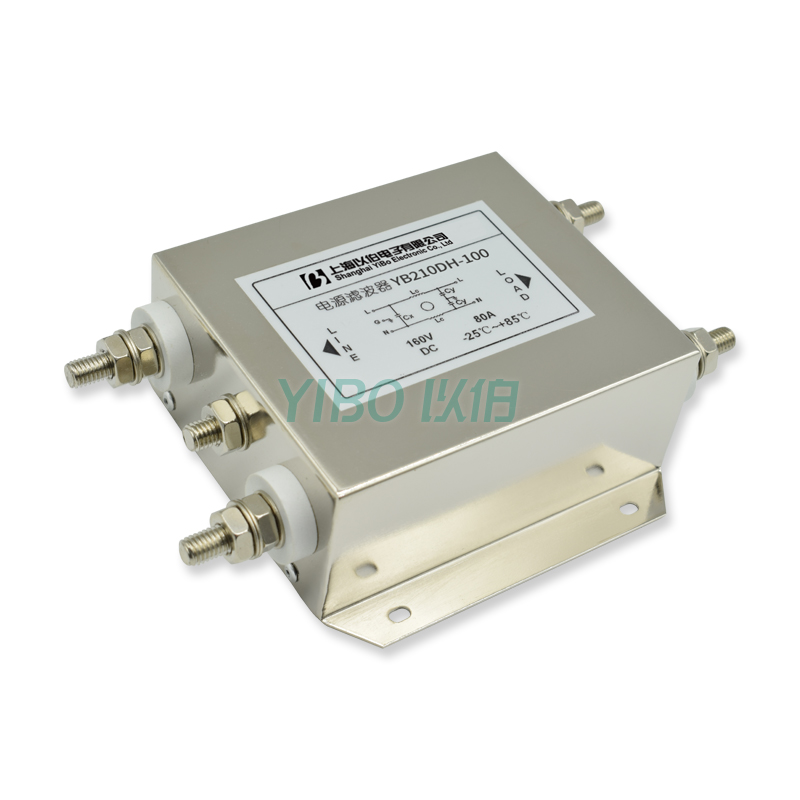

YB210DH Series High Voltage DC Wind Energy Photovoltaic Inverter Special Filter
Short Description:
Rated voltage: 1100VDC Rated current: 20A~1500A Product advantage: DC high-voltage power filter can effectively solve the series winding between the solar panel and inverter, effectively improve the service life of the solar panel, effectively reduce the electromagnetic interference of the inverte
YB210DH Series DC High Voltage Power Filter
Product Introduction (This series of products can provide terminal block wiring methods)
Rated current 20-1500A optional
Rated voltage 1100VDC
Leads, solder pads, bolts, terminal blocks, and other lead out methods are optional
Customizable products available
Features and advantages
–High performance filter with excellent common mode and differential mode filtering effects, with an effective filtering range of 5KHz-30MHz
–The YB210DH series adopts a two-stage filtering design consisting of a first order differential mode and a first order common mode, with a greater emphasis on differential mode
Filtering of interference signals, especially suitable for equipment or environments with particularly harsh interference conditions
application area
Suitable for DC power supply or photovoltaic inverter, suitable for switching power supply, program-controlled switch DC power input terminal, and using DC
DC measurement of various sensitive electronic devices and electronic measuring instruments for current power supply
