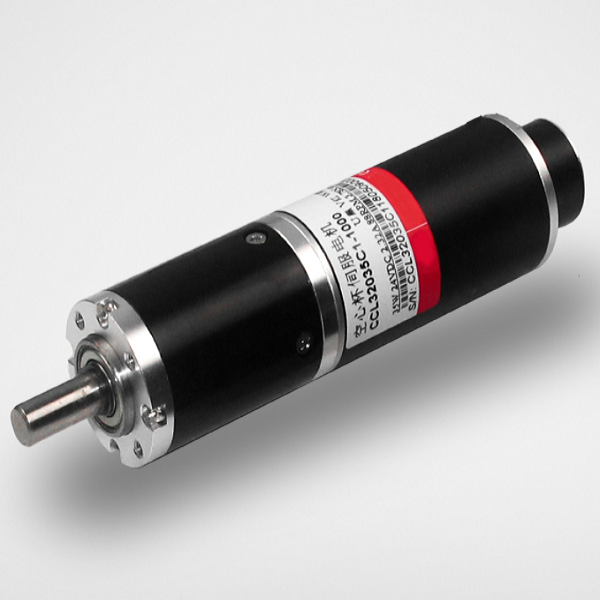

Coreless DC Servomotor 24VDC 16mm.22mm.28mm.32mm.42mm
Short Description:
Coreless DC Servomotor 24VDC 16mm.22mm.28mm.32mm.42mm Application Features ※working voltage: 24VDC ※optional planetary structure reducer, low noise, long life ※to provide voltage, speed, torque, flange, shaft diameter and other parameters, accept customization

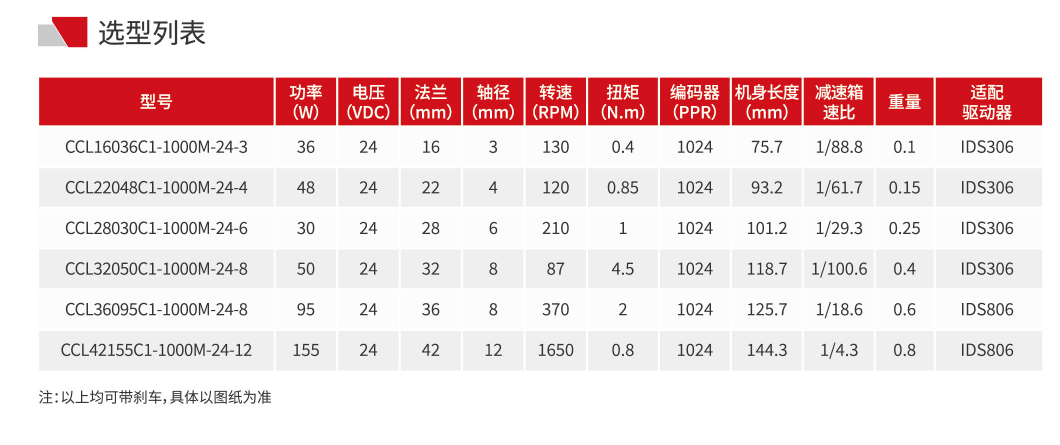

3、Commonly used hollow cup servo motor specifications:
1, 24V, diameter 16mm, shaft diameter 3mm, rotating speed 130rpm, torque 0.4N.m, reduction ratio 1/88.8 (standard)
2, 24V, diameter 22mm, shaft diameter 4mm, rotating speed 120rpm, torque 0.85N.m, reduction ratio 1/61.7 (standard)
3, 24V, diameter 28mm, shaft diameter 6mm, rotating speed 210rpm,1N.m reduction ratio 1/29.3 (standard)
4, 24V, diameter 32mm, shaft diameter 8mm, speed 87 rpm, torque 4.5N.m reduction ratio 1/100.6 (standard)
can accept industry customization: batch support, diameter/parameter/reduction ratio, can be customized according to requirements.
4.Industry Applications:
Industry customization, screw dispensing valve, servo batch, medical equipment, servo roller, alignment platform, servo gripper and other precision equipment are widely used.
can replace Maxon \Faulhaber foreign brands!
Brand Dayond & Xulong
Series CCL
Model CCL16036C1-1000M-24-3
CCL22048C1-1000M-24-4
CCL28030C1-1000M-24-6
CCL32050C1-1000M-24-8
CCL36095C1-1000M-24-8
Voltage DC24V
Power 36W 48W 30W 50W 95W 155W

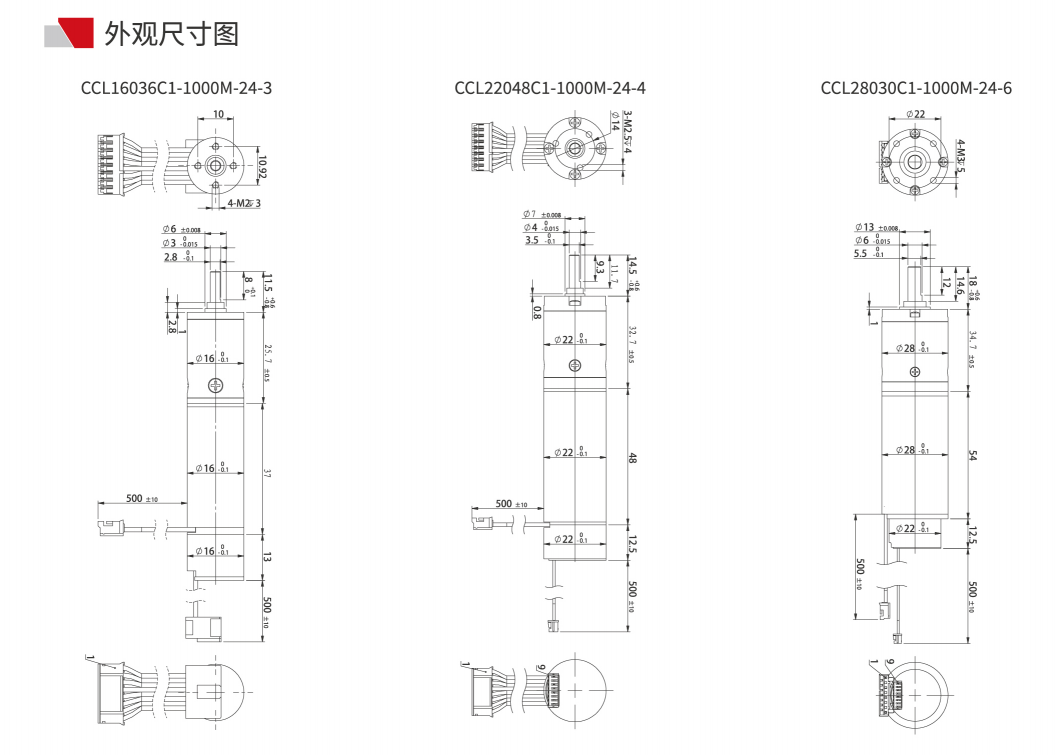

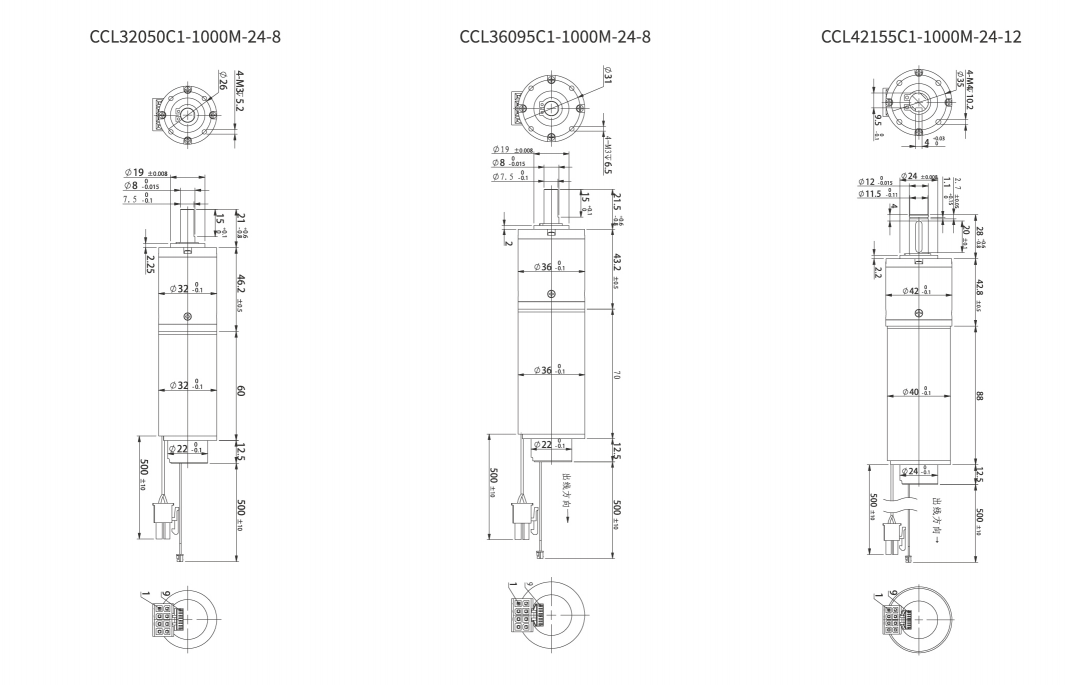

**All the above models can be equipped with brakes, subject to the drawings
