G-4-5 110 130 stepping driver 3NS2280

Short Description:

Product Detail

Product Tags

The Bergerda series of digital stepping drivers, based on a 32-bit DSP platform, utilizes micro-segmentation technology

and PID current control algorithm design to provide a full range of performance beyond the ordinary analog stepping drivers.

·PID parameter adjustment function to better meet different types of load applications

.Micro-segmentation control algorithm to improve the smoothness of the motor in each speed segment

.Comman smoothing function makes the motor acceleration and deceleration process smoother

. Low speed vibration suppression , motor low speed resonance amplitude reduced by 80%

.Application fields: engraving machine, screw machine, stripping machine, marking machine, cutting machine, solid crystal machine, plotter, CNC machine tool, automatic assembly equipment, etc.

110 130 stepping driver 3NS2280

Based on ARM's new 32-bit DSP processing chip platform, the internal PID current control algorithm design, with excellent performance. The built-in micro-segmentation technology and the automatic tuning function of the power-on parameter make the driver have the characteristics of low noise, low vibration, low heat generation and high-speed high torque output. In addition, the patented three-phase demodulation algorithm can give full play to the low-speed resonance and small torque ripple characteristics of the phase stepping motor, and can be well adapted to applications

requiring higher stability.

·Pulse mode:single pulse/CW/CCW pulse

.Signal level: 5V/24V separate wiring, simple and practical, strong anti-interference ability Typical applications : potting machines , engraving machines , cutting machines , laser equipment , CNC machine tools, automatic equipment and so on. The application effect is particularly good in a device where the user desires high speed and small noise.

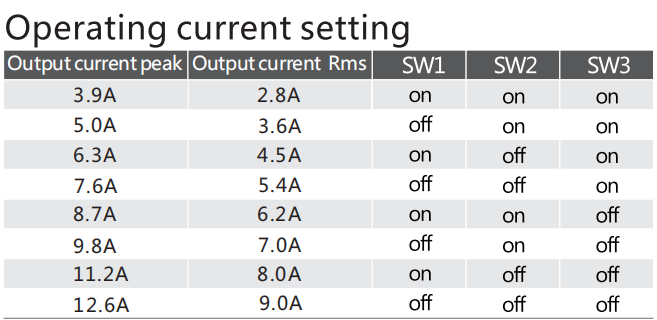

G-4-19 110 130 stepping driver 3NS2280 operating current setting
G-4-17 110 130 stepping driver 3NS2280 function description

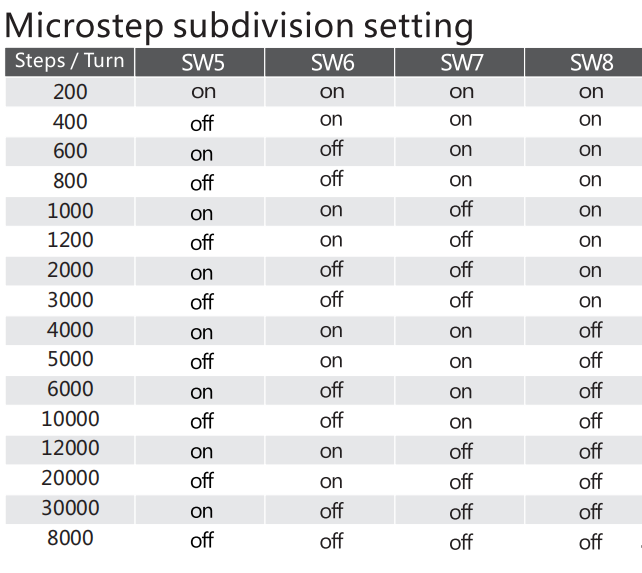

G-4-20 110 130 stepping driver 3NS2280  microstep subdivision setting
G-4-18 110 130 stepping driver 3NS2280 indication and installation size
