G-4-3 57 60 Stepping driver 2NS556A

Short Description:

Product Detail

Product Tags

The Bergerda series of digital stepping drivers, based on a 32-bit DSP platform, utilizes micro-segmentation technology

and PID current control algorithm design to provide a full range of performance beyond the ordinary analog stepping drivers.

·PID parameter adjustment function to better meet different types of load applications

.Micro-segmentation control algorithm to improve the smoothness of the motor in each speed segment

.Comman smoothing function makes the motor acceleration and deceleration process smoother

. Low speed vibration suppression , motor low speed resonance amplitude reduced by 80%

.Application fields: engraving machine, screw machine, stripping machine, marking machine, cutting machine, solid crystal machine, plotter, CNC machine tool, automatic assembly equipment, etc.

57 60 Stepping driver 2NS556A

Based on 32-bit ARM processing chip platform, using internal PID current control algorithm design, with excellent performance. The built-in micro-segmentation technology and the automatic tuning function of the power-on parameter make the driver have the characteristics of low noise, low vibration, low heat and high-speed high-moment output, and can be well adapted to most applications of stepping motors.

·Pulse mode:single pulse/CW/CCW pulse

.Signal level: 5V/24V separate wiring, simple and practical, strong anti-interference ability.

.Typical applications: stripping machine, marking machine, cutting machine, laser equipment, visual positioning, automatic equipment and so on. The application effect is particularly good in a device where the user desires high speed and small noise .

G-4-11 57 60 stepping driver 2NS556A operating current setting
G-4-9 57 60 stepping driver 2NS556A function description
G-4-12 57 60 stepping driver 2NS556A microstep subdivision setting

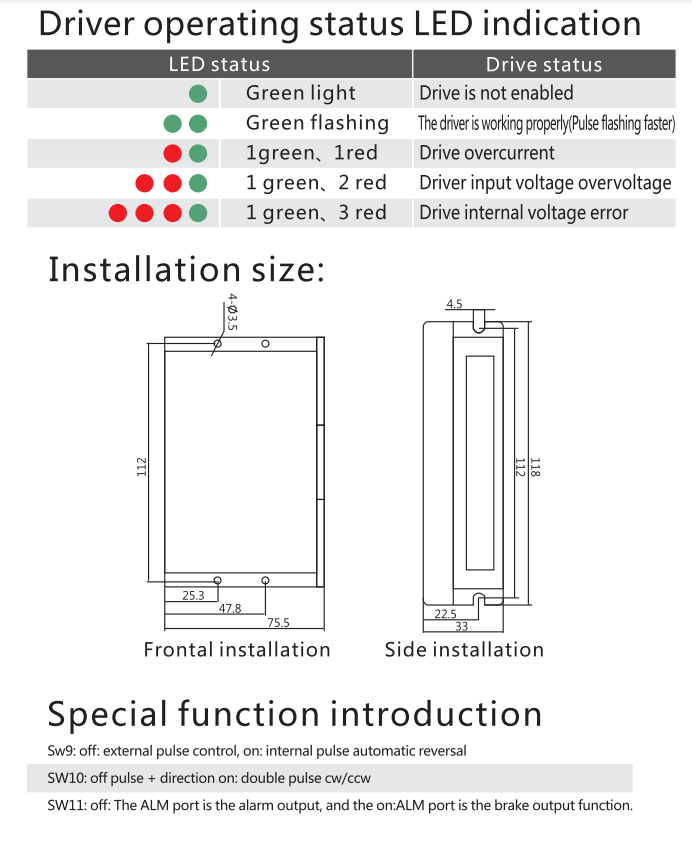

G-4-10 57 60 stepping driver 2NS556A indication and installation size
