YB160 series universal IEC socket power filter
Short Description:
Rated voltage: 250VAC Rated current: 1 ~ 10a Product advantages: IEC950 standard socket, strong versatility, compact shape, easy installation, excellent conduction attenuation performance and high cost performance.

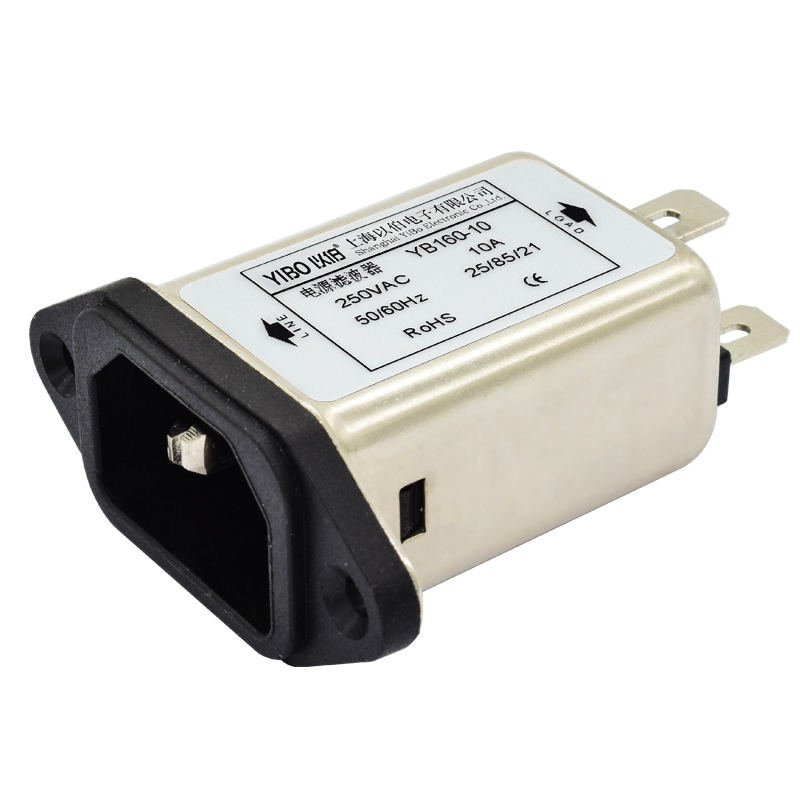

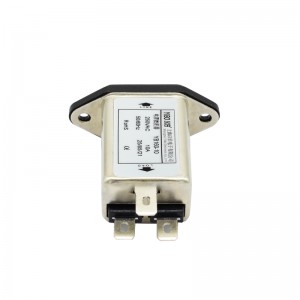

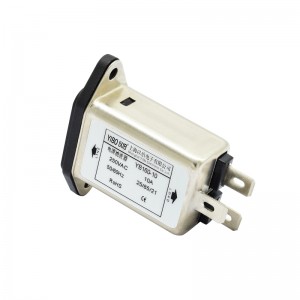

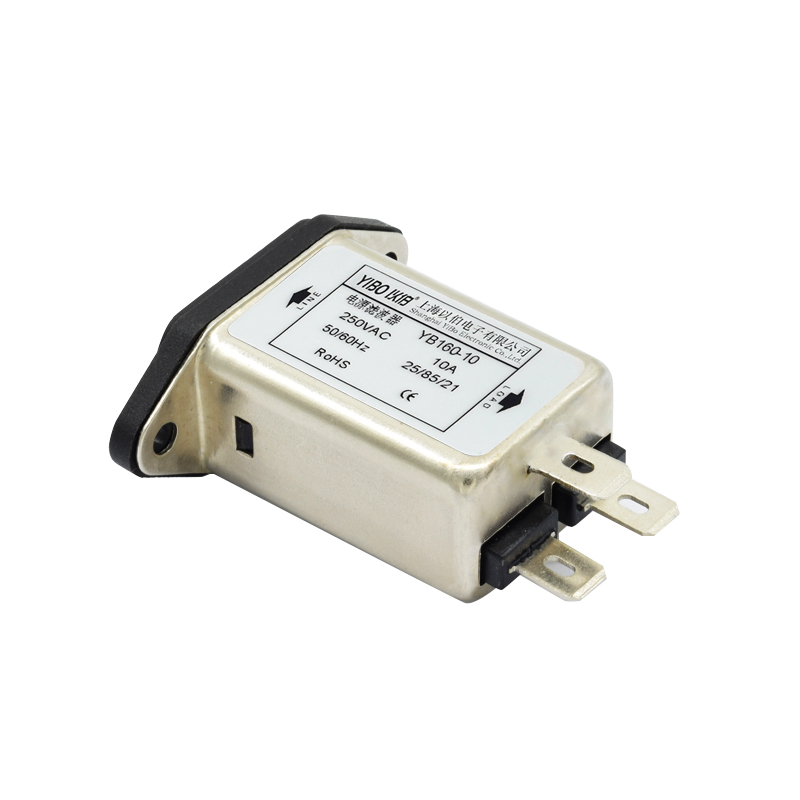

YB160 series universal IEC socket power filter
Product introduction
Rated voltage: 250VAC
Rated current: 1 ~ 10a

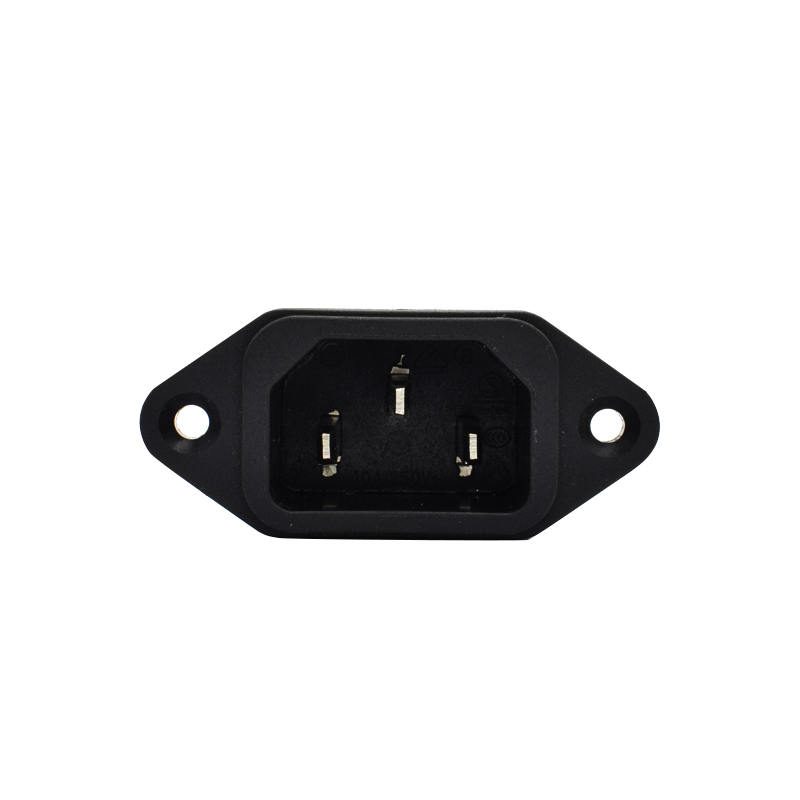

The input end is an IEC standard socket.
Output terminal leads and welding tabs can be selected in two ways.
Optional medical equipment special type (B series)
Can be customized according to customer needs.
Characteristics and advantages
-specially designed for IEC standard connectors, with convenient installation and high cost performance.
– YB160 series adopts first-stage common-mode filter design, and ordinary filter.
-10 khz-30 MHz has good common mode and differential mode filtering effect.
-Products above 15a (inclusive) adopt higher parameter design, and the filtering effect is better.
Product advantages: IEC950 standard socket, strong versatility, compact shape, easy installation, excellent conduction attenuation performance and high cost performance.
Application equipment: suitable for computers, communication equipment, LCD TVs, electric toys and other (medium and small) electronic equipment and electronic measuring instruments.
Specification model:YB160-1、YB160-3、YB160-6、YB160-10
