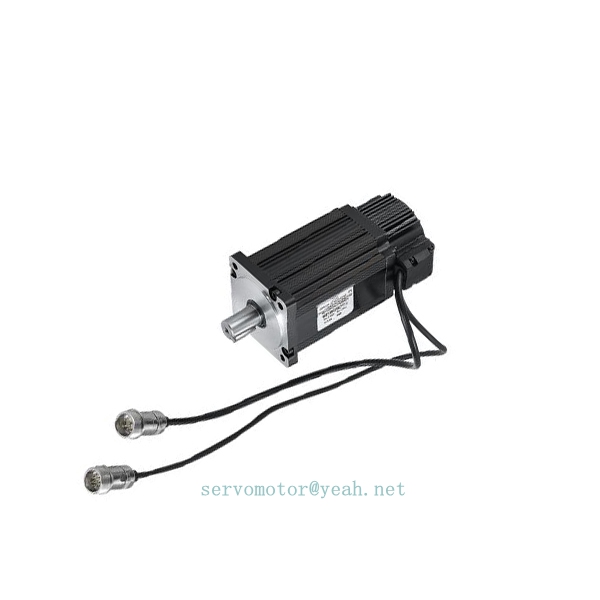

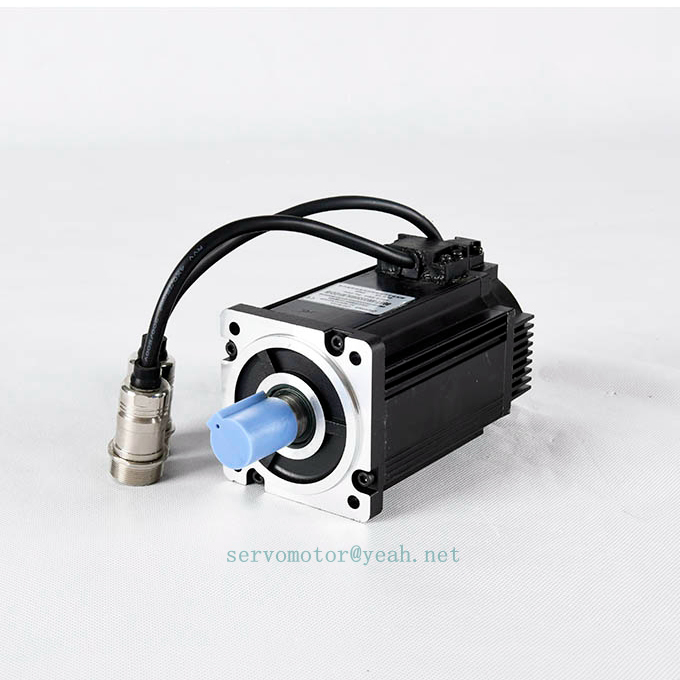

Special Price for Servo Motor For Automatic Assembly Line - 80ST Flange servo motor 0.4-1.0kw – Xulong

Introduction of Hxdwh AC servo motor:

1. Hxdwh is the first factory specializing in the production of AC servo motor in China, with more than 30 years of R & D and production history of servo motor;

2. Complete product specifications, motor power from 0.2KW to 11.7kw (220v-380v);

3. Stable quality, excellent performance and high cost performance. The products are widely used in various occasions of motion control.

Product series:

LB Series ac servo motor

Frame size-mm: 80.110.130.150

Rated torque -NM:1.3-27

Rated power-Kw:0.4-5.5

Rated speed -RPM :1500.2000.2500.3000

Maximum speed-RPM : /

number of pole-pairs: 4

The feedback element: Incremental Encoder 2500C/T

Electric brake: can match

Fit drive working voltage -VAC: 220

LBB Series ac servo motors

Frame size-mm: 80,110,?130,?150

Rated torque-NM:1.3-27

Rated power-Kw:0.4-5.5

Rated speed-RPM:1500.2000.2500.3000

Maximum speed-RPM:/

number of pole-pairs: 4

The feedback element:Absolute photoelectric encoder  17bit

Electric brake: can match

Fit drive working voltage -VAC:220

Motor type:

220V LB Series ac servo motor- 2500C/T incremental encoder

80ST-M01330LF1B 220v 0.4kw 2.6A 1.3Nm 3000rpm

80ST-M02430LF1B 220v 0.75kw 4.2A 2.4Nm 3000rpm

80ST-M03330LF1B 220v 1.0kw 4.2A 3.3Nm 3000rpm

220V LBB Series ac servo motor- 17bit absolute value encoder

80ST-M01330LMBB 220v 0.4kw 2.6A 1.3Nm 3000rpm

80ST-M02430LMBB 220v 0.75kw 4.2A 2.4Nm 3000rpm

80ST-M03330LMBB 220v 1.0kw 4.2A 3.3Nm 3000rpm

Application of servo motor:

Servo motor for drilling and tapping Center

Servo motor for carving and milling center

Servo motor for textile machinery

Servo motor for woodworking machinery

Servo motor for tenoning machine
