OEM Manufacturer Angle Hollow Shaft Reducer - D-1-4 PLFR series Planetary reducer – Xulong
Short Description:
OEM Manufacturer Angle Hollow Shaft Reducer - D-1-4 PLFR series Planetary reducer – Xulong Detail:
1. Product featuress:
PLR/PFR/AER/ABR/ADR/VRBR Series:
1.Planetary boom and output shaft are intergrated structure designed to ensure maximum torsional rigidity;
2.Planetary wheel with full needle design,increase the contact area to improve the rigidity and output torque;
3.The gears are carburized and quenched to the HRC62 with low carbon steel surface for optimum wear and impact toughness;
4.Gears refer to forengn imported software-assisted design to obtain the best tooth shape to reduce noise;
5.The input terminal is connected to the motor shaft in a double-tight manner to obtain the maximum clamping force and sero backlash power transmission.
6.Adopt spiral bevel gear design,allow high output torque,more than 30% higher than straight bevel gear;
7.High tolerance input speed,more than 8 times higher than straight bevel gear input;
8.The meshing tooth imprint of spiral bevel gear has been optimized;
9.Cochlear bevel gears are meshed by optimum by optimum motion error analysis and strict process control to ensure high precsion running back clearance.
2. Technical indexes :
1.PFR series:
Flange dimensions
LR060 & PLR080 & PLR090 & PLR120 & PLR160
Product description :
Straight tooth Planetary gearbox
Factory Direct
Square flange output
Right angle planetary reducer
High-precision
High torque
Good transmission stability
Low noise
Long life
Match any brand of motor
3. Product characteristics :
Ratio: Single tage, i=3-10 & Double stage, i=15-100
Efficiency: Single tage, ≧96,& Double stage,≧93
Standard Backlash: Single tage,P2≦10 & Double stage, P2≦12
Installation form:Horizontal installation
Maximum output torque: Double rated output torque
Lifespan: 10000hr
Working temperature: -10℃-80℃
IP Grade: IP65

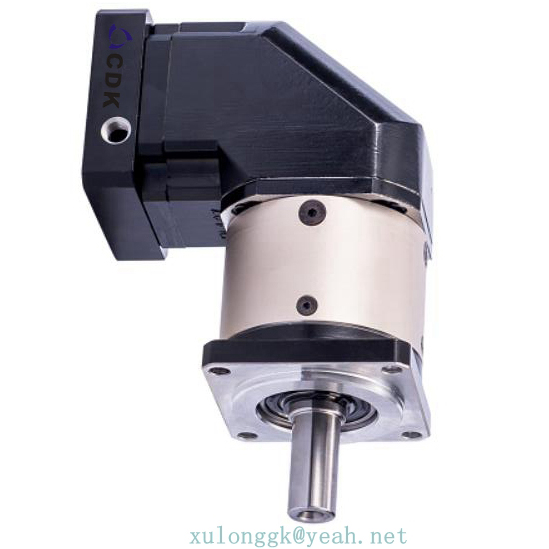

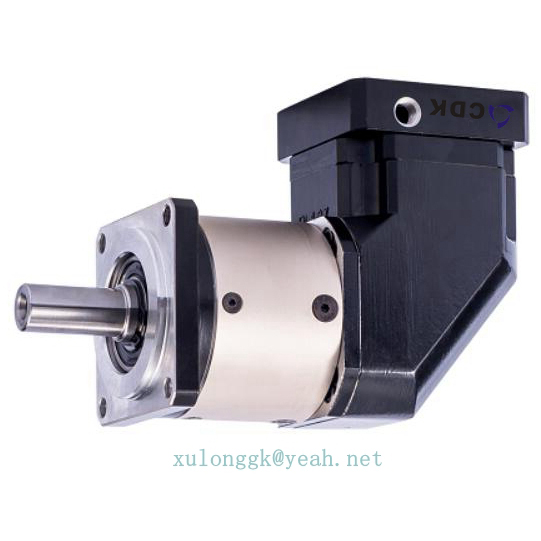

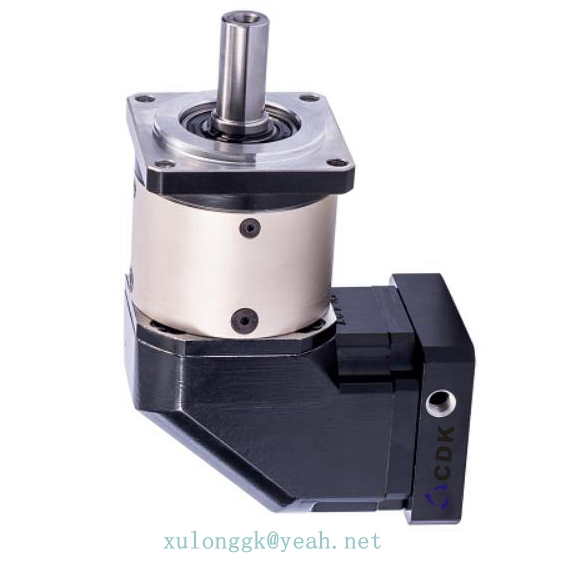

Product detail pictures:
