Low MOQ for Servo Motor For Automatic Nailing Machine - 180ST Flange servo motor 3.6-8.6kw – Xulong Detail:

Introduction of Hxdwh AC servo motor:

1. Hxdwh is the first factory specializing in the production of AC servo motor in China, with more than 30 years of R & D and production history of servo motor;

2. Complete product specifications, motor power from 0.2KW to 11.7kw (220v-380v);

3. Stable quality, excellent performance and high cost performance. The products are widely used in various occasions of motion control.

Product series:

HB Series ac servo motors:

Frame size -mm : 110.130.150.180

Rated torque -NM: 2-55

Rated power -Kw:0.6-8.6

Rated speed -RPM:1500.2000.2500.3000

Maximum speed -RPM:/

number of pole-pairs: 4

The feedback element: Incremental Encoder 2500C/T

Electric brake: can match

Fit drive working voltage -VA : 380

HMB Series ac servo motors:

Frame size-mm : 110.130.150.180

Rated torque -NM :4.8-55

Rated power -Kw :0.85-8.6

Rated speed -RPM :1500,2000

number of pole-pairs: 4

The eedback element: Absolute photoelectric encoder (17bit)

Electric brake: can match

Fit drive working voltage -VAC :380

Servo Motor model:

380V-400V HB Series ac servo motor- 2500C/T incremental encoder

180ST-M18020HFB 380V 3.6kw 10A 18Nm 2000rpm

180ST-M23020HFB 380V 4.7kw13.5A 23Nm 2000rpm

180ST-M27020HFB 380V 5.5kw 13.5A 27Nm 2000rpm

180ST-M36015HFB 380V 5.6kw 14A 36Nm 1500rpm

180ST-M45015HFB 380V 7.0kw 16.5A 45Nm 1500rpm

180ST-M55015HFB 380V 8.6kw 20.5A 55Nm 1500rpm

380V-400V HBB Series ac servo motor- 17bit absolute value encoder

180ST-M18020HMBB 380V 3.6kw 10A 18Nm 2000rpm

180ST-M23020HMBB 380V 4.7kw13.5A 23Nm 2000rpm

180ST-M27020HMBB 380V 5.5kw 13.5A 27Nm 2000rpm

180ST-M36015HMBB 380V 5.6kw 14A 36Nm 1500rpm

180ST-M45015HMBB 380V 7.0kw 16.5A 45Nm 1500rpm

180ST-M55015HMBB 380V 8.6kw 20.5A 55Nm 1500rpm

Application of servo motor:

Applied to food machinery

Applied to packaging machinery

Applied to rubber machinery

Applied to stamping machine

Applied to dispensing machine equipment

Applied to logistics equipment

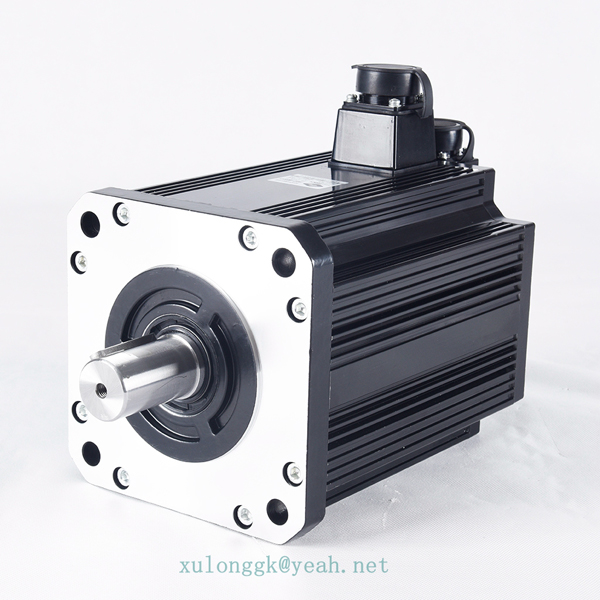

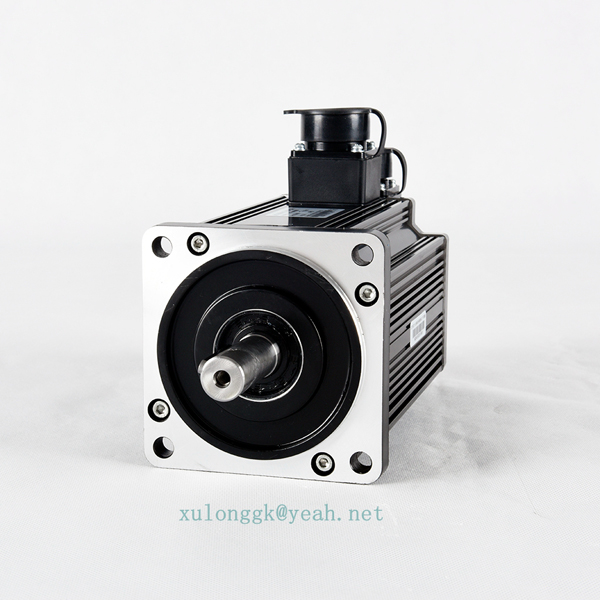

Product detail pictures:
