Product Overview

The oil mist collector is specially designed for various machining watermist, smoke, and oil mist problems. JHY is committed to developing oilmist collectors with different performance. Currently, the productsare divided into centrifugal, electrostatic, and condensation types, andprovide both single-machine and centralized solutions to meet thedifferent needs of customers.

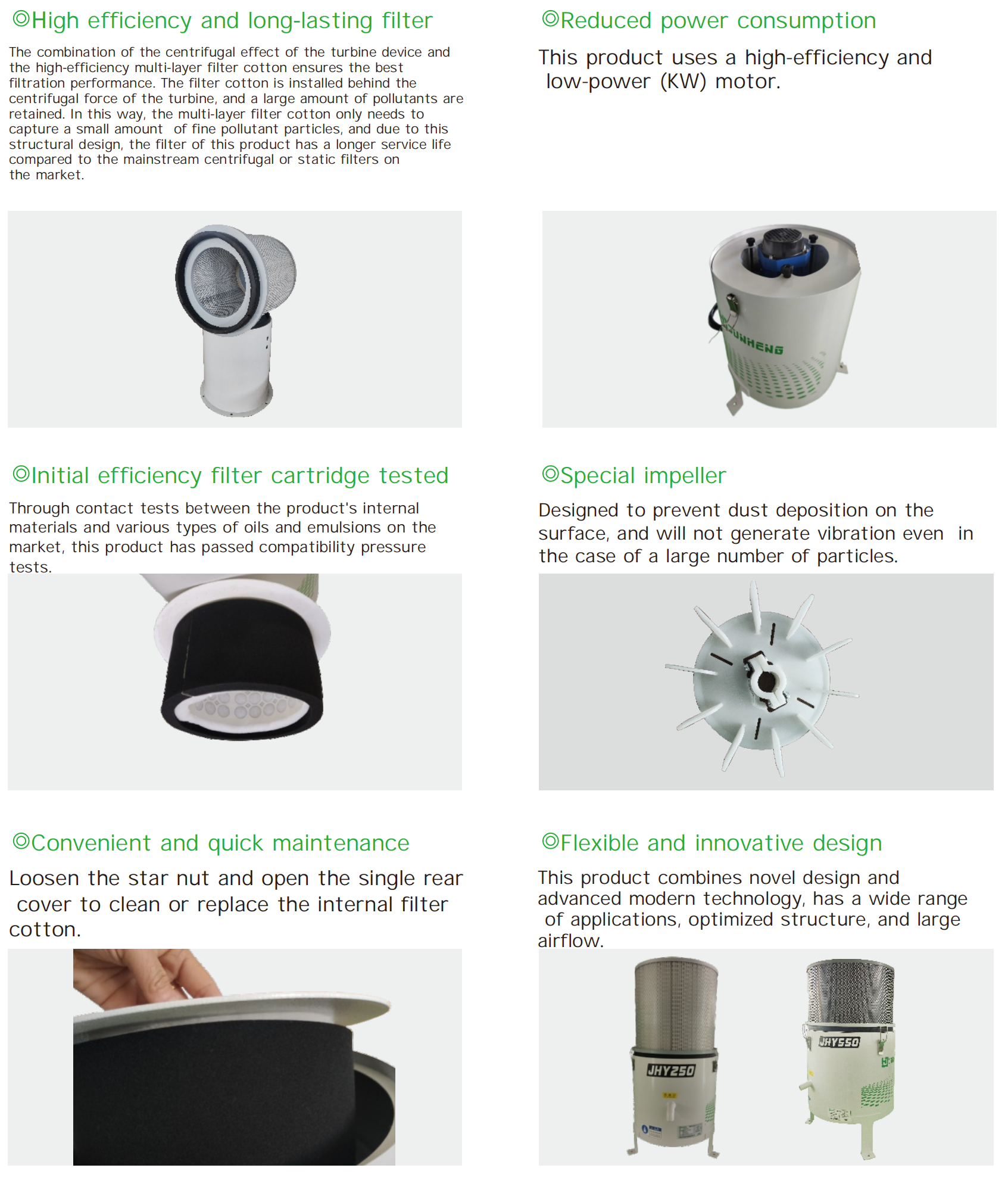

Product Highlights

Working Principle

*The rotating centrifugal impeller generates negative pressure to suck in the polluted air

*The air passes through the high-speed rotating centrifugal turbine blades, generating radialcentrifugal force, which causes the oil mist particles or finer oil mist droplets to re-agglomerateinto small droplets and be thrown onto the inner wall of the device.

*The air is further purified through the built-in *specialized filter cartridge, and then directly discharged into the working environment. The re-condensed liquid is also effectively discharged through thespecially designed oil return pipe.

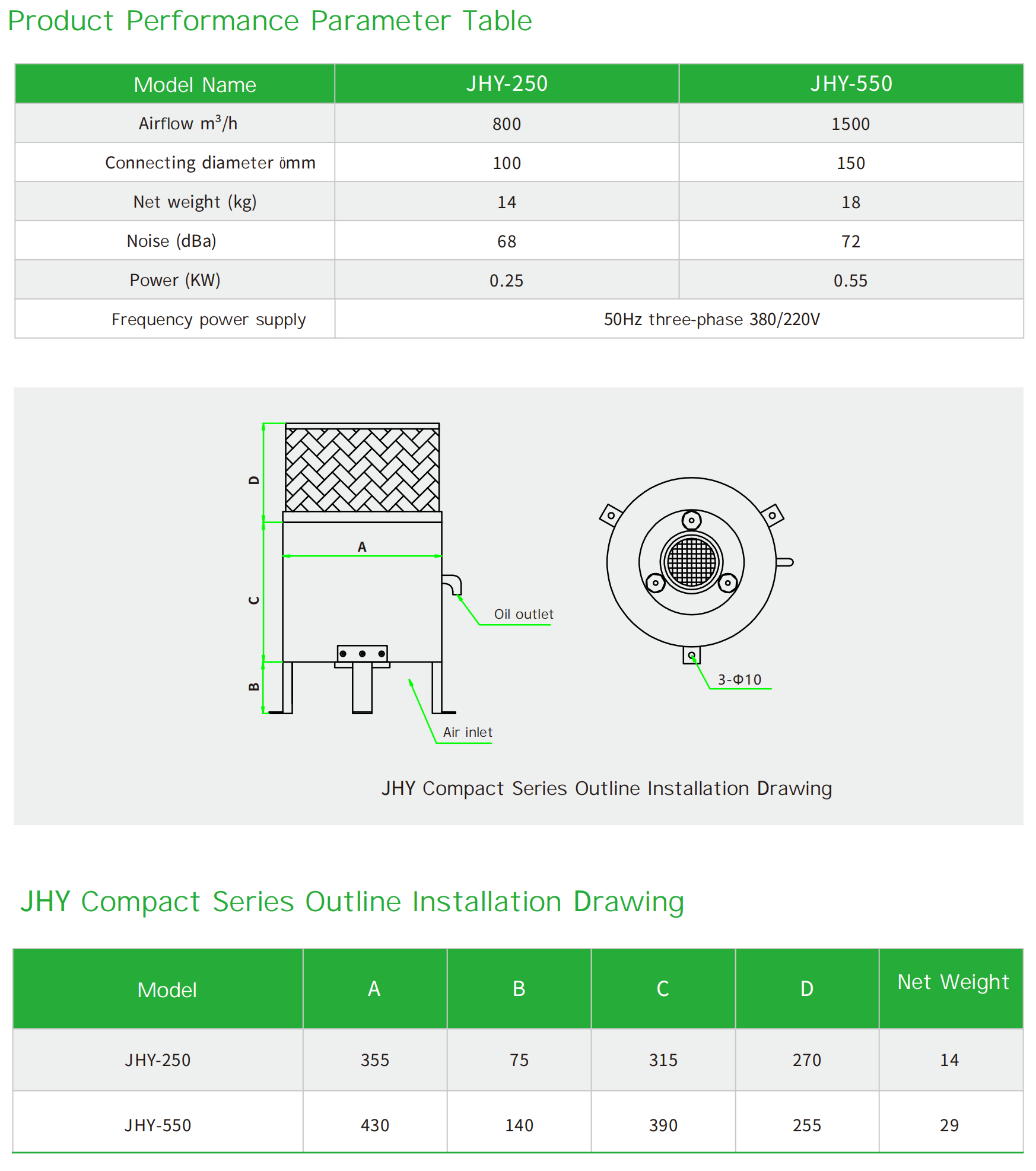

Product Dimensions

Application Cases
