I. General pulse type K series servo drive

1. Servo drive model:

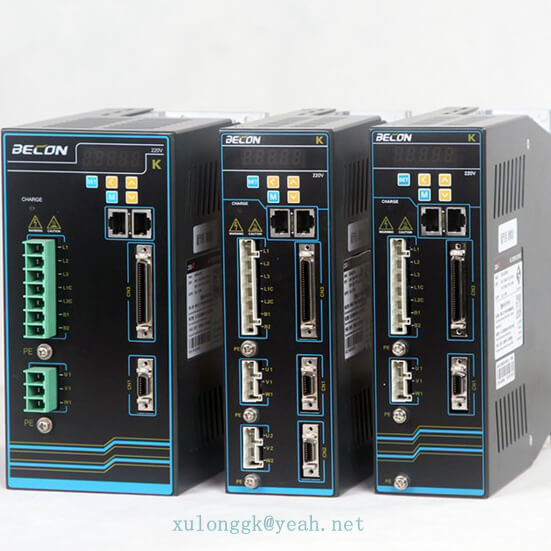

K Series servo drive

380-400v Incremental servo drive

ZSD-KBS20AA

ZSD-KBS35AA

ZSD-KBS50AA

ZSD-KBS75AA

2. Technical indexes :

Power supply voltage: single-phase or three-phase 220VAC & 380V (- 15 ~ + 10%), 50 ~ 60Hz

Output power: 220V (2kW, 2.8KW, 3.5kw, 5kW), 380V (2kW, 3.5kw, 5kW, 7.5kW)

Encoder: 2500 C/T incremental / provincial encoder, 17bit / 20bit / 23bit absolute encoder

Digital IO signal: 8-channel input and 6-channel output can be set

Analog signal: 2 inputs

Communication mode: RS232, standard Modbus protocol, CANopen bus, among which IK series supports MII protocol

Monitoring function: provide 16 kinds of status monitoring such as position, speed, current, voltage, input and output

3. Product advantages

1. Powerful internal position mode can plan multi-path continuous operation to achieve rich motion control functions; at most 32 groups of data planning can be supported, and each group of data can be set with pulse number or angle according to demand, and speed, acceleration, deceleration and emergency deceleration of internal position mode can be set.

2. Automatically measure the mechanical characteristics of load inertia, set the optimal gain, and shorten the system commissioning time

3. Mechanical resonance frequency analysis, equipped with two sets of notch filters, which can adjust the frequency (50 ~ 5000Hz) and notch depth, effectively overcome the low frequency resonance and vibration at the mechanical end, and can set the vibration frequency (1 ~ 100Hz) and vibration damping.

4. Friction torque compensation function can reduce the influence of static friction during mechanical reversing and improve the command following performance of low-speed operation.

5. Debugging software support, mechanical characteristics analysis, parameter setting, monitoring and other functions, intuitive and simple operation.
