High definition 23bit Absolute Encoder Servo Motor - 180ST Flange servo motor 3.6-8.6kw – Xulong Detail:
Introduction of Hxdwh AC servo motor:
1. Hxdwh is the first factory specializing in the production of AC servo motor in China, with more than 30 years of R & D and production history of servo motor;
2. Complete product specifications, motor power from 0.2KW to 11.7kw (220v-380v);
3. Stable quality, excellent performance and high cost performance. The products are widely used in various occasions of motion control.
Product series:
HB Series ac servo motors:
Frame size -mm : 110.130.150.180
Rated torque -NM: 2-55
Rated power -Kw:0.6-8.6
Rated speed -RPM:1500.2000.2500.3000
Maximum speed -RPM:/
number of pole-pairs: 4
The feedback element: Incremental Encoder 2500C/T
Electric brake: can match
Fit drive working voltage -VA : 380
HMB Series ac servo motors:
Frame size-mm : 110.130.150.180
Rated torque -NM :4.8-55
Rated power -Kw :0.85-8.6
Rated speed -RPM :1500,2000
number of pole-pairs: 4
The eedback element: Absolute photoelectric encoder (17bit)
Electric brake: can match
Fit drive working voltage -VAC :380
Servo Motor model:

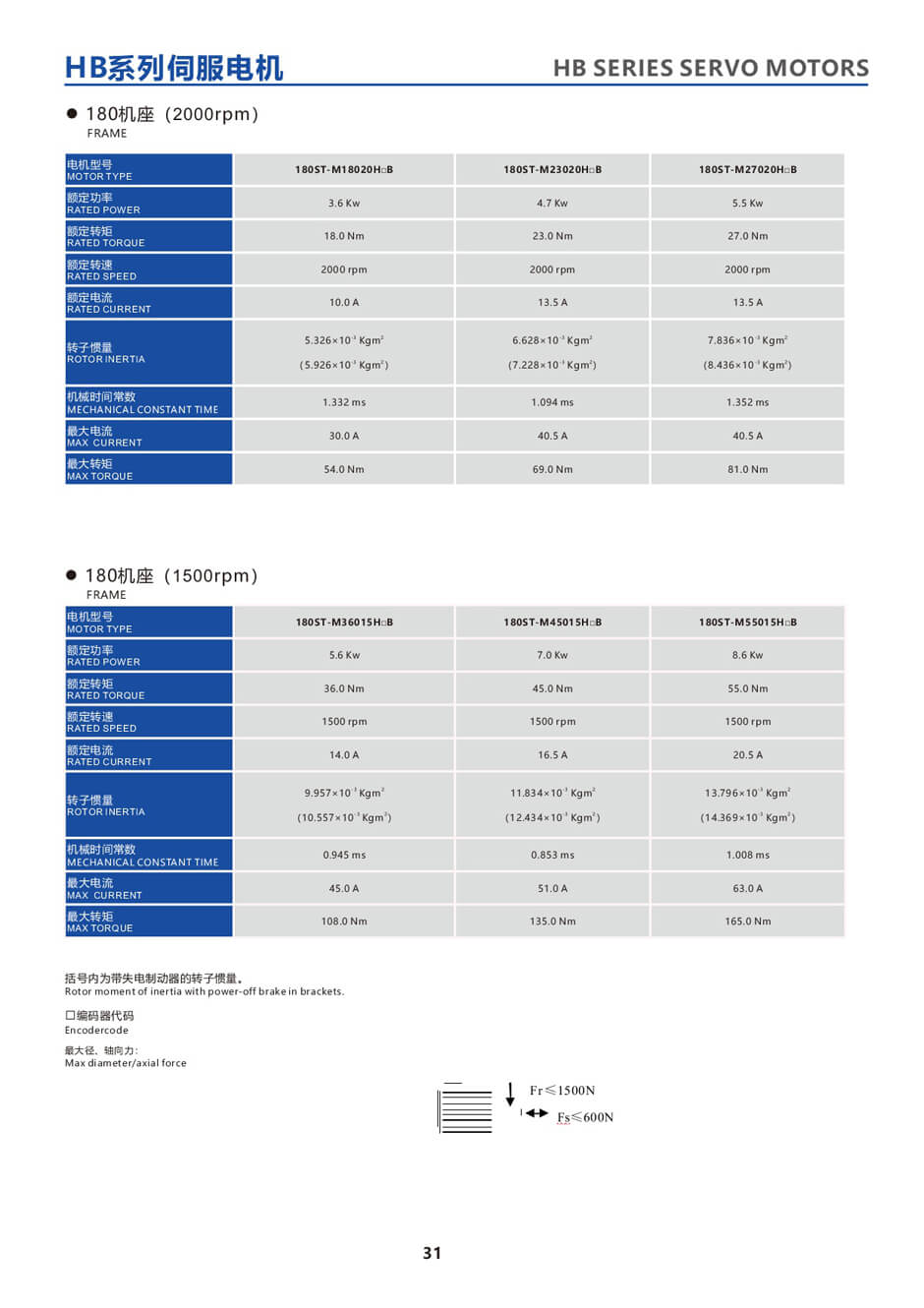

380V-400V HB Series ac servo motor- 2500C/T incremental encoder
180ST-M18020HFB 380V 3.6kw 10A 18Nm 2000rpm
180ST-M23020HFB 380V 4.7kw13.5A 23Nm 2000rpm
180ST-M27020HFB 380V 5.5kw 13.5A 27Nm 2000rpm
180ST-M36015HFB 380V 5.6kw 14A 36Nm 1500rpm
180ST-M45015HFB 380V 7.0kw 16.5A 45Nm 1500rpm
180ST-M55015HFB 380V 8.6kw 20.5A 55Nm 1500rpm
380V-400V HBB Series ac servo motor- 17bit absolute value encoder
180ST-M18020HMBB 380V 3.6kw 10A 18Nm 2000rpm
180ST-M23020HMBB 380V 4.7kw13.5A 23Nm 2000rpm
180ST-M27020HMBB 380V 5.5kw 13.5A 27Nm 2000rpm
180ST-M36015HMBB 380V 5.6kw 14A 36Nm 1500rpm
180ST-M45015HMBB 380V 7.0kw 16.5A 45Nm 1500rpm
180ST-M55015HMBB 380V 8.6kw 20.5A 55Nm 1500rpm
Application of servo motor:
Applied to food machinery
Applied to packaging machinery
Applied to rubber machinery
Applied to stamping machine
Applied to dispensing machine equipment
Applied to logistics equipment
Product detail pictures:
