G-3-3 86 series two-phase stepping motor

Short Description:


Product Detail

Product Tags

86 series two-phase stepping motor

General specifications

Step accuracy :   ±5%(Whole step、Empty load)

Temperature rise:80°C Max

Ambient temperature:-10℃-+50℃

Insulation resistance:100MΩmin.500VDC

Pressure resistance:500VAC for one minute

Radial runout:0.06Max.(450g-load)

Axial runout:0.08Max.(450g-load)

Stepper motor model

Phase

Step angle
(°)

Holding torque
(NM)

Rated current
(A)

Phase inductance
(mH)

Phase resistance
(Ohm)

Number

Rotor inertia
(g.cm²)

Shaft diameter
(mm)

Motor weight
(kg)

Fuselage length
L(mm)

86BG65

2

1.8

3.5

2.8

3.9

1.4

4

800

0.8

2

65

86BG80

2

1.8

4.5

4.2

3.5

0.8

4

1400

1.3

2.3

80

86BG118

2

1.8

8.5

4.9

5.2

0.95

4

2800

2.5

3.8

118

86BG156

2

1.8

12

4.9

8.7

1.4

4

4000

3.8

5.3

156

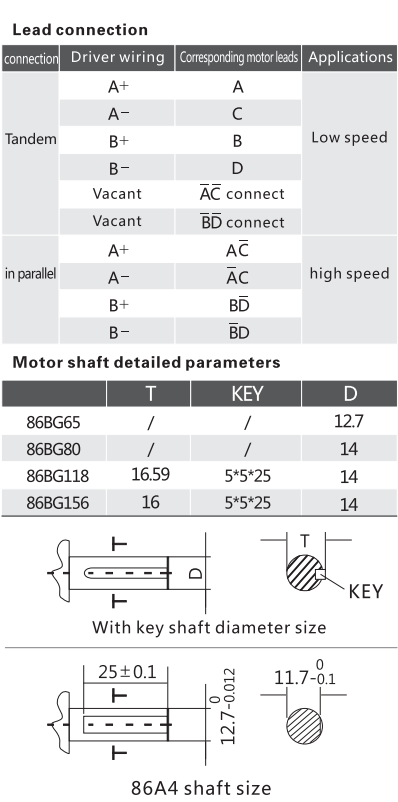

G-3-13 86 series two-phase stepping motor lead connection

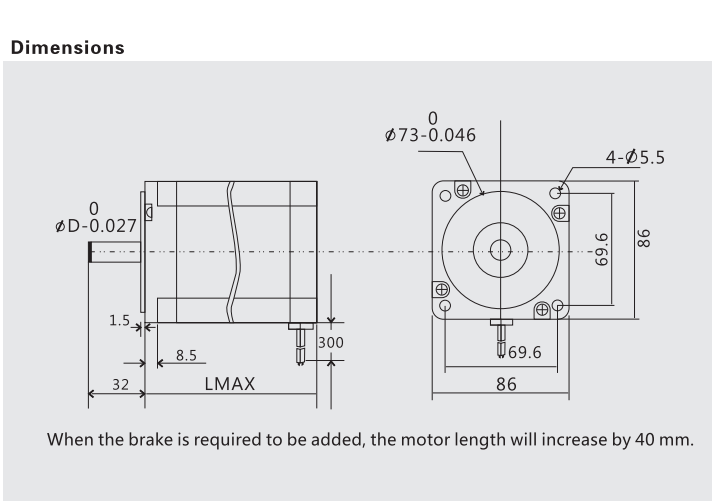

G-3-12 86 series two-phase stepping motor dimensions

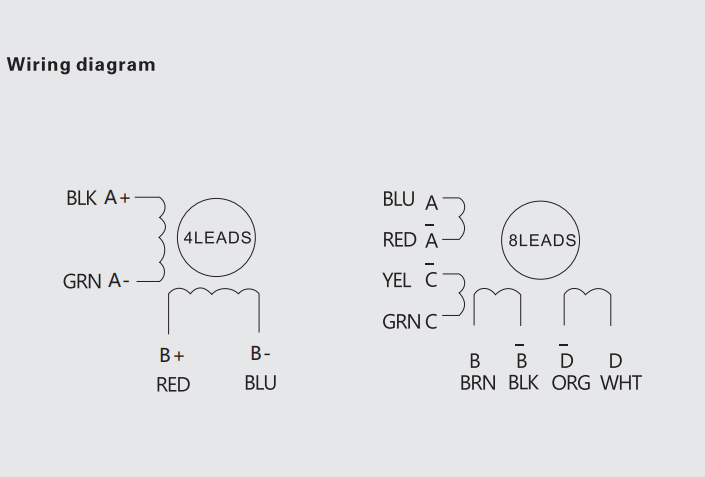

G-3-11 86 series two-phase stepping motor wiring diagram

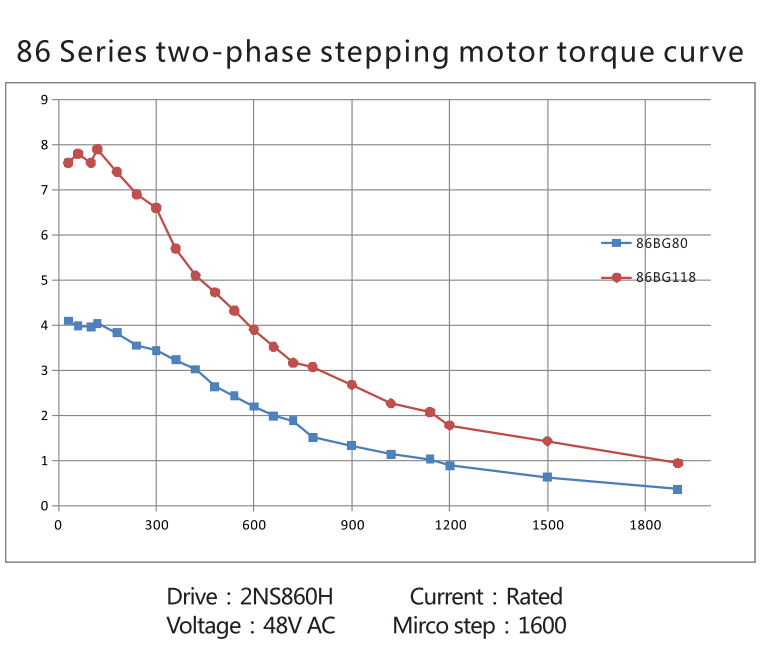

G-3-14 86 series two-phase stepping motor torque curve
G-3-15- 86 series three-phase stepping motor torque curve
