Explosion-proof Servo Motor, T4&T5 Rating, 220V&380V, 140 Flange, 0.85-2.4kw 5.4-11.5Nm 1500-4000rpm
Short Description:
Typical Application Scenarios of Flameproof Explosion-Proof Servo Motors (Ex d) Flameproof (Ex d) is the most commonly used and highly reliable type of explosion-proof servo for industrial hazardous locations. It is mainly applied in Zone 1 and Zone 2 environments with flammable gases or vapors, a
Wuhan Huada New Motor Technology Co., Ltd.

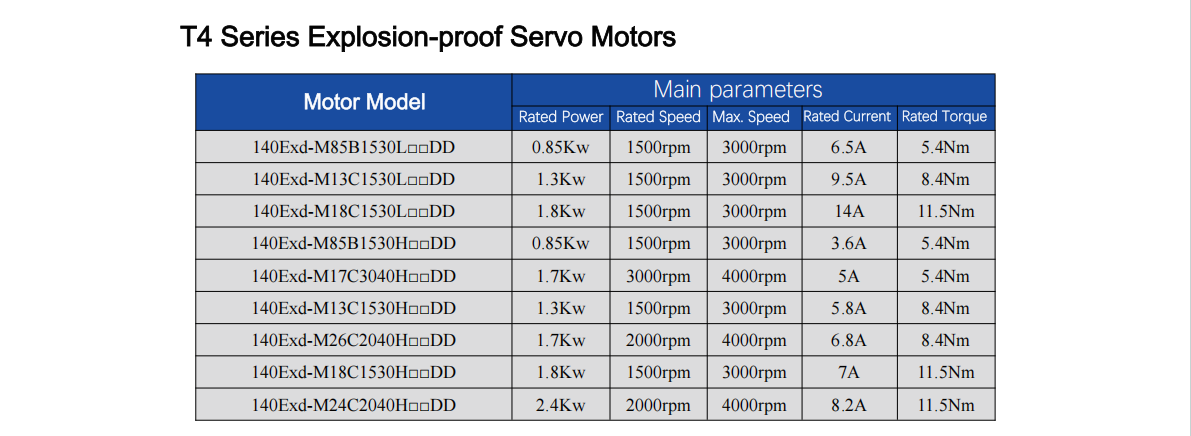

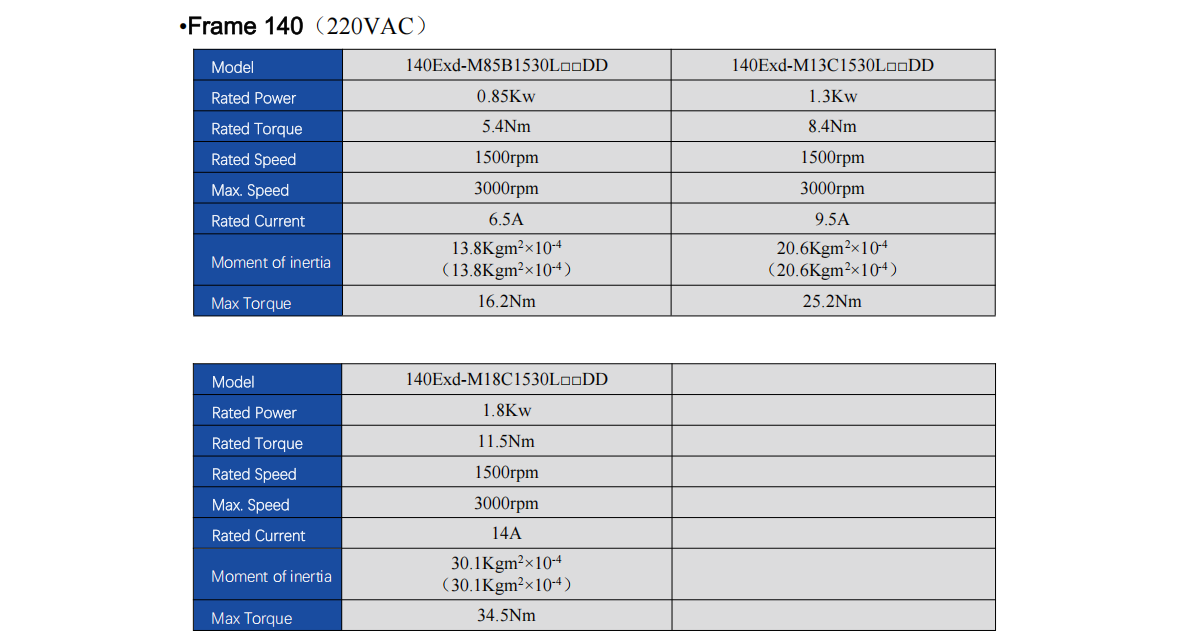

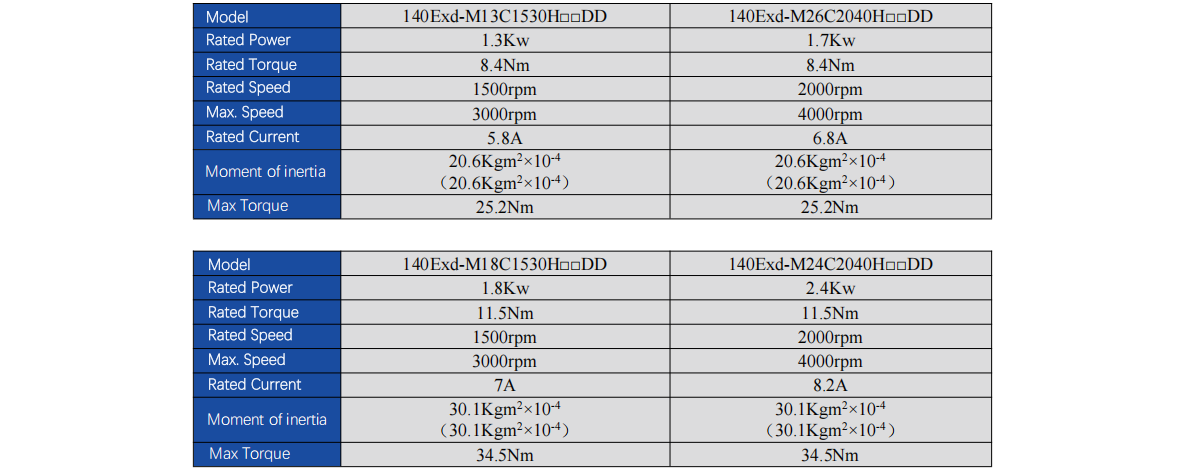

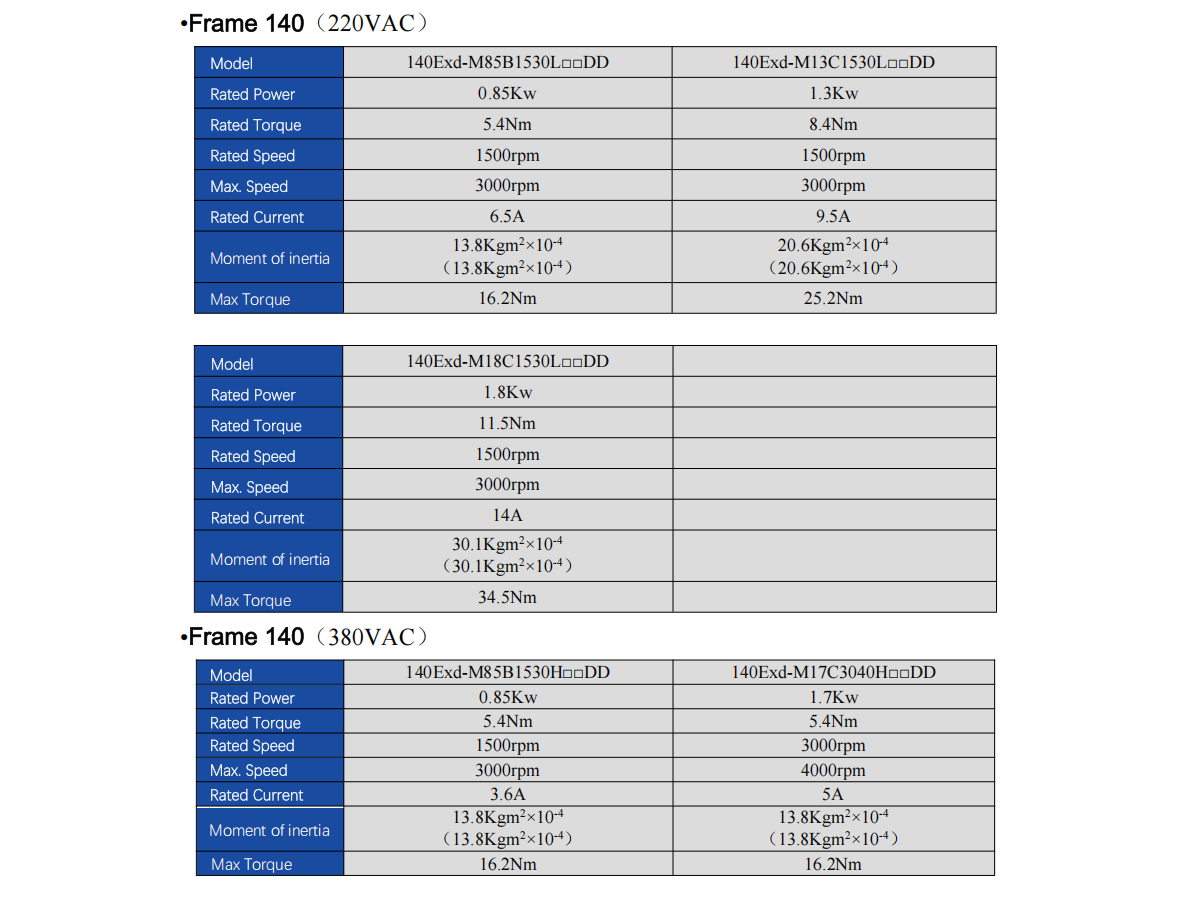

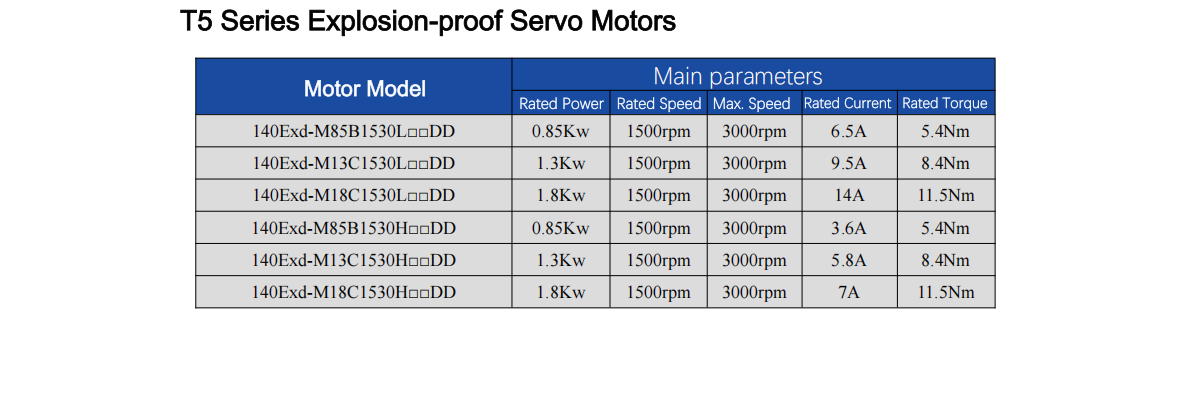

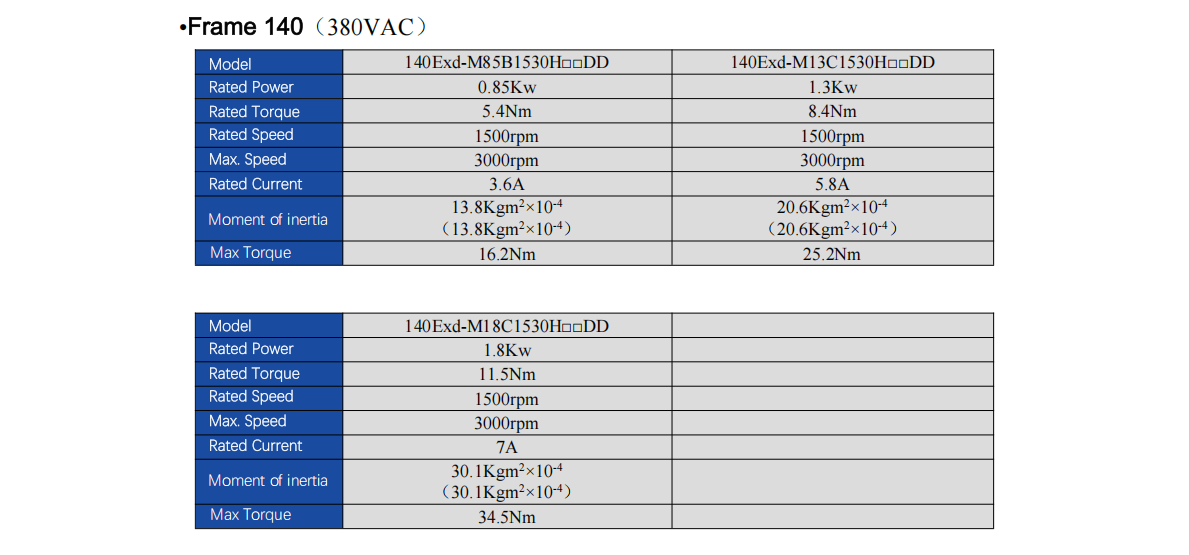

Explosion-proof Servo Motor Series:

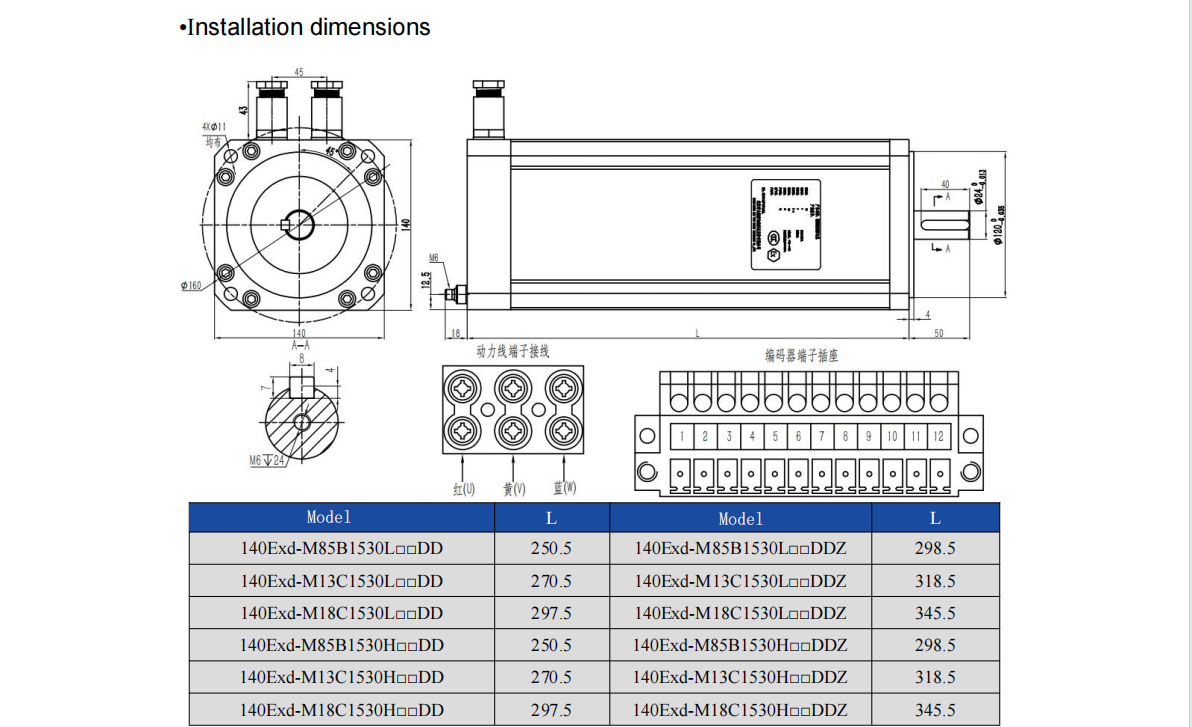

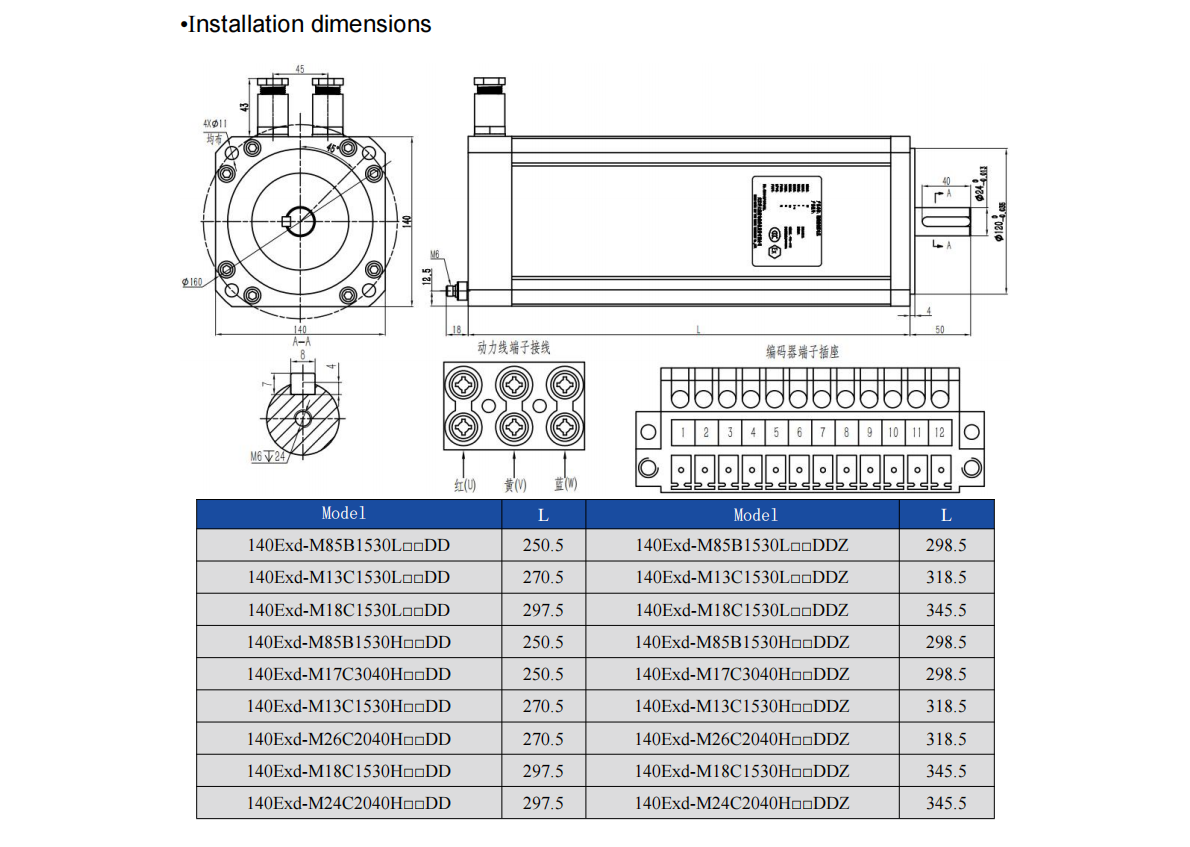

- Frame size (mm): 70, 90, 120, 140, 190
- Rated power (kW): 0.75~5.5
- Rated speed (rpm): 1500~3000
- Maximum speed (rpm): 3000~6000
- Rated torque (Nm): 0.64~35
- Number of pole pairs: 5
- Feedback device: Optional
- Power-off brake: Optional
- Working voltage of matched drive (VAC): 220, 380
- Operating temperature: -20℃ — 40℃
- Temperature class: T4, T5
Typical Application Scenarios of Flameproof Explosion-Proof Servo Motors (Ex d)
Flameproof (Ex d) is the most commonly used and highly reliable type of explosion-proof servo for industrial hazardous locations.
It is mainly applied in Zone 1 and Zone 2 environments with flammable gases or vapors, as well as certain dust-hazardous environments.
This type of motor is suitable for automated equipment requiring high-precision positioning, fast response, and high torque.
