Machine tool frame is the mechanical bare body of a machine tool, excluding components such as the CNC system, servo drives, electrical cabinet, tool magazine, and protective covers. It serves as the core foundation that determines the rigidity, precision and stability of the complete machine.
1. Core Definition

• A machine tool frame is the basic mechanical main body of a machine tool. Composed of key structural parts including the bed, column, headstock, worktable, guideways, ball screws and lubrication system, it acts as the skeleton for the assembly of the complete machine.

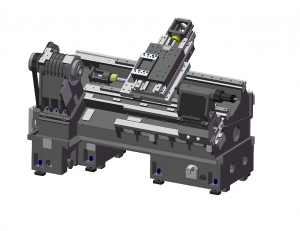

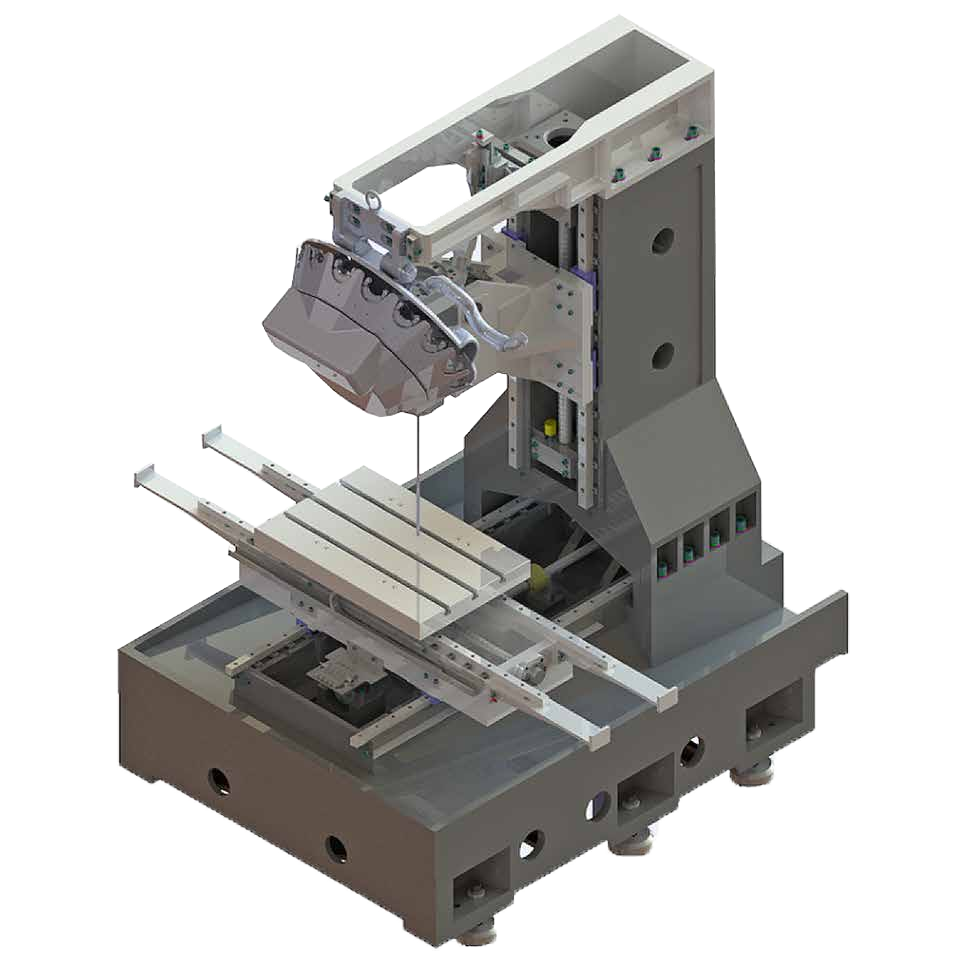

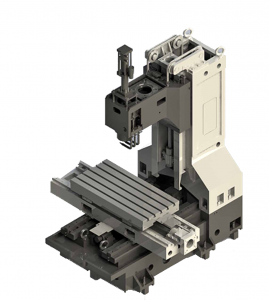

2. Main Structure

• Bed: The basic supporting component, mostly made of HT250/HT300 cast iron, treated with aging process to relieve internal stress and ensure long-term dimensional stability.
• Headstock: Provides cutting power and determines rotational accuracy and rigidity.
• Feed system: Includes ball screws and linear guideways to ensure motion and positioning accuracy.
• Worktable / Saddle / Column: Form the motion and load-bearing framework.

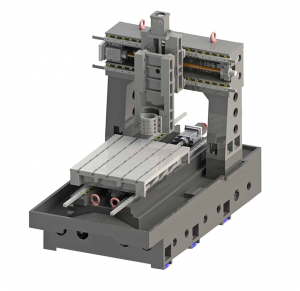

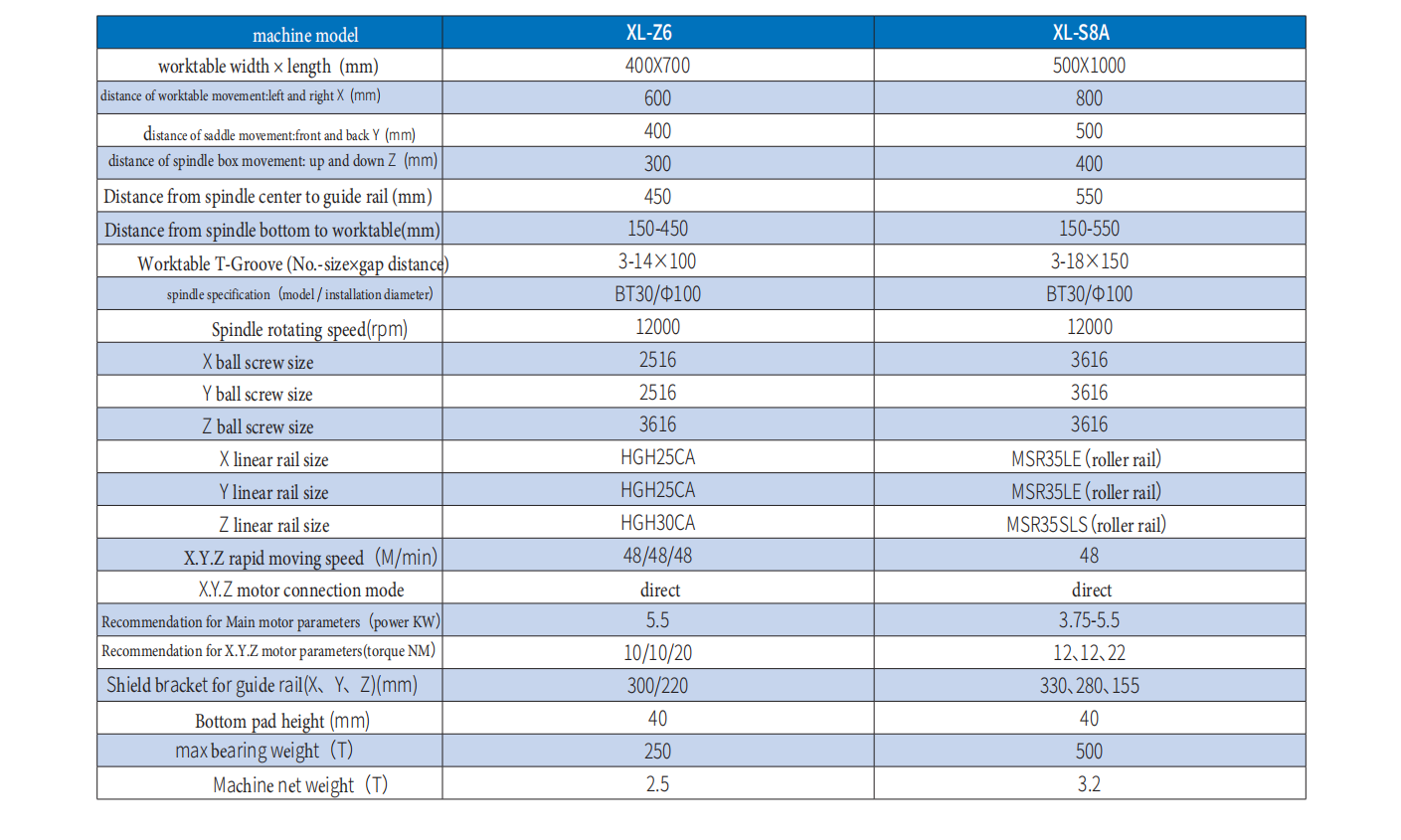

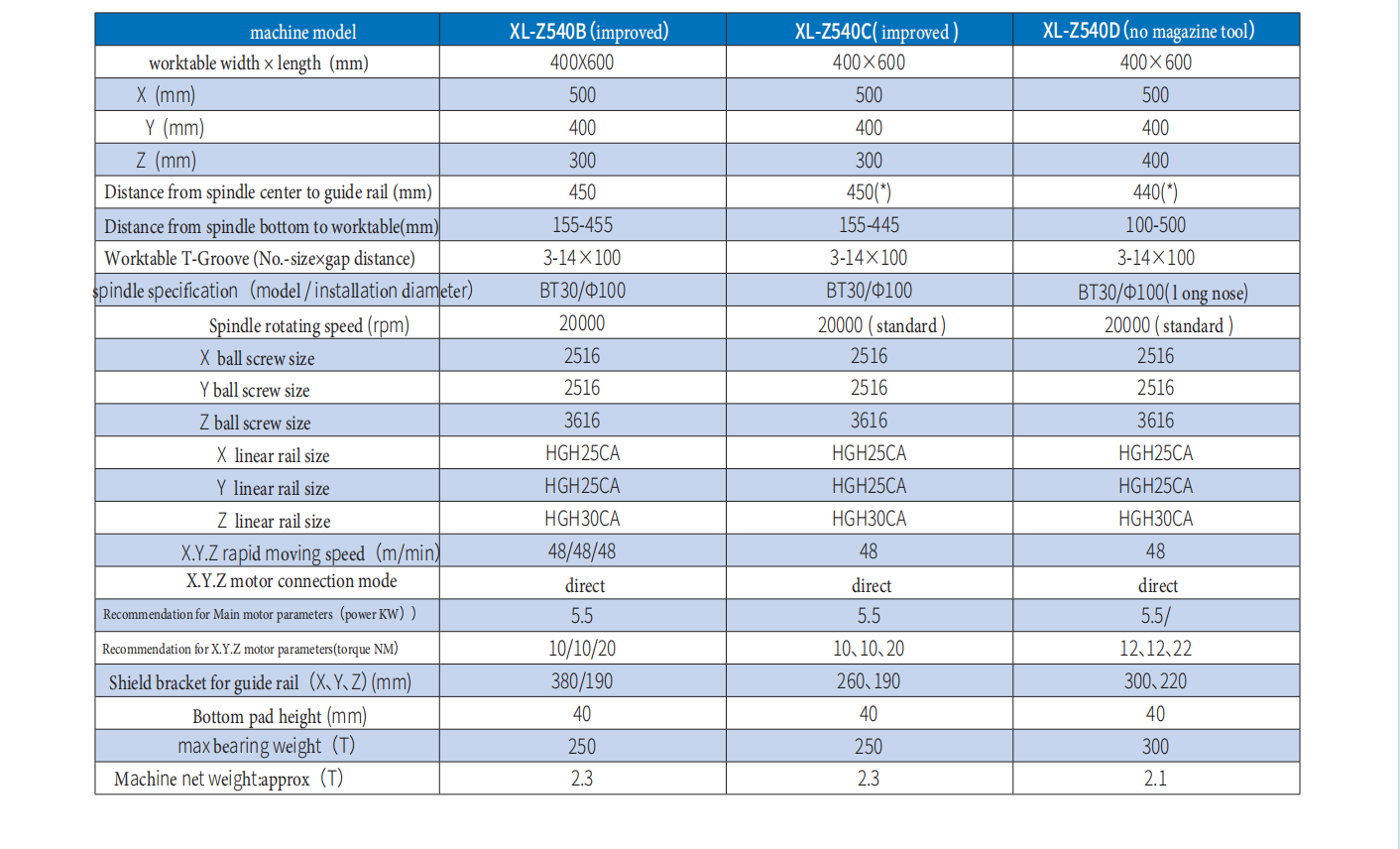

Gantry/engraving and milling machine configuration

• ·Resin sand casting；
• ·Automatic pentahedral milling head, gear milling head, ZF reducer milling head, belt milling head, directconnected milling head, medium injection spindle, need to be specified when ordering；
• ·Taiwan-made spindle, spindle motor pulley and spindle belt；
• ·Taiwan-made pressurized cylinder;
• ·Imported gear drive box and rack from Europe (gear drive box French brand, rack Swiss brand);
• ·Servo shaft imported from Europe. Spindle reducer (German brand);
• ·Imported ball screw and precision lock nut (screw for Taiwan brand, Spanish brand, German brand, American brand, lock nut for Taiwan brand);
• ·Imported linear guide rail (German brand, Japanese brand);
• ·Sliding guide rail series gantry plastering leather using imported treasure color chardonnay plate plastering leather;
• · Imported bearings (Japanese brands, German brands, );
• ·Taiwan-made hydraulic balancing system；
• ·Paint: According to customer requirements (color palette) configuration, spray paint color;
• ·X-direction stainless steel guide shield protection, Y-direction Fengqin guide shield protection-Made in China;
• ·Lubrication system-Made in China；
• ·Lengthening milling head, right-angle milling head and universal milling head are special configurations and must be specifically indicated when ordering;
• ·Imported coupling.
