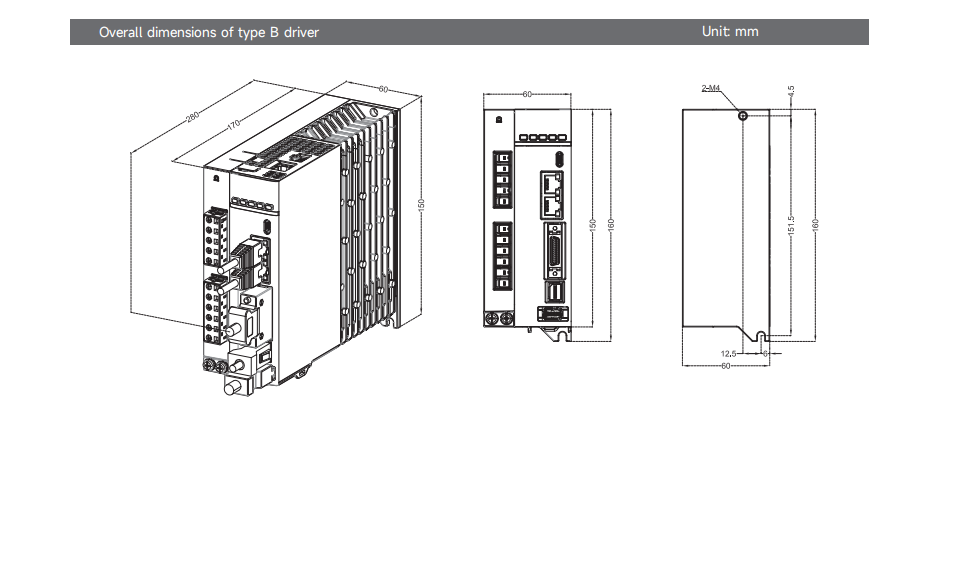

B-2-4 Ω6-A Series servo driver Pulse&Bus Type 2.4A-20.8A AC220V-380V

Universal  Ω6 series servo drive

SIGRINER Ω6 series is our company supporting HXDWH servo motor, Dekangwei linear motor of a high-performance AC servo drive,the main replacement for the Panasonic, Yaskawa, Mitsubishi brand:

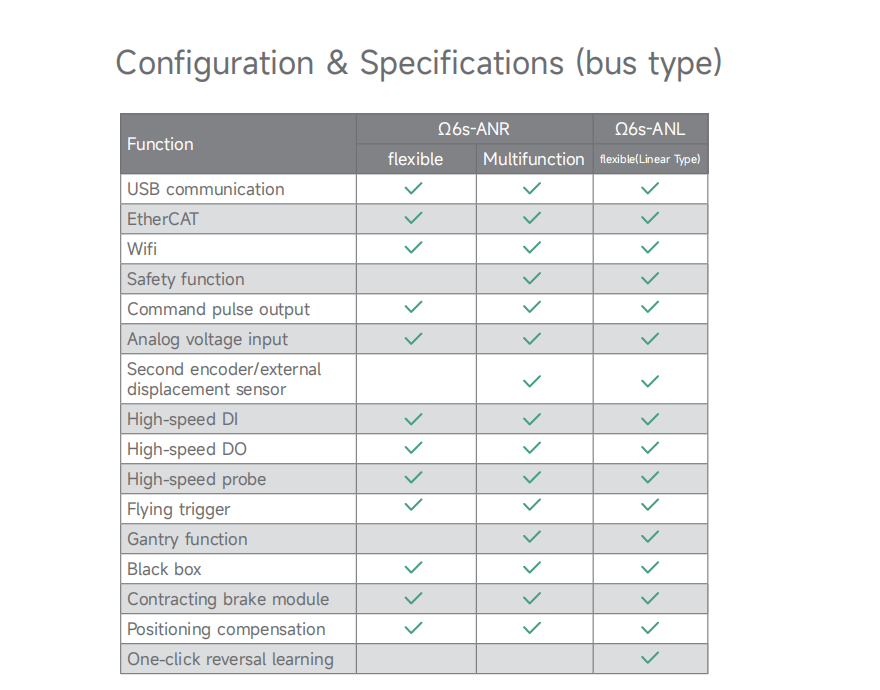

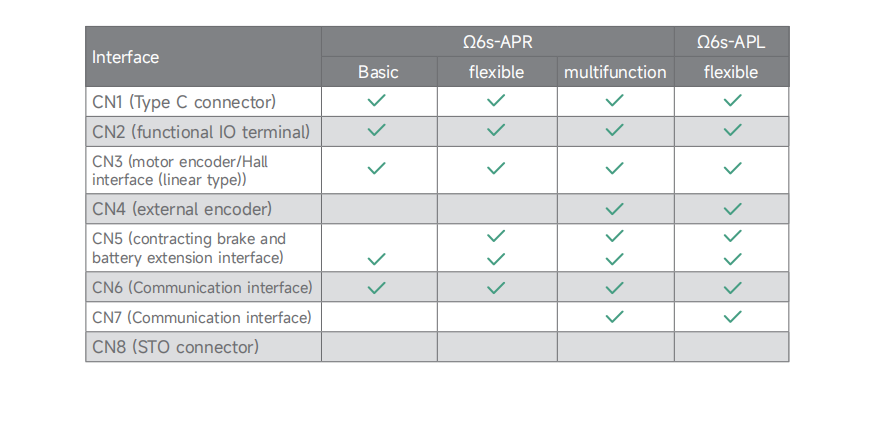

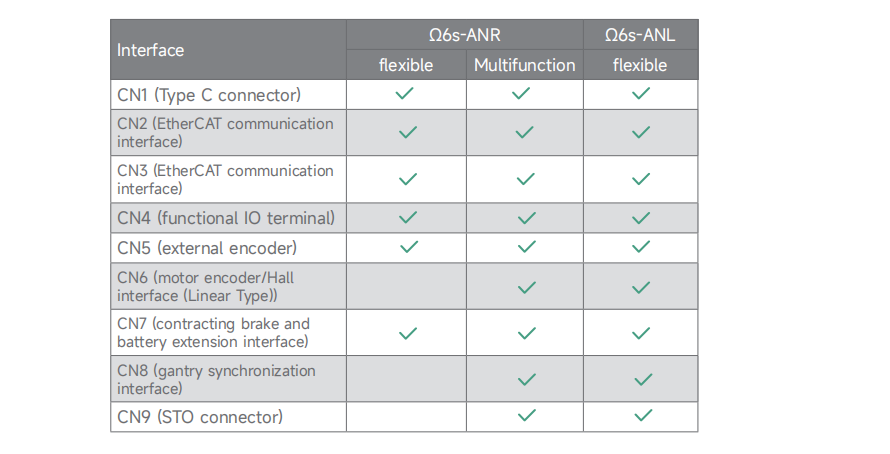

The product series is divided into A series (high-performance general-purpose) & C series (economic), the communication mode mainly has pulse type and ETHERCAT bus type:
The main advantages are reflected in the following:
1, out-of-the-box, commissioning-free, saving 95% of commissioning time;
2、Strong power, can easily cope with 115% load rate continuous overload, 350% instantaneous overload;
3、One machine, one code (two-dimensional code recognition), easy to confirm product information;
4、Optional WIFI wireless monitoring, debugging and upgrading;
5, 16M pulse control interface, control accuracy increased by 4 times;
6, 1us response high speed IO, easy to deal with flying shooting and needle control needs;
7, the main road 16bit analog control, can distinguish 3mv voltage changes, control accuracy increased 16 times;

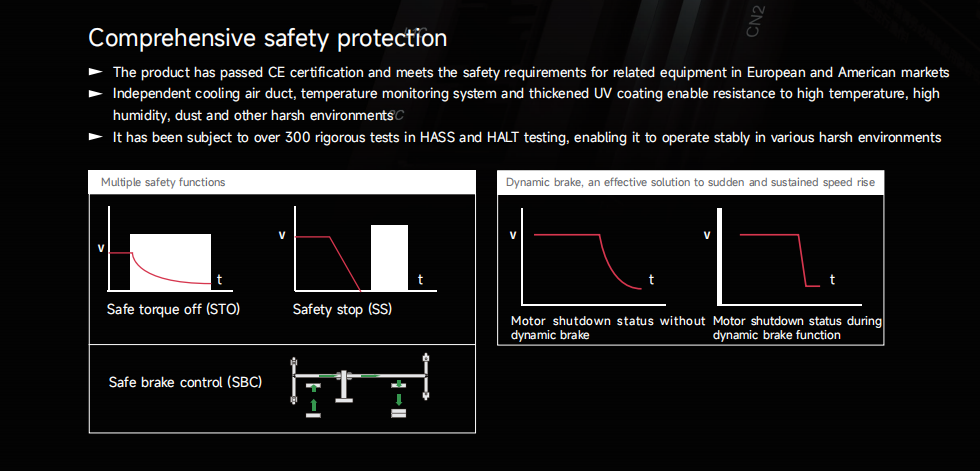

8、Multiple safety functions, safety torque off STO, safety emergency stop SS, safety brake SBC, dynamic braking, effectively solve the flying car;

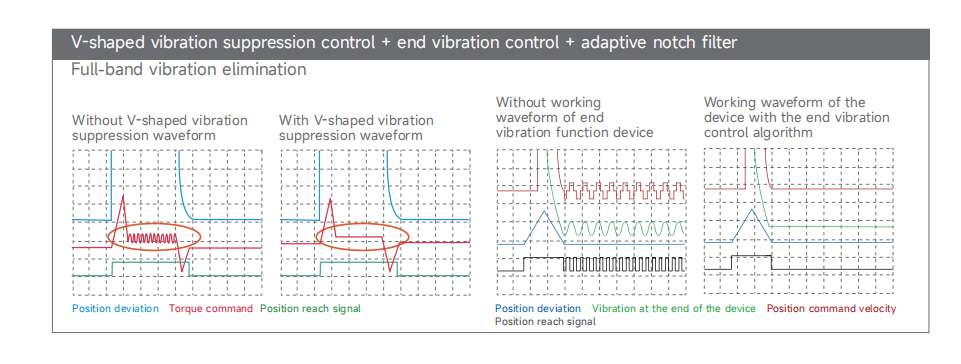

9、V-type suppression control + end vibration control + adaptive trap filter ......
10、Products through the CE certification requirements, in line with the European and American markets related to equipment safety requirements
11、Independent cooling ducts + temperature monitoring system + thickened UV coating, able to resist high temperature, high humidity, dust and other harsh environments.
12. Passed more than 300 severe tests in HASS and HALT experiments, and still operates stably in the face of many harsh environments.
