42ST Economic integration DC servo motor

Short Description:

All DC motors can be customized.


Product Detail

Product Tags

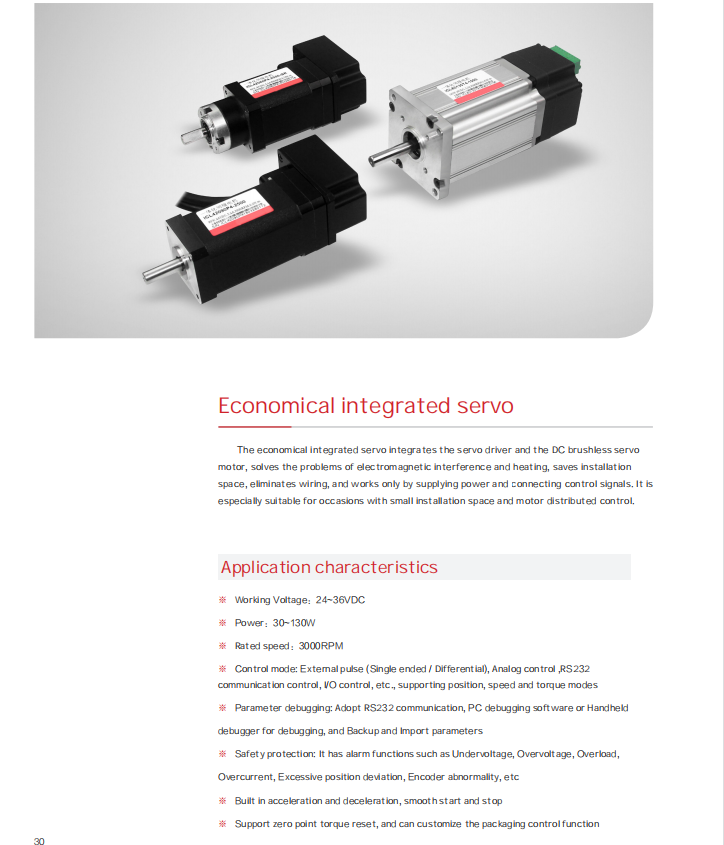

1、Economical integrated servo
The economical integrated servo integrates the servo driver and the DC brushless servo motor, solves the problems of electromagnetic interference and heating, saves installation space, eliminates wiring, and works only by supplying power and connecting control signals. It is especially suitable for occasions with small installation space and motor distributed control.
2、Application characteristics

※ Working Voltage:24~36VDC
※ Power:30~130W
※ Rated speed:3000RPM

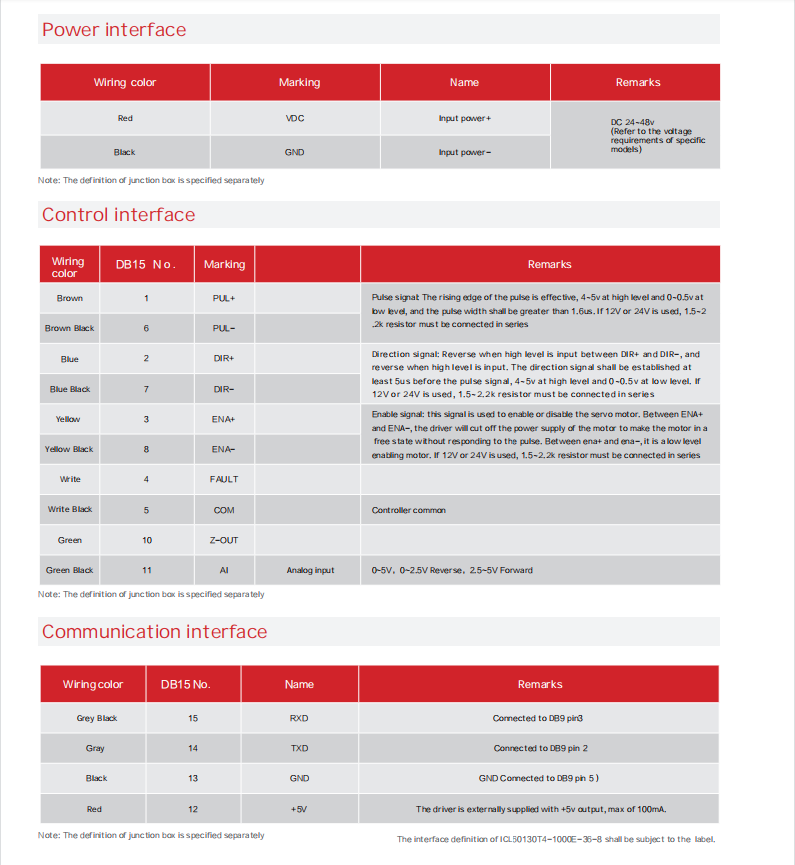

※ Control mode: External pulse (Single ended / Differential), Analog control ,RS232  communication control, I/O control, etc., supporting position, speed and torque modes
※ Parameter debugging: Adopt RS232 communication, PC debugging software or Handheld  debugger for debugging, and Backup and Import parameters
※ Safety protection: It has alarm functions such as Undervoltage, Overvoltage, Overload, Overcurrent, Excessive position deviation, Encoder abnormality, etc
※ Built in acceleration and deceleration, smooth start and stop
※ Support zero point torque reset, and can customize the packaging control function
※ Tracking Error:±1Pulse
※ Speed control accuracy:±1RPM
※ Upper limit of received pulse:1MHZ
※ Minimum speed:1RPM
※ Maximum no-load acceleration:200RPM/ms
※ Positioning accuracy:1/4000(1000),1/10000(2500)

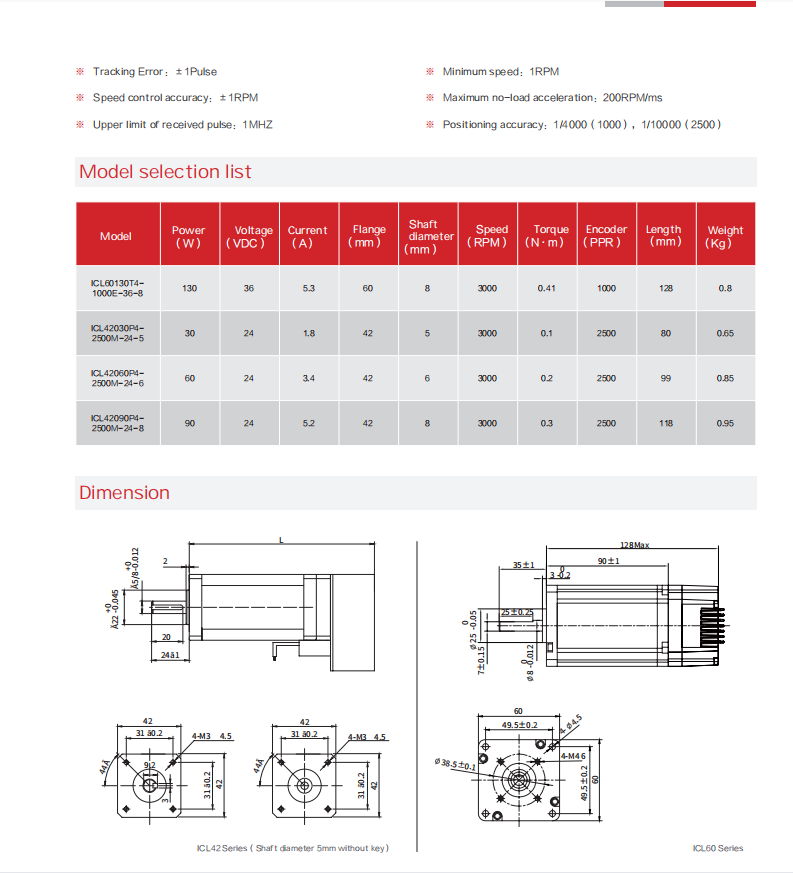

Product series:
Economic integration DC servo motor
Frame size -mm :42.60
Rated torque -NM: 0.1-0.41
Rated power -Kw:0.09-0.13
Rated speed -RPM:3000
Voltage-V: 24-36
Encoder-PPR:1000-2500
Diameter of axle:5-8

LCL42030P4-2500M-24-5   30W  24V  1.8A  5MM  3000RPM  0.1NM  2500PPR

LCL42060P4-2500M-24-6    60W  24V  3.4A  6MM  3000RPM  0.2NM  2500PPR

LCL42090P4-2500M-24-8    90W  24V  5.2A  8MM  3000RPM  0.3NM  2500PPR

All DC motors can be customized.

91011
