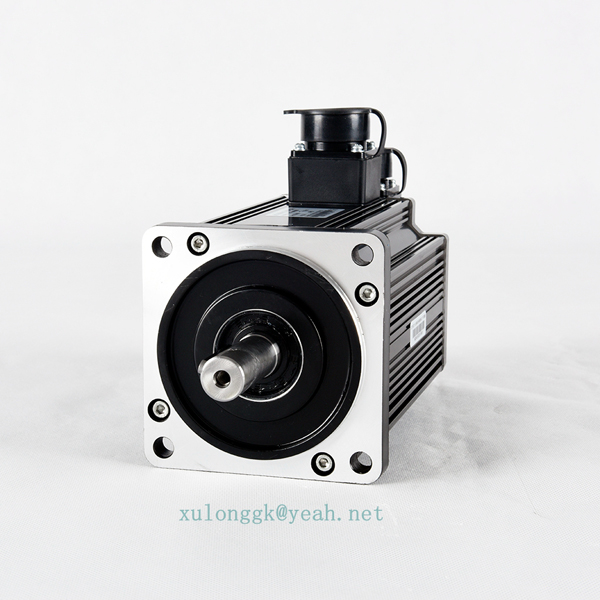

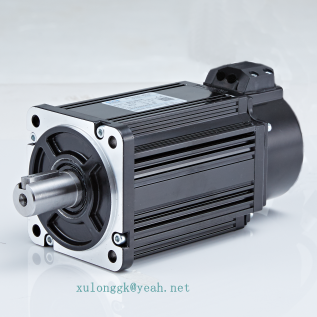

2019 Latest Design Servo Motor For Deep Hole Drilling Machine - 110ST Flange servo motor 0.6-1.8kw(2) – Xulong

Introduction of Hxdwh AC servo motor:

1. Hxdwh is the first factory specializing in the production of AC servo motor in China, with more than 30 years of R & D and production history of servo motor;

2. Complete product specifications, motor power from 0.2KW to 11.7kw (220v-380v);

3. Stable quality, excellent performance and high cost performance. The products are widely used in various occasions of motion control.

Product series:

LB Series ac servo motor

Frame size-mm: 80.110.130.150

Rated torque -NM:1.3-27

Rated power-Kw:0.4-5.5

Rated speed -RPM :1500.2000.2500.3000

Maximum speed-RPM : /

number of pole-pairs: 4

The feedback element: Incremental Encoder 2500C/T

Electric brake: can match

Fit drive working voltage -VAC: 220

LBB Series ac servo motors

Frame size-mm: 80,110,?130,?150

Rated torque-NM:1.3-27

Rated power-Kw:0.4-5.5

Rated speed-RPM:1500.2000.2500.3000

Maximum speed-RPM:/

number of pole-pairs: 4

The feedback element:Absolute photoelectric encoder  17bit

Electric brake: can match

Fit drive working voltage -VAC:220

Motor type:

220V LB Series ac servo motor- 2500C/T incremental encoder

110ST-M02030LFB 220V 0.6KW 4A 2.0NM 3000RPM

110ST-M04030LFB 220V 1.2KW 5A 4.0NM 3000RPM

110ST-M05030LFB 220V 1.5KW 6A 5.0NM 3000RPM

110ST-M06020LFB 220V 1.2KW 6A 6.0NM 2000RPM

110ST-M06030LFB 220V 1.8KW 8A 6.0NM 3000RPM

220V LBB Series ac servo motor- 17bit absolute value encoder

110ST-M02030LMBB 220V 0.6KW 4A 2.0NM 3000RPM

110ST-M04030LMBB 220V 1.2KW 5A 4.0NM 3000RPM

110ST-M05030LMBB 220V 1.5KW 6A 5.0NM 3000RPM

110ST-M06020LMBB 220V 1.2KW 6A 6.0NM 2000RPM

110ST-M06030LMBB 220V 1.8KW 8A 6.0NM 3000RPM

Application of servo motor:

Servo motor for rewinder

Servo motor for winder

Servo motor for machining center

Servo motor for printing machine

Servo motor for amusement equipment
