G-3-1 42 series two-phase stepping motor

Stepper motor model

Phase

Step angle
（°）

Holding torque
（NM)

Rated current
(A)

Phase inductance
(mH)

Phase resistance
(Ohm)

Number

Rotor inertia
(g.cm²)

Shaft diameter
(mm)

Motor weight
(kg)

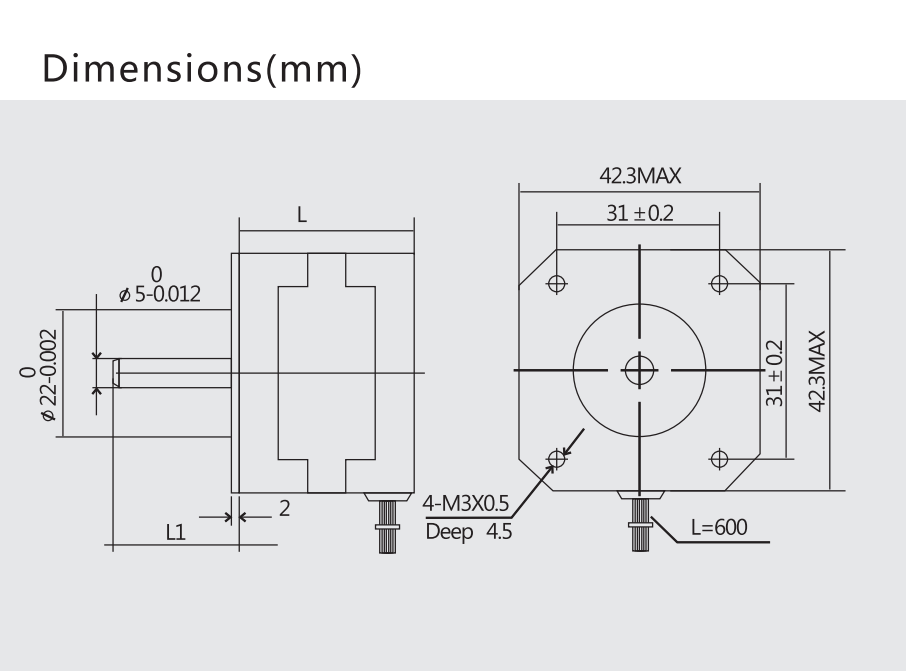

Fuselage length
L(mm)

Axis length
L1(mm)

35BG26

2

1.8

0.07

0.4

16

35

4

12

5

0.14

26

20

39BG34

2

1.8

0.22

0.6

16

15

4

20

5

0.2

34

20

42BG40

2

1.8

0.22

1.2

5.5

2.5

4

57

5

0.24

40

24

42BG48

2

1.8

0.48

1.5

5

2.6

4

82

5

0.34

48

24

42BG60

2

1.8

0.72

2

4.8

2

4

114

5

0.5

60

24
