G-2-1 Closed loop stepping driver 2LS556A

Short Description:


Product Detail

Product Tags

Based on the platform of 32-bit ARM processing chip, the magnetic field orientation and high-speed flux-weakening algorithm in the servo driver are designed to achieve excellent performance.

The built-in vector control design and servo demodulation function of the driver, combined with the feedback of the closed-loop motor encoder, make the stepping servo system have the features of low noise, low heating, no lost steps and higher application speed , and can improve the intelligent equipment system p . rformance in all directions.

 ·Pulse mode:single pulse/CW/CCW pulse

 ·Signal level:5V/24V separate wiring,simple and practical,strong anti-interference ability.

Typical applications: lock screw machine, servo dispensing machine, stripping machine, labeling machine medical detector, electronic assembly equipment, etc. The application effect is particularly good in a device where the user desires high rotation speed and high torque.

List of closed-loop stepping drive and motor

Step motor flange

Stepper motor model

Rated torque NM

Encoder line specification

Step drive model

42

42BG04-EC

0.48

3M

2LS556A-42

42

42BG06-EC

0.72

3M

2LS556A-42

57

57BG10-EC

1

3M

2LS556A

57

57BG20-EC

2

3M

2LS556A

60

60BG30-EC

3

3M

2LS556A

86

86BG40-EC

4

3M

2LS860H

86

86BG80-EC

8

3M

2LS860H

86

86BG120-EC

12

3M

2LS860H

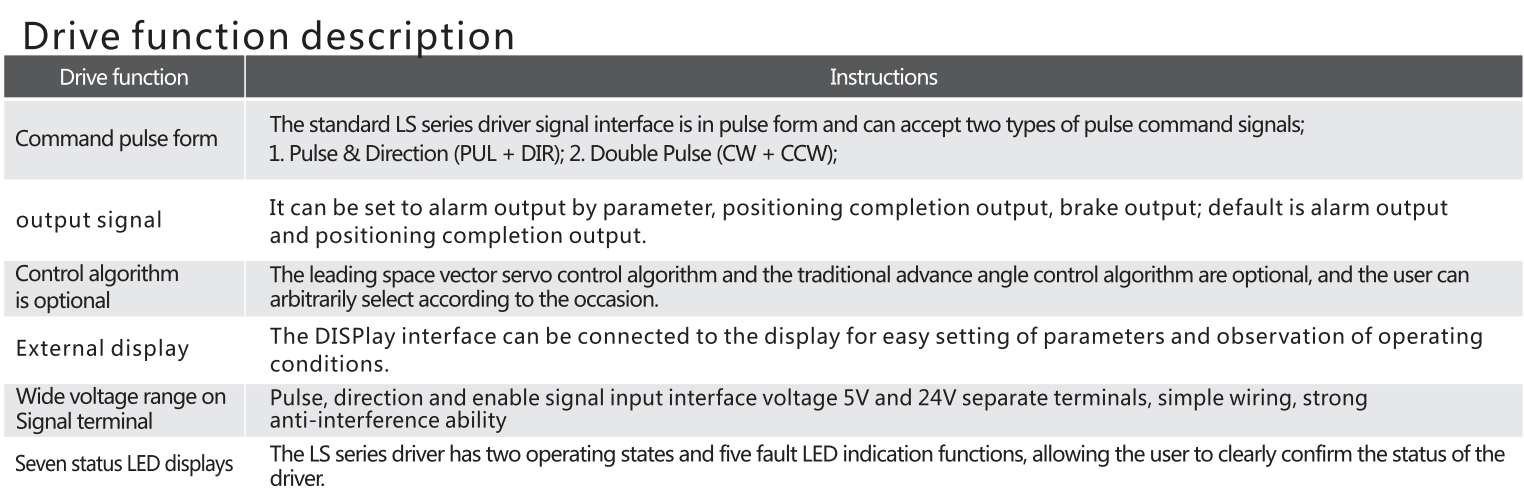

G-2-1 Closed loop stepping drive function description

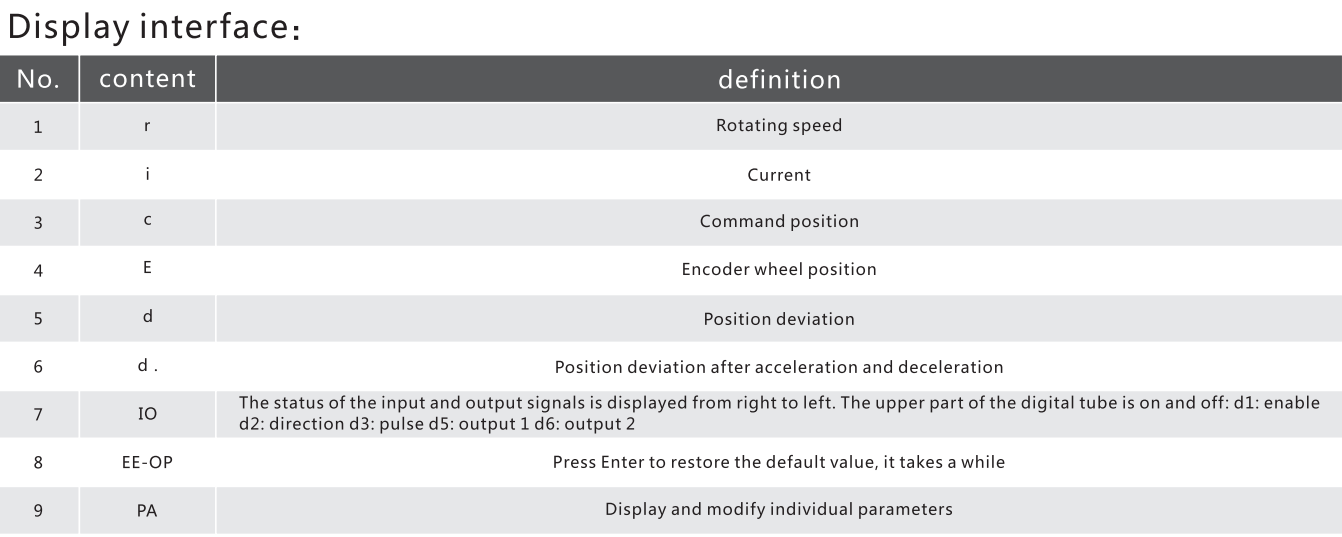

G-2-6 Closed loop stepping drive Display interface

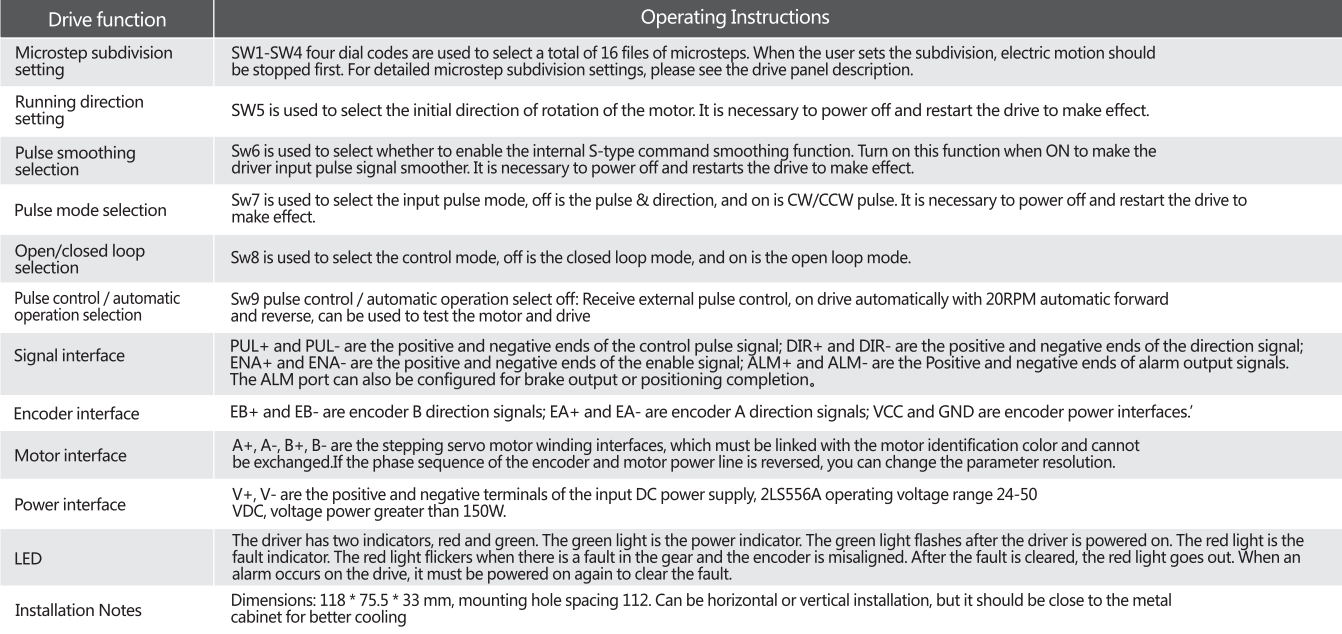

G-2-8 Closed loop stepping drive 2LS556A function description

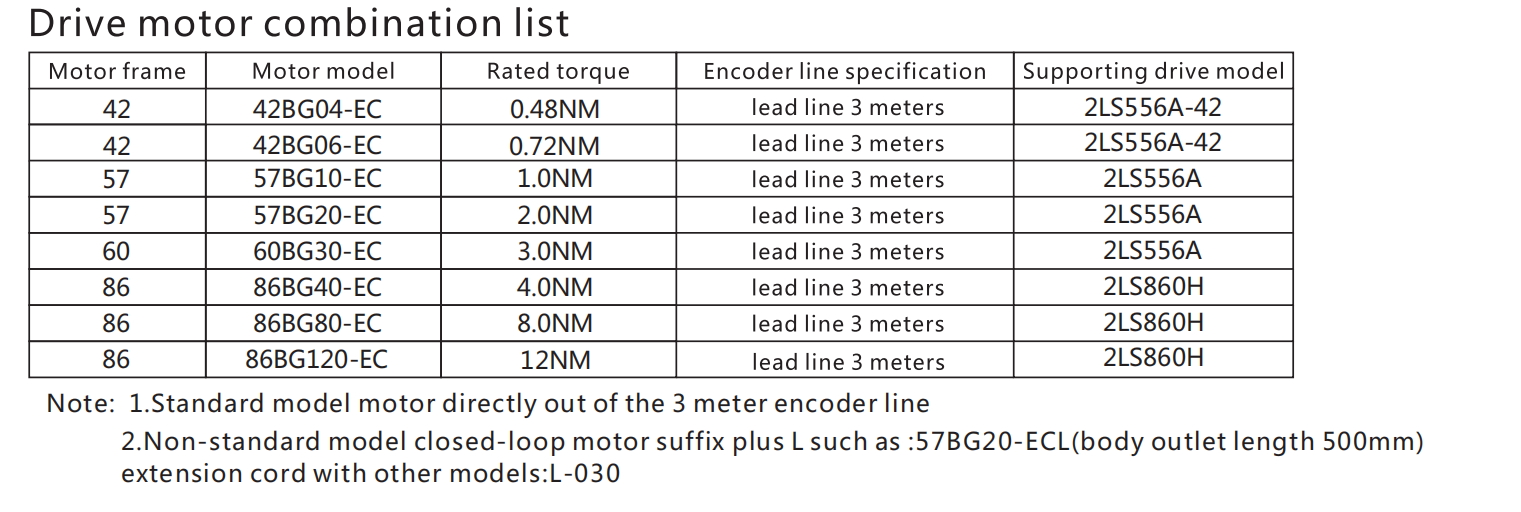

G-2-2 Closed loop stepping drive motor combination list

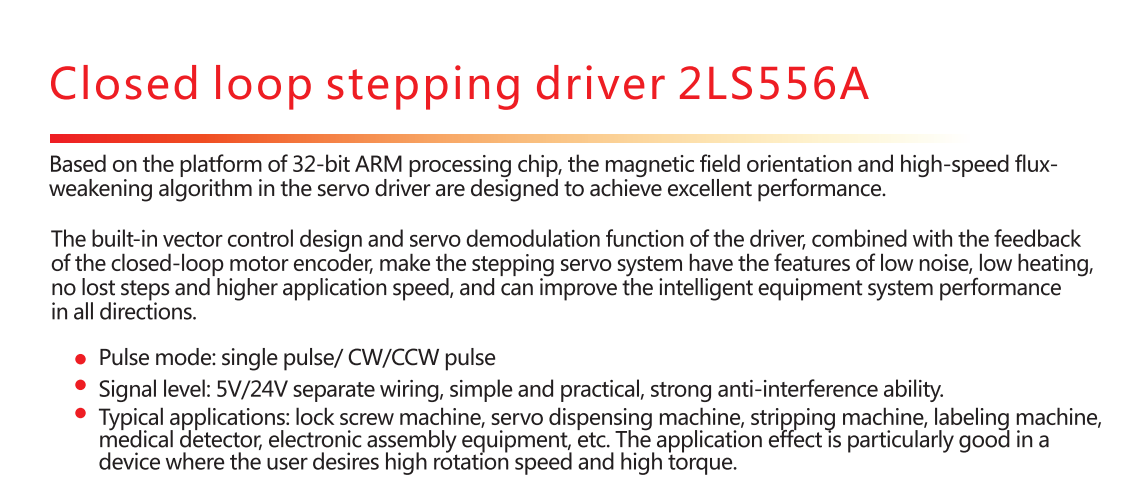

G-2-7 Closed loop stepping drive 2LS556A

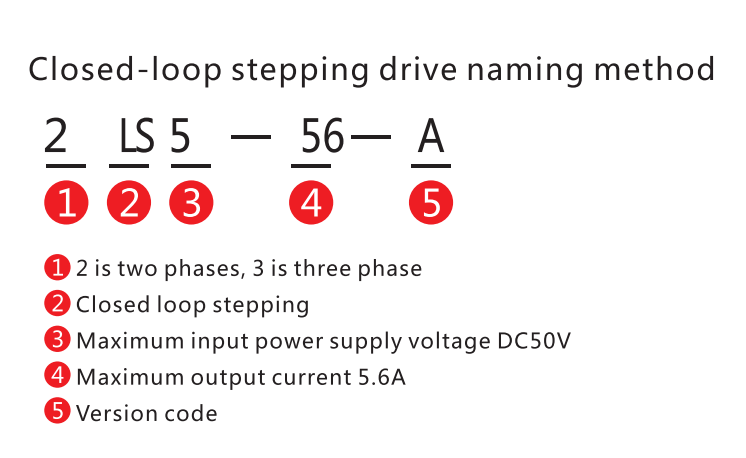

G-2-3 Closed loop stepping drive naming method

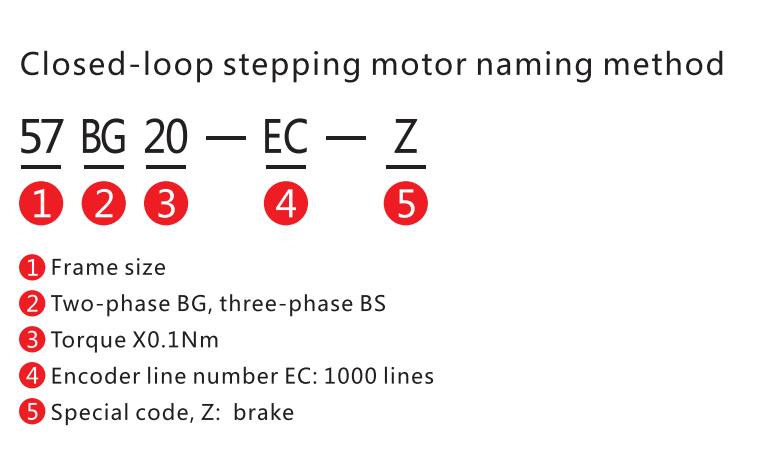

G-2-4 Closed loop stepping drive naming method

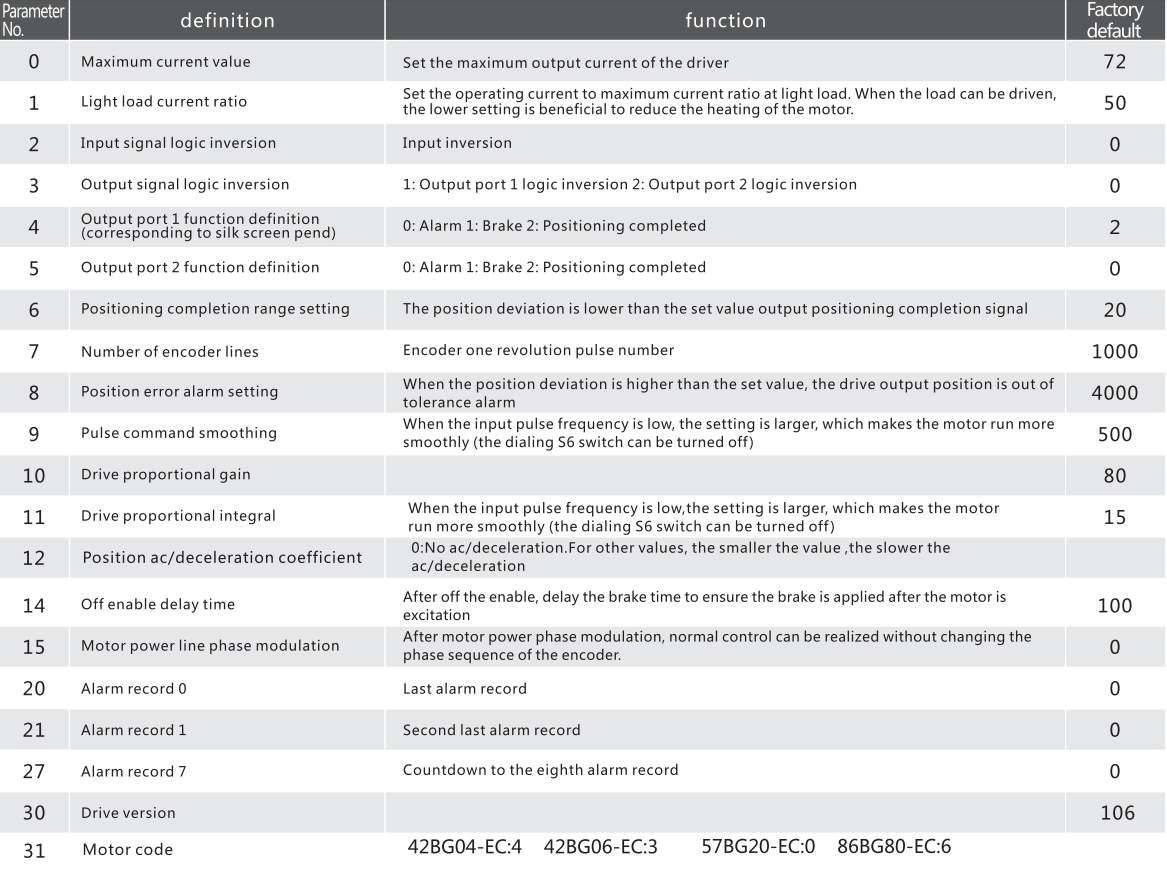

G-2-5 Closed loop stepping drive parameter list

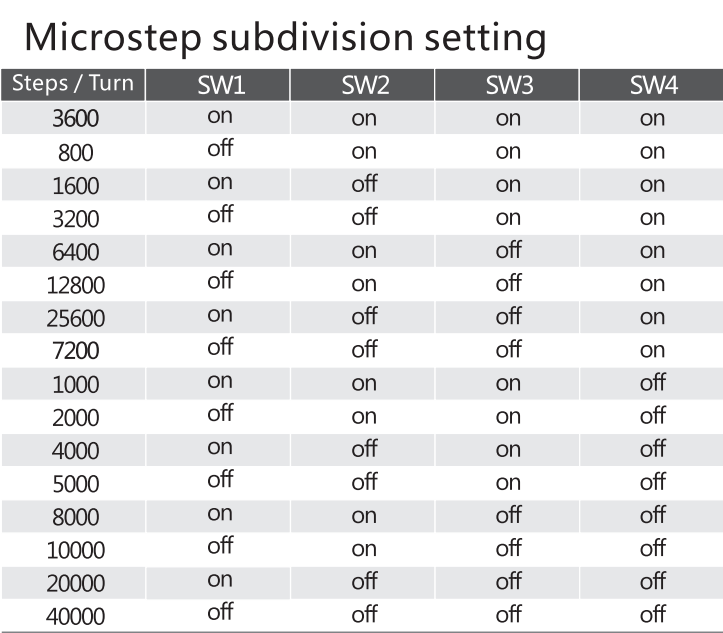

G-2-10 Closed loop stepping drive 2LS556A Microstep subdivision setting

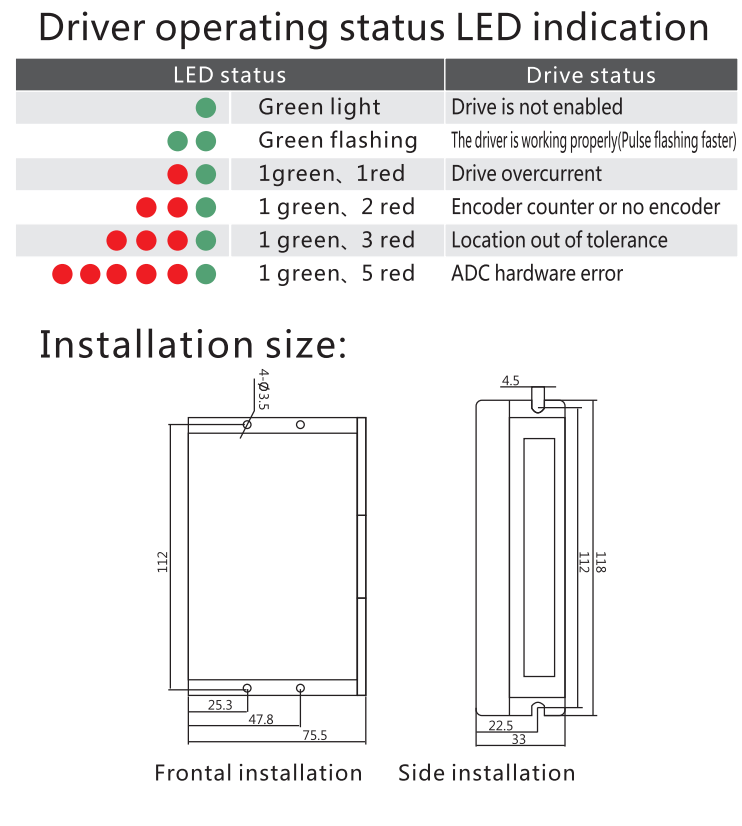

G-2-9 Closed loop stepping drive 2LS556A operating status LED indication
