Digital AC Motor Brake
Short Description:

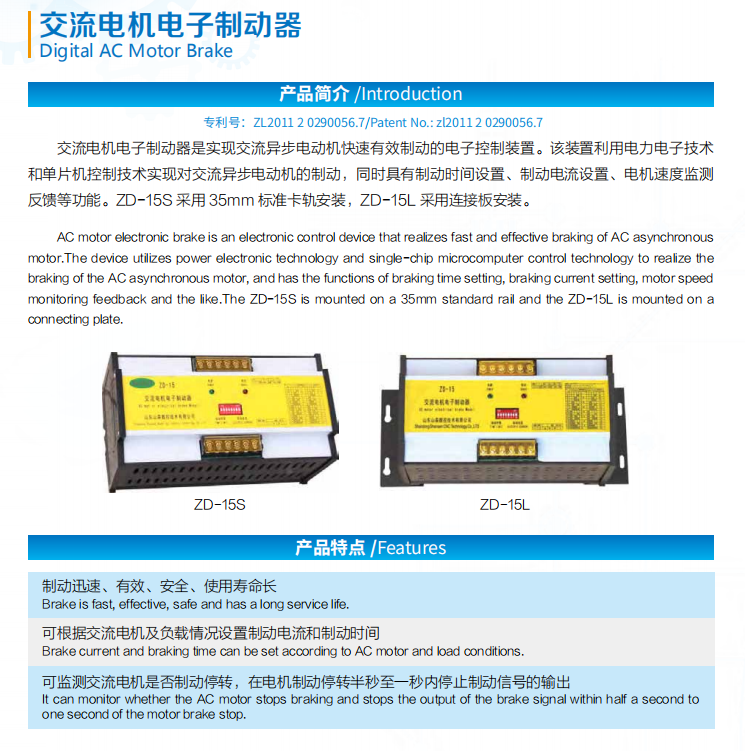

The device uses power electronics technology and single chip microcomputer control technology to brake AC asynchronous motor, and has the functions of setting braking time, setting braking current, monitoring and feedback of motor speed, etc.
Digital AC Motor Brake
- Product model：ZD-15S
- Product size：120*220mm
Product features:
● Brake current and brake time can be set according to AC motor and load.
● It can monitor whether the AC motor stops braking, and stop braking within half a second to one second after the motor stops braking. Output of dynamic signal.
● Easy to connect with the main circuit of AC motor, suitable for single speed, multi-speed, star connection and corner connection, and can be interlocked with the control circuit to ensure safe and reliable operation.
● For users, compared with the traditional braking device, using this device has the advantages of low cost and installation. Convenient, quick braking, long service life, etc.

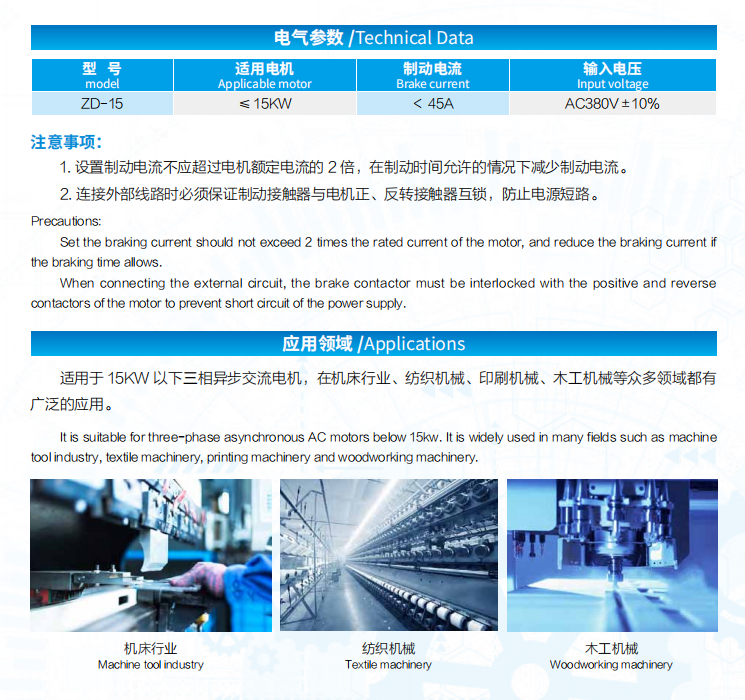

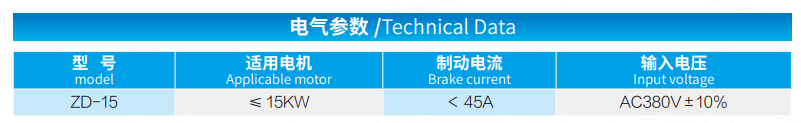

Technical Data:
Precautions:
◆ Set the braking current should not exceed 2 times the rated current of the motor, and reduce the braking current if the braking time allows.
◆ When connecting the external circuit, the brake contactor must be interlocked with the positive and reverse contactors of the motor to prevent short circuit of the power supply.

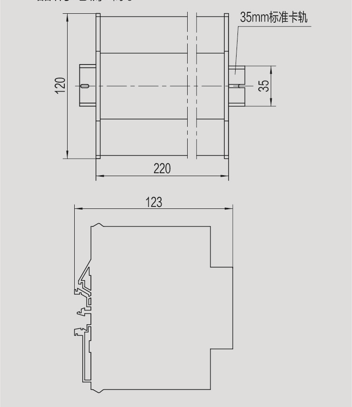

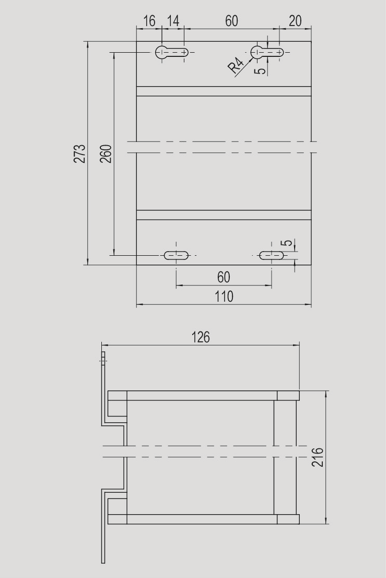

Installation dimensions and instructions:
This device is installed with a 35mm clamping rail, and the ground wire is firmly connected. The input power supply end should be connected with a two-phase air switch before being connected to the power supply end of this brake.
Installation dimensions and instructions of ZD-15S ZD-15L Installation Dimensions and Instructions
